RUSH Tank II Ultimate 5.8G 800mW VTX
RUSH Tank II Ultimate 5.8G 800mW VTX
Brand: RUSH
sku: SKU:DA04-2
Out of stockCouldn't load pickup availability
- Description
The RUSH Tank II Ultimate 5.8GHz VTX is a high-performance FPV video transmitter engineered for racing and freestyle drones. It delivers stable, interference-free video with adjustable output power up to 800 mW, making it ideal for multi-pilot races and intense flight sessions. Designed for reliability, the Tank II features advanced LOCK-ON technology, intuitive LED indicators, and a robust metal case with high heat dissipation.
With TBS SmartAudio protocol support, pilots can adjust channels and power levels via OSD or the dual RGB buttons on the VTX. The PIT mode allows safe start-up without disturbing nearby pilots, while the built-in power LUT ensures consistent output across all frequencies, giving each pilot a fair and stable signal during multi-drone flights.
Key Features
- Adjustable output power: PIT / 25mW / 200mW / 500mW / 800mW
- LOCK-ON technology: Eliminates frequency drift, consistent performance across all bands
- SmartAudio support for OSD configuration via RGB buttons

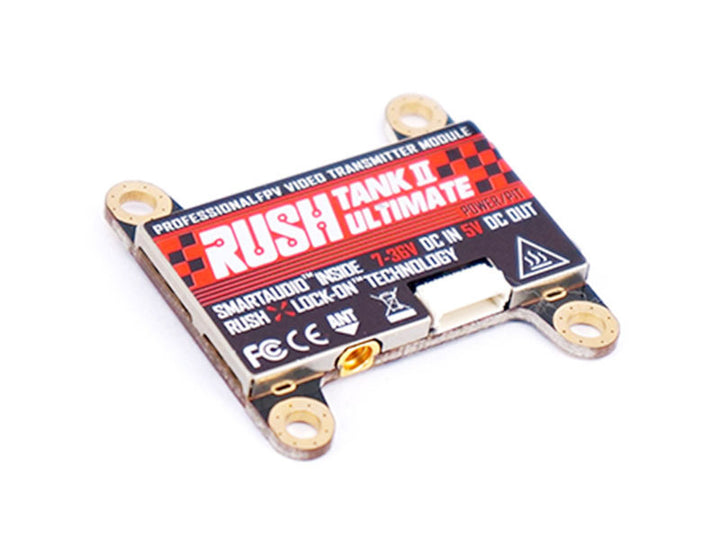

- Tank Armor: Fully covered metal case with 6-layer PCB for ultra-high heat dissipation and protection
- Side LED indicators for intuitive status reading
- Quiet setting: No interfering signals during VTX switching
- PIT Mode for safe power-up during races
- Audio input support
- Simple installation and intuitive operation
Specifications
- Model: Rush Tank II Ultimate
- Frequency: 5.8 GHz
- Channels: 48CH

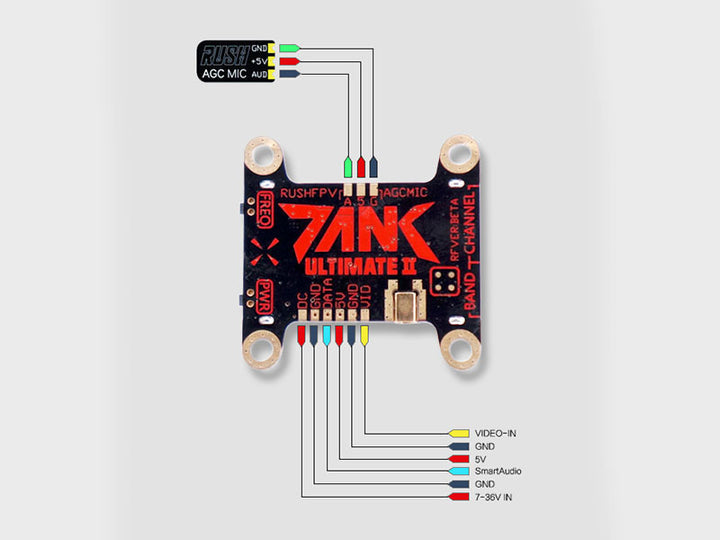

- Input Voltage: 7-36V DC
- Output Voltage: 5V / 1A
- Output Power: PIT / 25mW / 200mW / 500mW / 800mW
Current Consumption (12V Input)
- Pit Mode: 40 mA
- 25 mW: 95 mA
- 200 mW: 185 mA
- 500 mW: 250 mA
- 800 mW: 380 mA
- Dimensions: 36 × 36 × 4.5 mm
- Weight: 6.8 g (including cable)

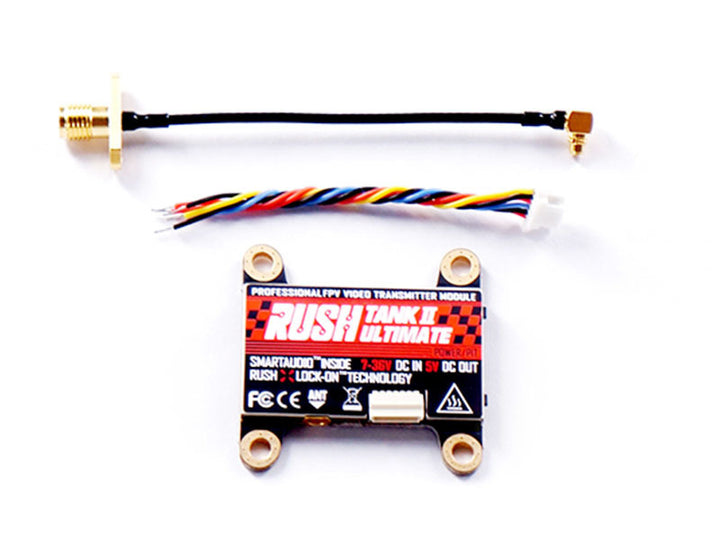

Package Includes
- 1 × RUSH Tank II Ultimate VTX
- 1 × MMCX to SMA cable
- 1 × 6-pin harness
