    VTX Pilotix R2500 SE 5.8G 2.5W

    VTX Pilotix R2500 SE 5.8G 2.5W

    Brand: Pilotix

    €72,60
    €72,60 €72,60
    -0% View Product

    sku: 4279

    Out of stock
    We need to check the product availability with our supplier. Please contact us for details.
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

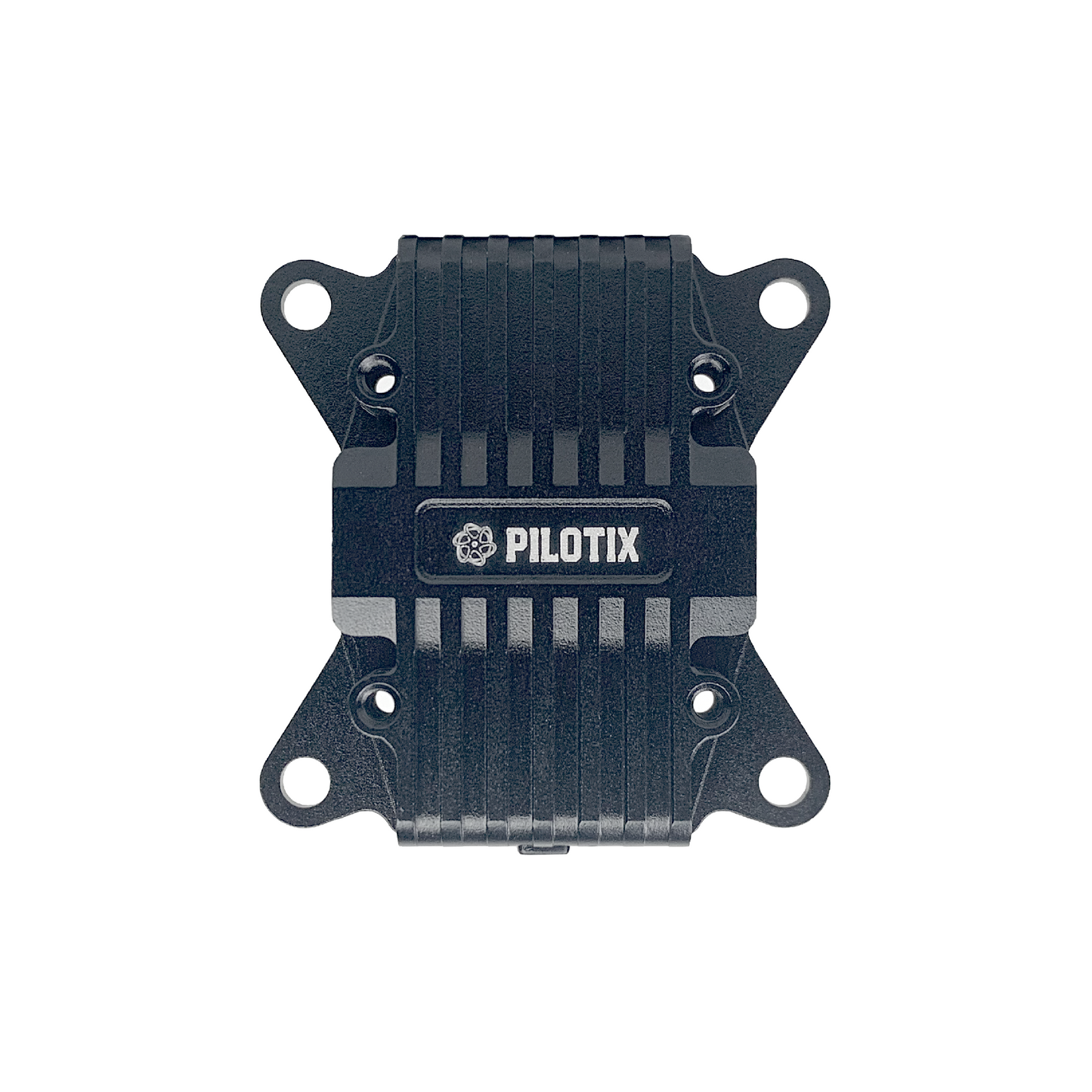

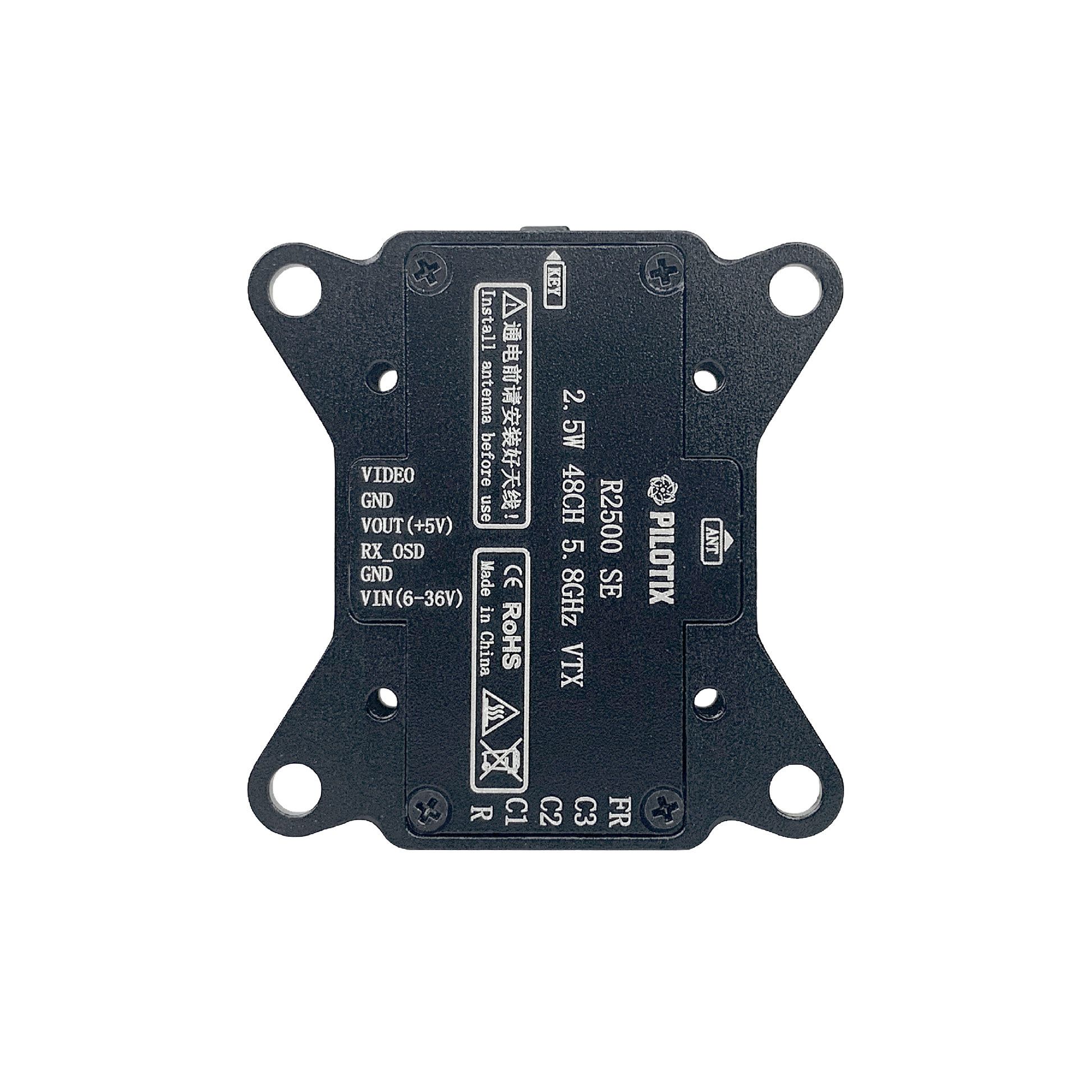

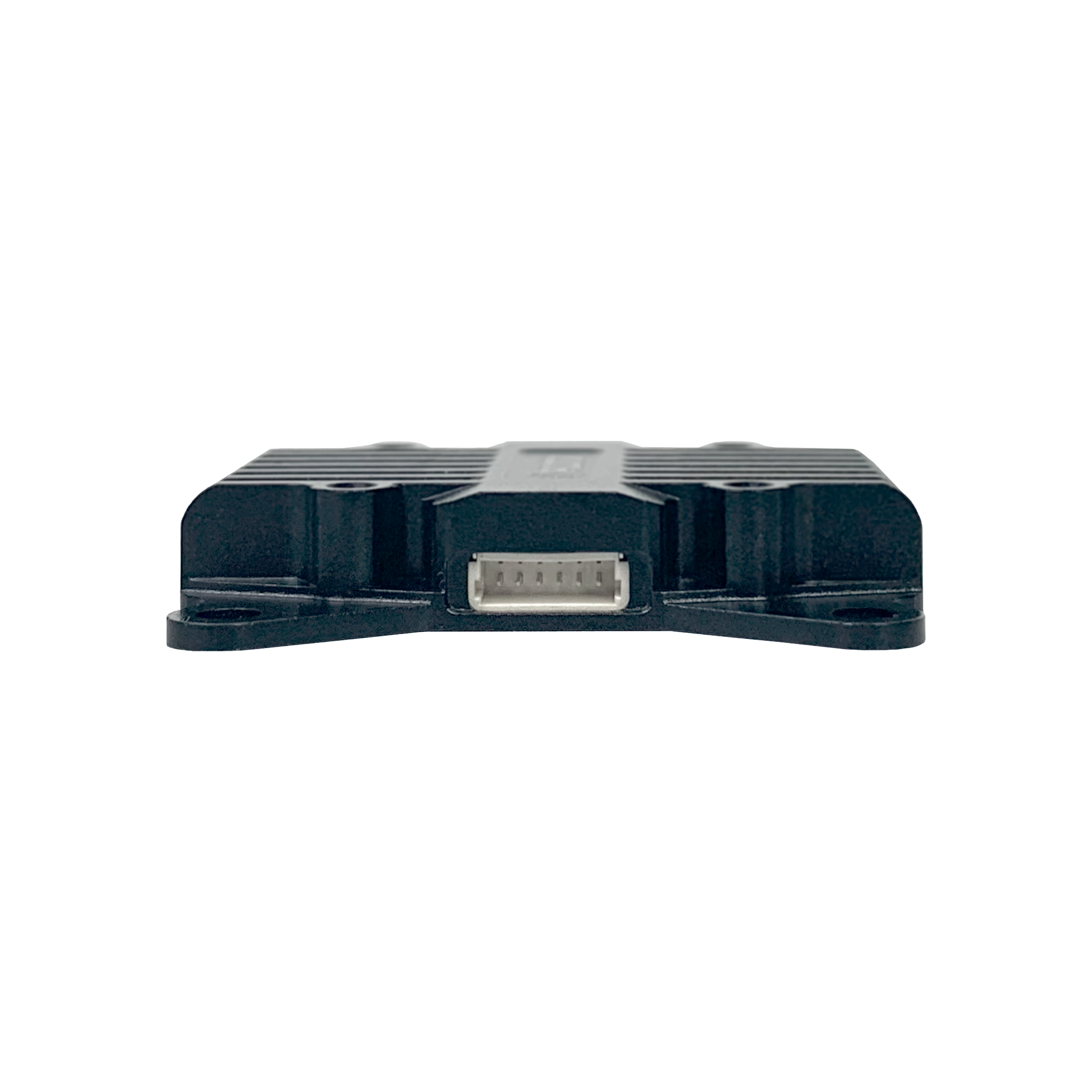

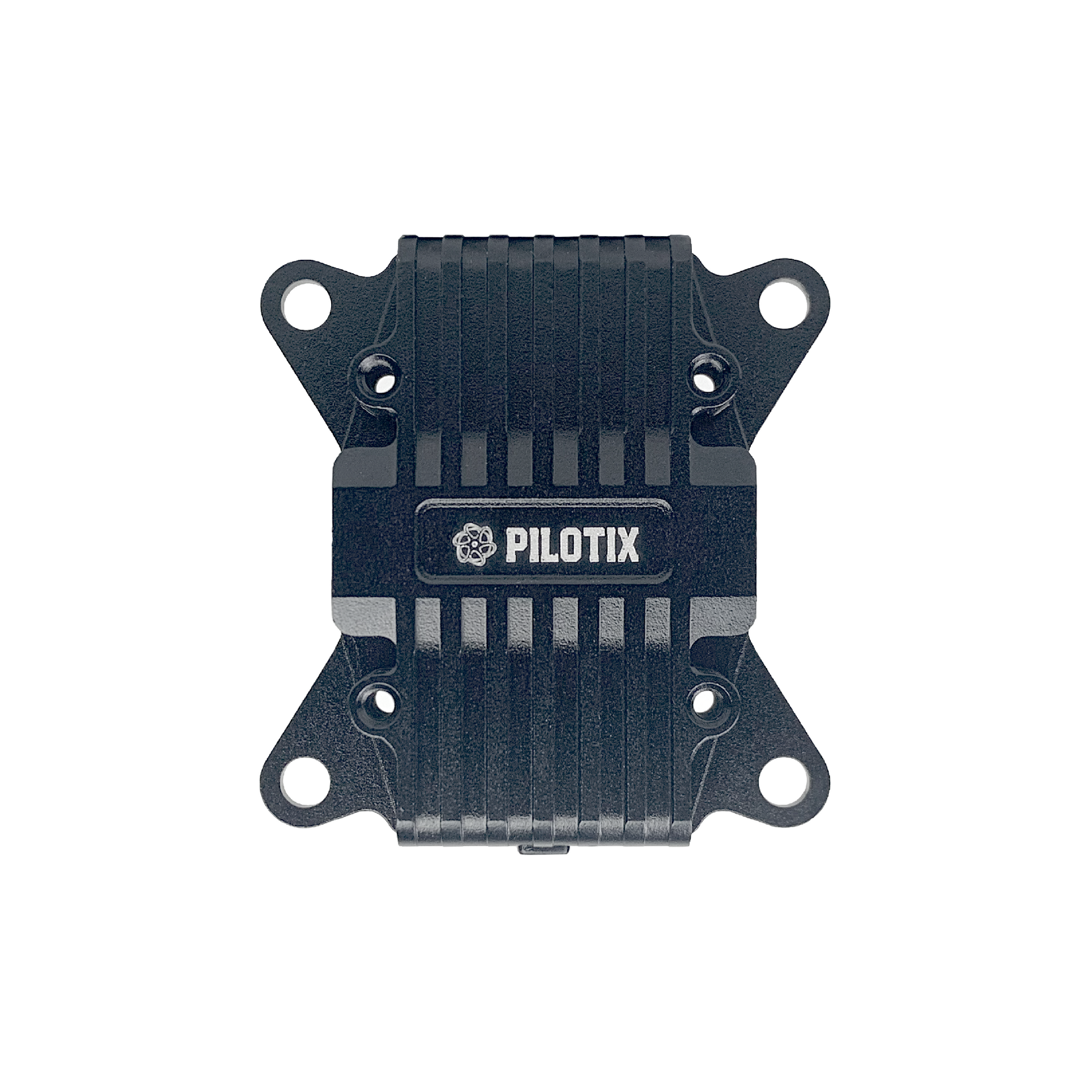

    The Pilotix R2500 SE 5.8GHz 2.5W VTX is a high-performance FPV video transmitter built for racing and long-distance drone flights. It delivers stable video transmission even in demanding environments, with adjustable power output up to 2.5W. Its compact and durable design, combined with dual mounting holes, ensures easy integration into a wide range of drones.

    Key Features

    • Output Power: 0 / 25 / 400 / 800 / 1500 / 2500 mW
    • Channels: 48CH (A, B, E, R, F, L)
    • Input Voltage: 6-36V DC
    • Mounting Holes: 30.5×30.5 mm & 20×20 mm

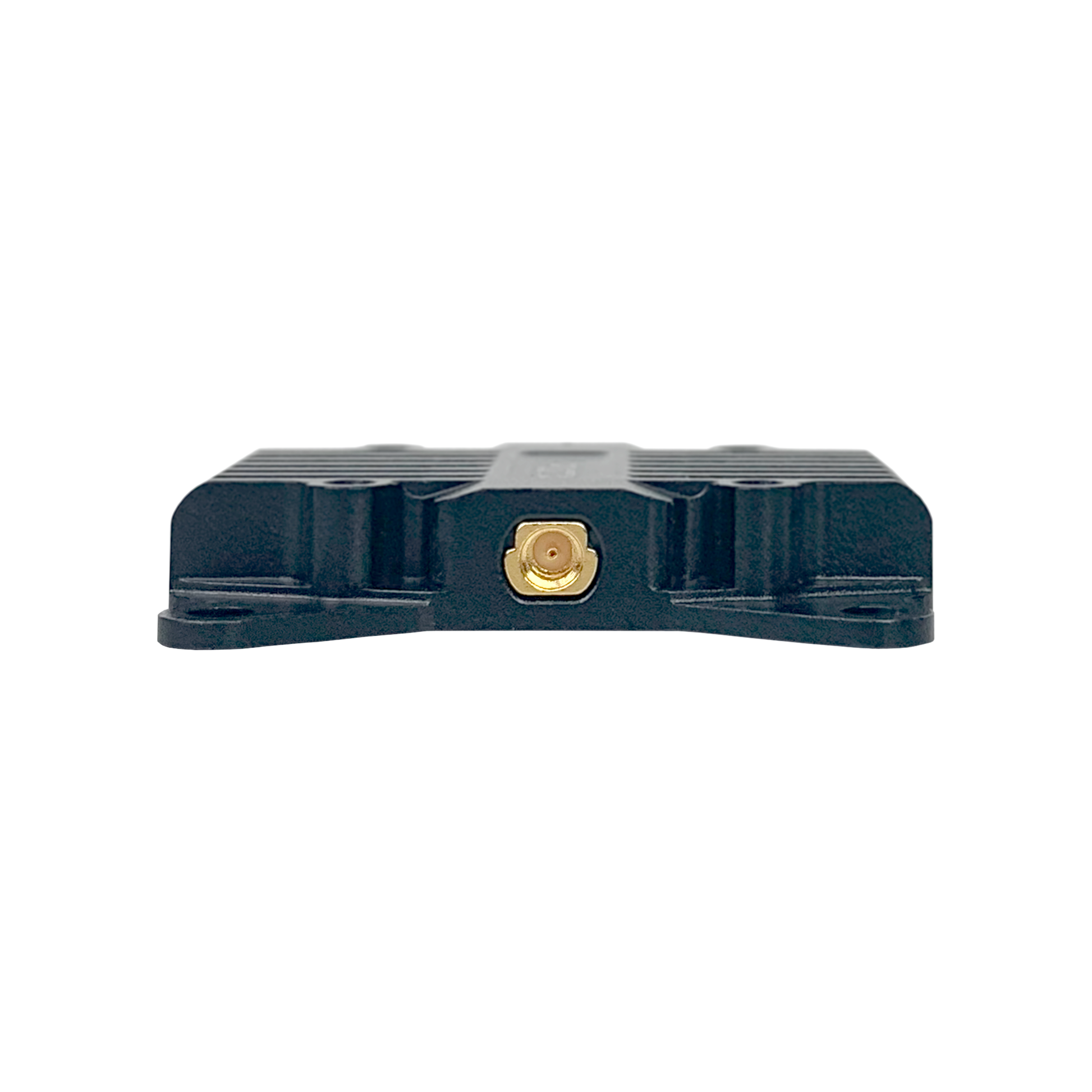

    • Antenna Connector: MMCX
    • Video Format: NTSC/PAL auto detection
    • Parameter Adjustment: Button or OSD
    • Dimensions: 38 × 36.5 × 7.2 mm
    • Weight: 11 g (without antenna and cable)

    Package Includes

    • 1 × Pilotix R2500 SE 5.8GHz 2.5W VTX

    Notes

    • Power self-test function ensures proper video output before flight.
    • Frequency lock feature prevents interference when powering on.
    • Adjustable power levels allow smooth switching for different flight conditions.
    • Compatible with Betaflight OSD for remote VTX control.
