    VTX GEPRC MATEN 5.8G 10W VTX PRO

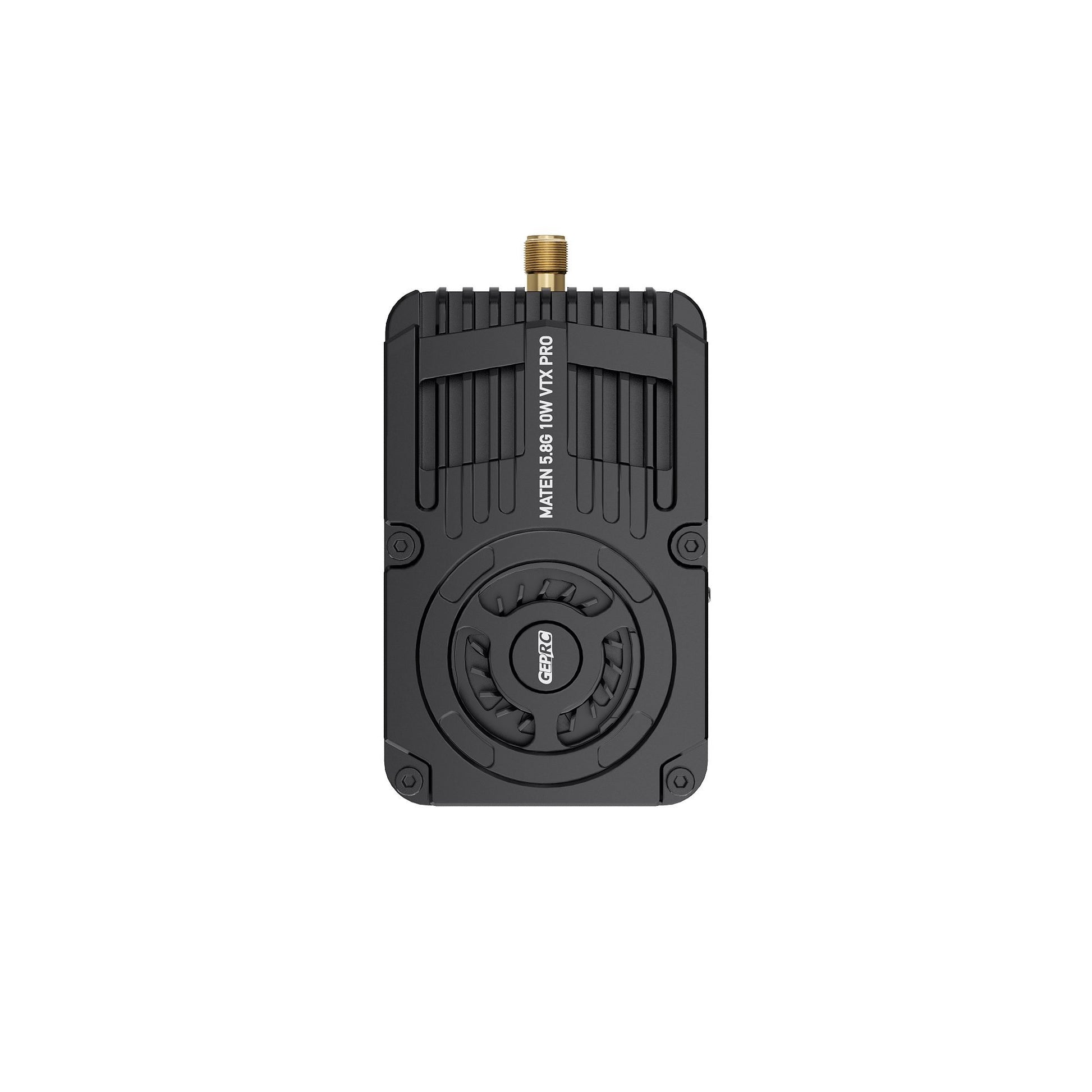

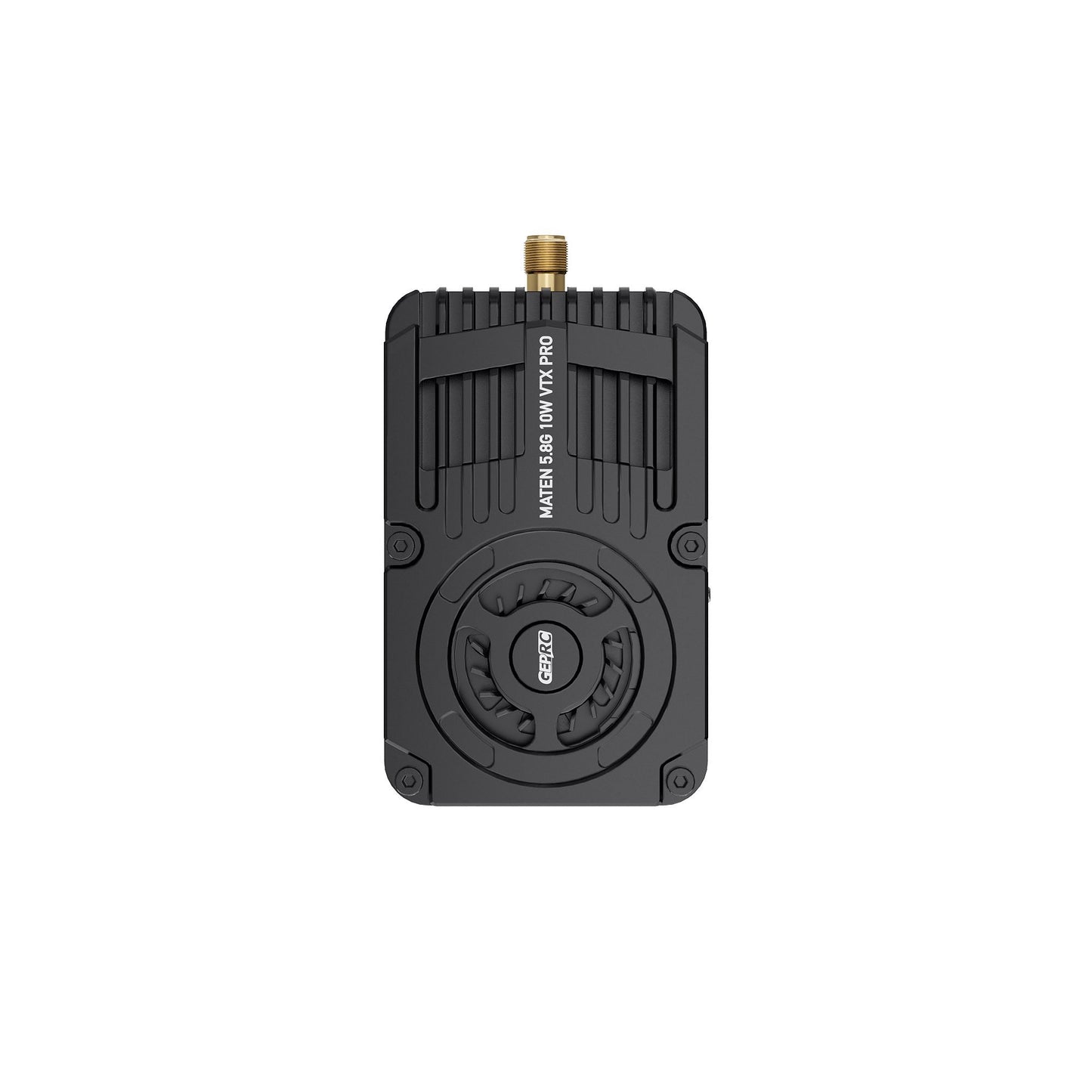

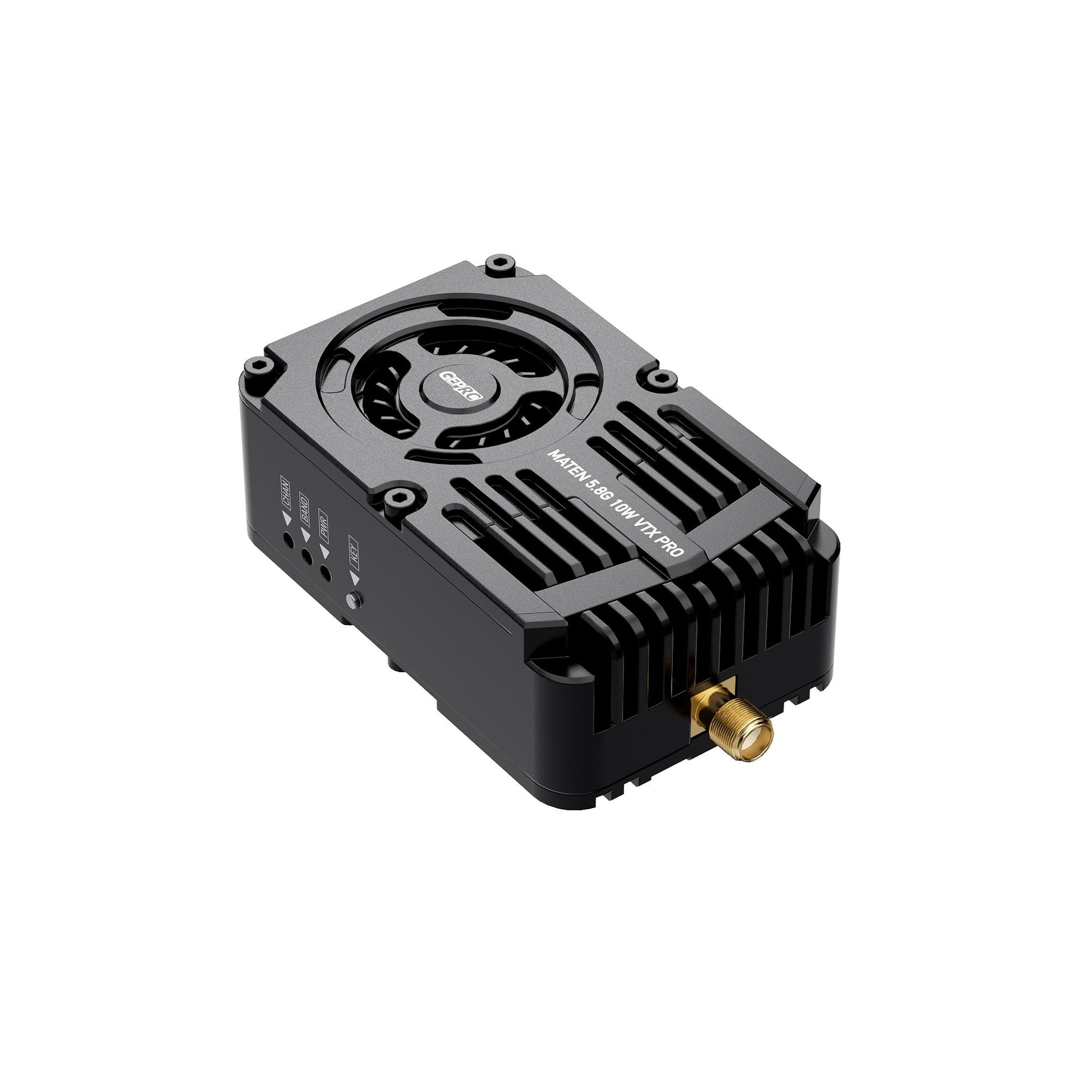

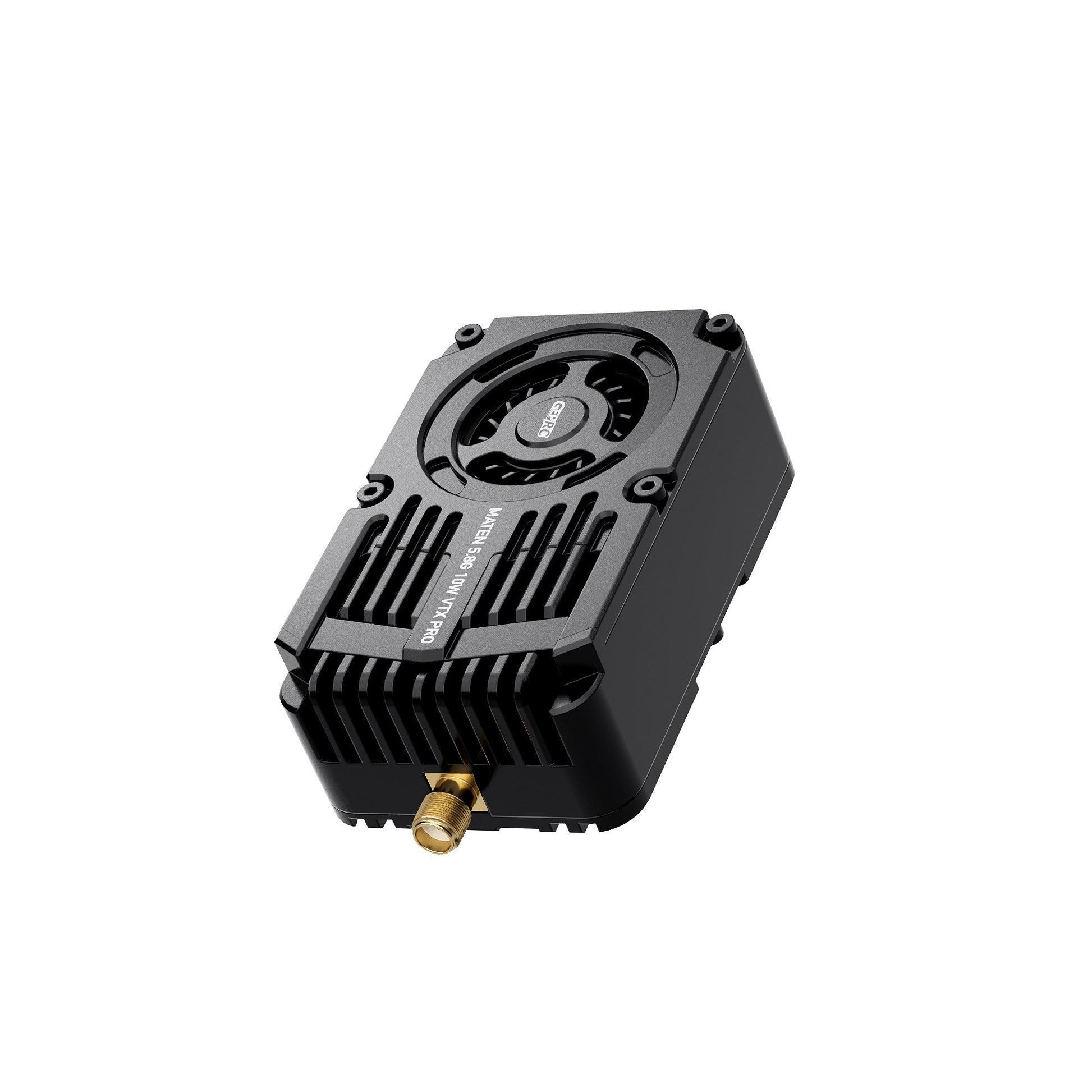

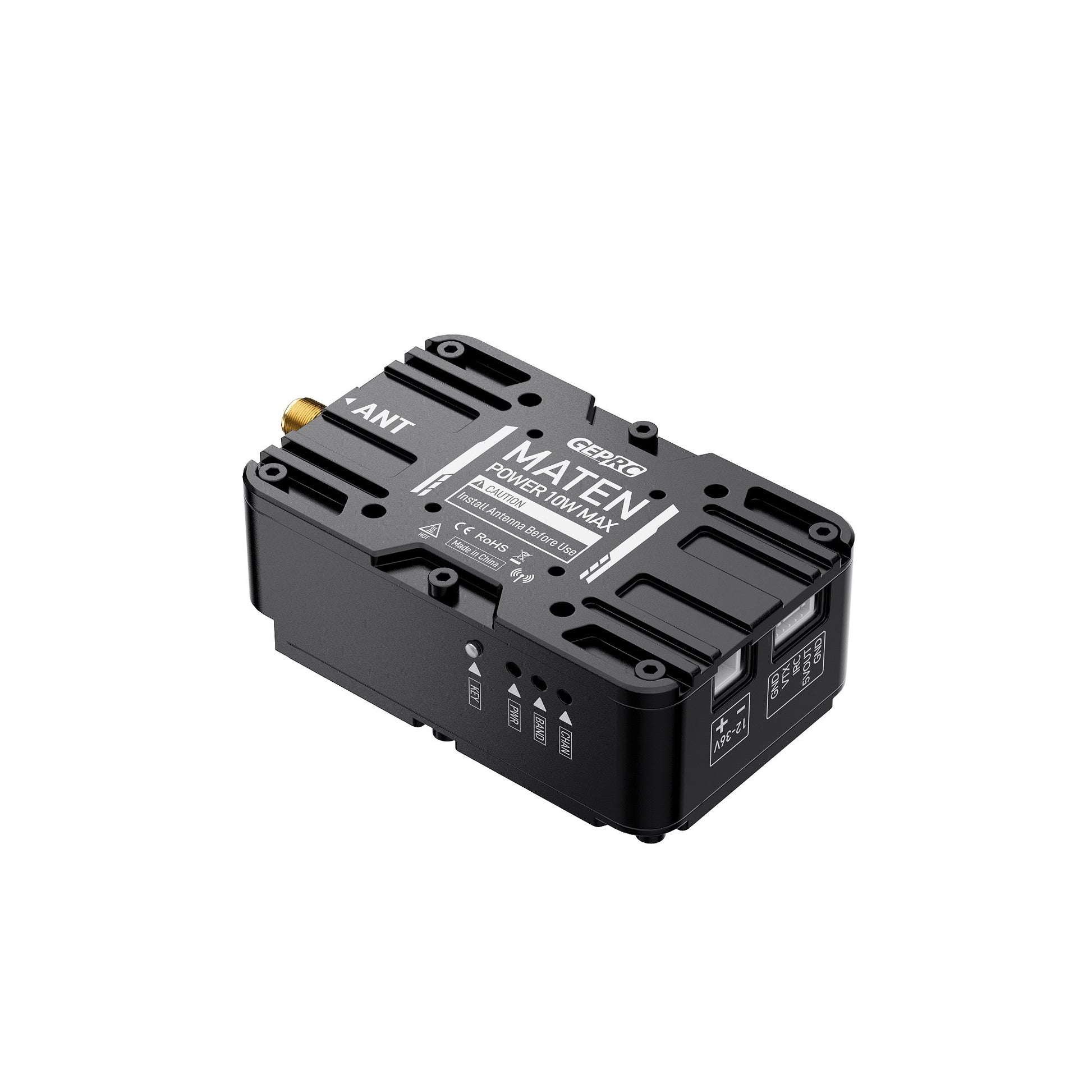

    The GEPRC MATEN 5.8G 10W VTX PRO is a high-power video transmitter developed for long-range and high-performance FPV applications. Delivering up to 10W output power with multiple adjustable levels, it ensures stable signal transmission and excellent penetration even in challenging environments. Housed in a CNC aluminum alloy shell with active fan cooling, it is built for reliable operation under heavy loads.

    Features: - Ultra-high output power with multiple adjustable levels for long-range FPV flights - CNC-machined aluminum alloy housing provides excellent heat dissipation and impact resistance - Built-in micro turbofan actively cools the VTX for stable high-power operation - Wide input voltage range supports high-voltage FPV and UAV builds - Supports IRC Tramp protocol for convenient OSD control and configuration - Direct frequency input via configurator for precise channel selection - Integrated temperature protection to prevent overheating and damage - Dual mounting pattern supports both compact and standard frame layouts

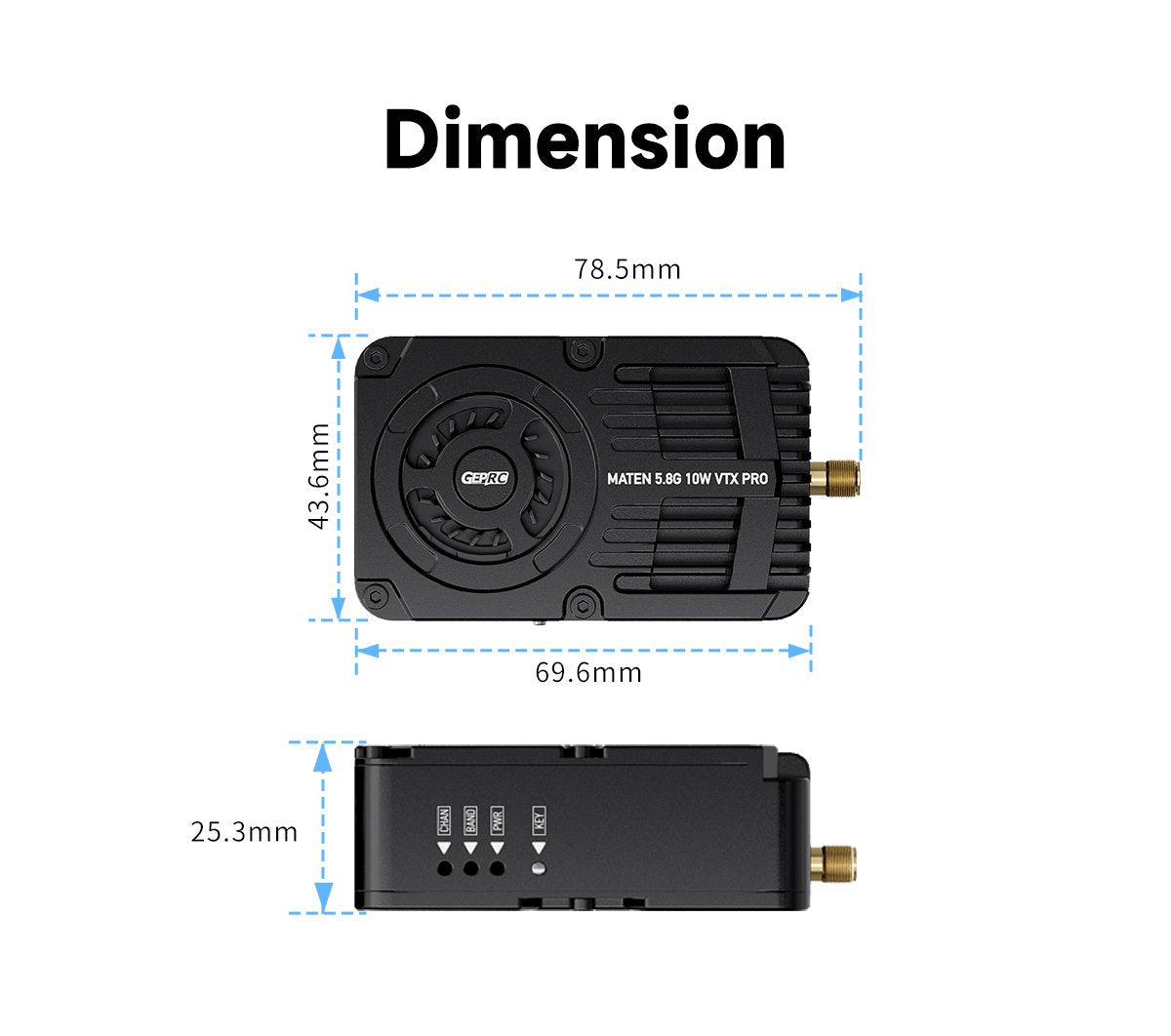

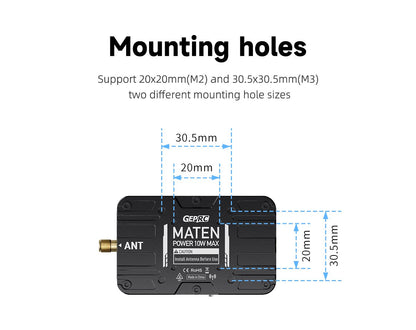

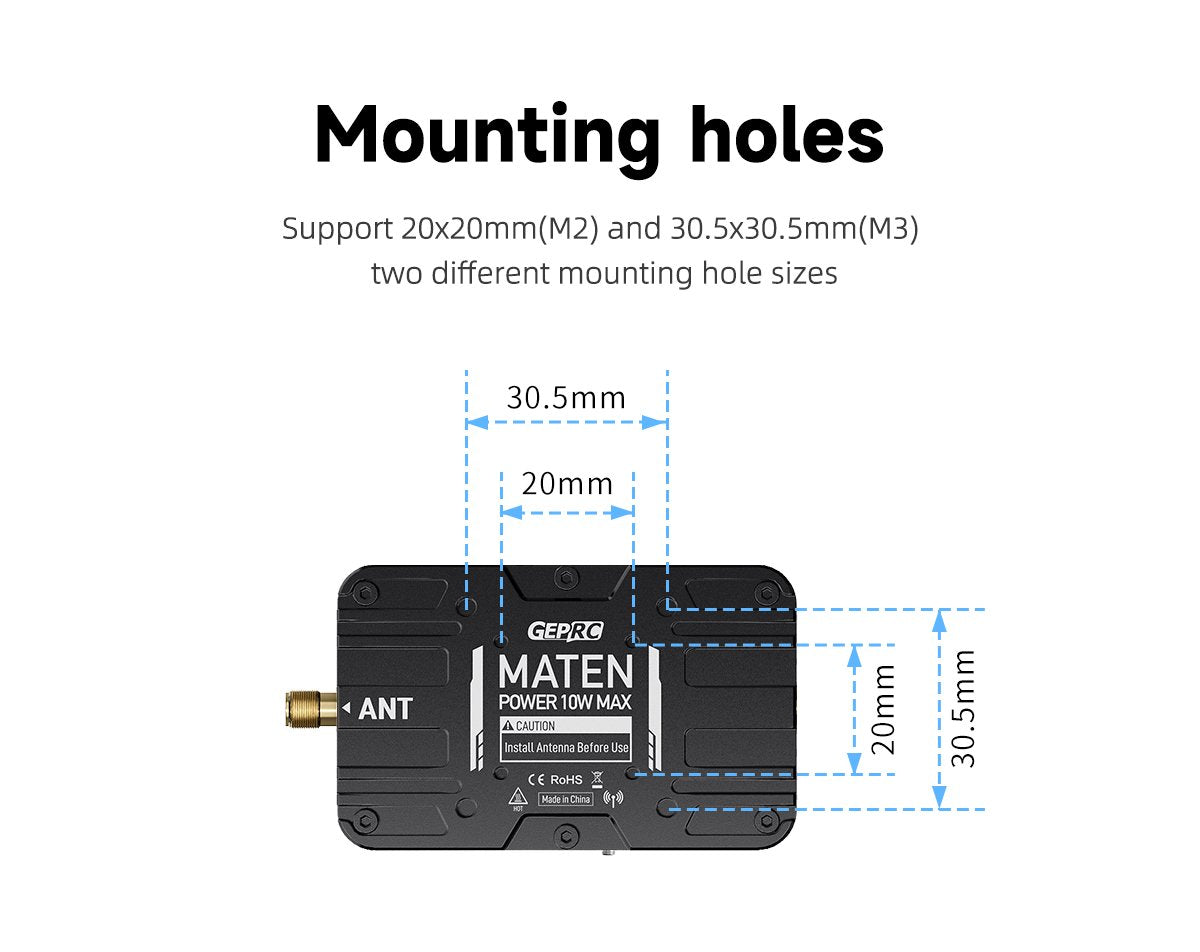

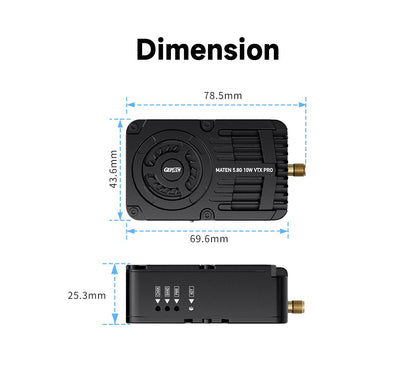

    Specification: Model: GEPRC MATEN 5.8G 10W VTX PRO Frequency Range: 4884–6184 MHz Channels: 104 CH Output Power: 25 mW / 2.5 W / 5 W / 10 W / Pit Mode Input Voltage: DC 12–36 V (3–8S LiPo) Peak Operating Current: 3.5A Output Voltage: 5V @ 600mA (for camera or cooling fan only) Control Protocol: IRC Tramp Antenna Connector: SMA Cable Connector: PH2.0 2-pin, GH1.25 5-pin Dimensions: 78.5x43.6x25.3mm Mounting Hole Size: 20x20mm (M2), 30.5x30.5mm (M3) Weight: 110g (VTX only)

    Notes: - Installing antenna before use. - Flying with constant airflow and under a well-ventilated environment to prevent overheating. Install a cooling fan if operating in confined conditions. - The 5V Output is for a Camera/Cooling Fan use only! Do not connect the battery input to the 5V Output, severe damage will occur to VTX.

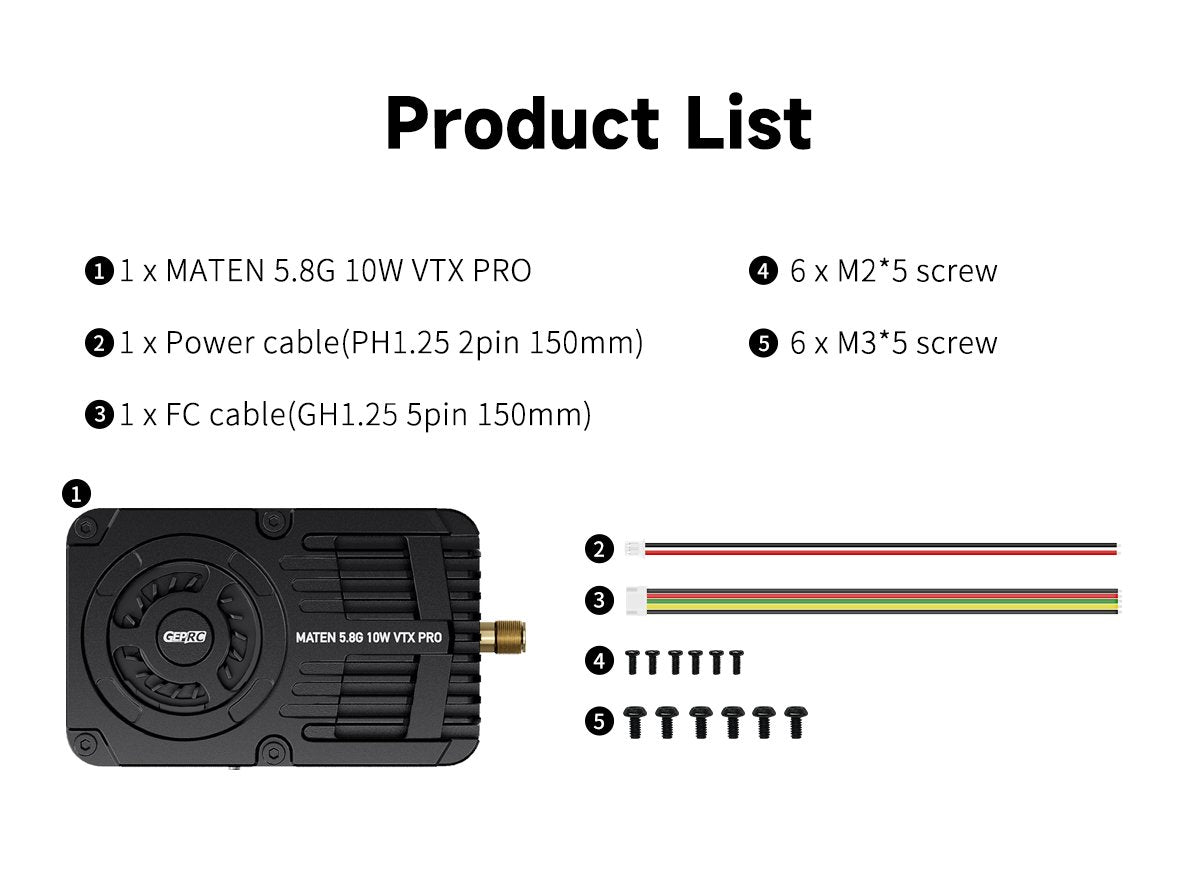

    Package Include: 1x GEPRC MATEN 5.8G 10W VTX PRO 1x Power Cable (PH2.0 2-pin, 150 mm) 1x FC Cable (GH1.25 5-pin, 150 mm) 6x M2x5 mm Screws 6x M3x5 mm Screws 1x User Manual
