VRX SKYZONE SteadyView X 4.9-5.8G IPS
VRX SKYZONE SteadyView X 4.9-5.8G IPS
Brand: SKYZONE
sku: SKU:3321
AvailableCouldn't load pickup availability
- Description

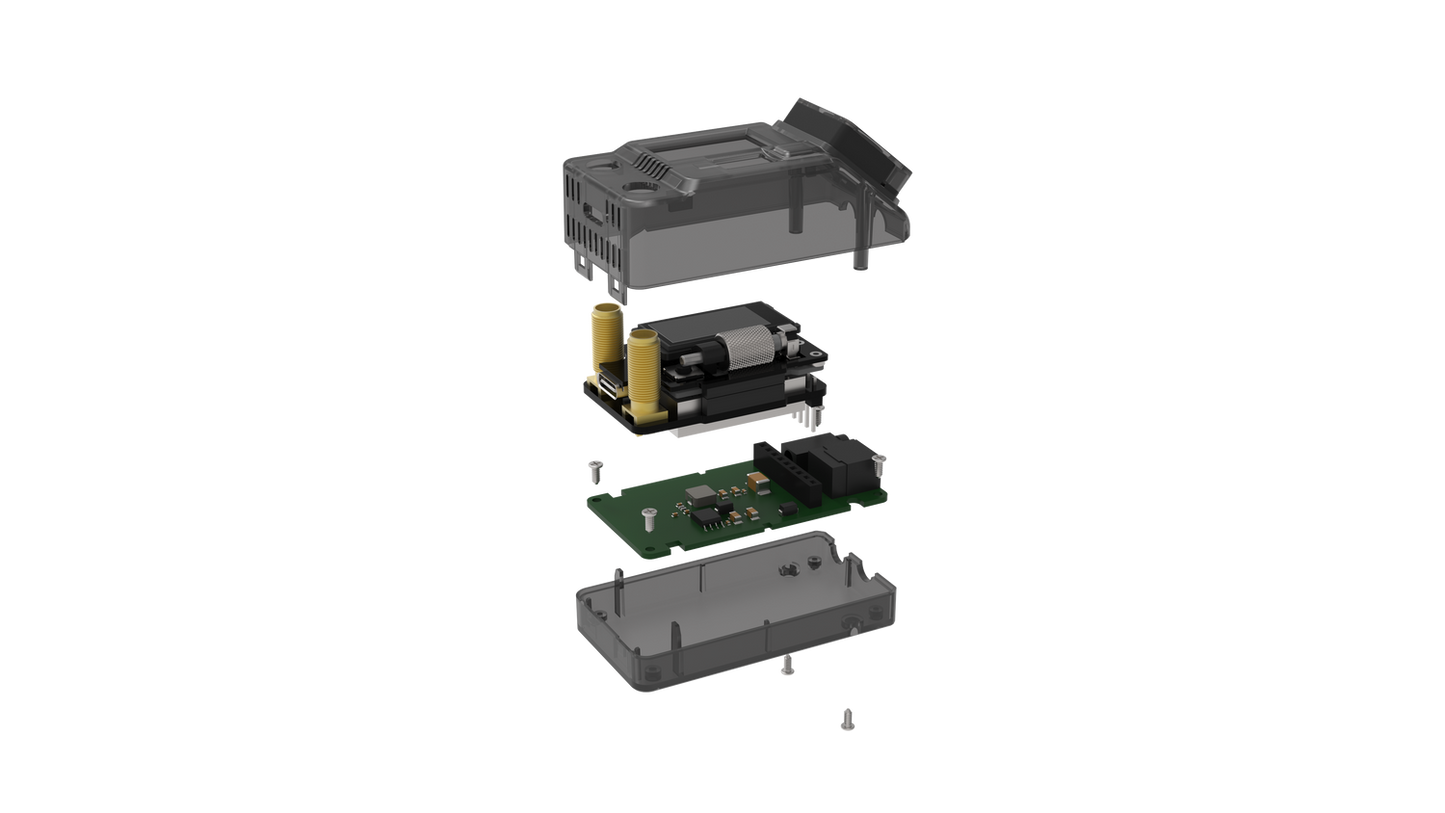

SKYZONE SteadyView X 4.9-5.8G IPS screen receiver module
The Steadyview X Screen receiver is the upgraded V3.3 version of the Steadyview receiver, the receiver combines two signals into one, prevents image tearing and overshooting in multi-path environments, and makes the image more stable and clear in challenging conditions. The RX has an IPS screen and a dial for settings. The SteadyView X receiver has a ground station KIT, the user can use it on any monitor or glasses that have an AV IN port. Steadyview X also has built-in ELRS backpack, user can use ELRS TX backpack and Lua script to synchronize VTX and VRX. It promotes diversity.
The "platch antenna" in the kit is RHCP.
Function: - IPS screen - Pendulum wheel control - Ground station set - USB C - Integrated ELRS backpack
Specifications:
Frequency: 4.9-5.8G High sensitivity receiver: -98dBm±1dBm Wild range voltage input: 2-6S lipo USB C: support firmware update or RX power on 3.5 mm: Video and Audio output Weight: 250g Package size: 15*15*8cm
The package includes: - Steadyview X receiver module - SKY04/EV300O/COBRA/Fatshark module shaft cover - KIT ground station - Power cable with XT60-Barel connector - 3.5mm video output cable - 1 patch and 1 omi antenna
