TX Module RadioMaster Ranger Nano 2.4GHZ ExpressLRS LBT
TX Module RadioMaster Ranger Nano 2.4GHZ ExpressLRS LBT
Brand: RadioMaster
Regular price
€44,83
Regular price
€44,83
Sale price
€44,83
Unit price
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
sku: SKU:HP0157.0035
Couldn't load pickup availability
- Description

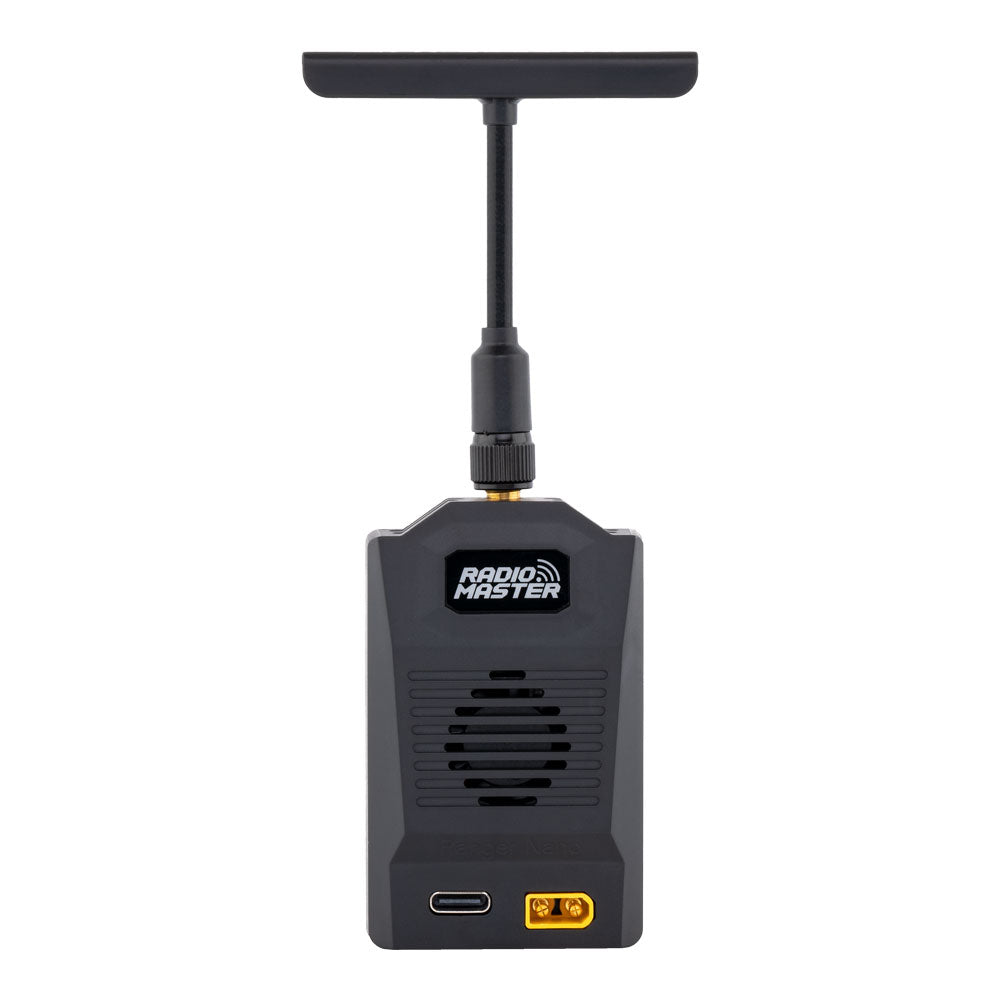

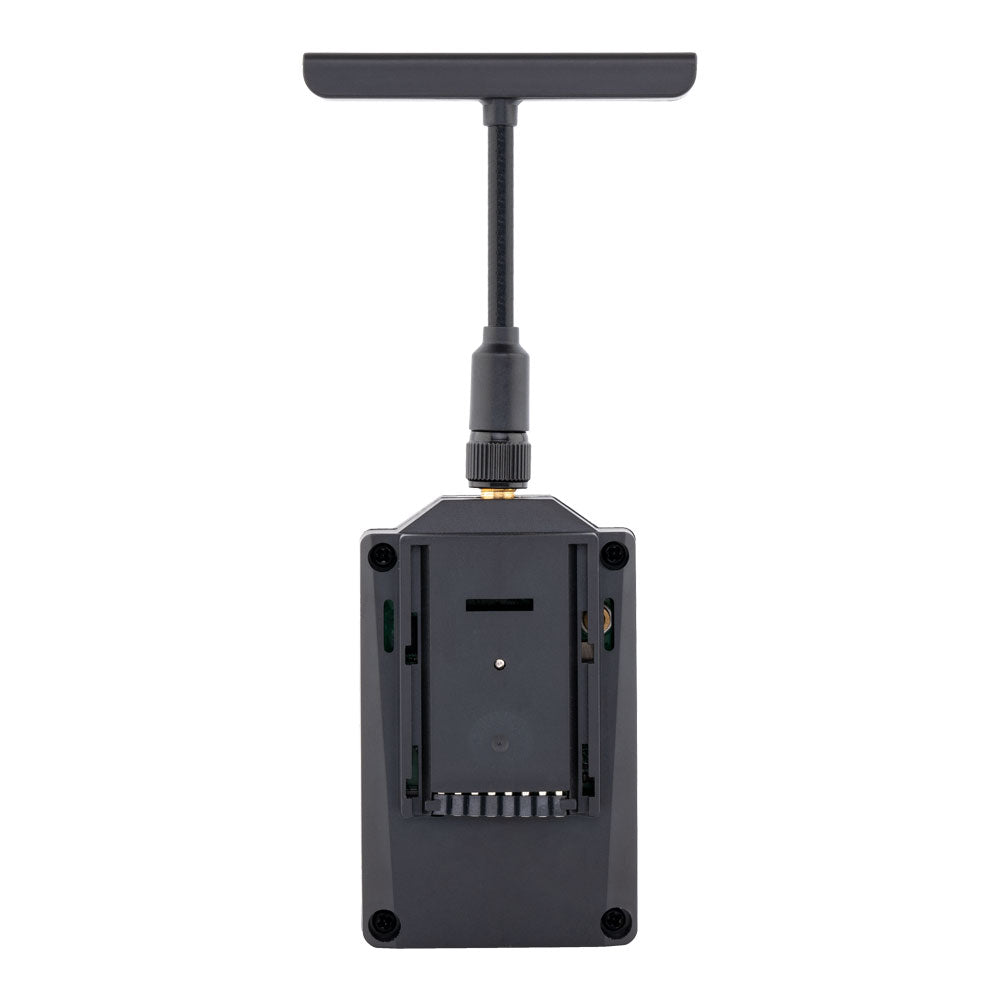

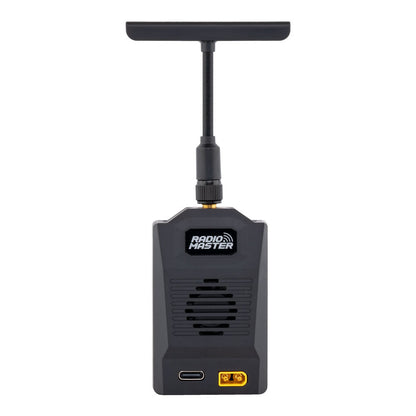

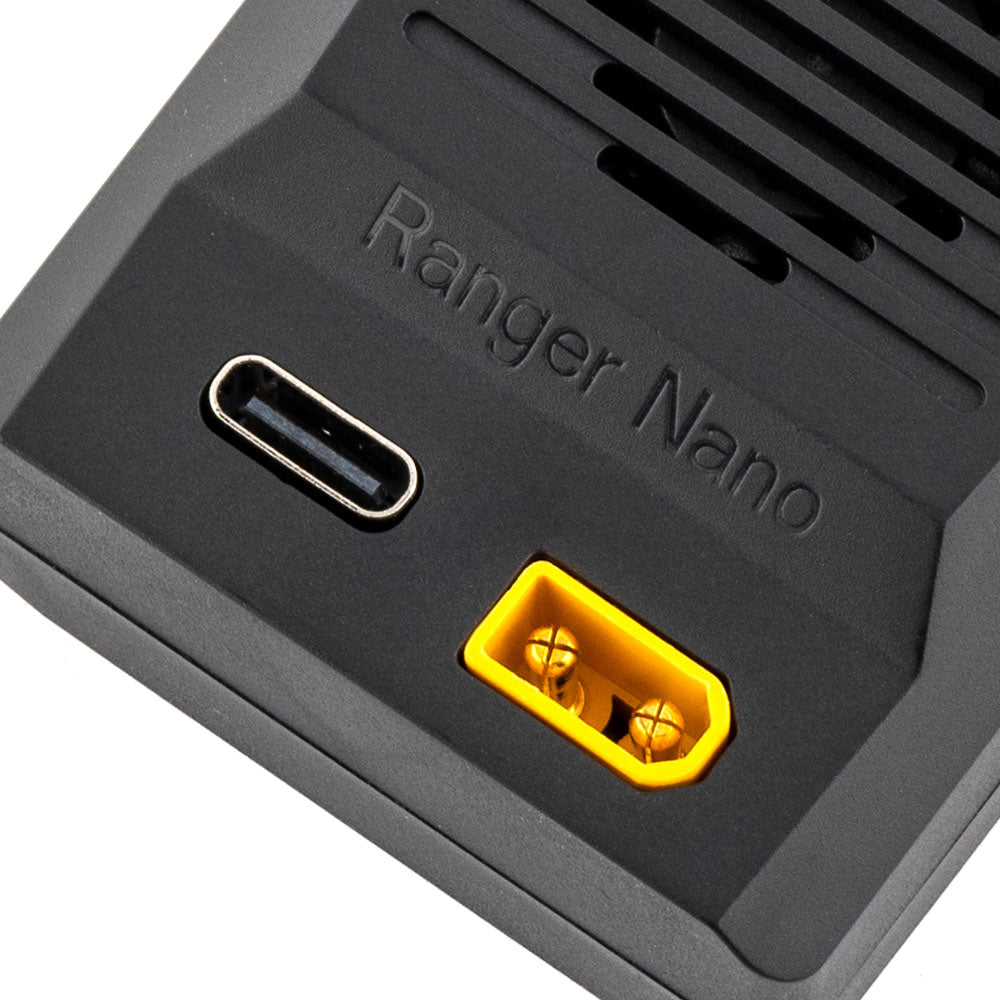

Ranger Nano 2.4GHz ExpressLRS RF Module (LBT) The Ranger Micro 2.4GHz ELRS module with up to 1W power, F-1000Hz refresh rate and highly efficient cooling system represents the pinnacle of ELRS technology. Compatible with RadioMaster Zorro and others. The included T-shaped antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications. Comment: - The Ranger Nano 2.4 GHz ELRS module fits into the Nano module slots - ELRS LBT (Europe) version is pre-installed with ExpressLRS CE EU domain LBT FW (limited to 100mw output power) Function: - Highly efficient cooling system - Wi-Fi and Bluetooth support - Packet speed up to F-1000Hz - Output power up to 1W - T-antenna included - Supports Zorro radio with Nano connector Specifications: Item: Ranger Nano Module (LBT) Regulatory domain: ISM2400 MCU: ESP32 (main), ESP8285 (auxiliary, like ESP backpack) RF chip: SX1281IMLTRT Frequency range: 2400 MHz - 2480 MHz Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later) Minimum receiver refresh rate: 25 Hz RF output power: 30dBm for FCC, 20dBm for CE (adjustable via LUA) Wifi support: Yes Bluetooth support: Yes XT30 Supply voltage: DC 6V - 16.8V Weight: 48g (with antenna) / 39g (without antenna) Dimensions: 136x42x26mm (with T antenna) / 74x42x26mm (without antenna)
