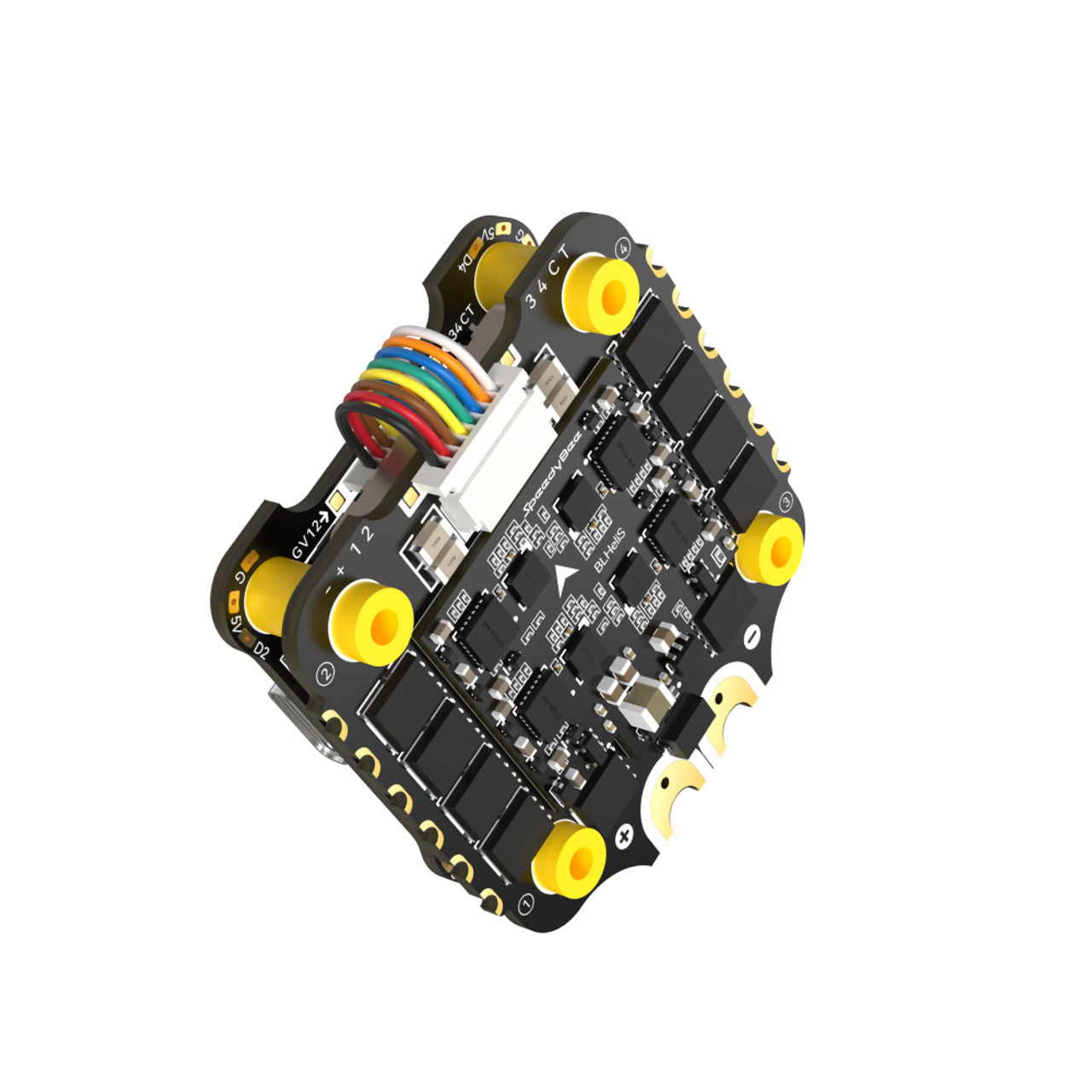

SpeedyBee F405 V4 BLS 60A 30x30 FC&ESC stack
The fourth version of the SpeedyBee stack includes FC F405 and BLHeli_S 60A ESC. The 30x30mm stack can support up to eight motors, is configured via Bluetooth, has a built-in barometer and ICM42688P gyro. With advanced gyro sensors and intelligent flight algorithms, this pod provides unmatched stability and control, allowing you to perform precise maneuvers with confidence and precision. With a standard 30x30mm form factor, the SpeedyBee stack effortlessly fits most drone frames for hassle-free installation and setup.
Specifications:

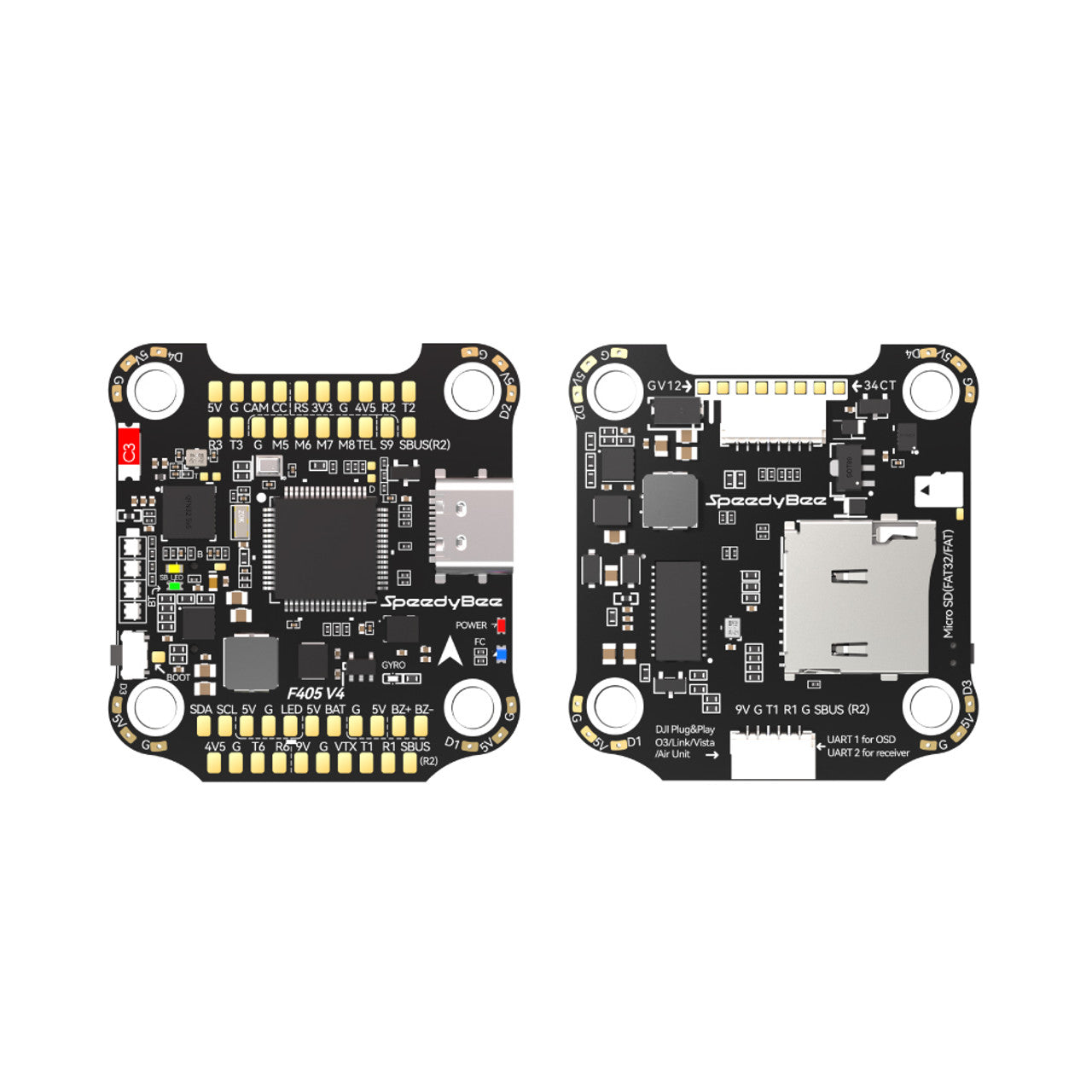

Product Name: SpeedyBee F405 V4 30x30 Flight Controller MCU: STM32F405 IMU (Gyro): ICM42688P USB port type: Type-C Barometer: built-in OSD chip: AT7456E chip BLE Bluetooth: Supported. Used for Flight Controller configuration (MSP should be enabled with baud rate 115200 on UART4) WIFI: Not supported DJI air unit connection method: Two ways are supported: 6-pin connector or direct soldering. DJI Air Unit 6 Pin Plug: Supported. Fully compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1, no need to change any cable. Blackbox MicroSD card slot: Betaflight firmware requires the microSD card type to be either standard (SDSC) or high capacity (SDHC), so extended capacity (SDXC) cards are not supported (many high-speed U3 cards are SDXC). The card MUST also be formatted with a FAT16 or FAT32 file system (recommended). So you can use any SD card smaller than 32GB, but Betaflight can only recognize a maximum of 4GB. Current sensor input: Supported. For the SpeedyBee BLS 60A ESC, set Scale = 400 and Offset = 0. Power Input: 3S - 6S Lipo (via G, BAT pins/pads from 8-pin connector or 8-pads on bottom) 5V output: 9 groups of 5V output, four +5V pads and 1 BZ+ pad (used for Buzzer) on the front and 4x LED 5V pads. The total current load is 3A. 9V output: 2 groups of 9V output, one +9V pad on the front and the other included in the connector on the bottom. The total current load is 3A. 3.3V output: Supported. Designed for receivers with 3.3V input. Current load up to 500 mA. 4.5V output: Supported. Designed for the GPS receiver and module, even if the FC is powered via the USB port. Current load up to 1A. ESC signal: M1 - M4 on the bottom side and M5-M8 on the front side. UART: 6 sets (UART1, UART2, UART3, UART4 (reserved for Bluetooth connection)), UART5 (reserved for ESC telemetry), UART6 ESC telemetry: UART R5 I2C: Supported. SDA & SCL pads on the front. Used for magnetometer, sonar, etc. Traditional Betaflight LED Pad: Supported. 5V, G and LED pads on the bottom of the front. Used for WS2812 LEDs controlled by Betaflight firmware. Buzzer: BZ+ and BZ- pad used for 5V buzzer BOOT Button: Supported RSSI Input: Supported. Named as RS on the front. Smart Port / F.Port: Not supported Supported Flight Controller firmware: BetaFlight (default), INAV Target firmware name: SPEEDYBEEF405V4 Mounting: 30.5 x 30.5mm (hole diameter 4mm) Dimension: 41.6 (L) x 39.4 (W) x 7.8 (H) mm Weight: 10.5g
Product name: SpeedyBee BLS 60A 30x30 4-in-1 ESC Firmware: BLHeli_S J-H-40 PC Configurator download link: https://esc-configurator.com/ Continuous current: 60A * 4 Explosive current: 80A (10s) TVS protection diode: Yes External capacitor: 1000uF Low ESR capacitor (included) ESC protocol: DSHOT300/600 Power: 3-6S LiPo Output power: VBAT Current Sensor: Support (Scale=400 Offset=0) ESC telemetry: Not supported Mounting: 30.5 x 30.5mm (hole diameter 4mm) Dimension: 45.6 (L) * 44 (W) * 8 mm (H) Weight: 23.5g
The package includes: 1x SpeedyBee F405 V4 flight controller 1x ESC SpeedyBee BLS 60A 4in1 1x 35V 1000uF Low ESR capacitor 5x M3 nylon nut 5x M3 silicone O-ring 1x M3*8mm silicone grommets (for FC) 1x M3*8.1mm silicone grommets (for ESC) 1x SH 1.0mm 25mm long 8pin cable (for FC-ESC connection) 5x M3*30mm hexagon socket head screws 1x DJI 6pin cable (80mm) 1x XT60 power cable (100mm)
