    Stack Pilotix DIY Kit F405V3 FC + 60A ESC V1

    Stack Pilotix DIY Kit F405V3 FC + 60A ESC V1

    Brand: Pilotix

    €93,17Taxes included.
    €93,17 €93,17
    -0% View Product
    In stock
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.

    sku: 5201
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

    Stack Pilotix DIY Kit (F405 V3 FC + 60A V1.0 ESC)

    F405 V3 Flight Controller

    • Controller: STM32F405RGT6
    • Gyroscope: ICM42688
    • Barometer: SPL06B
    • Black Box: 16 MB
    • Motor output: 8 channels
    • Universal serial ports: 5 channels
    • Output power: 5V/2.5A, 9V/2A
    • OSD: Supported
    • Bluetooth: Supported
    • Weight: 9.6 g
    • Dimensions: 36mm x 36mm
    • Mounting holes: 30.5mm x 30.5mm
    • Firmware: AOCODAF405V3

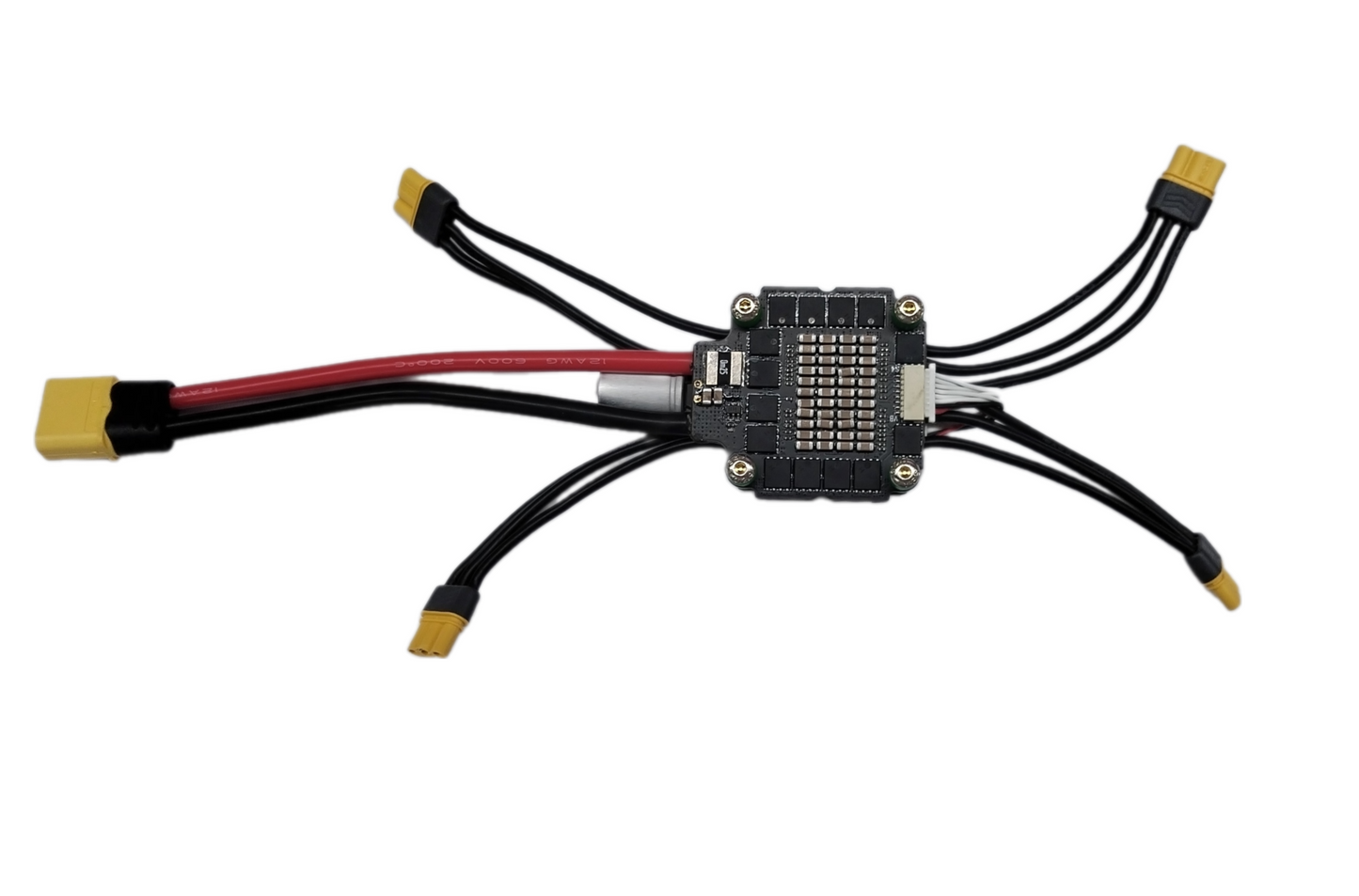

    Bettle 3060 Electronic Controller (ESC)

    • Continuous current: 60A x 4
    • Peak current: 70A x 4
    • Input signal: Dshot300, Dshot600, PWM, Bi-directional Dshot
    • Telemetry: Supported
    • Current Meter: Supported
    • Input Voltage: 3-6S LiPo
    • Firmware: AM32 AORC AT421A
    • Working temperature: -20°C to +85°C
    • Working humidity: 20% to 95%
    • Storage temperature: -20°C to +70°C
    • Mounting holes: M3, 30.5mm x 30.5mm
    • Weight: 13.9g
    • Dimensions: 41mm x 44.5mm
    • Package contents:
      • 4 motor cables
      • 1 power cable
      • 1 fixed capacitor
