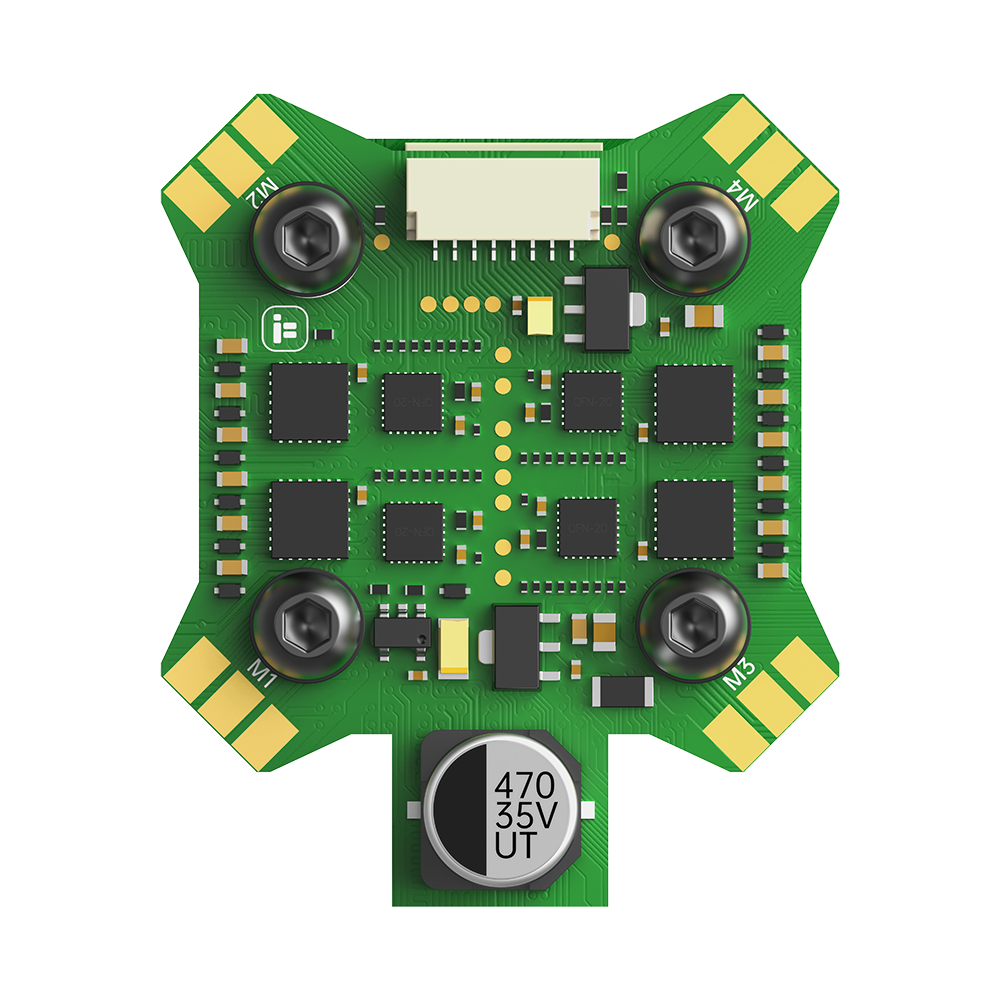

Stack iFlight BLITZ Mini ATF435 Stack (E55S Mini 4-IN-1 ESC)
Stack iFlight BLITZ Mini ATF435 Stack (E55S Mini 4-IN-1 ESC)
Brand: iFlight
sku: SKU:BF14875
Couldn't load pickup availability
- Description
- Related Files
- Discussion
Stack iFlight BLITZ Mini ATF435 Stack (E55S Mini 4-IN-1 ESC)
MCU: AT32F435RGT7
Gyroscope: BMI270
Barometer: DPS310
OSD Chip: AT7456E
Memory: 16MB (Blackbox flash)
UARTS: 6
Outputs for motors: 4x (SH1.0 connector)
I2C serial interface: SDA / SLA boards
Smartaudio / IRC Tramp VTX protocols support
LED controller: Yes
Buzzer Area: Yes
Firmware target: IFLIGHT_BLITZ_ATF435
Mounting pattern: 20*20mm/φ4
Dimensions: 30.5*27mm
Weight: 5g
BEC: 5V 2.5A
ESC specification Mounting holes: 20*20mm/Φ4mm
Weight: 11.3g
Supports 2-6S lipo input
MCU: BB21
Continuous current: 55 Amps
Peak current: 65 Amps
Telemetry output: No
Current sensor: Yes
Current rate: 200
BEC: No
Supports: DShot DShot150/300/600/MultiShot/OneShot etc.
Firmware target: Q-H-25 16.7(BlheliS) / Bluejay Q-H-50 (Bluejay)
Packing List 1 x BLITZ Mini ATF435 Controller
1 x BLITZ Mini E55S 4-IN-1 2-6S ESC
1 x Power cables & ESC
signal cables
