Stack iFlight BLITZ H7 Pro Combo Set (E80 single ESC *4)
Introducing the BLITZ H7 Pro control unit - a powerful tool with double-sided shielding that not only protects against interference, but also protects the unit from dirt and ensures trouble-free operation. The removable shield allows for easy replacement of the TF card. Enhanced with a robust STM32H743 MCU, it supports input voltages up to 12S and is compatible with ArduPilot firmware, giving customers endless possibilities. Upgrade to BLITZ H7 Pro for unmatched performance.
FC Features:
- 35x35mm mounting holes provide a larger size for optimized control unit PCB wiring.
- The design of the GH1.25 connector increases the reliability of the terminal connection and ensures easy assembly.
- Uses an SD card for the control unit's black box, allowing increased capacity to record more flight data.
- Double-sided shielding provides protection against interference and protects the control unit from malfunctions caused by foreign objects.
- Removable soldering plate allows advanced users to easily connect additional peripherals.
- Includes a high-voltage DC-DC converter with a voltage-resistant chip up to 100V, which ensures a stable and reliable voltage for the control unit and video transmission.
- Supports Betaflight and Ardupilot firmware.
FC Specifications:
- Product Name: BLITZ H7 Pro Flight Controller
- MCU: STM32H743
- Gyro: ICM42688
- Barometer: DPS310
- OSD: AT7456E
- Input voltage: 14.8V-50.4V (4S-12S LIPO)
- Black box: SD card
- UARTS: 7
- Smartaudio / IRC Tramp VTX protocol support
- LED controller: Yes
- Buzzer area: Yes
- Mounting pattern: 35x35mm/φ4
- Dimensions: 42x42x11.3mm
- Weight: 20g
- BEC: 5V 3A, 12V 2.5A
- BF Firmware Target: IFLIGHT_BLITZ_H7_PRO (BF4.4.2)
- Firmware Ardupilot: BlitzH743Pro
Recommendations for FC involvement:
- UART1: for VTX HD/Analog
- UART2: for receiver
- UART4: for GPS
- UART5: for ESC telemetry
- 8×Dshot/PWM outputs
- 2×I2C for GPS Mag
ESC Description: The BLITZ E80 BLHeli Dshot600 Single ESC has been designed to give your motors smooth performance with excellent stability and durability. With a 32-bit MCU G071 with a frequency of 48MHz and 11 pieces of TDK MLCC ceramic capacitors with a total capacity of 240UF Low ESR, it ensures a faster response and a smoother flight experience.
Benefits of ESC:
- Input 2-8S (max 8S)
- 80A 8-layer PCB with 4OZ copper for better loadability
- 11 pieces of TDK MLCC with a total capacity of 420UF Low ESR capacitors for lower ripple and higher stability
- High-end MOSFET NTMFS5C430NL, stable and reliable
- 1 × 3528 LED for power display
- Rational layout, large soldering areas, recessed holes and semi-circular holes ensure layer bonding after power on
ESC Specifications:
- Input voltage: 2-8S (max 8S)
- Maximum continuous current: 80A
- PCB: 8 layers, 4OZ copper
- Capacitors: 11 pieces TDK MLCC, total capacity 420UF Low ESR
- MOSFET: NTMFS5C430NL
- LED: 1 × 3528 for power indication
- Layout: Rational, with large soldering areas, countersunk holes and semi-circular holes for reliable connection
ESC Support:
- Current sensor
- Telemetry output
- Engine timing settings
- Stop with brake
Packing list:

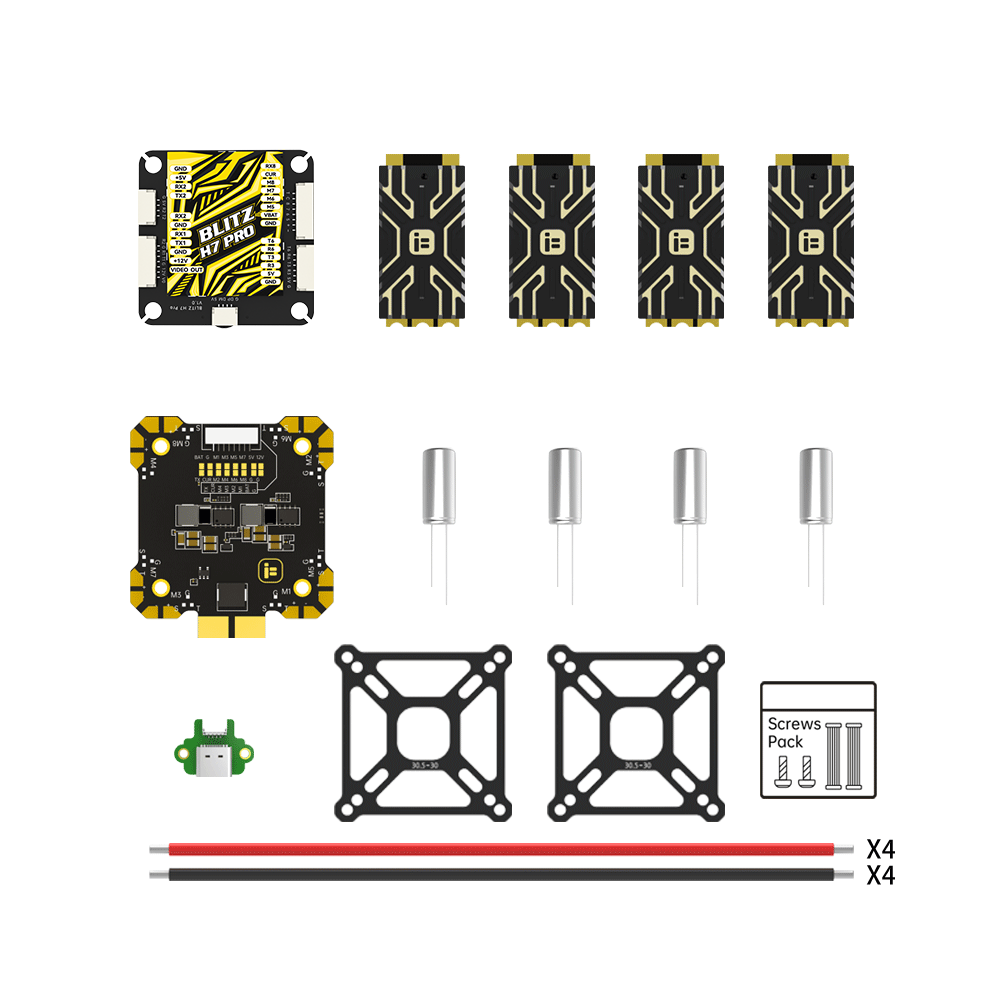

- 1 x BLITZ H7 Pro Flight Controller
- 4 x BLITZ E80 Single ESC with CNC Alum cover (Combo2)
- 4 x 50V 1000UF capacitor (Combo2)
- 4 x Power cables & ESC signal cables (Combo2)
- 1 x Set of screws
- 1 x USB Adapter Board
