    Stack iFlight BLITZ F745 (E55 4-IN-1 ESC)

    Stack iFlight BLITZ F745 (E55 4-IN-1 ESC)

    Brand: iFlight

    €150,16
    €150,16 €150,16
    -0% View Product

    sku: BF15684

    In stock (9)
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

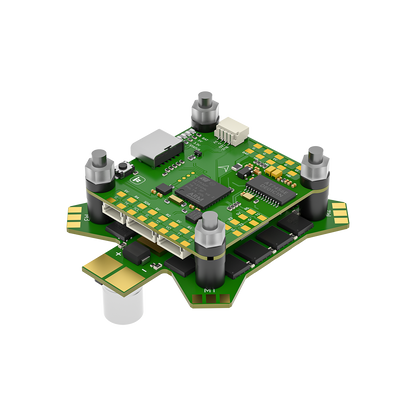

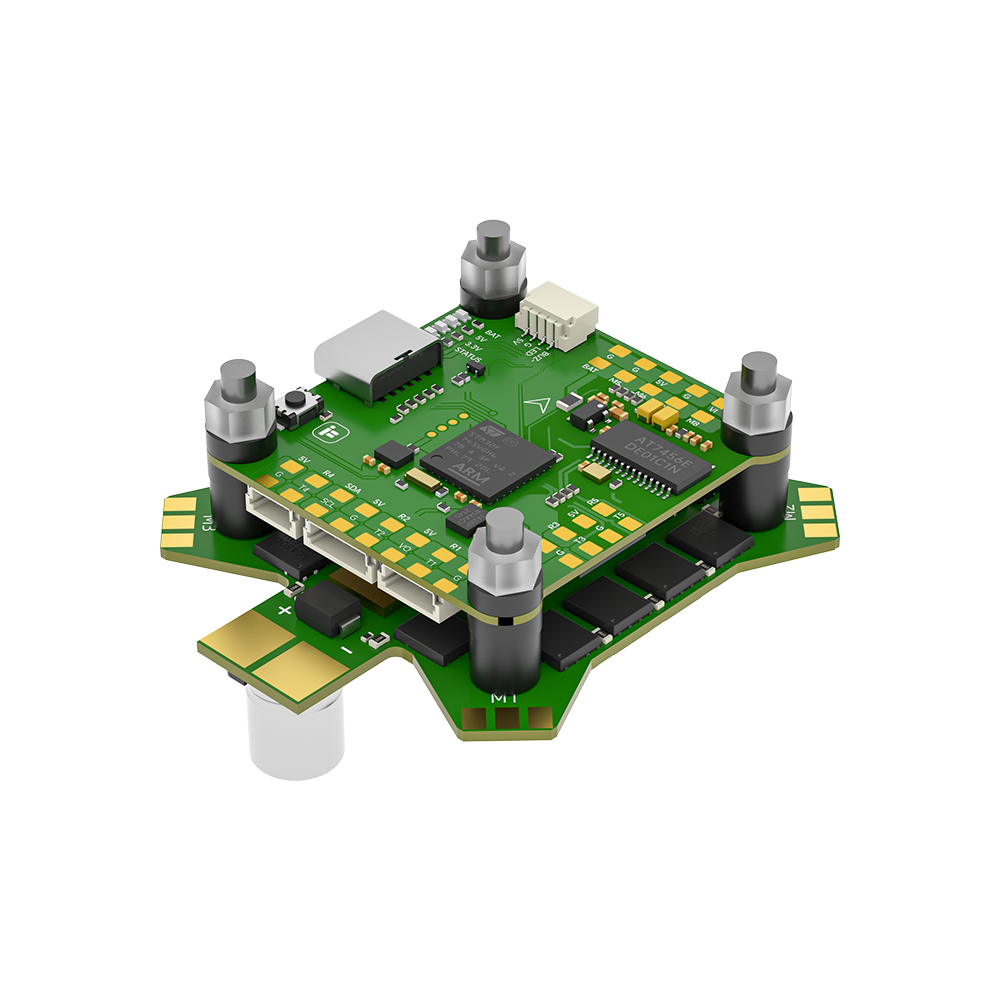

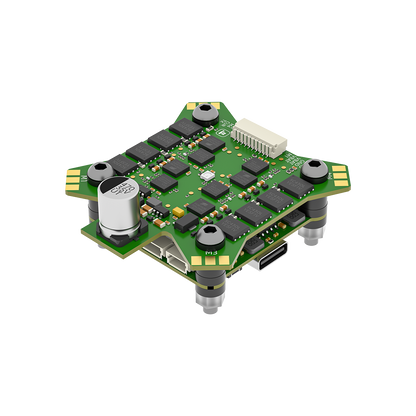

    BLITZ F745 Stack (E55 4-IN-1 ESC)

    Function:

    - Improved circuit design, better components and lower electrical noise! - DJI HD VTX connector (Plug-and-Play / no soldering required) - FC indicator LED for visual tuning - Betaflight, INAV, Ardupilot firmware support

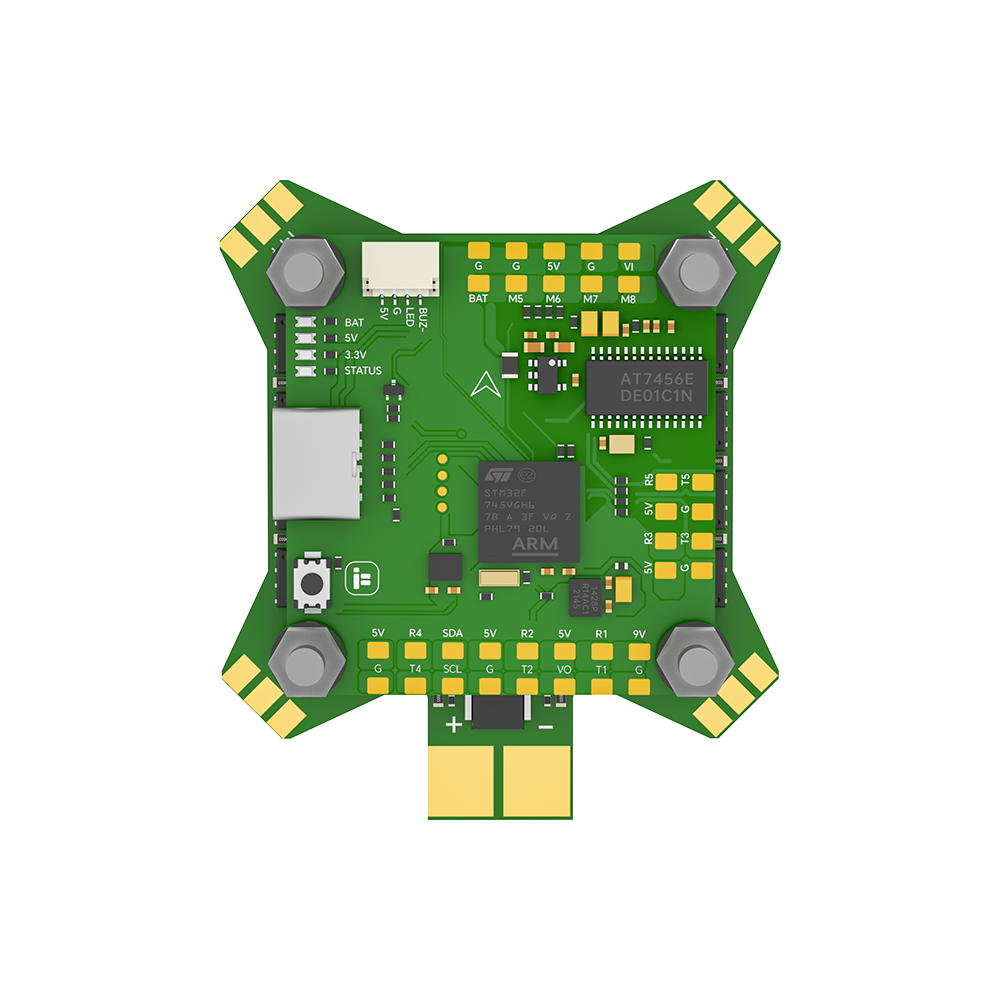

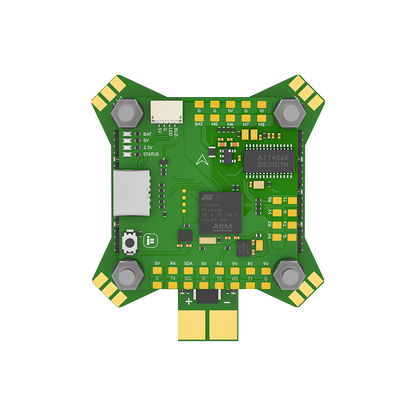

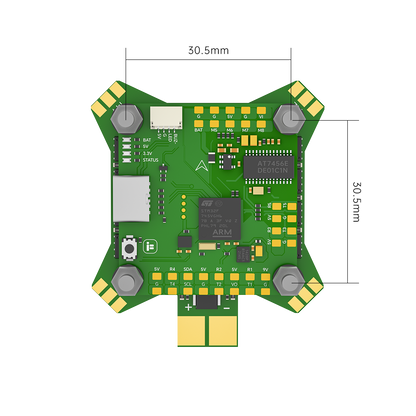

    FC specification MCU: STM32F745 Gyroscope: ICM42688 Barometer: DPS310 OSD chip: AT7456E Flash: 32 MB (Blackbox flash) UARTS: 6 Smartaudio / IRC Tramp VTX protocol supported LED driver: Yes Buzzer: Yes Mounting pattern: 30.5 x 30.5 mm Dimensions: 36.5*35 mm Weight: 7.8g BEC: 5V 2.5A / 9V 2A BF Target Firmware: IFLIGHT_BLITZ_F7_AIO Ardupilot firmware: arduplane_with_bl

    Wiring design UART 1 for VTX HD / Analog UART 2 for receiver UART 3/4/5 for GPS or other sensors that require a serial port UART 6 for ESC Telemet

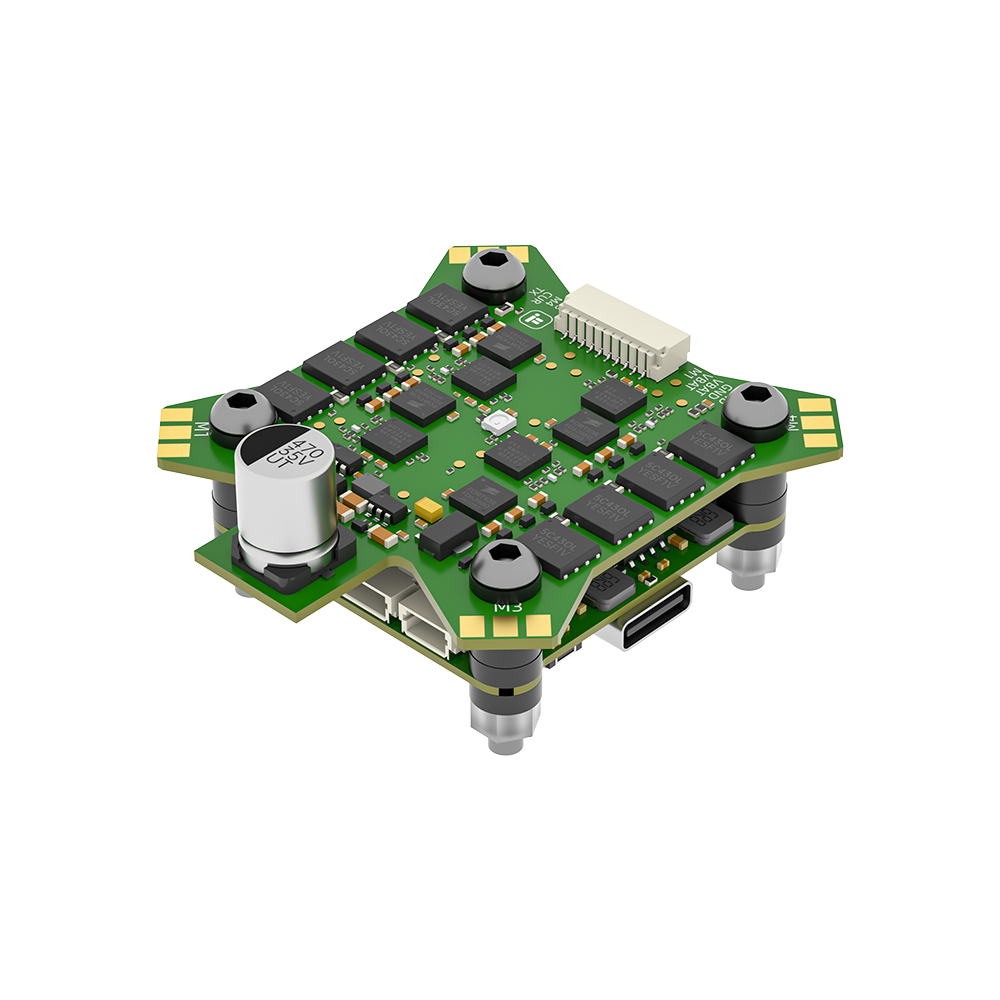

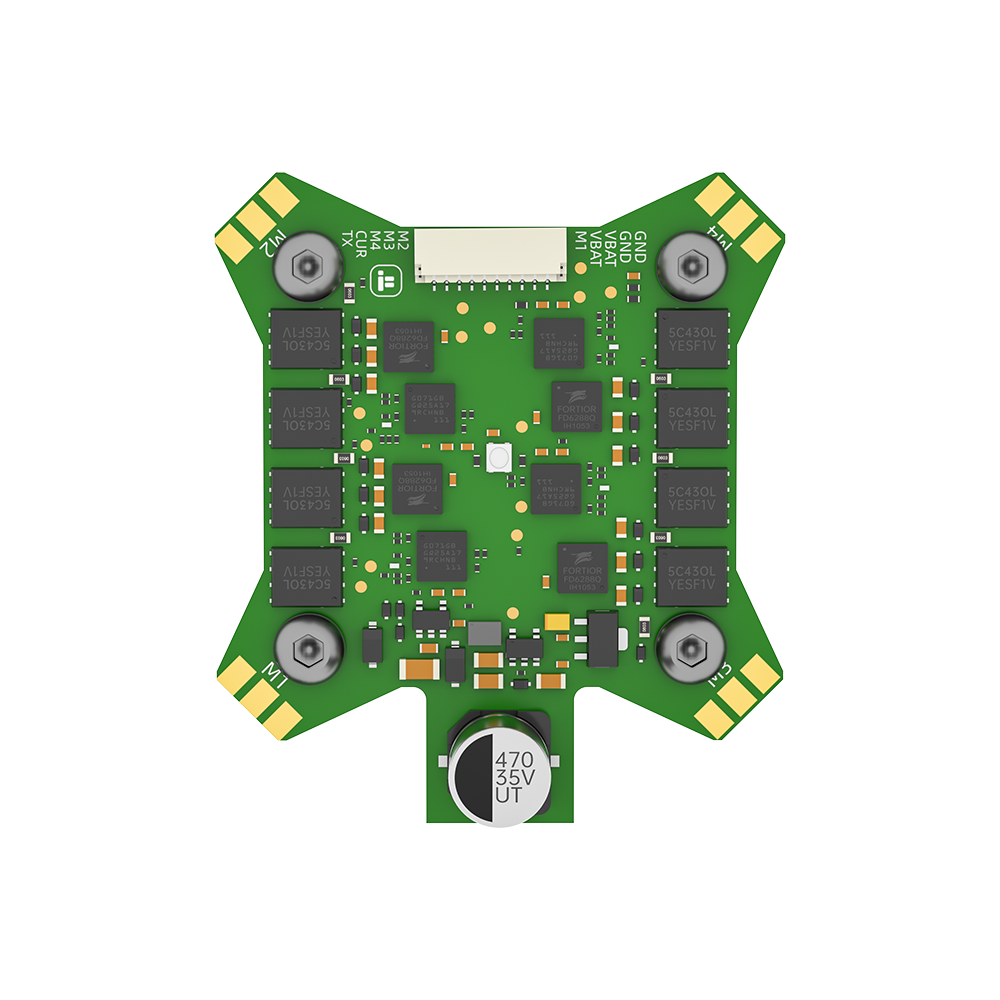

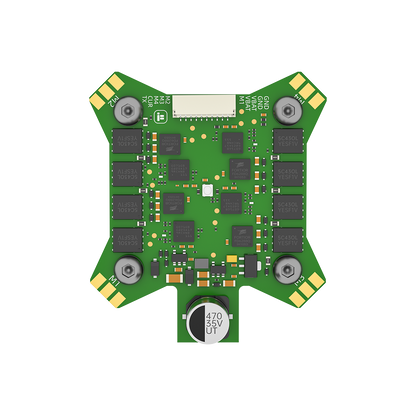

    ESC specification Mounting holes: 30.5*30.5mm/?4mm Weight: 15.3g Supports 2-6S lipo input MCU: G071 Constant: 55 Amps Discharge: 65 Amps Current sensor: Yes BEC: No Current rate: 200 Supports: DShot DShot150/300/600/MultiShot/ OneShot etc. Target: IFLIGHT_BLITZ_G3 32.9

    The package includes: 1 x BLITZ F745 V1.2 Flight Controller 1 x BLITZ E55S 4-IN-1 2-6S ESC 1x silicone grommets 1 x cable harness for F7 Flight controller
