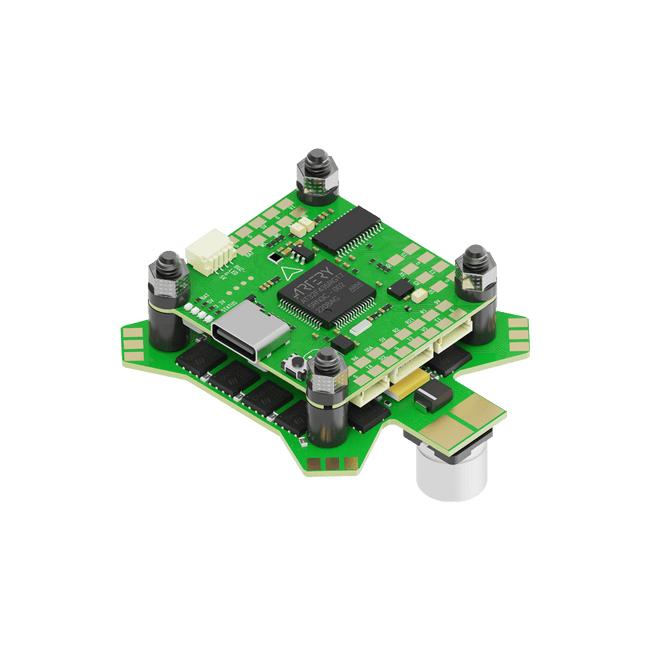

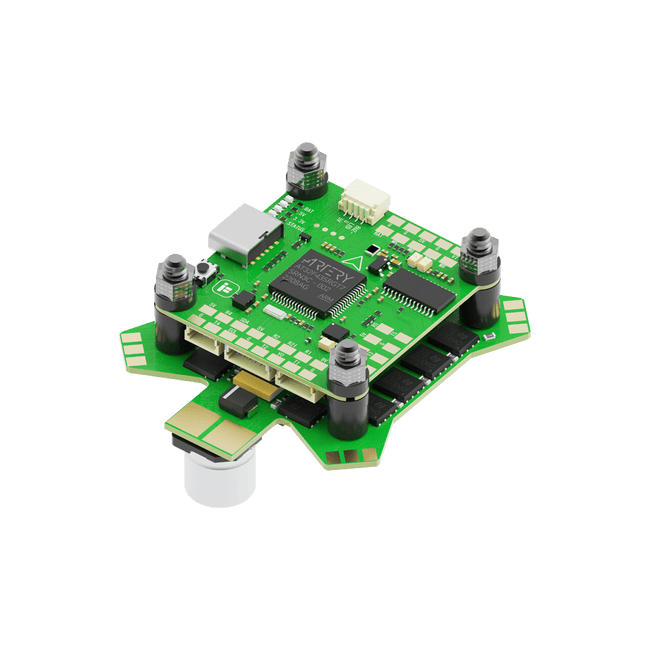

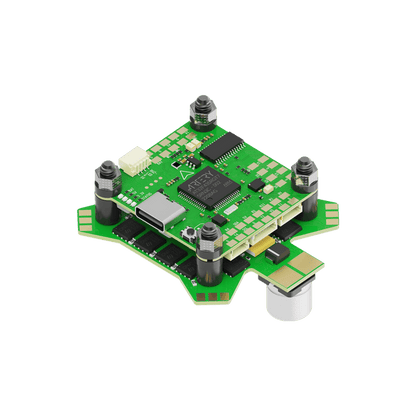

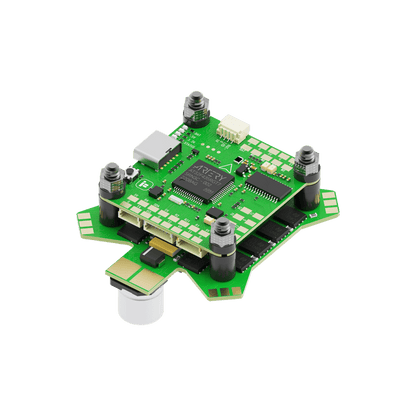

    Stack iFlight BLITZ ATF435 (E55S 4-IN-1 ESC)

    Stack iFlight BLITZ ATF435 (E55S 4-IN-1 ESC)

    Brand: iFlight

    €71,15
    €71,15 €71,15
    -0% View Product

    sku: BF14874

    Out of stock
    We need to check the product availability with our supplier. Please contact us for details.
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    Stack iFlight BLITZ ATF435 (E55S 4-IN-1 ESC)

The latest BLITZ Stack from iFlight. Ultra fast MCU AT32F435, powerful 55A for 2-6S batteries. The 30.5x30.5 mounting pattern ensures a perfect fit for most iFlight frames. Improved circuit design, better components and lower electrical noise! DJI HD VTX connector (Plug-and-Play / No soldering required), FC indicator LEDs for visual tuning, with LC filter.

FC Specifications:

MCU: AT32F435CGU7
Gyroscope: ICM42688
Barometer: DPS310
OSD chip: AT7456E
Flash: 32 MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported
LED driver: Yes
Buzzer: Yes
Target Firmware: IFLIGHT_BLITZ_ATF435
Mounting pattern: 30.5 * 30.5mm / 4mm PCB hole diameter
Dimensions: 36.5*35 mm
Weight: 7.8g
BEC: 5V 2.5A / 9V 2A

ESC Specifications:

Mounting holes: 30.5*30.5mm/Φ4mm
Weight: 14.7g
Supports 2-6S lipo input
MCU: BB21
Constant: 55 Amps
Discharge: 65 Amps
Current sensor: Yes
BEC: No
Current rate: 200
Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
Target: Q-H-25 16.7 (BlheliS) / Bluejay Q-H-50 (Bluejay)/Q-H-25 - Bluejay, 0.16, 24kHz

The package includes:
1x BLITZ ATF435 Flight Controller
1x BLITZ E55S 4-IN-1 2-6S ESC
1x cable harness for ATF435 Flight controller
1x silicone grommets
