Stack GEPRC TAKER F405 BLS 60A
Stack GEPRC TAKER F405 BLS 60A
Brand: GEPRC
sku: SKU:GP106163
Out of stockCouldn't load pickup availability
- Description
Stack GEPRC TAKER F405 BLS 60A

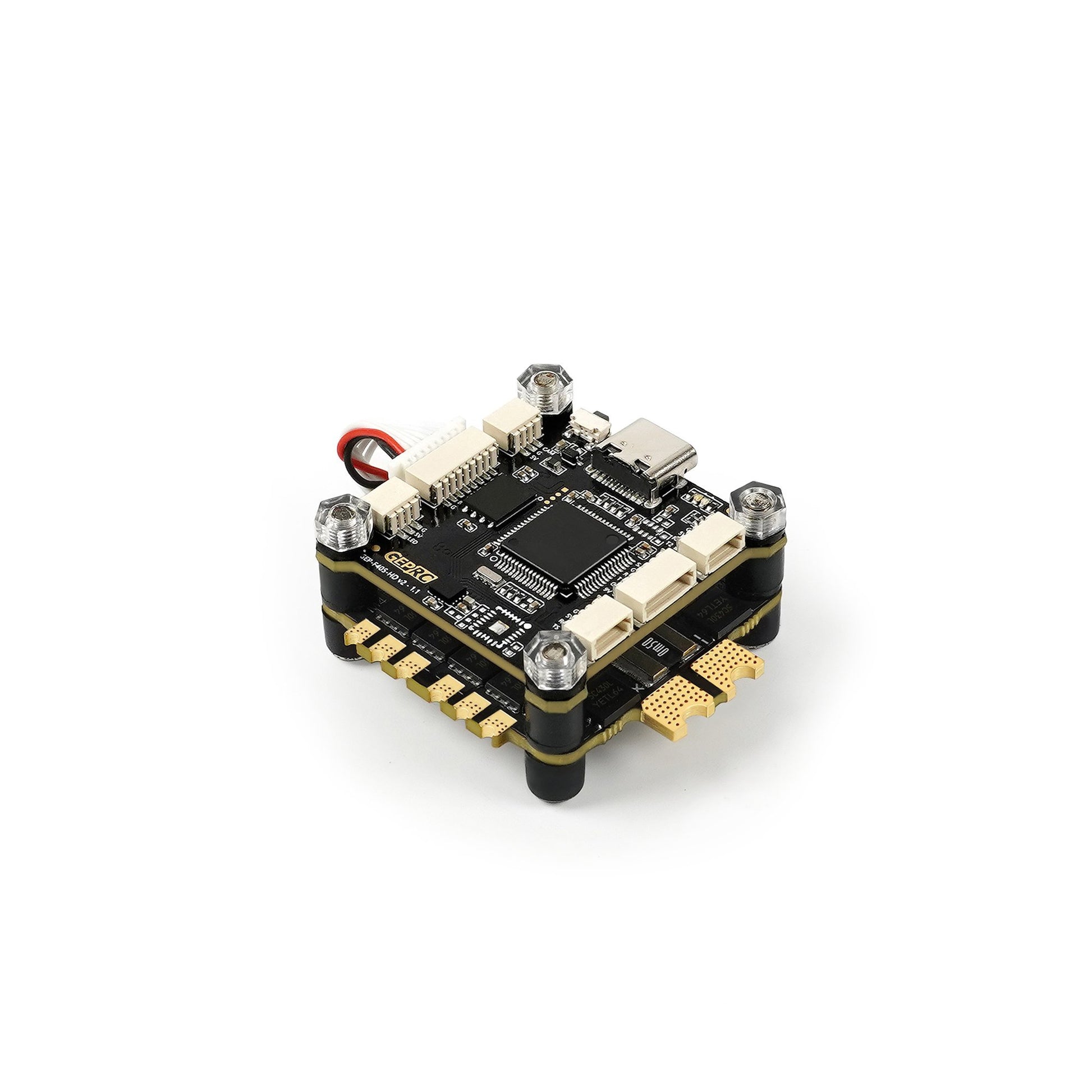

GEPRC TAKER F405 BLS 60A STACK is a plug-and-play flying tower system specially designed for DJI air unit. Used STM32F405 chip, ICM42688-P gyroscope, integrated 16M black box and ESC GEP-BLS60A-4IN1 for smoother hand feel.
The TAKER F405 BLS 60A STACK can be directly plugged into the DJI air unit, which can save the trouble of welding. Upgrade the USB Type-C interface, which significantly extends the life of the socket and reduces the risk of poor contact. 9V@2.5A + 5V@3A dual independent BEC, more stable power supply for external devices.
Function:
- Use mainstream STM32F405 chip - Equipped with the latest gyroscope 42688-P - 16M storage in a black box - Integrated LC filter - USB Type C interface upgrade - Directly plugged into the DJI air unit - With the GEP-BLS60A-4IN1 ESC, the feeling of flying is silky - Simple and reasonable installation method, the damper can make the gyroscope work very stable - 9V@2.5A + 5V@3A dual independent BEC
Specifications:
GEP-F405-HD v2 Flight Controller MCU: STM32F405 IMU: ICM42688-P(SPI) Air Unit Connection: Direct connection to DJI air unit Black box: 16M on board USB interface: Type-C OSD: BetaFlight OSD with AT7456E chip BEC: 5V@3A, 9V@2.5A dual BEC Firmware Target: GEPRCF405 Size: 36.8×36.8mm, hole 30.5×30.5mm, hole ?4mm will change to ?3mm after using the shock-absorbing silicone ring. Input voltage: 3-6S LiPo UART: 6 Power filter: Integrated LC filter Weight: 7.7g
GEP-BLS60A-4IN1 ESC Input Voltage: 3-6S Lipo Galvanometer: Support Continuous current: 60A Burst current: 65A (5 seconds) Support protocol: Dshot 150/300/600 Size: 42.9 x 39.7mm, hole 30.5 x 30.5mm, ?4mm hole will change to ?3mm after using the shock-absorbing silicone ring. Weight: 13.7g Target: G_H_30
The package includes: 1 x flight controller 1 x ESC 1x capacitor 1 x DJI Air Unit Adapter Cable 1 x Flight Controller Adapter Cable 1 x XT60 power cable 4 x M3*30 screws 4 x M3*25 screws 8 x nylon nuts 8x silicone grommets 2 x sh1.0 4pin silicone cable 1 x cable for connecting the camera
