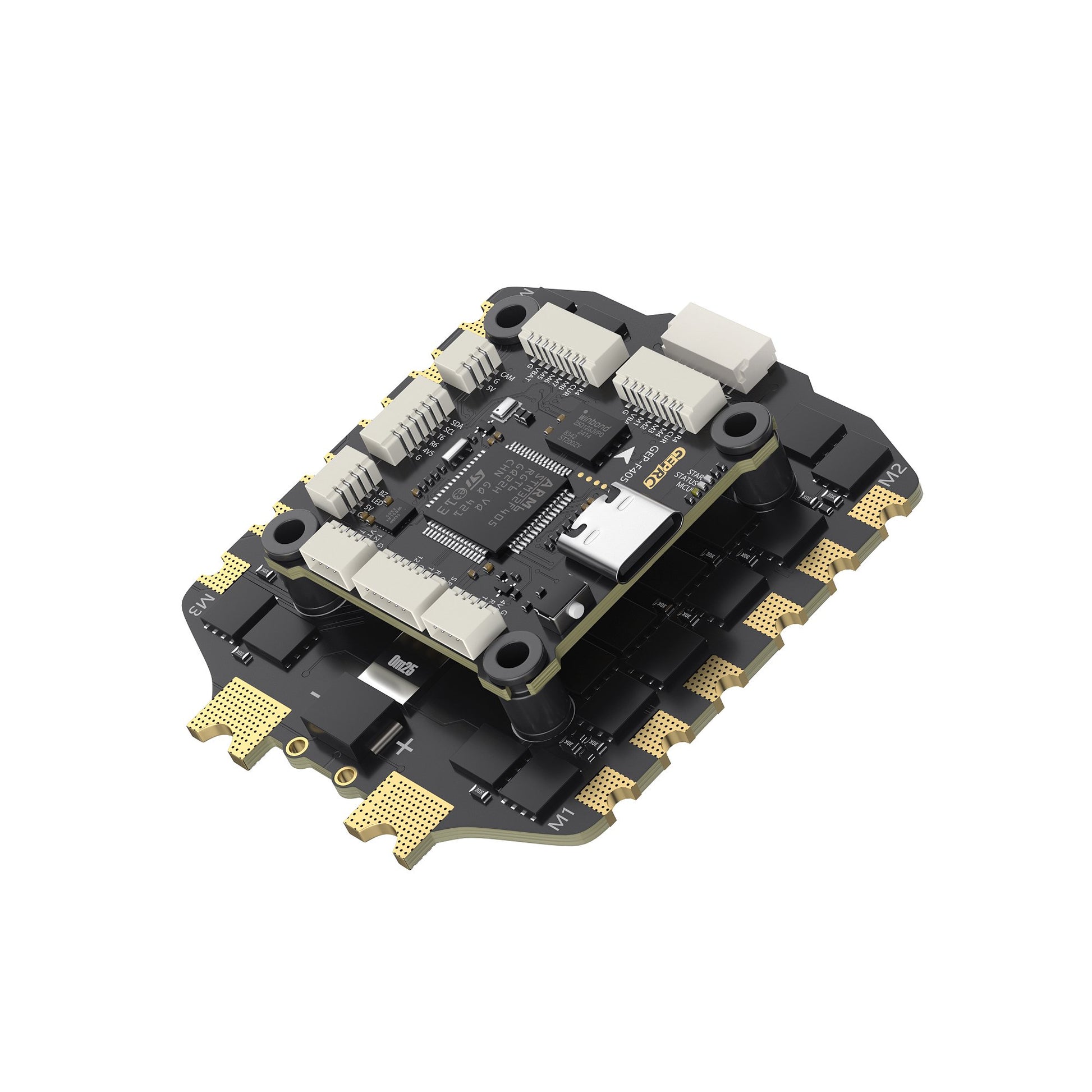

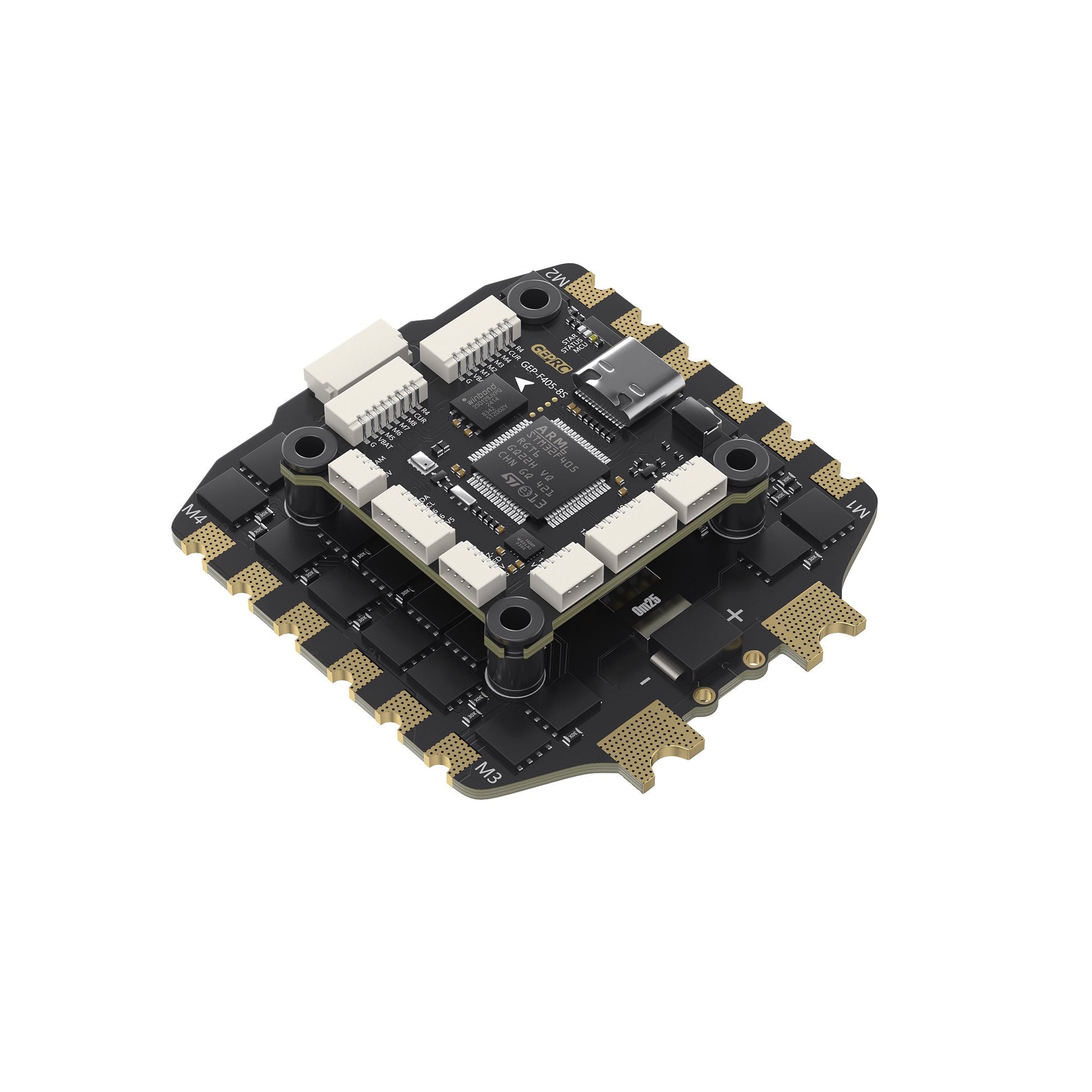

    Stack AIO GEPRC TAKER F405 BLS 100A 8S STACK

    This flight controller and ESC combo is a powerful and versatile system designed to meet the needs of advanced FPV drones. With cutting-edge technology like the STM32F405 chip, 42688-P gyroscope, and support for 8S LiPo batteries, this setup provides smooth and reliable flight performance for racing, freestyle, and cinematic drones.

    Features:

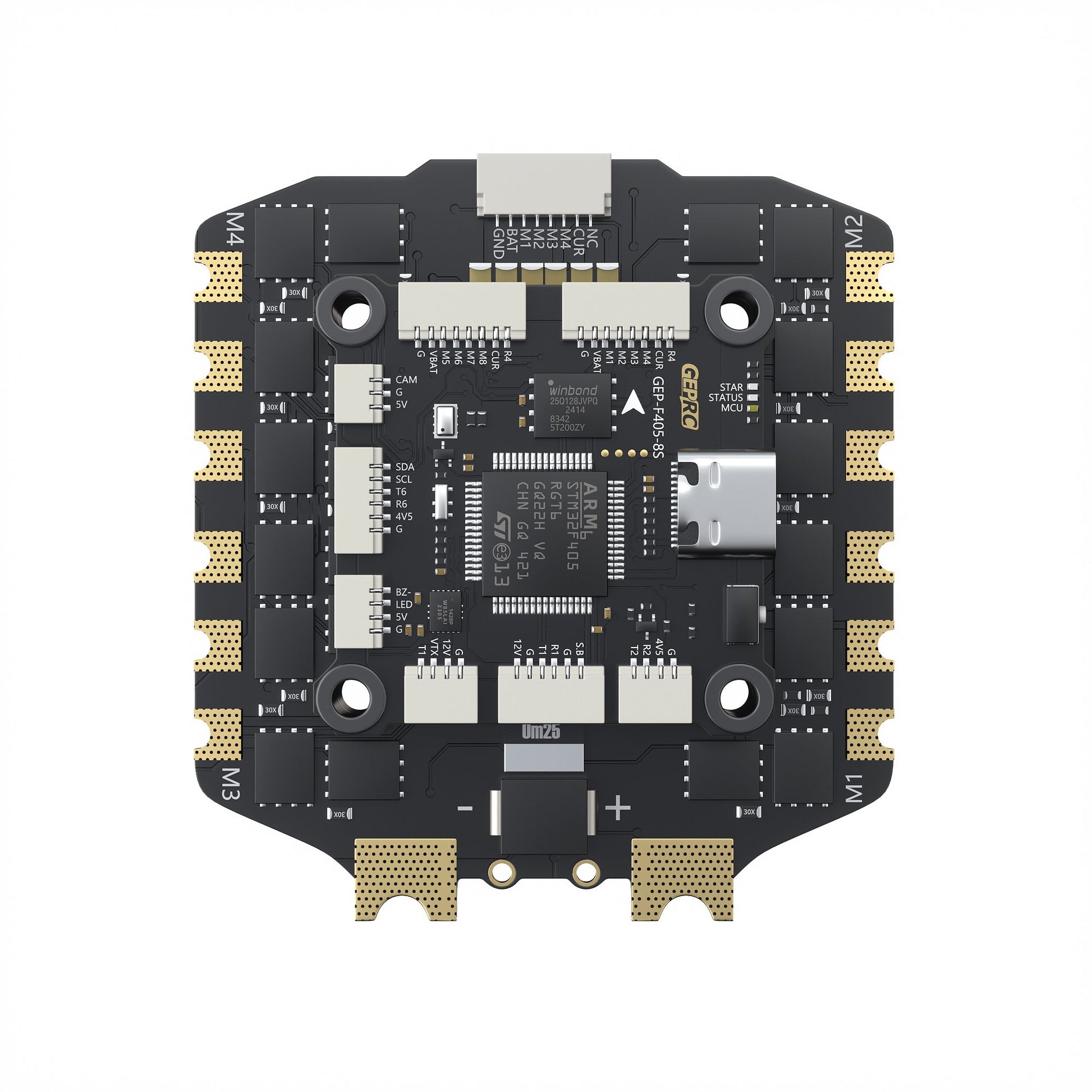

    GEP-F405-8S Flight Controller:

    - Mainstream STM32F405 Chip: Ensures efficient processing for stable and responsive performance. - ICM42688-P Gyroscope: Advanced SPI-based gyroscope for precise flight control. - 16M Black Box Storage: Convenient onboard logging for flight data. - Integrated LC Filter: Reduces noise for cleaner video and more stable signals. - Type-C USB Interface: Easy connectivity and compatibility. - DJI Air Unit Compatibility: Direct plug-in connection for seamless integration. - Dual Independent BECs: 12V@3A and 5V@3A outputs to power accessories. - Shock Absorbers: Stable gyroscope performance through vibration damping.

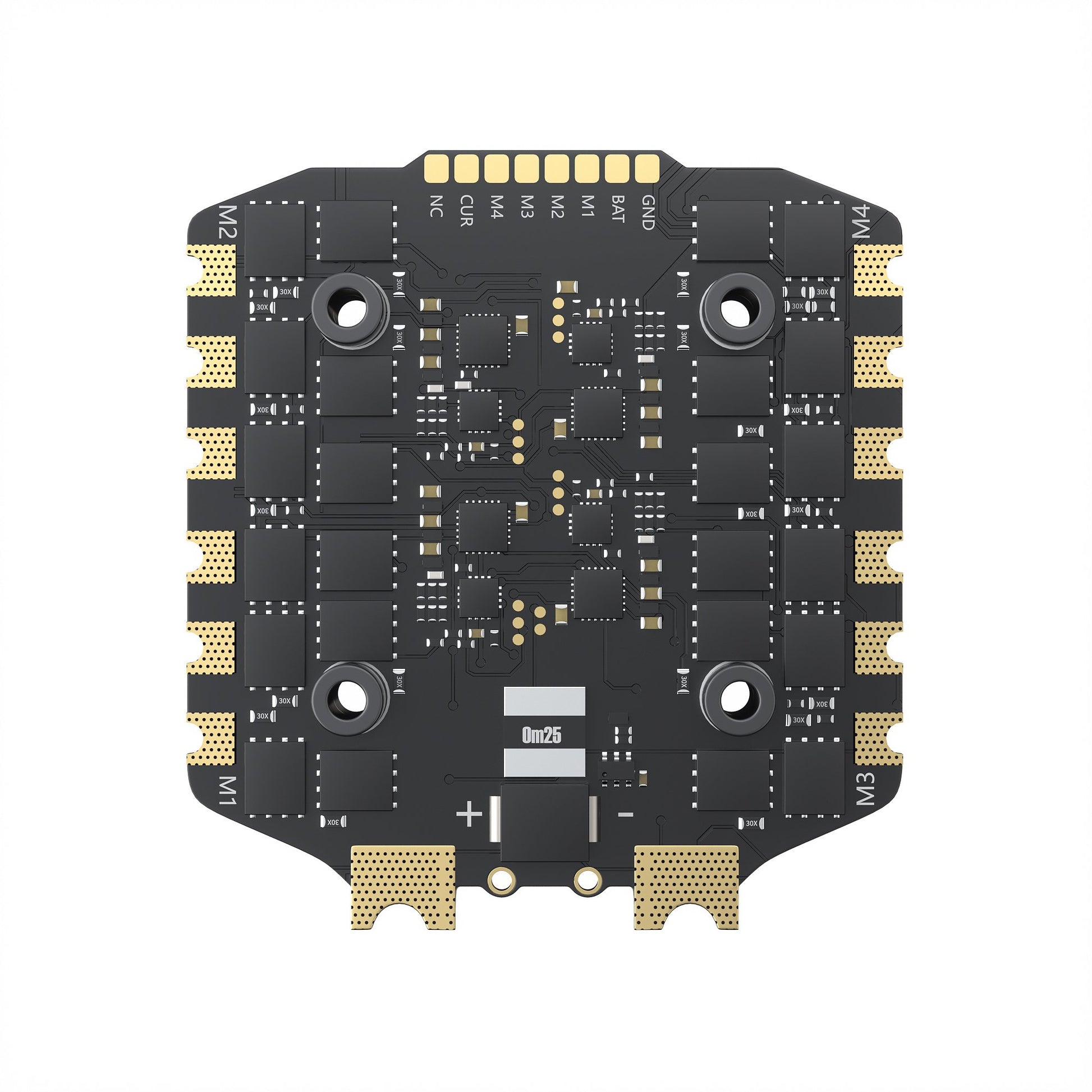

    TAKER H100_8S_BLS 100A 4IN1 ESC:

    - High Current Handling: Continuous 100A and burst up to 105A for demanding builds. - Dual MOS Design: Enhanced efficiency and reliability for smoother flight. - Dshot Support: Supports Dshot 150/300/600 protocols for fast and reliable ESC communication. - Integrated Ammeter: Calibration for accurate current measurement. - Compact and Lightweight: Designed for ease of installation and minimal added weight.

    Specifications:

    - GEP-F405-8S Flight Controller: - MCU: STM32F405 - Gyroscope: ICM42688-P (SPI) - Air Unit Connection: Direct plug-in for DJI Air Unit - Black Box: 16M onboard - BEC: 5V@3A, 12V@3A - Motor Outputs: M1–M8 - Input Voltage: 3-8S LiPo - UARTs: 6 UARTs - Size: 37 × 37mm - Mounting: 30.5 × 30.5mm (?4mm holes, reduced to ?3mm with shock-absorbing rings) - Weight: 8.3g - TAKER H100_8S_BLS 100A 4IN1 ESC: - Input Voltage: 3-8S LiPo - Continuous Current: 100A - Burst Current: 105A (5 seconds) - Supported Protocols: Dshot 150/300/600 - Ammeter Calibration: 200 - Size: 56.3 × 61.1mm - Mounting: 30.5 × 30.5mm (?4mm holes, reduced to ?3mm with shock-absorbing rings) - Weight: 28.8g

    Package Includes:

    - 1x FC Board (GEP-F405-8S) - 1x ESC Board (TAKER H100_8S_BLS) - 1x Capacitor - 1x O3 3-in-1 Connection Cable - 2x FC Adapter Cables - 1x SH1.0 4-Pin Silicone Cable - 1x Camera Connection Cable - 1x VTX Connection Cable - 1x XT90 Power Cable - 4x M3×30 Screws - 4x M3×25 Screws - 8x Nylon Nuts - 12x Silicone Anti-Shake Pads
