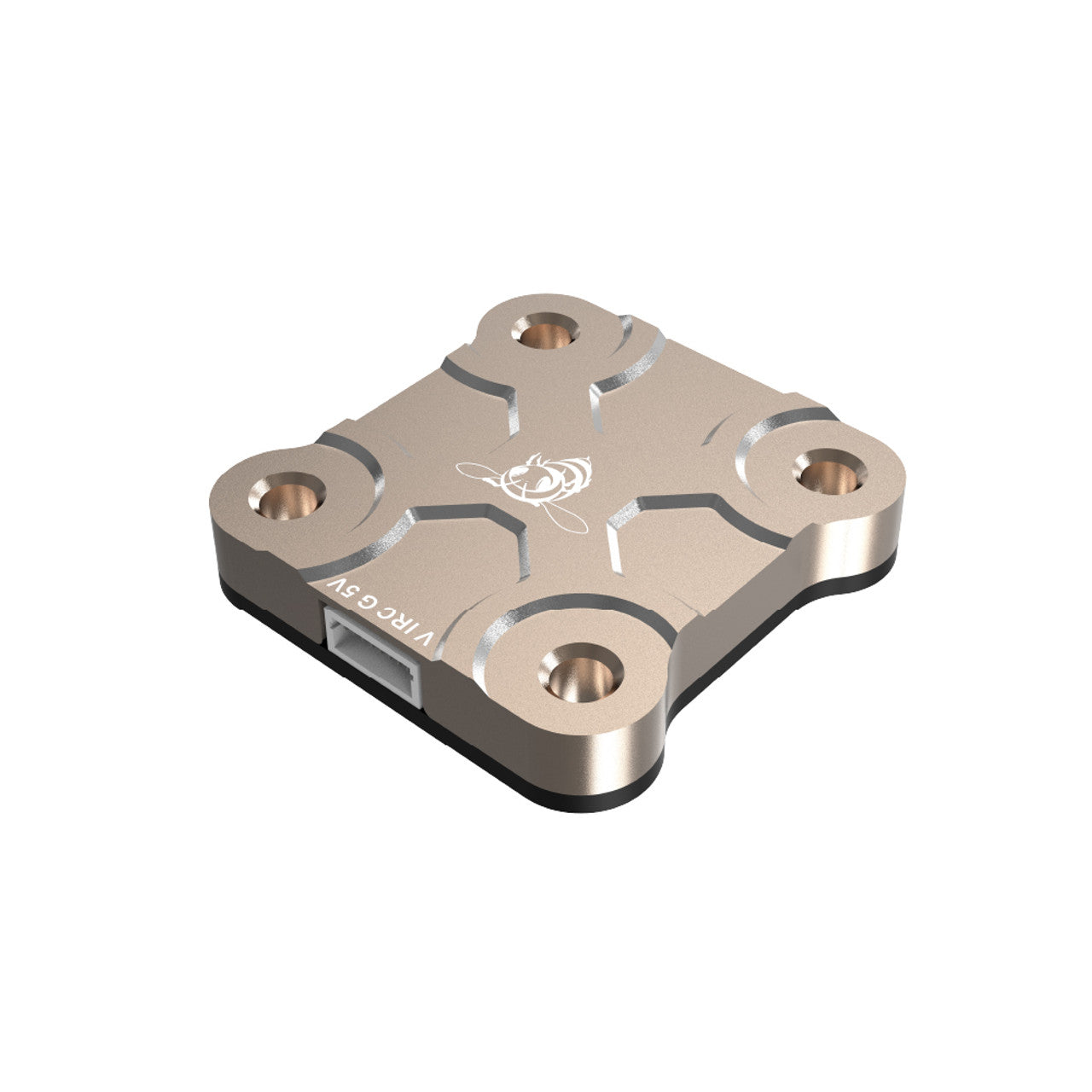

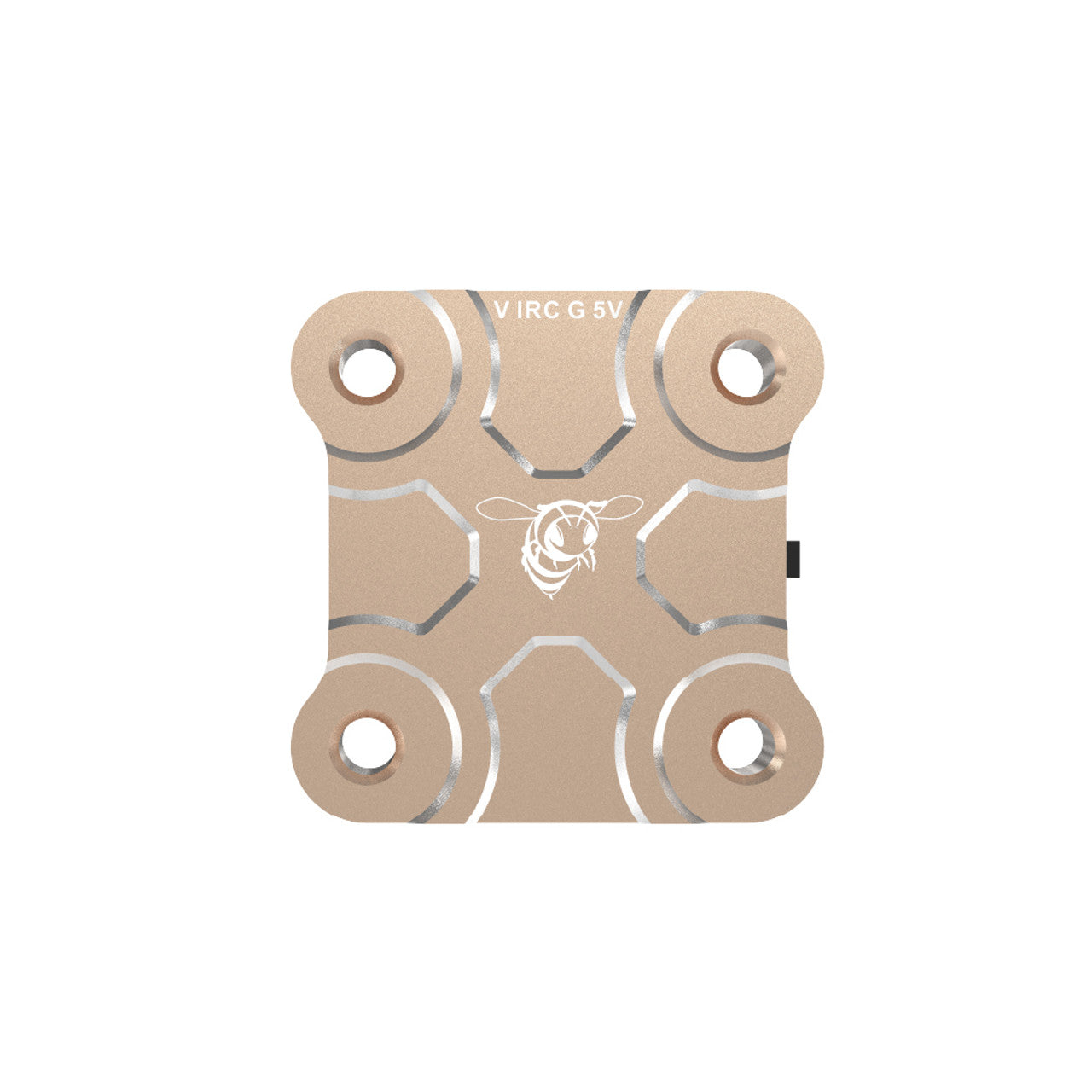

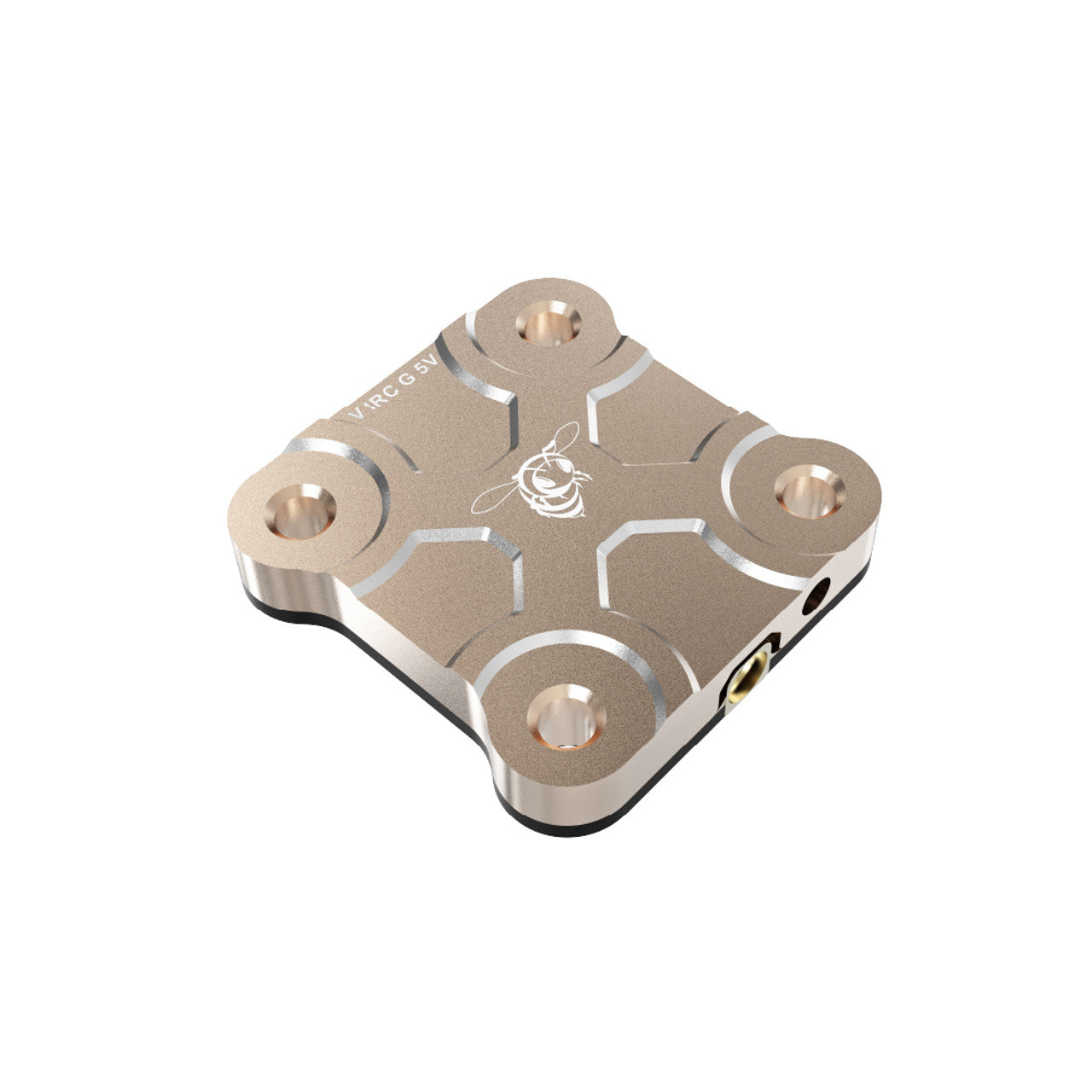

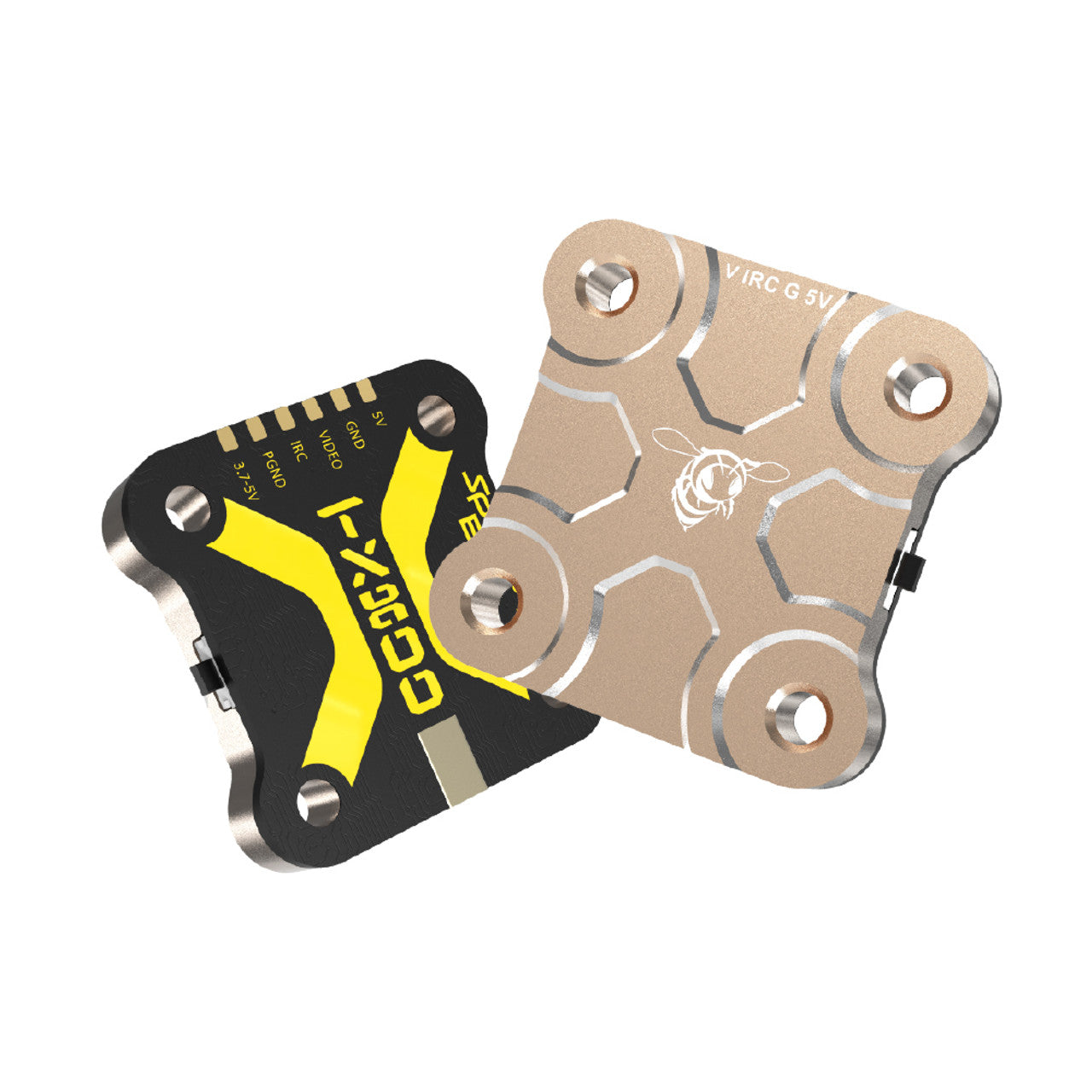

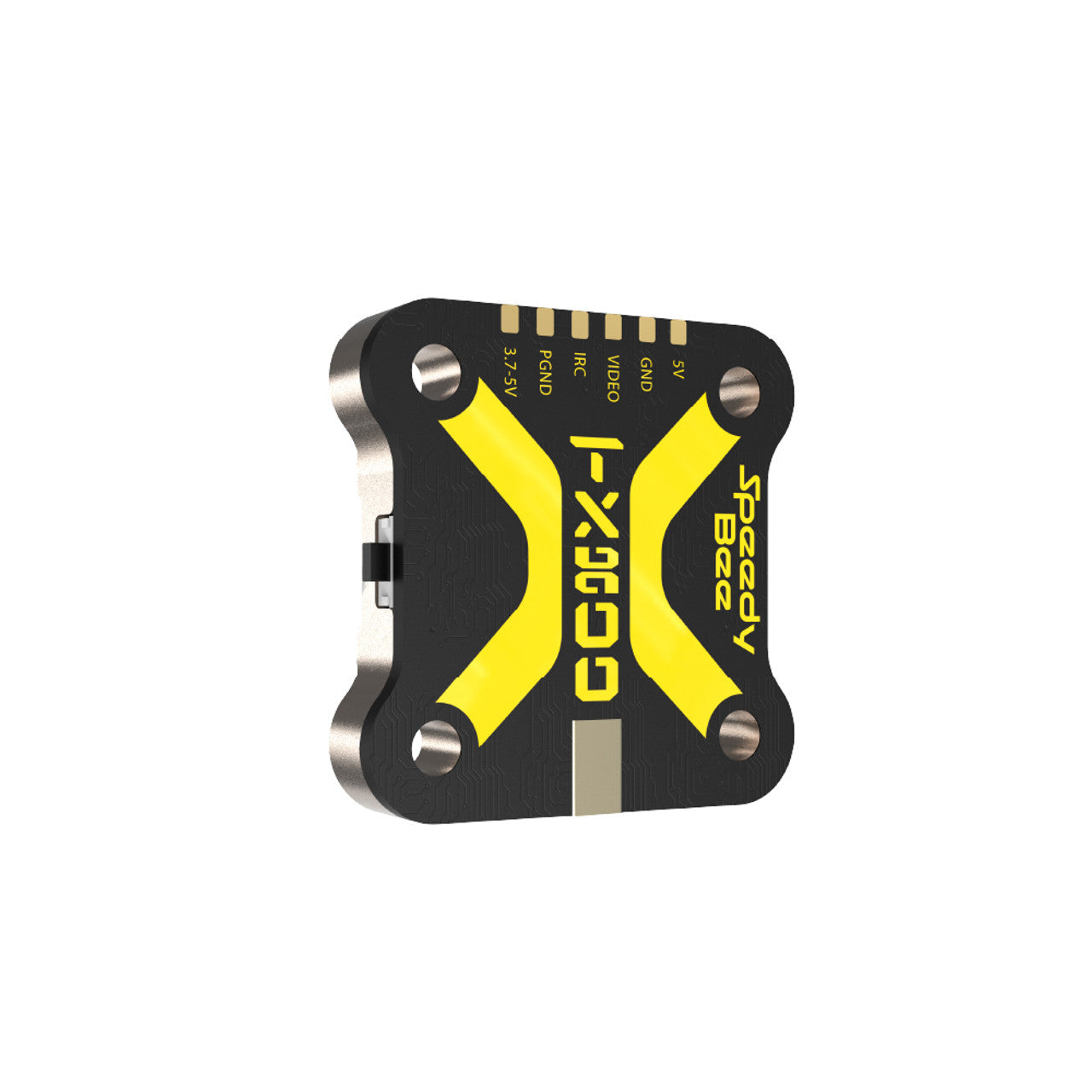

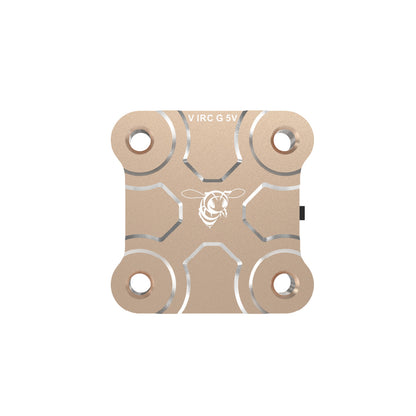

SpeedyBee TX800 5.8GHz 800mW VTX - Compact High-Power Video Transmitter
SpeedyBee TX800 5.8GHz 800mW VTX - Compact High-Power Video Transmitter
Brand: SpeedyBee
sku: SKU:SPEEDYBEE-TX800
In stock (4)Couldn't load pickup availability
- Description
The SpeedyBee TX800 is a compact yet powerful 5.8GHz VTX designed for FPV drones. Delivering up to 800 mW of output power, it supports PIT/25mW/200mW/400mW/800mW modes, making it ideal for both indoor and outdoor flying.
Its 20×20 mm mounting pattern and lightweight 5.6 g design allow for easy integration into racing and freestyle drones. An integrated heatsink prevents overheating, protecting sensitive electronics during extended flights.
Equipped with IRC TRAMP protocol, the TX800 lets you adjust frequency, output power, and other video parameters remotely. If your flight controller supports Bluetooth or WiFi, you can also configure settings via the SpeedyBee app, providing flexible and convenient control over your FPV setup.
Key Features
- Frequency: 5.8 GHz, 48 channels
- Output Power: PIT / 25mW / 200mW / 400mW / 800mW
- Input Voltage: 3.7-5.5V
- Output Voltage: 5V max 250mA
- Weight: 5.6 g (without antenna)
- PCB Size: 28×28 mm (20×20 mm M2 mounting)
- Antenna Connector: MMCX
- Remote Configuration: IRC TRAMP, Bluetooth/WiFi (via SpeedyBee app)
Included in Package
- 1× SpeedyBee TX800 VTX
