SpeedyBee 5.8GHz V2 RHCP Antenna (MMCX-L, 2pcs)
SpeedyBee 5.8GHz V2 RHCP Antenna (MMCX-L, 2pcs)
Brand: SpeedyBee
sku: SKU:SBANT2-RMMCX90S-D
Out of stockCouldn't load pickup availability
- Description

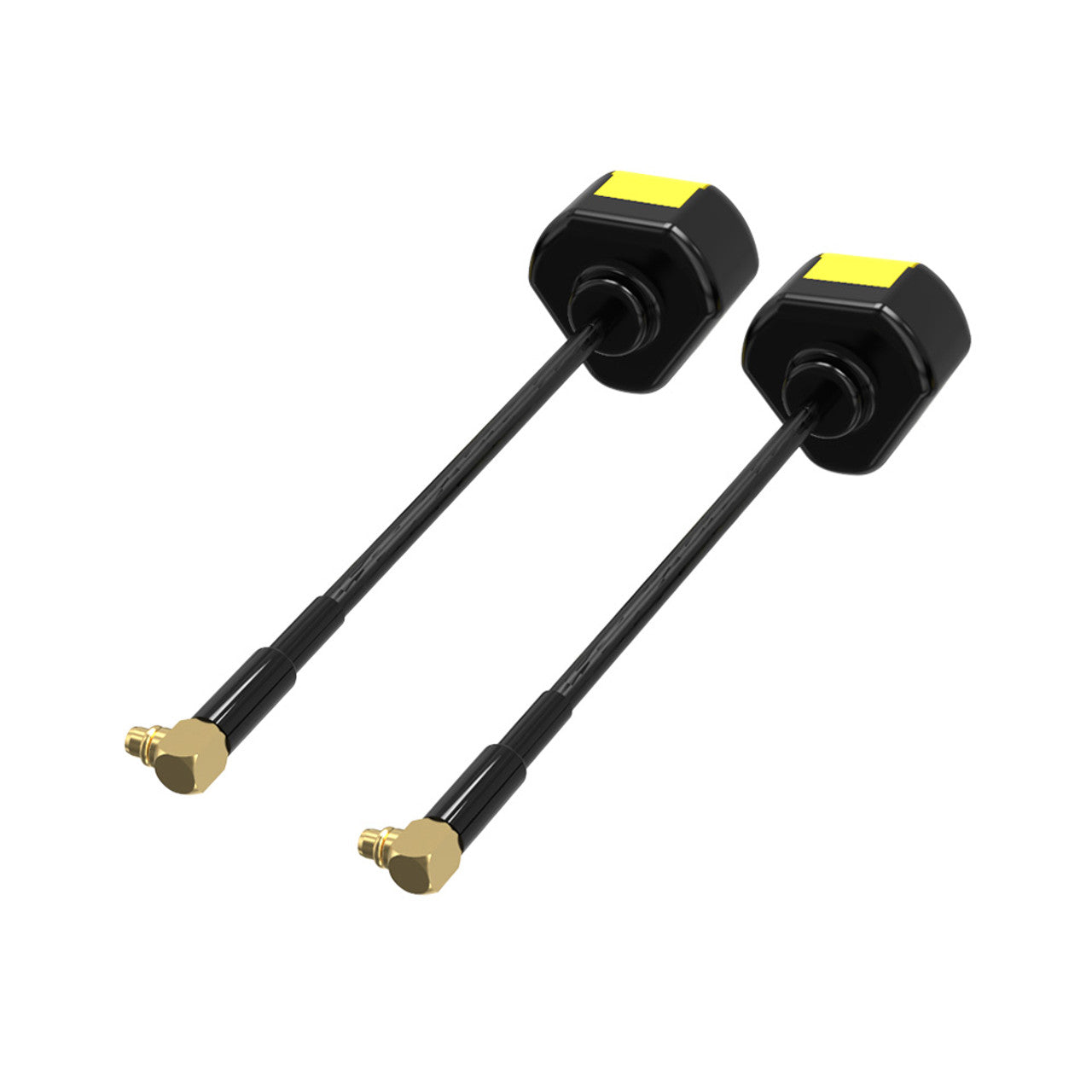

The SpeedyBee 5.8GHz V2 antenna is a compact and high-performance FPV video antenna designed for stable signal transmission in the 5.8GHz band. Optimized for FPV racing and freestyle drones, it delivers strong signal clarity and low loss performance in a lightweight and durable package.
Operating across 5.5–6.0 GHz, this RHCP antenna features a very low axial ratio and excellent SWR performance, ensuring efficient circular polarization and stable video reception even in challenging RF environments.

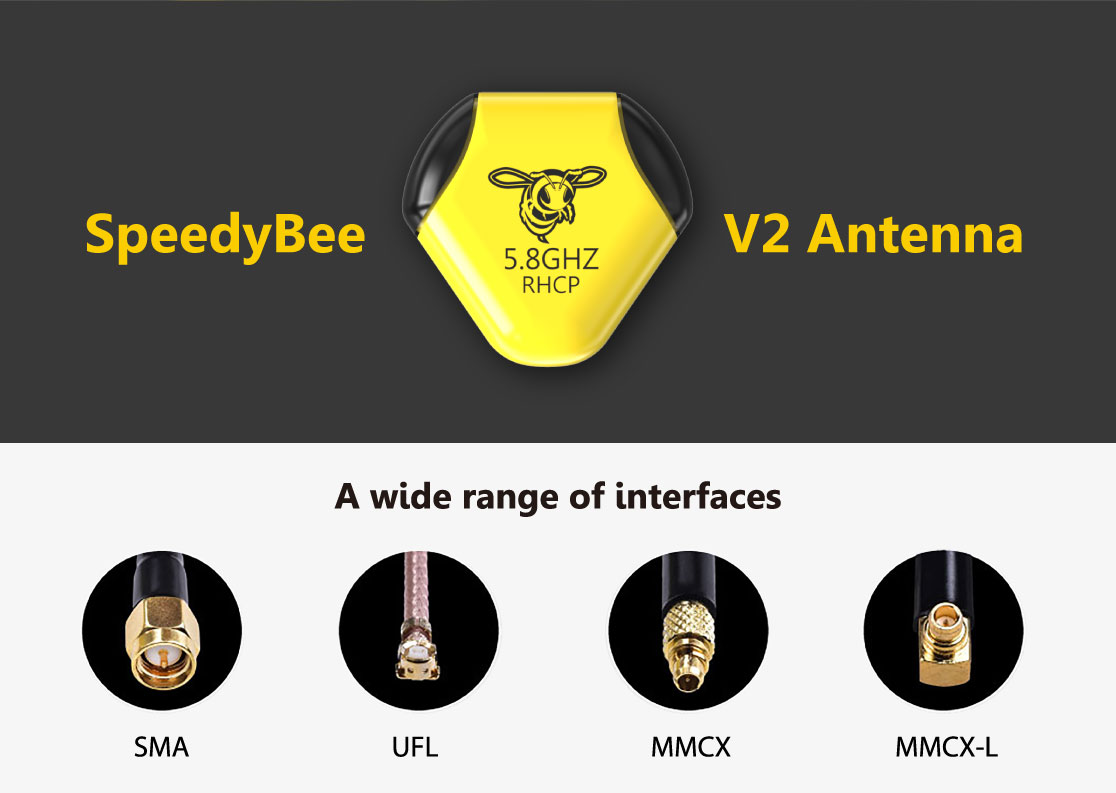

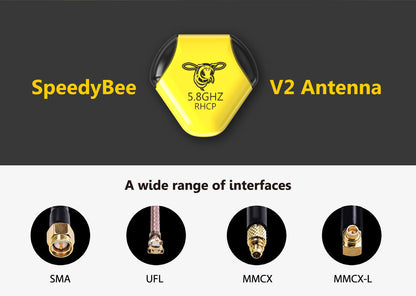

The MMCX-L connector and compact 88mm design make it easy to install on modern FPV builds where space, weight, and performance are critical.
Key Features:
- High-performance 5.8GHz FPV antenna (V2 design)
- RHCP polarization for improved signal isolation
- Very low axial ratio (< 1.0) for clean signal reception
- Low SWR (< 1.1 at 5.8GHz) for efficient transmission
- Lightweight compact design for FPV drones
- MMCX-L connector for secure mounting
- Comes as a 2-piece set
Specifications:
- Frequency Range: 5.5 – 6.0 GHz
- Gain: 2.8 dBi
- Polarization: RHCP
- Axial Ratio: < 1.0
- SWR: < 1.1 (at 5.8 GHz)

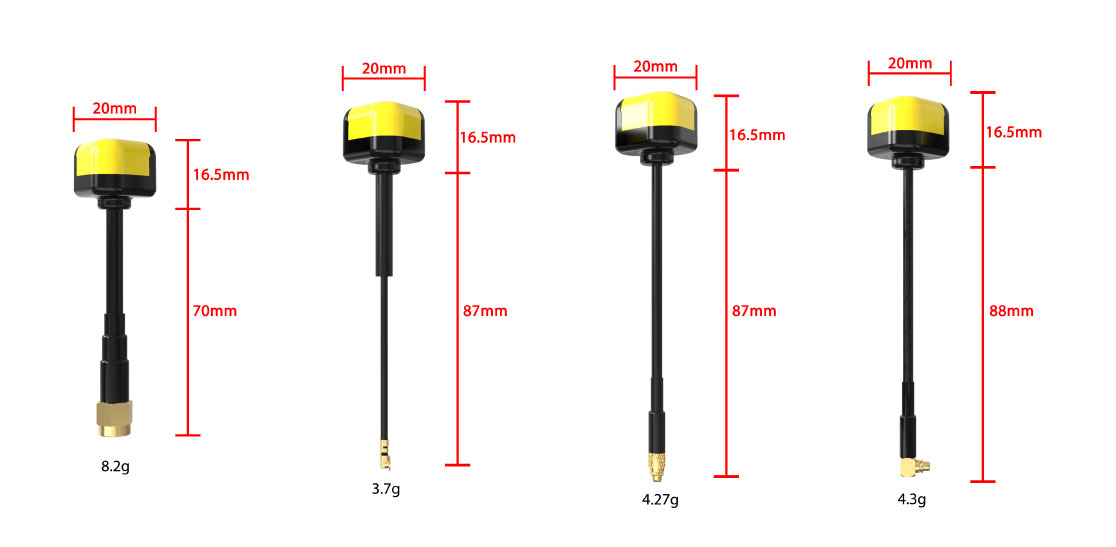

- Dimensions: 20 × 16.5 mm + 88 mm
- Weight: 4.3 g (each)
- Connector: MMCX-L
- Color: Yellow + Black
Included:
- 2x SpeedyBee 5.8GHz V2 RHCP Antenna (MMCX-L)
