    Servo Tester ToolkitRC ST8

    Servo Tester ToolkitRC ST8

    Brand: ToolkitRC

    €66,54
    €66,54 €66,54
    -0% View Product

    sku: TK30500

    Out of stock
    We need to check the product availability with our supplier. Please contact us for details.
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

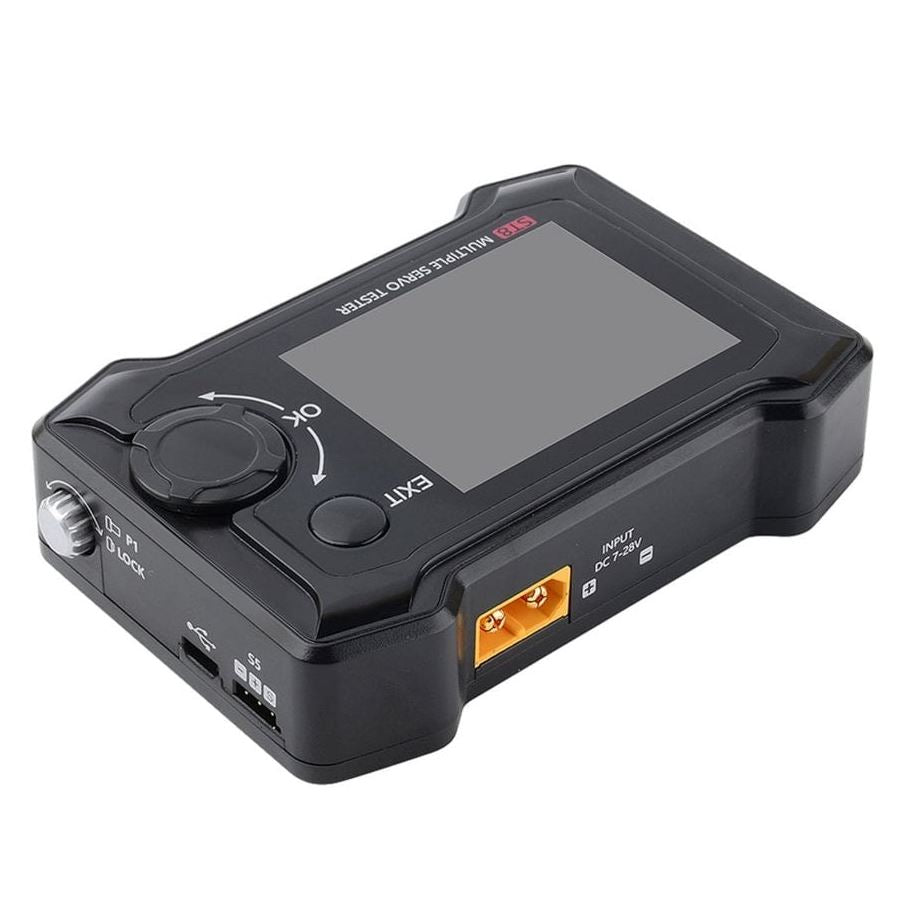

    Advanced Servo Tester ST8

    The ToolkitRC ST8 advanced servo tester allows you to test up to 8 servos simultaneously via 4 independent output channels.

    Function:

    - 4 channels of programmable independent signal, 8 channels of output signal, accuracy 1 ms - 4 independent current measurements, or waveform display - Multiple measurement modes (speed, count, step, linear) - PWM output signals with a period of 33 to 1000 Hz - Various signal trigger sources (internal, buttons, knobs, external sources) - Measure the response speed of the steering gear to the nearest 1 millisecond - External input signal supports PWM/PPM/SBUS with 1ms accuracy - External input signal supports PWM/PPM/SBUS with 1ms accuracy - Drive the servo with a maximum load of 100W - Multilingual system - The device is simulated as a USB flash drive enabling firmware upgrade

    Specifications:

    - 7.0-28.0V @MAX 10A - 5.0V-28.0V@MAX 10A - 5.0V-8.4V@MAX 4A/S1-S4 - 5.0V-8.4V@MAX 4A/S4 Ext. - 100us-2900us@33-1000Hz @S1-S4 - PWM 500us-2500us@S5 - PPM 8CH@S5 SBUS 16CH@S5 - 1000us-2000us@P1 - Upgrade@USB3.0 - 2.4" TFT RGB resolution 320*240 - 99mm * 68mm * 26mm - 120 g

    Included: 1x ToolkitRC ST8 Advanced Servo Tester
