    Servo Emax ES3059D

    Servo Emax ES3059D

    Brand: Emax

    €5,67
    €5,67 €5,67
    -0% View Product
    Out of stock
    We need to check the product availability with our supplier. Please contact us for details.

    sku: 0102003033
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

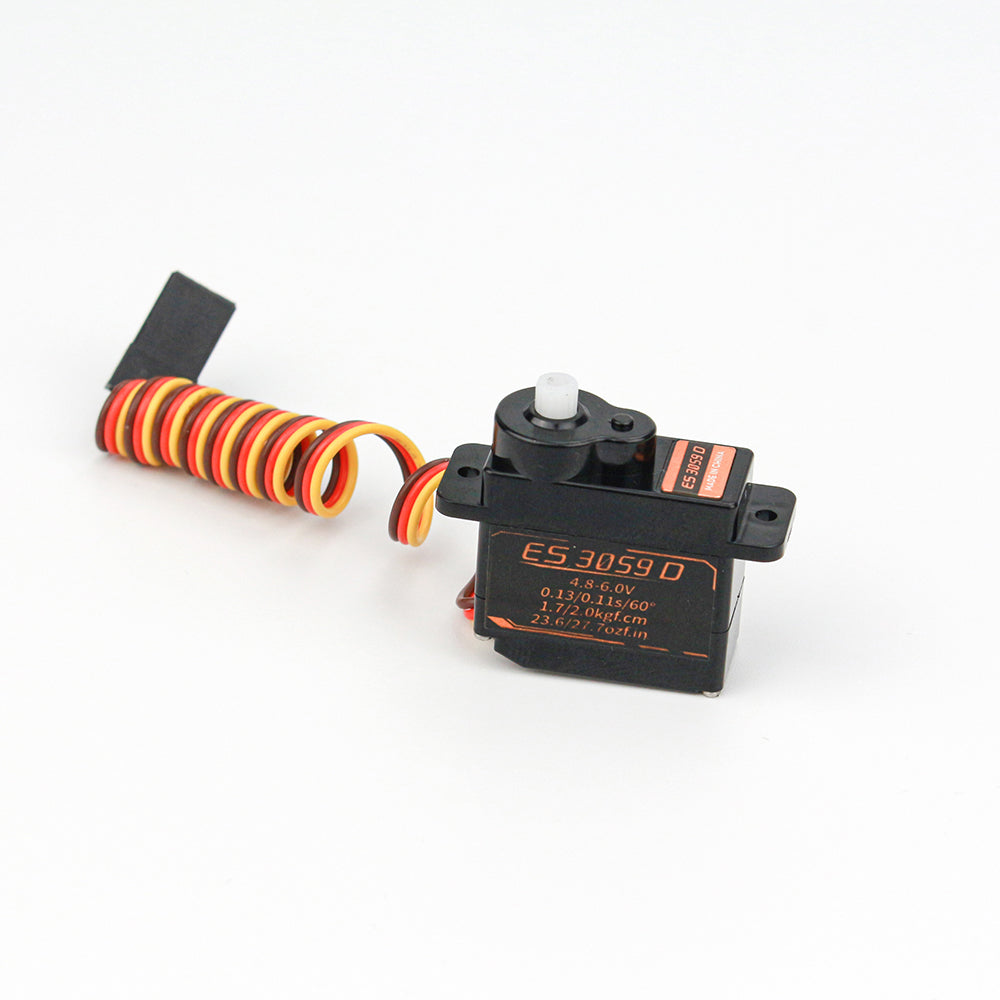

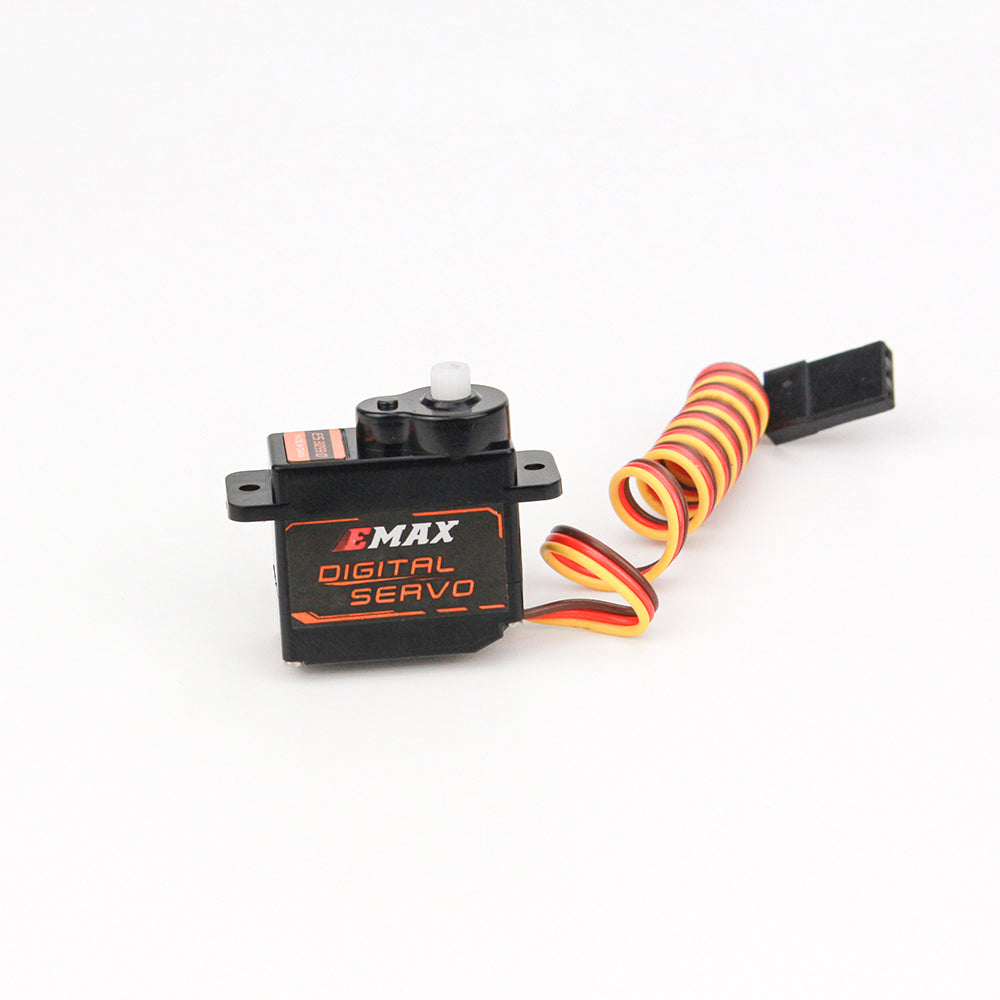

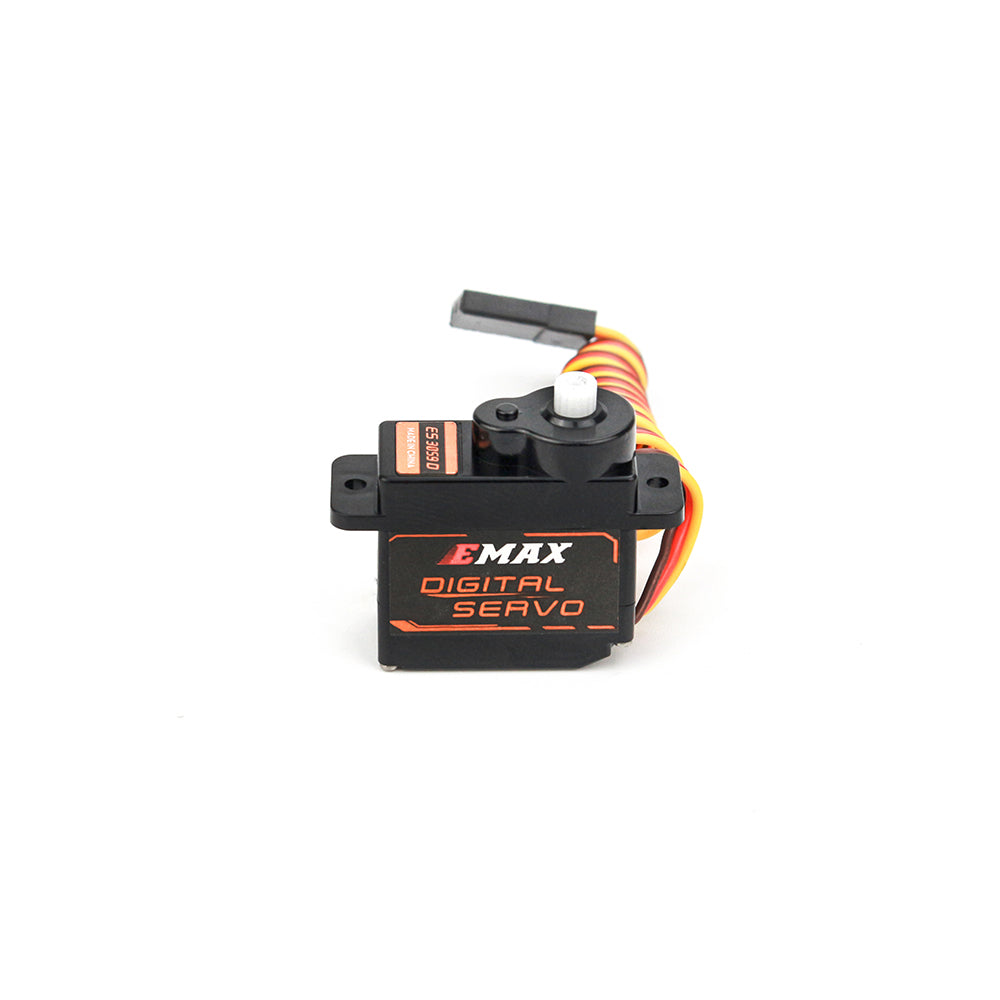

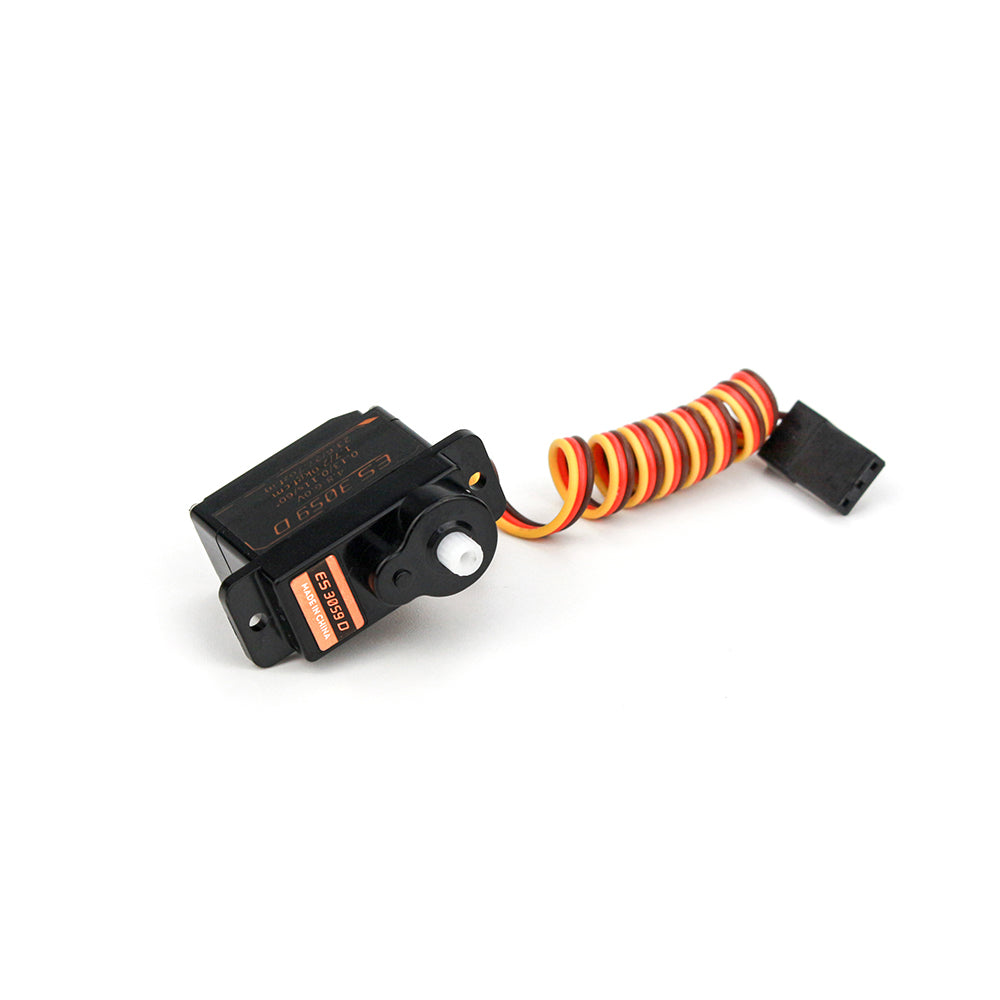

    Servo Emax ES3059D

Emax ES3059D 9g digital actuator for RC model and robot PWM actuator. Accessories include an arm and a set of screws.

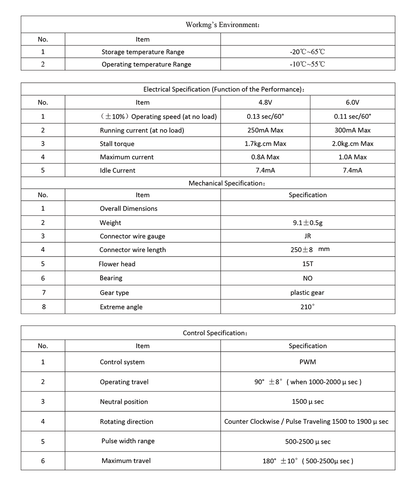

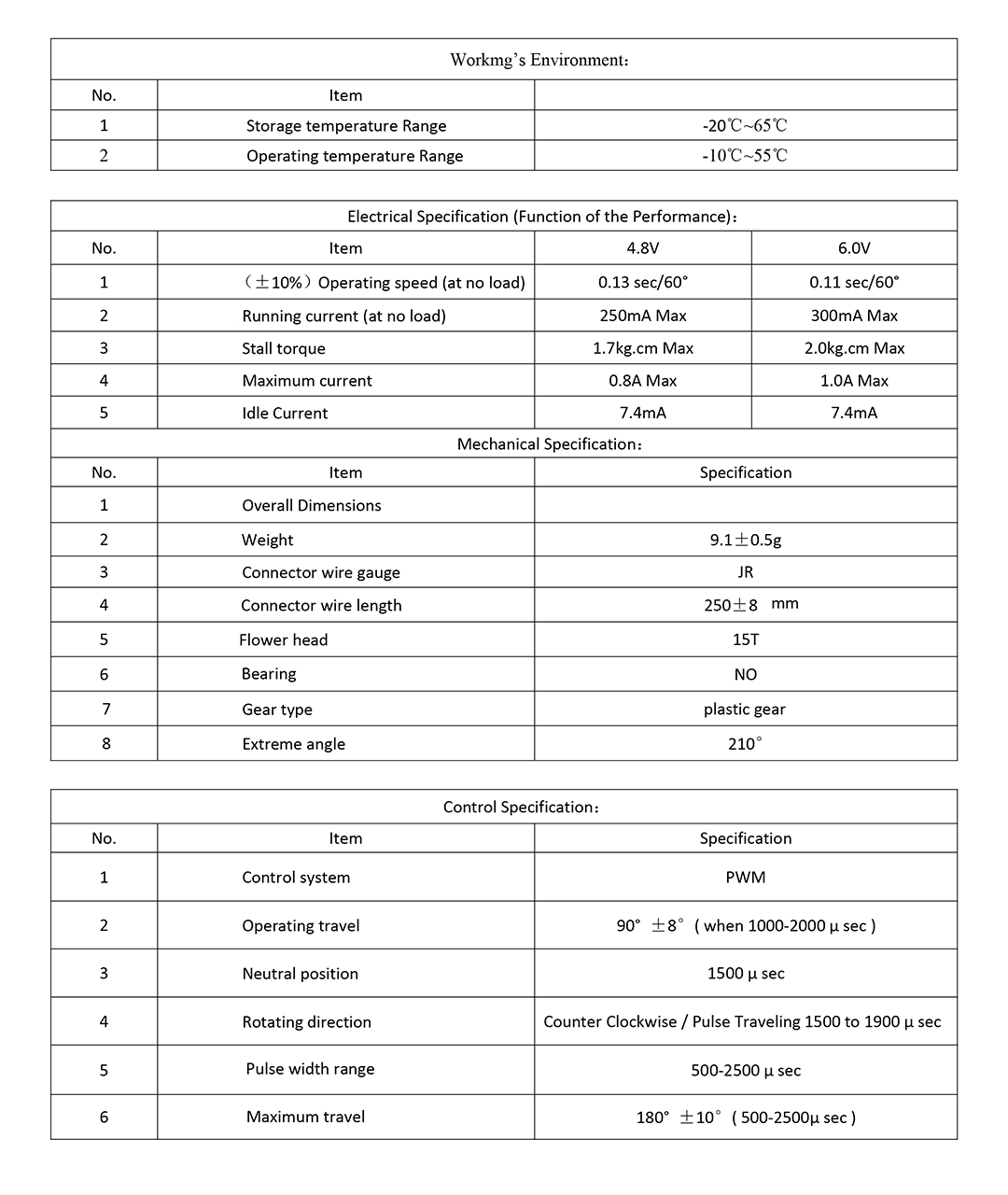

Specifications:
Type: digital gearbox with bearing
Voltage: 4.8-6V
Operating speed: 0.13s/0.11s 60°
Operating current (MAX): 250mA/300mA
Tightening torque (MAX): 1.7-2.0 kg.cm
Open circuit current: 7.4 mA
Connector wire feedthrough: JR
Connector cable length: 250 mm
Flower head: 15T
Gear type: plastic gear
Extreme angle: 210°
Weight: 9.1g
