    ESC 4in1 Pilotix 75A AM32

    ESC 4in1 Pilotix 75A AM32

    Brand: Pilotix

    €81,07
    €81,07
    -% View Product

    sku: 6208

    In stock (57)
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

    ?SC 4in1 Pilotix 75A AM32

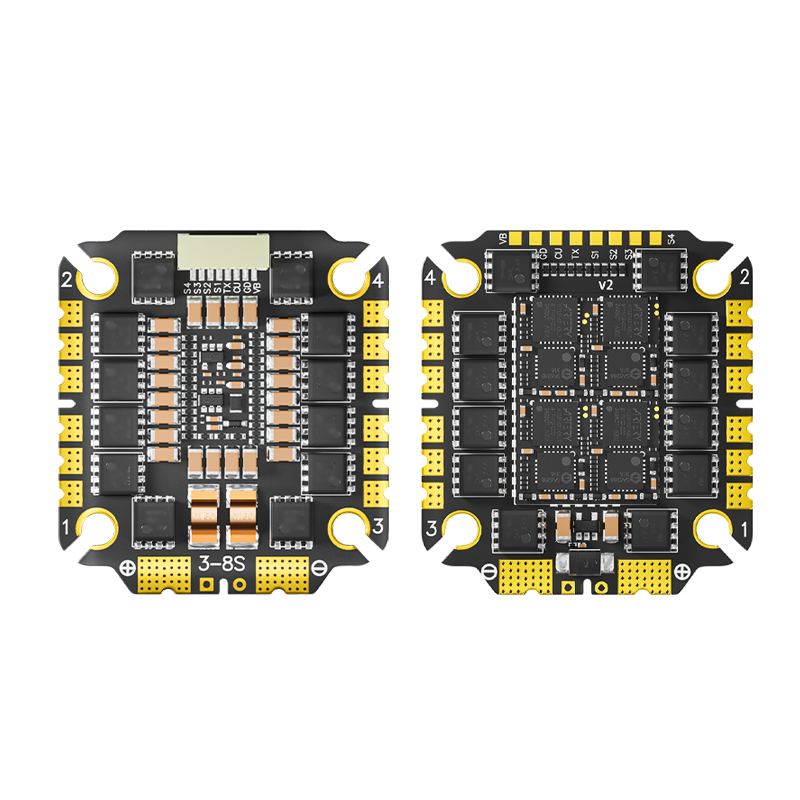

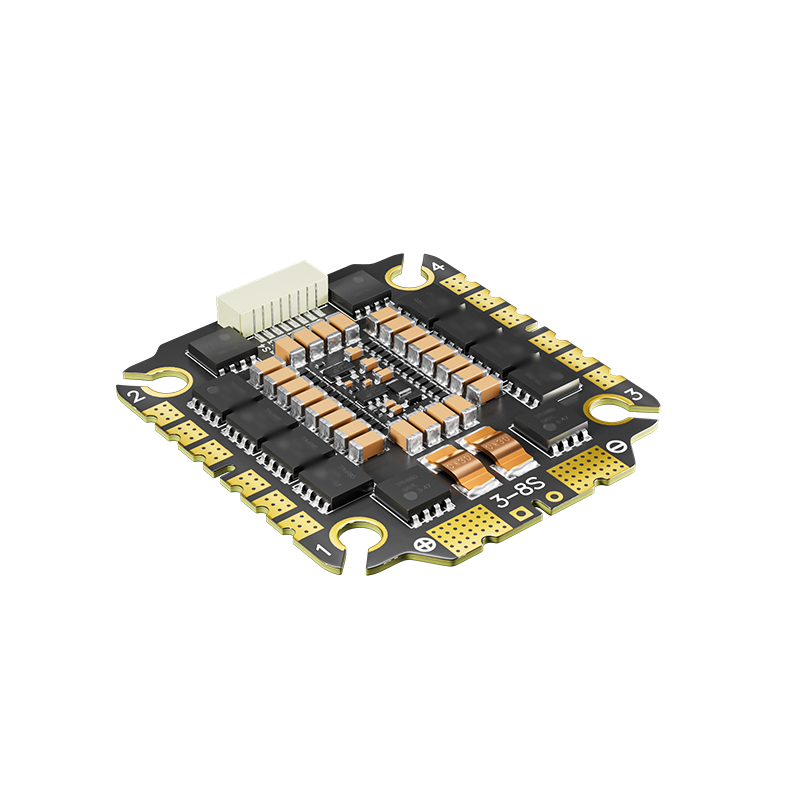

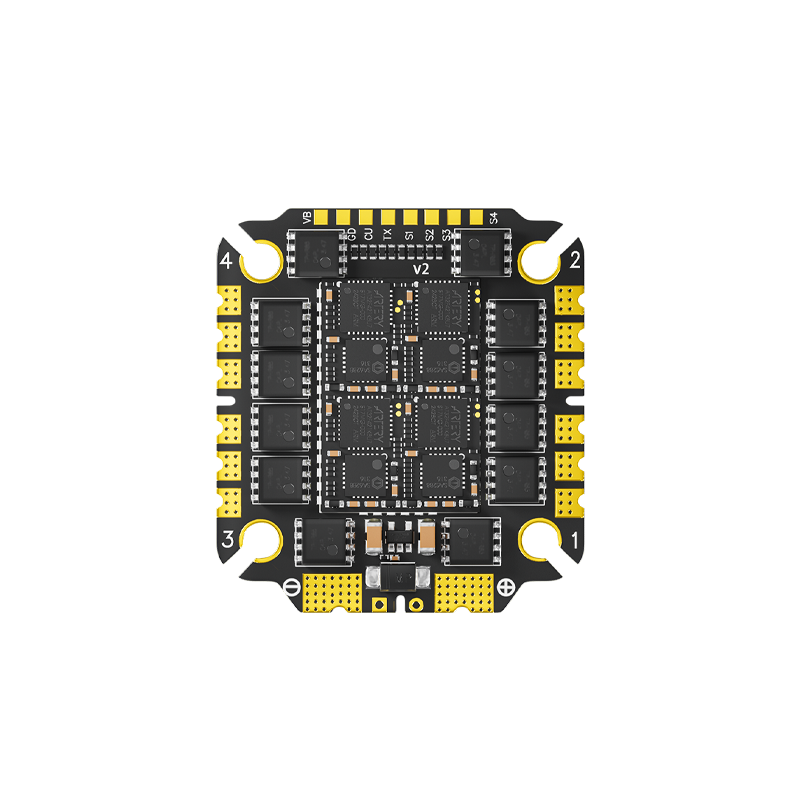

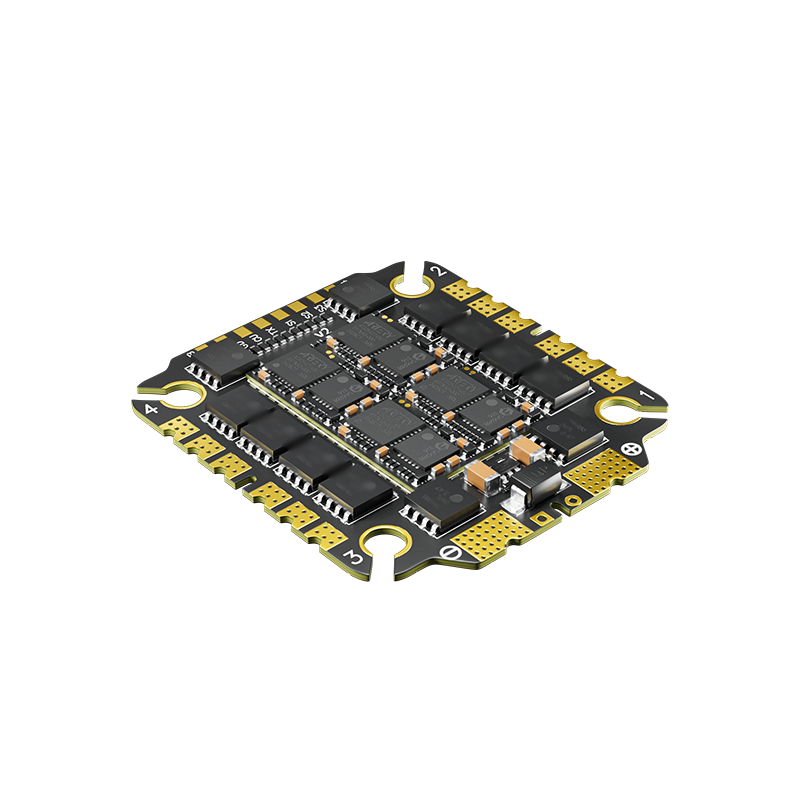

    The Pilotix 3075 V2 is a high-performance 4-in-1 electronic speed controller designed for FPV drones requiring reliability and stable power delivery. Built with high-quality MOSFETs and ceramic capacitors, this ESC ensures voltage resistance and strong overcurrent capabilities, keeping your power system stable even under high loads.

    It features integrated ammeter and TVS protection for added durability and safety. Powered by the AM32 firmware, the ESC supports telemetry and a wide input voltage range from 9V to 40V (3-8S LiPo). With a continuous maximum current of 75A per channel and peak current of 85A per channel, it meets the demands of powerful brushless motors.

    Specifications:

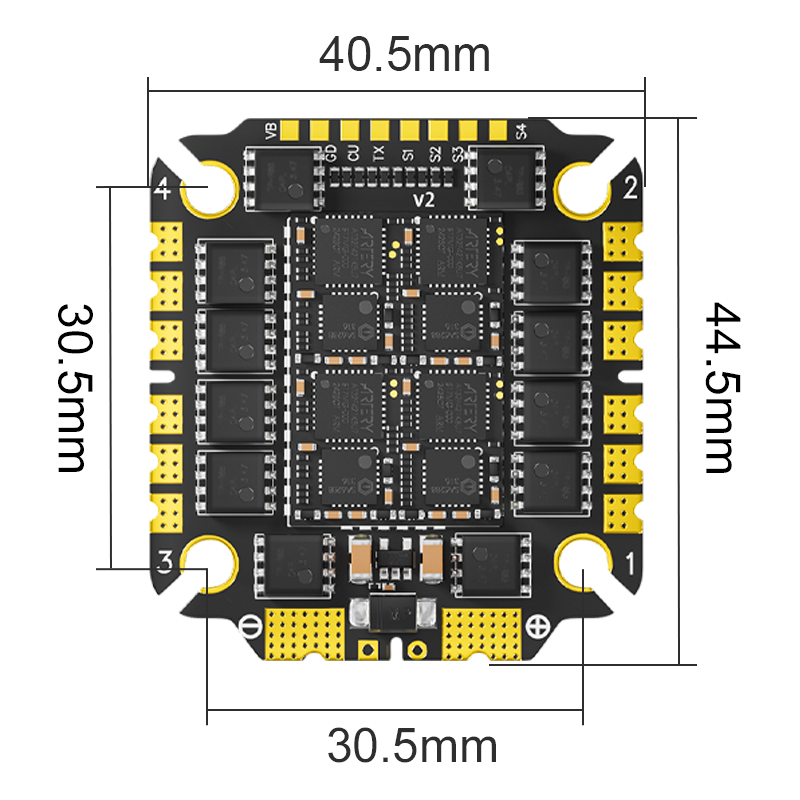

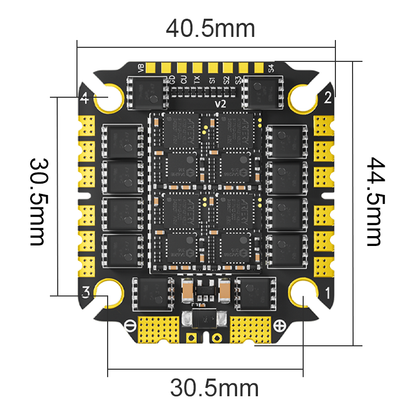

    Firmware: AM32_AORC_K_A_F421_2.16.hex ESC Programming: AM32 Continuous Max Current: 75A x 4 Current Scaling: 85A x 4 Telemetry: Supported BEC: No Input Voltage: DC 9V-40V (3-8S LiPo) Working Humidity: 20~95% Dimension: 44.5mm × 40.5mm Mounting Hole: M3 × 30.5mm × 30.5mm Weight: 15.8g Input Signal: DShot150/300/600 & MultiShot / OneShot

    Package Includes:

    1 ? 3075 V2 ESC 1 ? 35V 1000uF solid-state electrolytic capacitor 4 ? Nuts 1 ? 8PIN SH1.0 Connecting Line 4 ? M3*8mm Shock-absorbing Balls 4 ? M3*30mm Metal Screws 1 ? XT60 Power Cord
