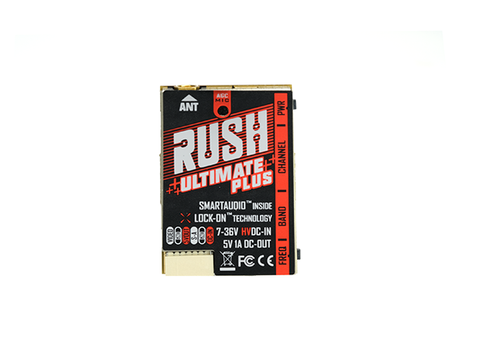

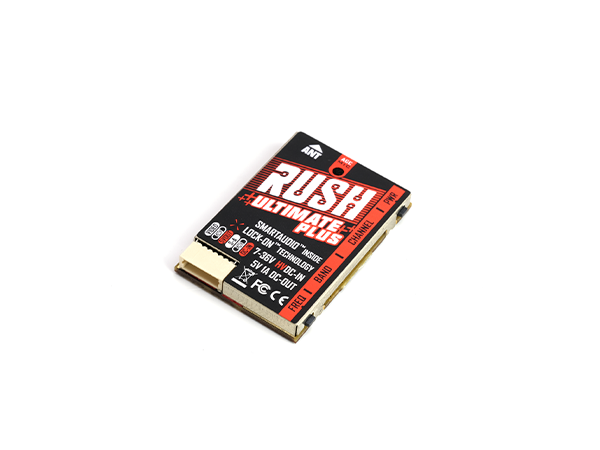

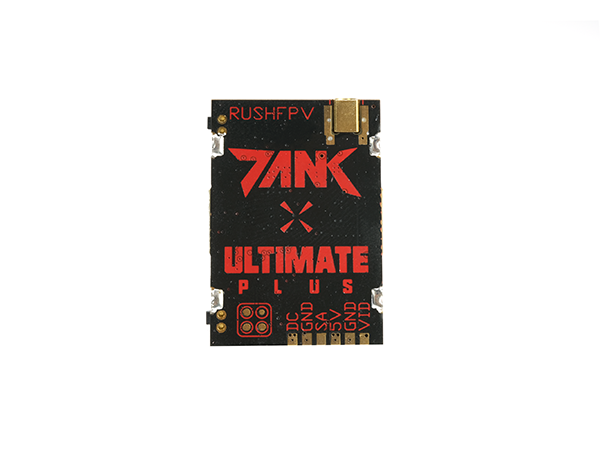

RUSH Tank Ultimate Plus 5.8G 800mW VTX
RUSH Tank Ultimate Plus 5.8G 800mW VTX
Brand: RUSH
sku: SKU:DA08
Out of stockCouldn't load pickup availability
- Description
The RUSH Tank Ultimate Plus 5.8GHz VTX is a high-performance FPV video transmitter designed for racing drones and demanding FPV builds. Combining the compact form factor of the Tank Racing Edition with the performance of the Tank Ultimate series, this VTX delivers stable video transmission, strong anti-interference performance, and adjustable output power up to 800mW.
Equipped with Rush LOCK-ON technology, the Tank Ultimate Plus prevents frequency drift and allows up to eight pilots to fly simultaneously without signal interference. The integrated AGC microphone enables audio transmission alongside your FPV feed, while the full metal housing provides excellent heat dissipation and durability.
With TBS SmartAudio support, pilots can easily adjust channels, power levels, and settings directly through the flight controller or OSD. Its compact size and reduced weight make it an excellent choice for FPV racing drones and lightweight freestyle builds.
Key Features
- Adjustable power output: PIT / 25mW / 200mW / 500mW / 800mW
- Rush LOCK-ON technology prevents frequency drift
- Supports up to 8 pilots simultaneously without interference
- Built-in AGC microphone for audio transmission
- SmartAudio support for easy configuration through OSD
- Full metal casing for durability and efficient heat dissipation
- Compact and lightweight design ideal for racing drones
- Strong anti-interference and power filtering
Specifications
- Model: Rush Tank Ultimate Plus
- Frequency: 5.8 GHz
- Channels: 48CH
- Input Voltage: 7-36V DC
- Output Voltage: 5V / 1A
- Output Power: PIT / 25mW / 200mW / 500mW / 800mW
Current Consumption (12V Input)
- Pit Mode: 40 mA
- 25 mW: 95 mA
- 200 mW: 185 mA
- 500 mW: 250 mA
- 800 mW: 380 mA
- Dimensions: 33.6 × 22.8 × 4.1 mm
- Weight: 6.66 g (without cable)
Package Includes
- 1 × Rush Tank Ultimate Plus 5.8GHz VTX with SmartAudio
