RUSH Tank Ultimate Mini 5.8G 800mW VTX
RUSH Tank Ultimate Mini 5.8G 800mW VTX
Brand: RUSH
sku: SKU:DA10
In stock (30)Couldn't load pickup availability
- Description

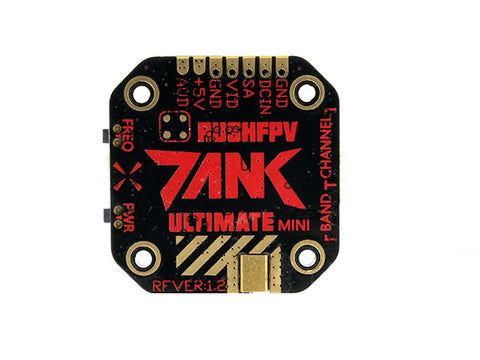

The RUSH Tank Ultimate Mini 5.8GHz VTX is a compact and lightweight FPV video transmitter designed for modern racing and freestyle drone builds. Despite its small footprint, it delivers stable and powerful video transmission with adjustable output power up to 800mW.
Built with a robust compact design, the Tank Mini ensures reliable performance while minimizing weight. The transmitter supports official TBS SmartAudio, allowing pilots to change frequency channels and power levels directly through the flight controller or OSD. The integrated PIT Mode allows safe power-up during races or group flying sessions without interfering with other pilots.
With a 20×20mm mounting pattern, wide 7-36V input voltage range, and included antenna and protective cover, the RUSH Tank Ultimate Mini is a versatile solution for lightweight FPV drone builds.
Key Features
- Adjustable output power: PIT / 25mW / 200mW / 500mW / 800mW
- Compact and robust design for lightweight FPV builds

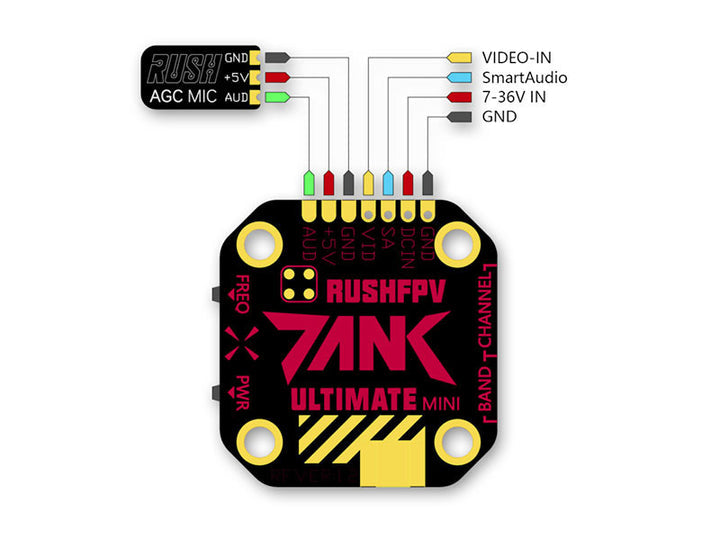

- Official TBS SmartAudio support for remote configuration via OSD
- PIT Mode for safe startup during races
- Wide input voltage: 7-36V DC
- 20×20mm mounting pattern for modern FPV frames

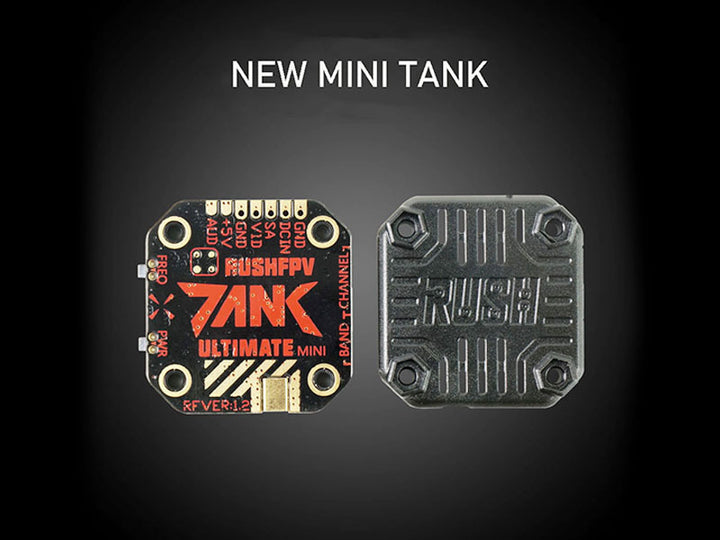

- Optional protective shield included
Specifications
- Model: Rush Tank Ultimate Mini
- Frequency: 5.8 GHz
- Channels: 48CH
- Input Voltage: 7-36V DC
- Output Voltage: 5V / 1A
- Output Power: PIT / 25mW / 200mW / 500mW / 800mW
Current Consumption (12V Input)
- Pit Mode: 40 mA
- 25 mW: 95 mA
- 200 mW: 185 mA
- 500 mW: 250 mA
- 800 mW: 380 mA
- Mounting Pattern: 20 × 20 mm
- Dimensions: 28 × 28 × 3.3 mm
- Weight:
- 4.46 g (without dust cover)
- 5.4 g (with dust cover)
Package Includes
- 1 × Rush Tank Ultimate Mini VTX
- 1 × Protective cover
- 1 × MMCX dipole antenna
- 1 × Set of wires
- 1 × Hardware kit
