RUSH Race II 5.8G 400mW VTX
RUSH Race II 5.8G 400mW VTX
Brand: RUSH
sku: SKU:DA16
Out of stockCouldn't load pickup availability
- Description

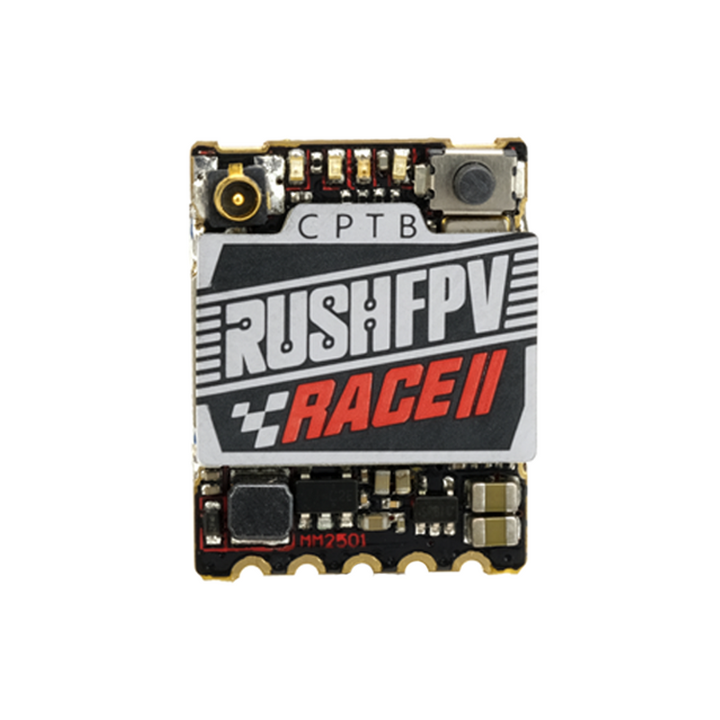

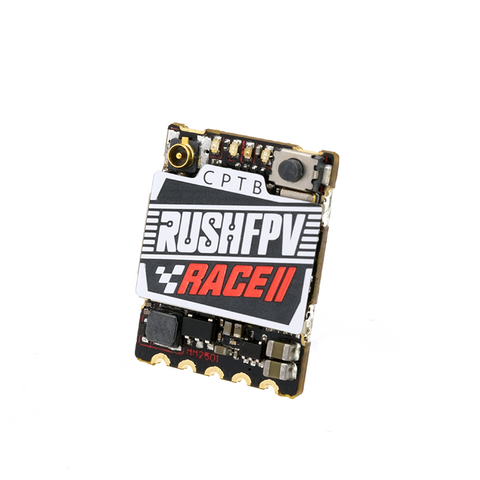

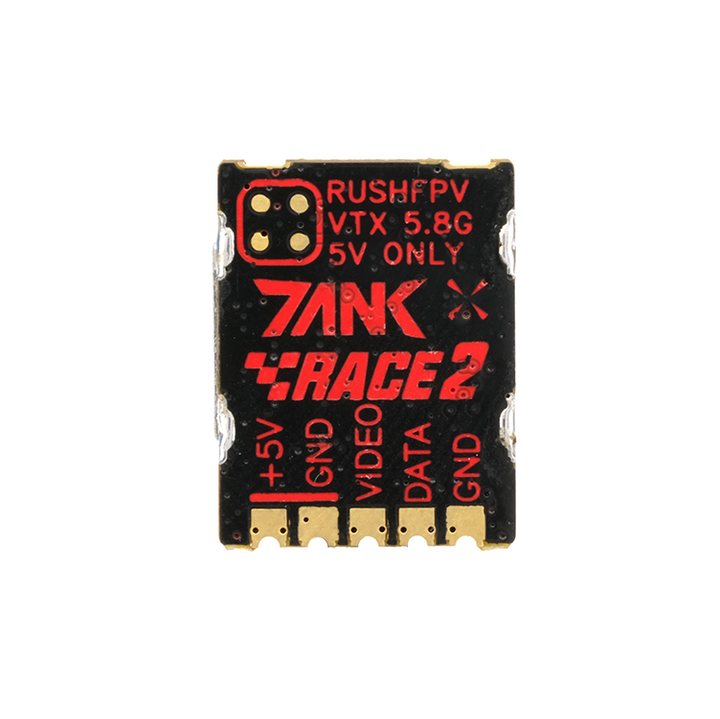

The RUSH Race II 5.8GHz VTX is a compact, high-performance video transmitter designed for micro and lightweight FPV racing drones. With Lock-On technology, Power LUT calibration, and SmartAudio V2.1 support, it ensures stable and interference-free video transmission even in crowded multi-drone races. Its PIT mode allows you to power on safely without disturbing other pilots, making it ideal for race setups or casual flying.
Despite its small size, the Race II is engineered for precision, with a silent setup circuit that prevents signal interference during VTX configuration. SmartAudio integration allows convenient control through your OSD menu or the dual RGB buttons on the unit.
Key Features
- Adjustable output power: PIT / 25 mW / 200 mW / MAX
- LOCK-ON technology: Maintains locked frequency under high interference
- Power LUT: Calibrated output in milliwatts for all channels, ensuring fair signal in multi-pilot races
- SmartAudio V2.1: Control channels and power via OSD or RGB buttons
- PIT Mode: Minimum power output for safe startup and close-range setup
- Silent setup: No interfering signals during VTX switching or configuration
Specifications
- Model: RUSH Race II
- Frequency: 5.8 GHz
- Channels: 48
- Input Voltage: 5V DC
- Output Power: PIT / 25 mW / 200 mW / MAX

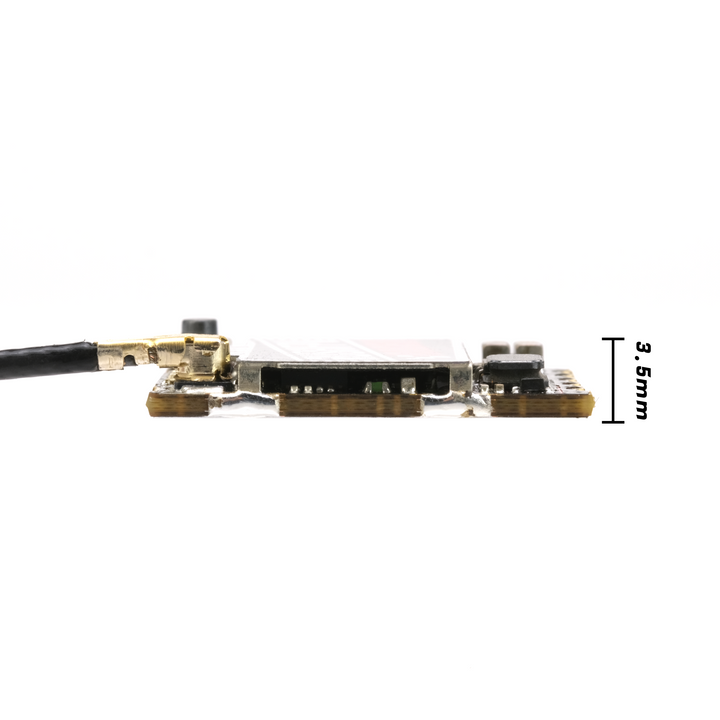

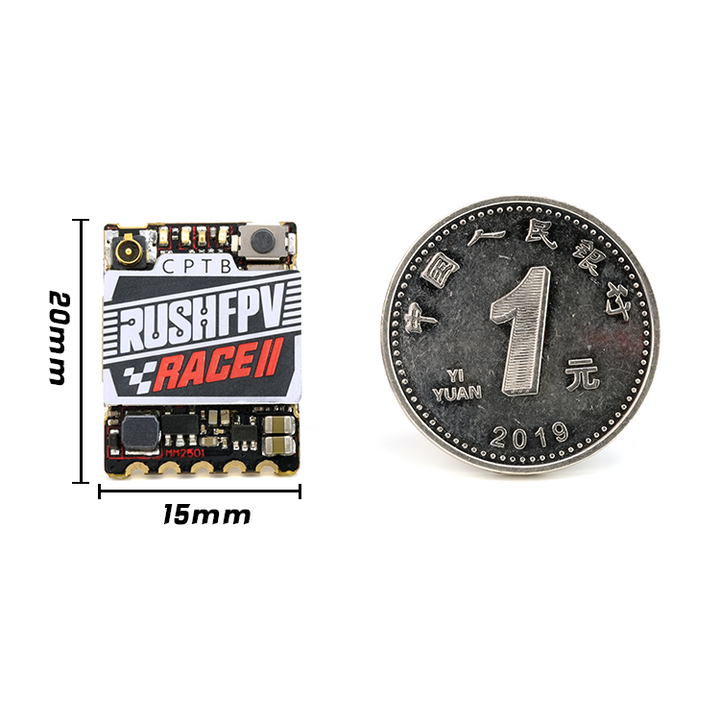

- Dimensions: 20 × 15.5 × 2.8 mm
- Weight: 1.7 g
- Connector: SMA
- Serial Protocol: TBS SmartAudio V2.1
Package Includes
- 1 × RUSH Race II VTX
- 1 × Cable Set
