RunCam Link Wasp Nano HD FPV Kit - 720p 120fps Digital System
RunCam Link Wasp Nano HD FPV Kit - 720p 120fps Digital System
Brand: RunCam
sku: SKU:RUNCAM-LINK-WASP-NANO
Couldn't load pickup availability
- Description

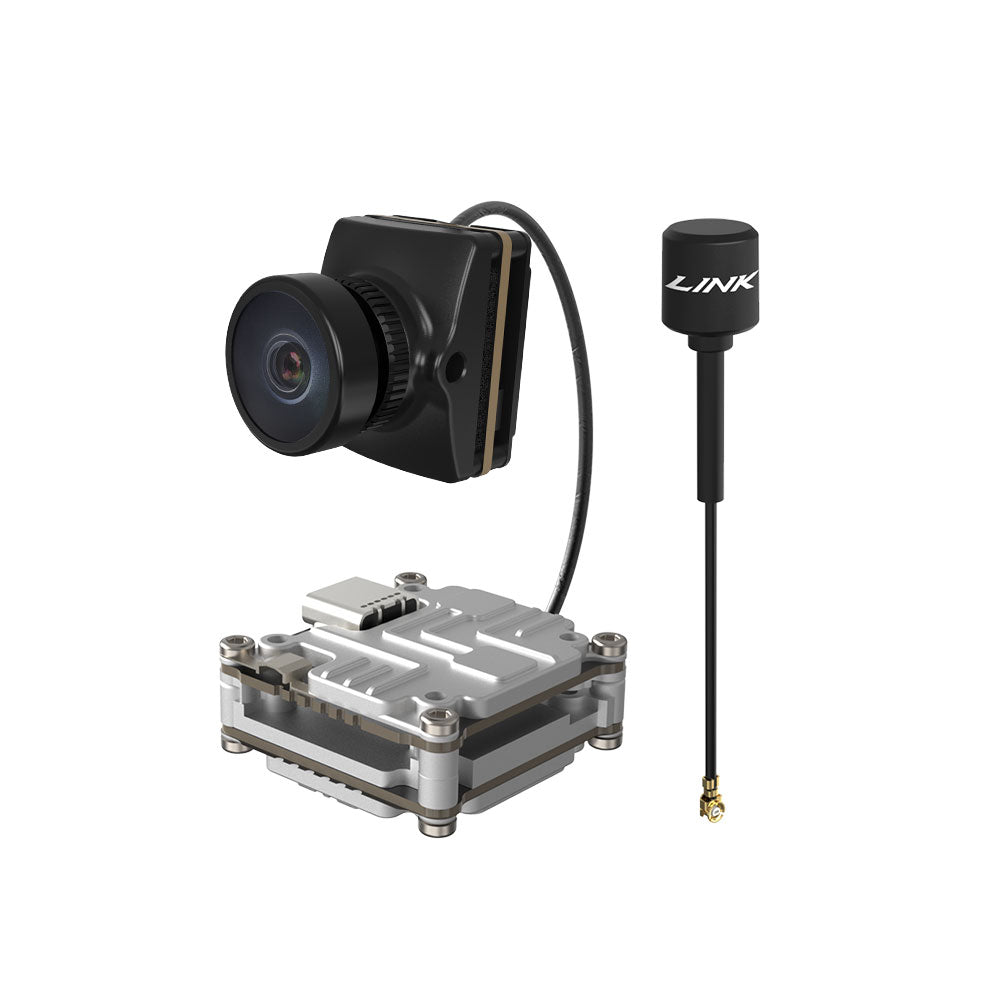

The RunCam Link Wasp Nano HD Kit is a compact, high-performance digital FPV system designed for racing and freestyle drones. It combines the RunCam Wasp Nano HD camera with the Link Digital FPV VTX, delivering crisp 720p resolution at 120fps for smooth, immersive flight visuals.
Compatible with DJI FPV Goggles, the system supports up to eight drones flying simultaneously, each pilot receiving a dedicated channel to minimize interference and ensure optimal performance.
The Wasp Nano camera features a 1/3" sensor, 160° diagonal FOV, and an 80 mm coaxial cable, producing high-quality video with a 4:3 aspect ratio. The Link VTX operates on 5.8GHz, with a maximum range of 4 km (FCC/SRRC) and supports 7.4-26.4V input. Its compact and lightweight design makes installation easy while keeping your drone agile.
Key Features
- Resolution: 720p @ 120fps
- Sensor: 1/3" CMOS
- Lens FOV: 160° (diagonal) / 127° (horizontal) / 92° (vertical)
- Aspect Ratio: 4:3
- Coaxial Cable: 80 mm included
- VTX Frequency: 5.725-5.850 GHz
- Max Transmission Distance: <4 km (FCC/SRRC)
- Input Voltage: 7.4-26.4V, 4-9W
- Weight: Camera: 6 g, Link VTX: 19.5 g
- Dimensions: Camera: 18×14×18 mm, VTX: 29×29×13 mm
Included in Package
- 1× RunCam Wasp Nano HD Camera
- 1× RunCam Link Digital FPV VTX
- 1× 80 mm coaxial cable
Ideal For
- FPV pilots using DJI Goggles
- Racing or freestyle drones requiring compact HD digital video
- Multi-drone racing setups needing dedicated low-interference channels
