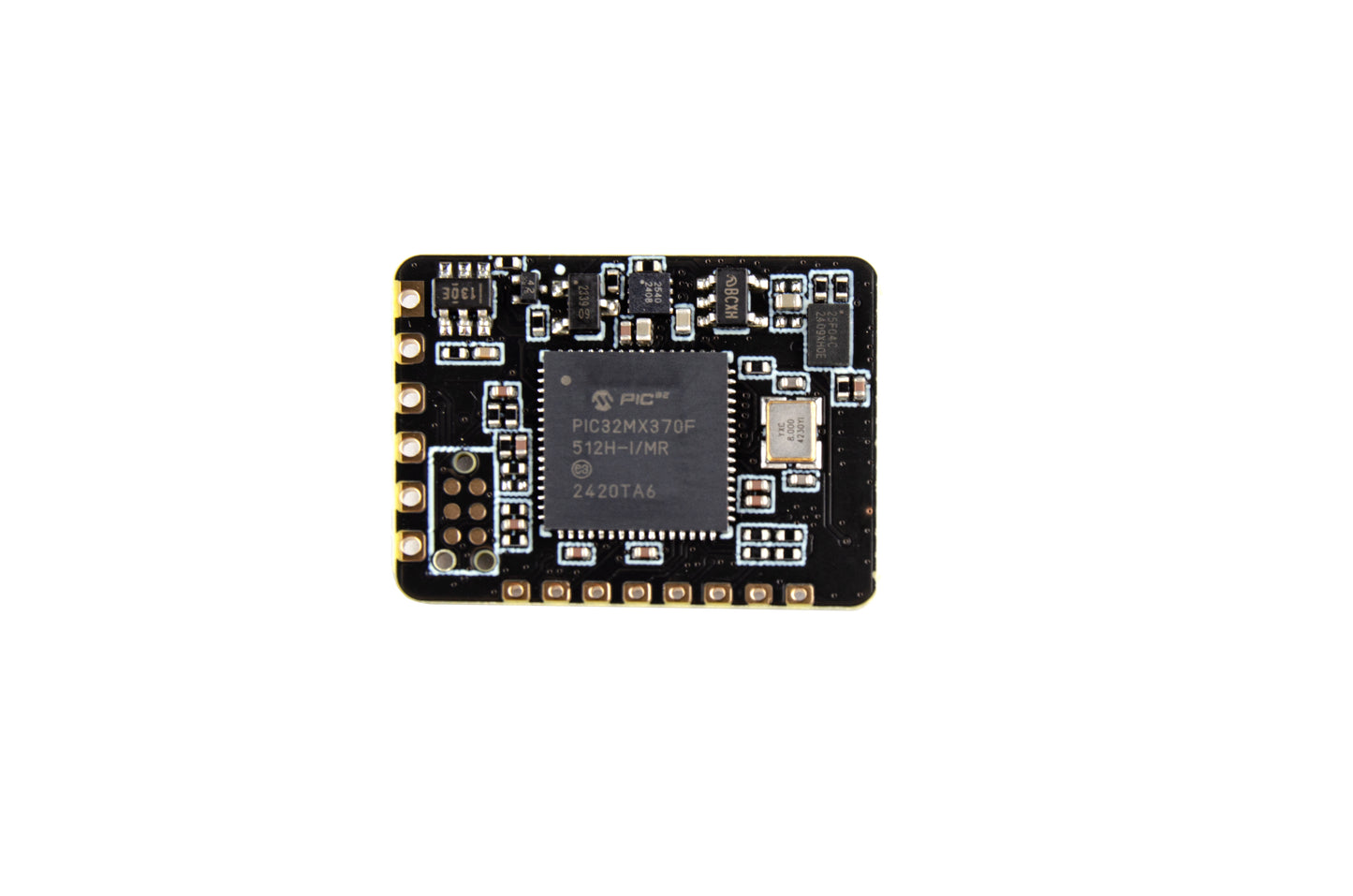

TBS Crossfire Diversity Nano Rx - FPV LONG RANGE DRONE RECEIVER
Diversity Nano Receiver TBS CROSSFIRE is a compact R/C receiver with 8-channel outputs (with PPM, SBUS and CRSF support), with the best noise cancellation in the industry and the ability to break records. It is the only receiver that provides true dual-input, chip diversity, with the usual filtering and noise suppression from on-board video systems.
BEACON MODE
The diversity nano receiver comes with a LiPo battery port where you can connect an optional backup port (1s). It will keep the receiver going all day long after all the on-board electronics are gone. It will scream for help by giving you its GPS coordinates and also send out RF beacon signals that will allow you to pinpoint its location. The backup battery (1s) will also charge as soon as you connect the device to power.
The TBS Crossfire Diversity nano receiver is ideal for long range mini quads or smaller wings.
Specifications:
Weight: 1.8g (receiver only)
Size: 24mm x 18mm
Requires: Firmware V2.87
Input voltage: +3.3V to 8.4V
Note: Please update your crossfire transmitter to version 2.88 or higher before connecting!
The package includes:
1x TBS Crossfire Diversity Nano Receiver
