    Receiver RadioMaster ER6-G ELRS 2.4GHz PWM

    Receiver RadioMaster ER6-G ELRS 2.4GHz PWM

    Brand: RadioMaster

    €33,59
    €33,59 €33,59
    -0% View Product
    Out of stock
    We need to check the product availability with our supplier. Please contact us for details.

    sku: HP0157.RX-ER6-G
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

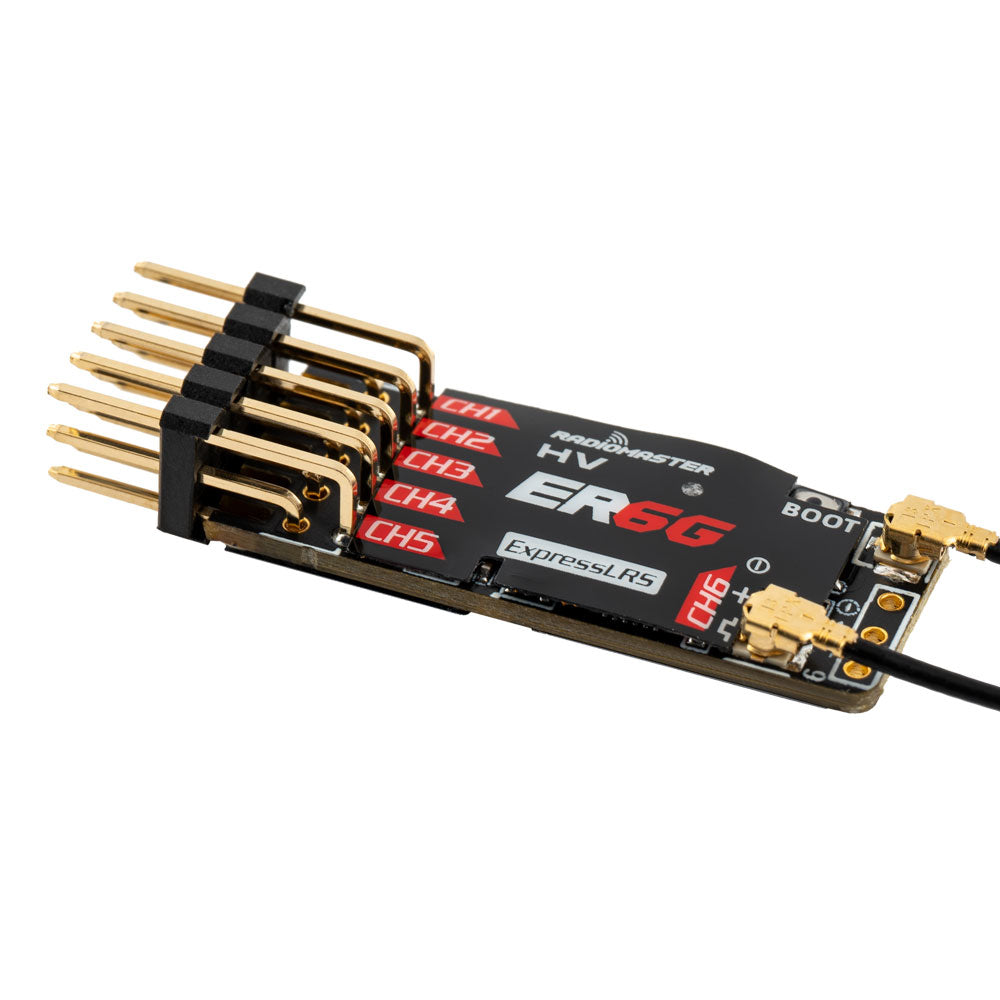

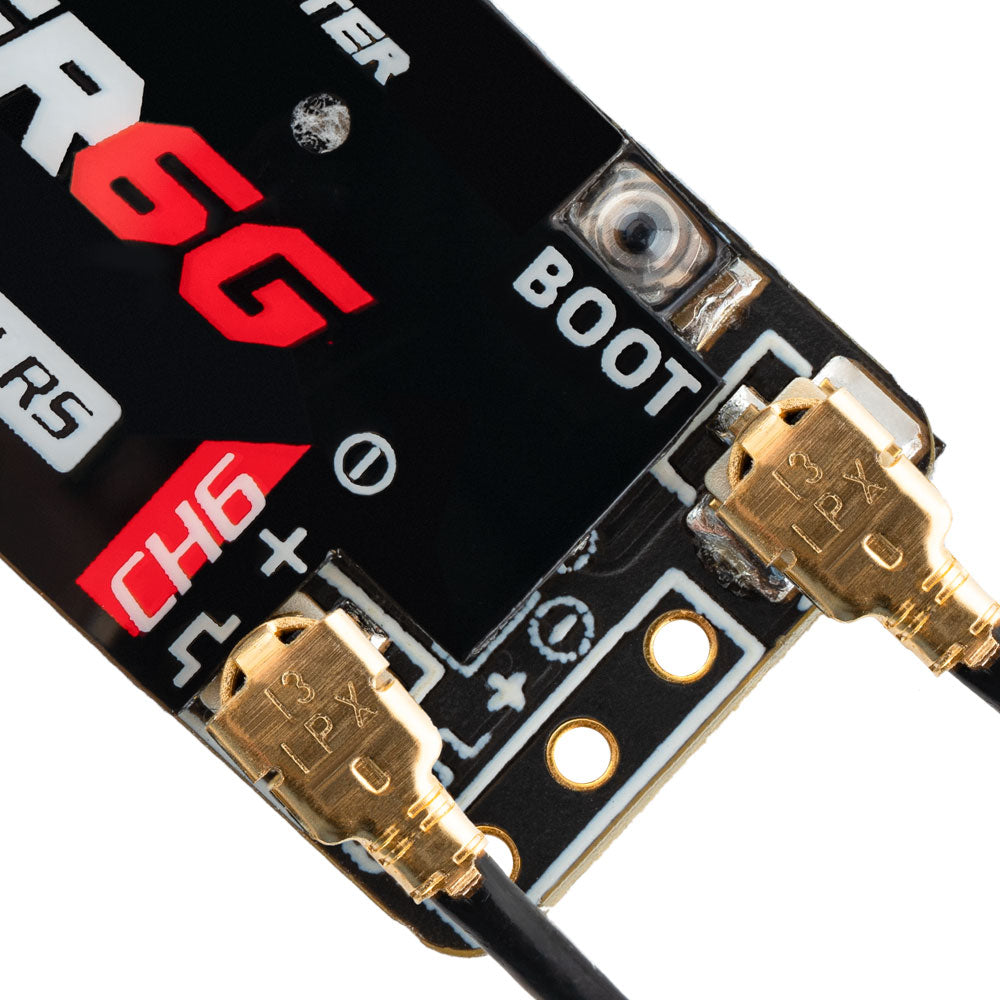

    ER6G 2.4GHz ELRS PWM Receiver

The ER6G receiver is specially designed for pilots who require a compact and slim receiver. It can drive up to 6 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use. The ER6G is equipped with a dual antenna with a telemetry power of up to 50mw and can work stably with the receiver's 1S Lipo battery.

Function:
- Based on the revolutionary ExpressLRS system
- High performance, high reliability, flexible configuration, fast response and ultra long range
- Support 6 PWM channels
- Optimized printed circuit board design
- Automatically voltage telemetry of external battery voltage or built-in receiver voltage
- Supports Wi-Fi updates and WEBUI configuration
- High quality 2.54mm connector
- Standard 15 cm high sensitivity antenna
- For fixed wing aircraft and gliders

Specifications:
Item: ER6G 2.4GHz ELRS PWM Receiver
Power supply: DC 3.5 - 8.4V
Antenna type: 15cm antenna with high sensitivity
Wireless protocol: ExpressLRS 3.3.0 pre-installed
Output channel: 6CH PWM
Telemetry power: 50 mw maximum (LUA Adjustable)
Battery voltage detection range: DC 3.0 - 26V
Weight: 5.0 grams
Dimensions: 42 x 13 x 8 mm
Firmware: Device category: RadioMaster 2.4 GHz / Device: RadioMaster ER6G
