Receiver RadioMaster ER6 ELRS 2.4GHz PWM
Receiver RadioMaster ER6 ELRS 2.4GHz PWM
Brand: RadioMaster
Regular price
€27,99
Regular price
€27,99
Sale price
€27,99
Unit price
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
sku: SKU:HP0157.RX-ER6-LBT
Couldn't load pickup availability
- Description

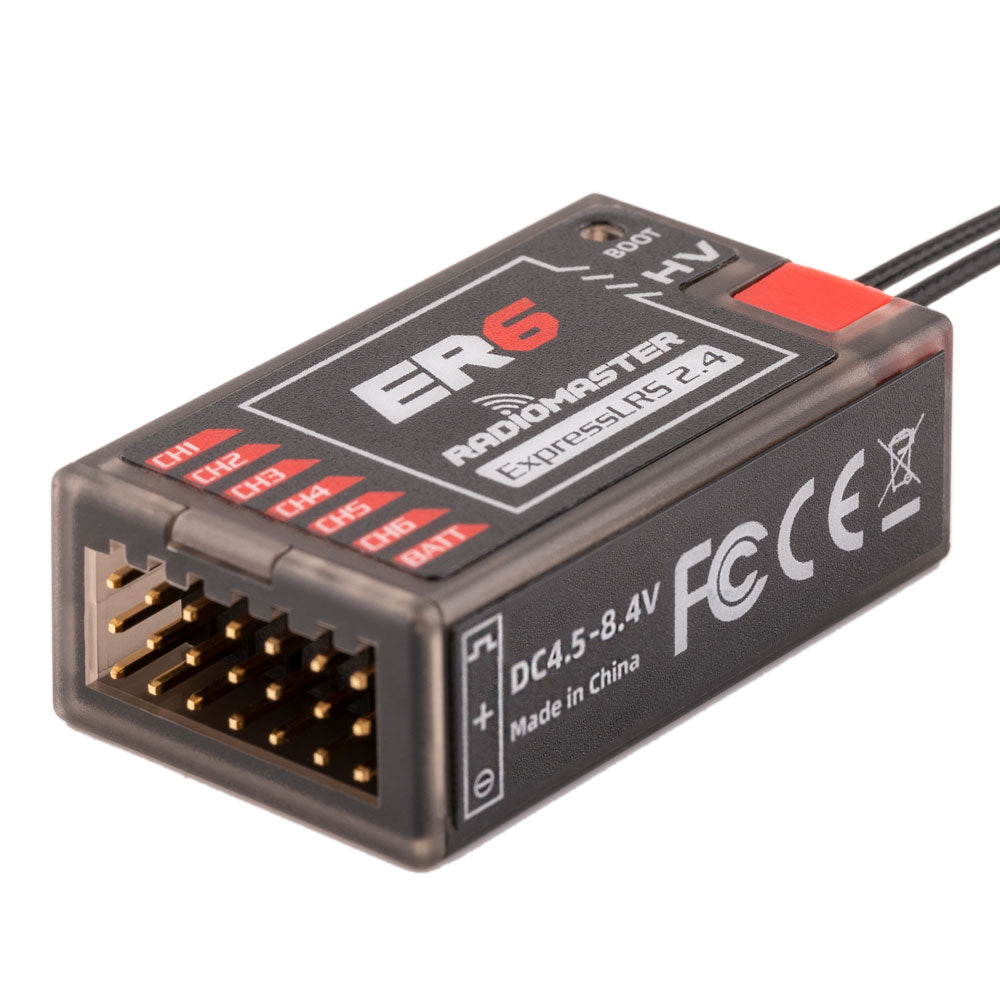

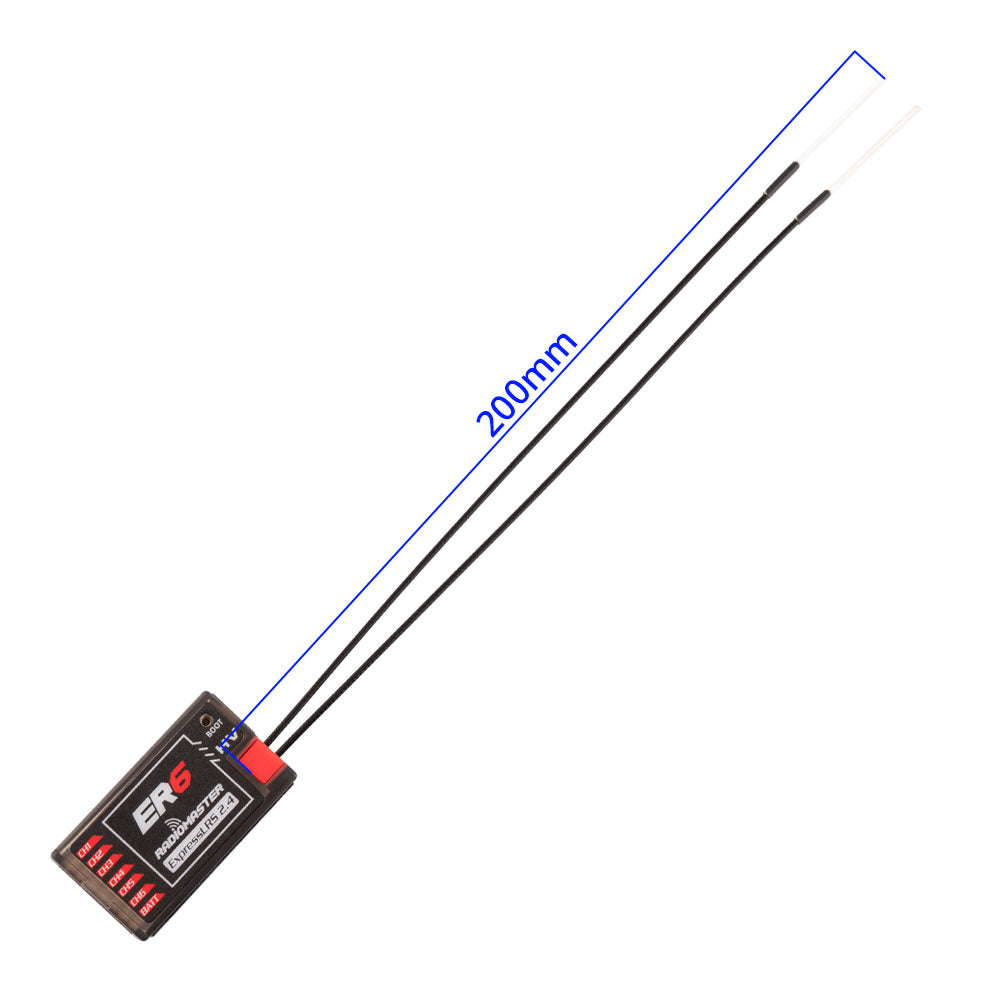

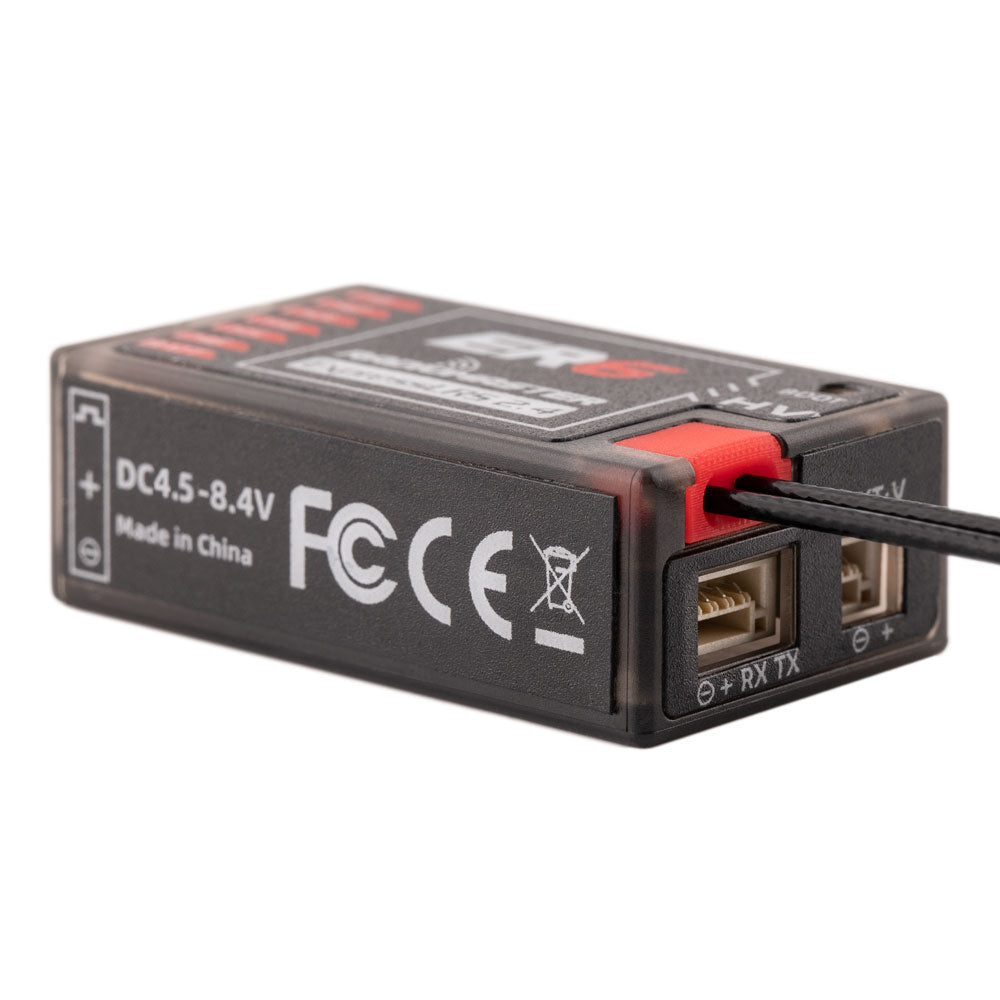

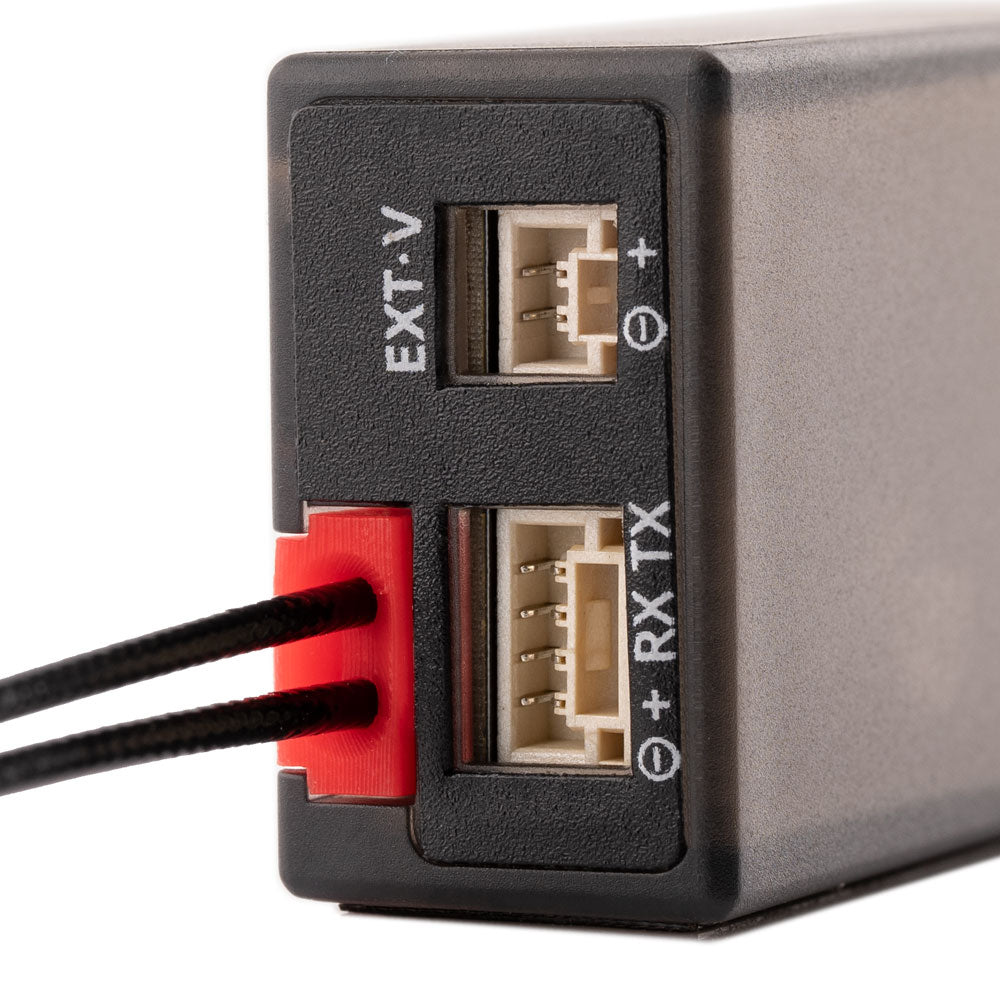

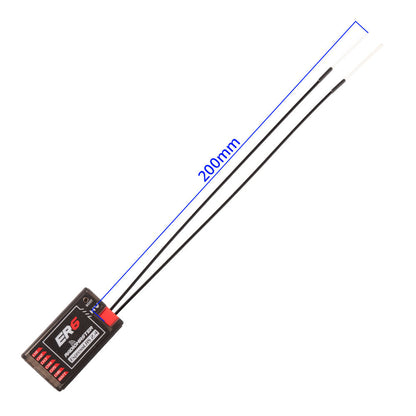

ER6 2.4GHz ELRS PWM receiver The RadioMaster ER6 ELRS receiver has been specially designed for fixed wing users. It can drive up to 6 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use. A 4-wire CRSF interface is available to facilitate the later expansion of telemetry sensors. The ER6 is equipped with a dual antenna with a telemetry power of up to 100 mw. The receiver shell uses a one-piece molding process with high structural strength. Function: - Based on the revolutionary ExpressLRS system - High performance, high reliability, flexible configuration, fast response and ultra long range - Support 6 PWM channels - Optimized ground circuit board design - Automatically voltage telemetry of external battery voltage or built-in receiver voltage - Supports Wi-Fi updates and WEBUI configuration - High quality 2.54mm connector - Standard 20 cm highly sensitive antenna - Spare 4-pin CRSF input port Specifications: Item: ER6 2.4GHz ELRS PWM Receiver Power supply: DC 4.5 - 8.4V Antenna type: 20 cm high sensitivity dual antenna Wireless protocol: ExpressLRS 3.3.0 pre-installed Output channel: 6CH PWM Telemetry power: 100 mw maximum (LUA Adjustable) Telemetry Battery voltage detection range: DC 4.0 - 35V Bus interface: CRSF Weight: 14.5 grams Dimensions: 43 x 25 x 15 mm Firmware: Device Category: RadioMaster 2.4 GHz / Device: RadioMaster ER6 2400 PWM RX
