    Receiver RadioMaster ER4 ELRS 2.4GHz PWM

    Receiver RadioMaster ER4 ELRS 2.4GHz PWM

    Brand: RadioMaster

    €16,46
    €16,46 €16,46
    -0% View Product
    Out of stock
    We need to check the product availability with our supplier. Please contact us for details.

    sku: HP0157.RX-ER4-LBT
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

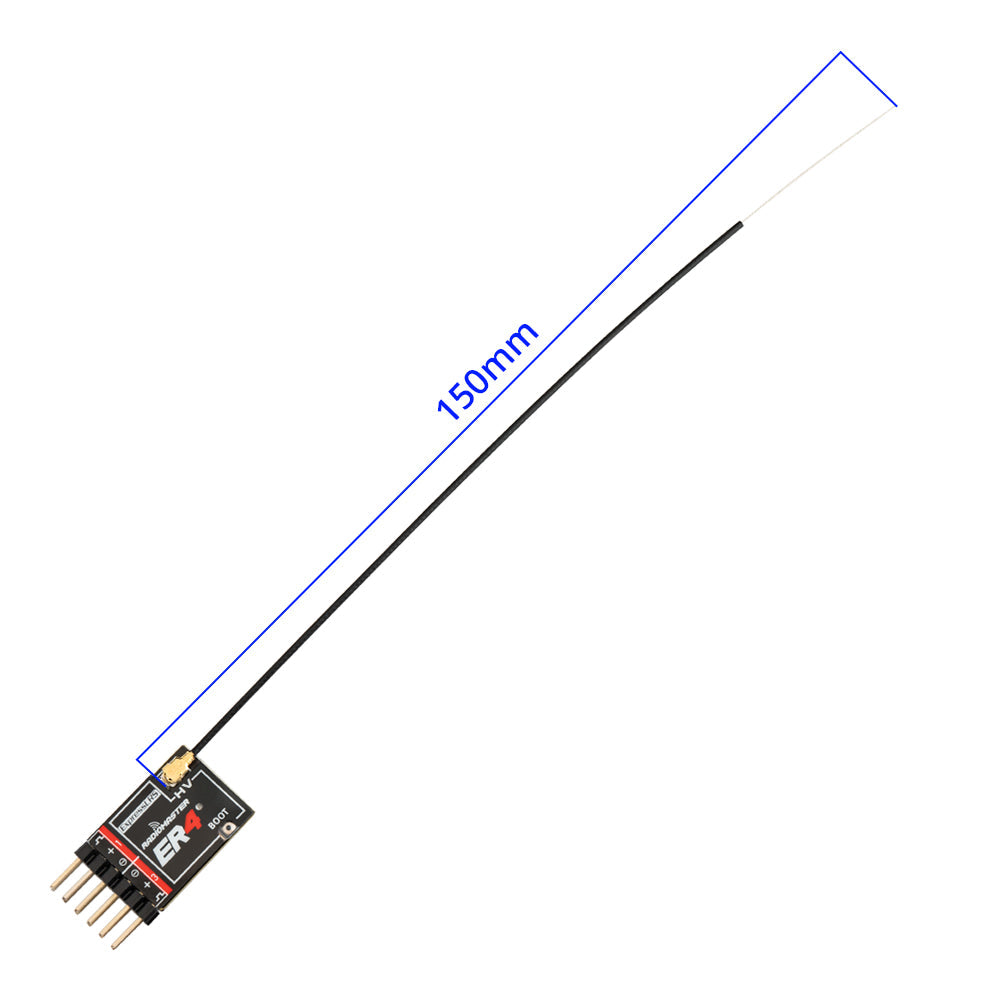

    ER4 2.4GHz ELRS PWM receiver

The RadioMaster ER4 PWM receiver can control 4 servos simultaneously. Designed with a very small volume, it is suitable for small model airplanes, model ships, model cars and other models that require a small or light receiver while providing full range.

Function:
- Based on the revolutionary ExpressLRS system
- High performance, high reliability, flexible configuration, fast response and ultra long range
- Support of 4 PWM channels
- Optimized ground circuit board design
- Automatically voltage telemetry of external battery voltage or built-in receiver voltage
- Supports Wi-Fi updates and WEBUI configuration
- High quality 2.54mm connector
- Standard 15 cm high sensitivity antenna

Specifications:
Item: ER4 2.4GHz ELRS PWM Receiver
Power supply: DC 4.5 - 8.4V
Antenna type: 15cm antenna with high sensitivity
Wireless protocol: ExpressLRS 3.3.0 pre-installed
Output channel: 4CH PWM
Telemetry power: 10mw
Battery voltage detection range: DC 4.0- 35V
Weight: 3.0 grams
Dimensions: 30 x 15 x 5 mm
Firmware: Device Category: RadioMaster 2.4 GHz / Device: RadioMaster ER4 2400 PWM RX
