Receiver iFlight ELRS 2.4G RX 500mW + 40mm Mini Antenna
Receiver iFlight ELRS 2.4G RX 500mW + 40mm Mini Antenna
Brand: iFlight
sku: SKU:T015518-V011856
Out of stockCouldn't load pickup availability
- Description

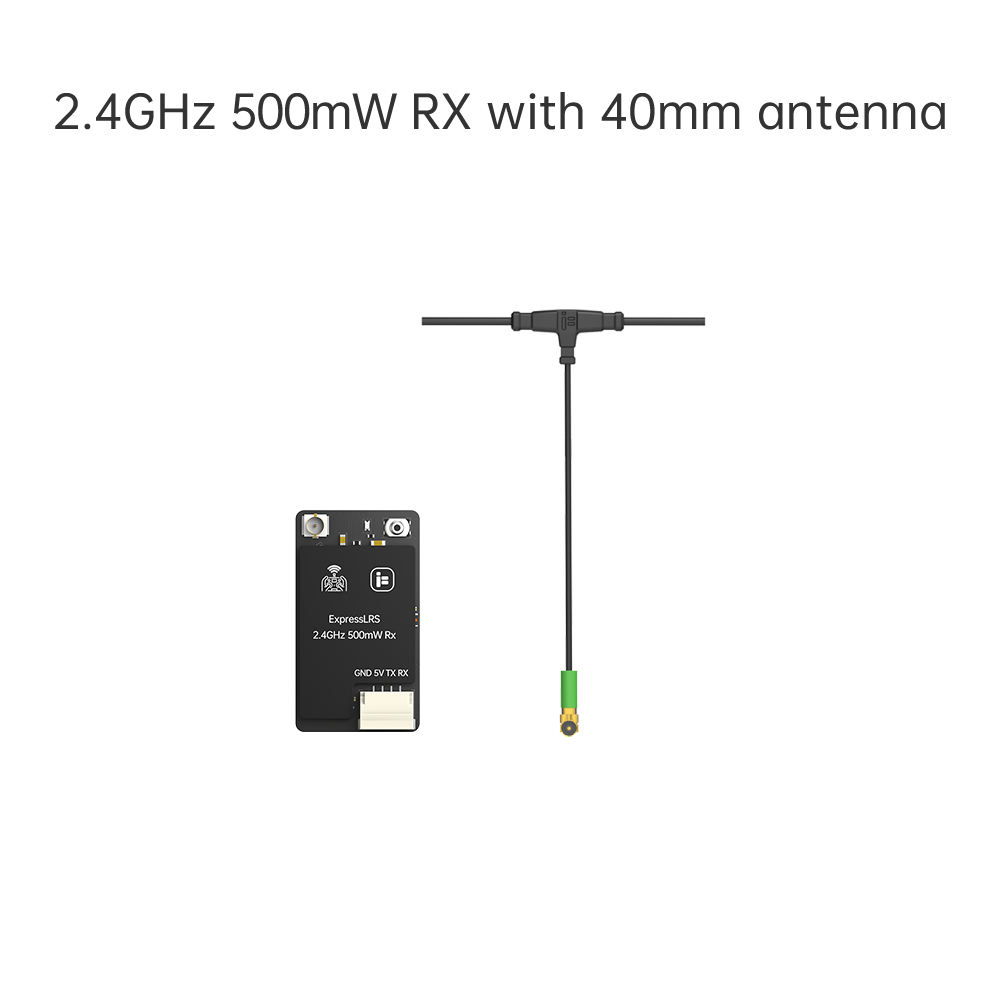

ExpressLRS ELRS 500mW receiver (ELRS 2.4G RX+40mm mini antenna)
A new version of the iFlight ELRS Receiver is available. It features a temperature-compensated crystal oscillator that prevents frequency shifts caused by temperature changes, with a telemetry output of up to 500 mW. It significantly meets the reliability requirements for long-distance flights, aerial photography, or FPV freestyle maneuvers.
Function: - One-sided electronic components, saving mounting space. - Aluminum heatsink plate to protect electronic components and increase resistance to interference. - Newly improved temperature compensated crystal oscillator, lower packet loss, high frequency stability. - Pre-soldered SH1.0 connector (Plug&Play for easy installation with iFlight FC). - Up to 500 mW of telemetry power, resulting in stronger telemetry signals and greatly reducing the incidence of telemetry loss.
Performance and Compatibility: - Make sure to install the antenna away from conductive or magnetic components (carbon, metal, motors). - Flash the latest firmware and follow the ELRS community for updates, tutorials or posts.
Specifications MCU: ESP 8285 Receiver type: Single antenna Firmware: iFlight 2.4GHz 500mW RX Lua Script: iF 2G4 500mW RX Frequency bands: 2.4 GHz ISM Telemetry power: 50-500mW (17-27dBm) Size: 14*25*4.3mm Protocol: CRSF LNA: YES Weight: 1.8g Antenna length: 40 mm
The package includes: 1x ExpressLRS 500mW receiver 1x Antenna
