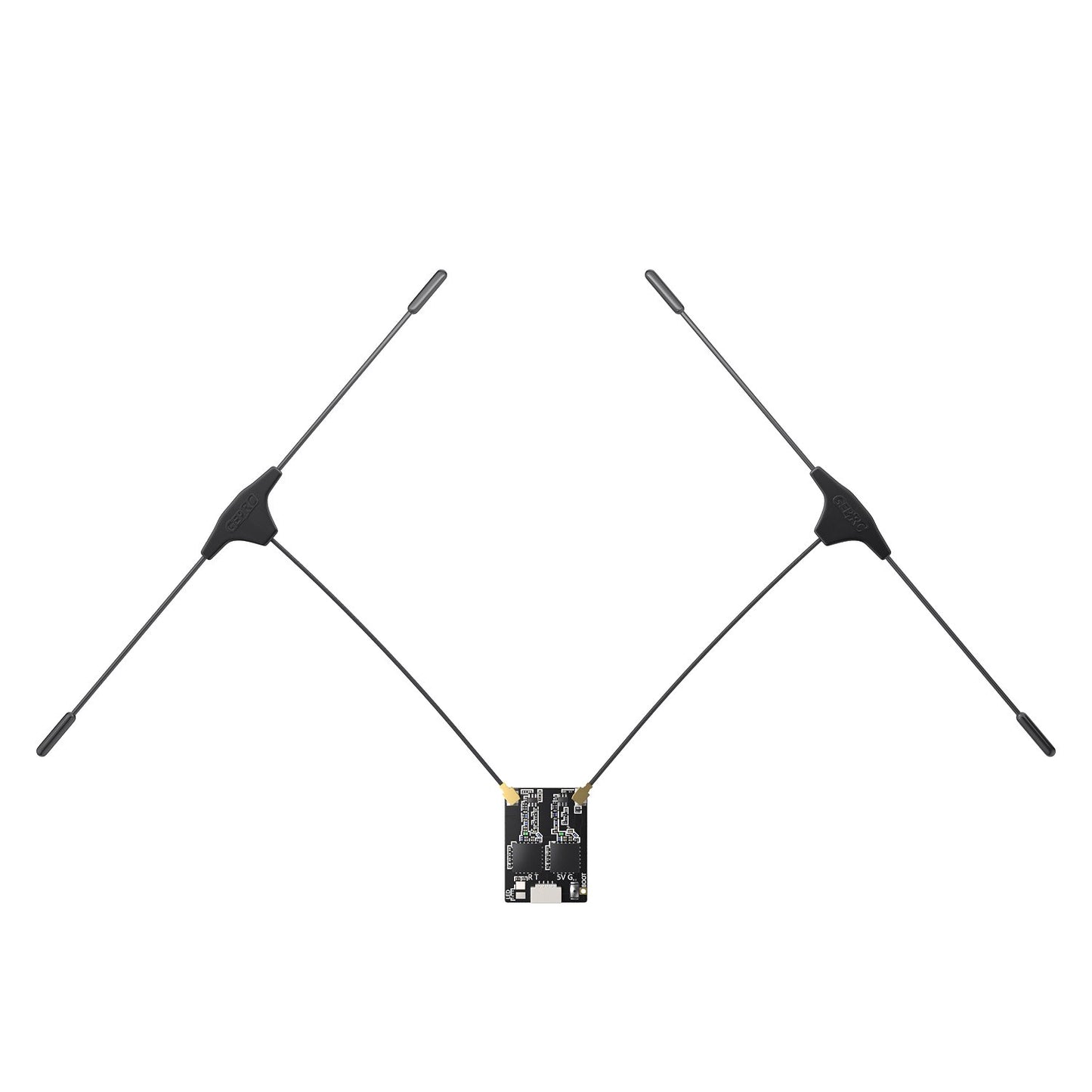

Summary: The GEPRC ELRS DUAL 868/915M Diversity Receiver is a new generation of true dual-antenna diversity receiver based on the open-source ExpressLRS project. ExpressLRS offers long range, low latency, maximum refresh rate of 200Hz and low cost.
ELRS DUAL 868/915M has optimal placement of two antennas for wider signal reception and more stable connection than common single antenna systems. It uses a TCXO (Temperature Compensated Crystal Oscillator) to avoid frequency shifts caused by temperature changes, and the telemetry power is up to 50mW. The built-in WIFI antenna facilitates firmware updates via WIFI and allows easy installation with sh1.0 connector.
Features:
- Compact size 18x25x5.5mm
- Weight only 1.7g
- WIFI firmware update
- Open-source ELRS project, long-range remote control
- Maximum refresh rate 200Hz
- Use of Temperature Compensated Crystal Oscillator (TCXO) for stable performance in extreme conditions, ensuring control stability during long operations
- Equipped with sh1.0 connector for easy installation
- Two independent RF receive channels, true diversity receiver
Specifications:
- Model: GEPRC ELRS DUAL 868/915M Diversity Receiver
- Dimensions: 18x25x5.5mm
- Weight: 1.7g (receiver only)
- Chips: ESP32-PICO-D4, SX1276
- Crystal oscillator: TCXO
- Frequency band: 868MHz EU
- Refresh rate: 25Hz-200Hz
- Operating voltage: 5V
- Antenna connector: ipex1
- Telemetry power: 50mW
- Firmware: GEPRC True Diversity 900MHz RX
Contains:
- 1 x ELRS receiver
- 2 x Antenna
- 1 x Shrink Tube
- 1 x 4pin silicone cable
- 1 x User Manual
