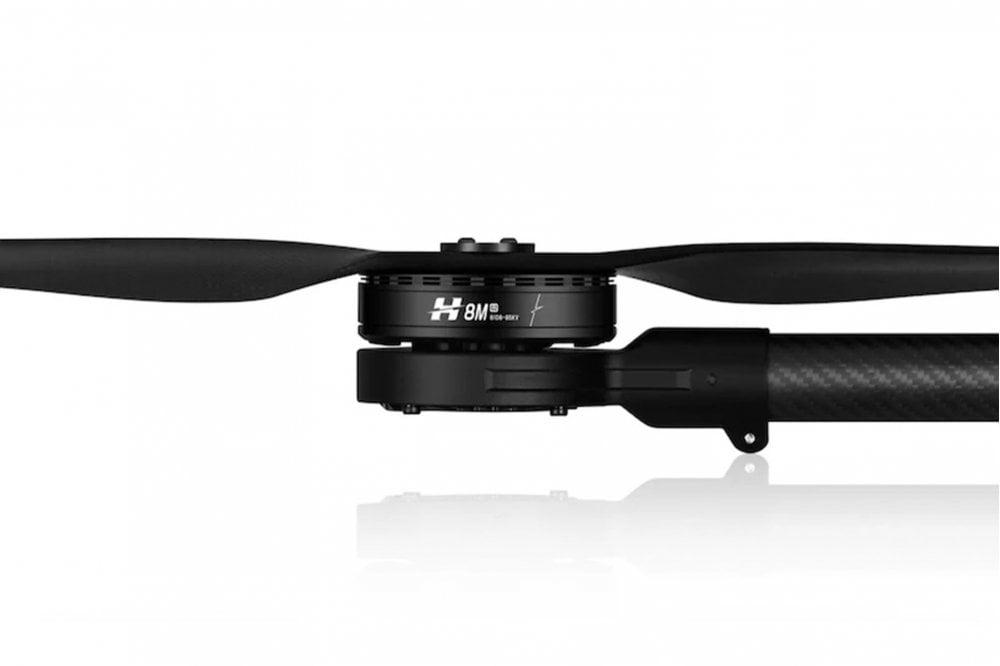

Propulsion system Hobbywing CM-H8M-8108-85KV-D30-CW
Propulsion system Hobbywing CM-H8M-8108-85KV-D30-CW
Brand: Hobbywing
Regular price
€268,62Taxes included.
Regular price
€268,62
Sale price
€268,62
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
sku: SKU:6097
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
Hobbywing drive CM-H8M-8108-85KV-D30-CW The Hobbywing AC drive system CM-H8M-8108-85KV-D30-CCW is an industrial solution designed for a maximum thrust of 7.4 kg per axis and a recommended load of 2.5-3.5 kg. Featuring an IP45 waterproof rating, it is ideal for professional aerial photography, police operations, rescue missions and other demanding applications. Features: - Rotates clockwise (CW). - Direct drive motor and FOC ESC. - Supports CAN communication. - Double redundancy with digital throttle and PWM control. - Built-in protections against overload, overheating and rotor blocking. - Easy installation and reliable connection.
*Note, accessories sold separately. Specifications: - Recommended load: 2.5-3.5 kg - Maximum pull: 7.4 kg - Motor KV: 85 KV - Permanent ESC current: 20 A - ESC instantaneous current: 60 A (within 3 seconds) - Power supply: 12-14S LiPo (max. 63V) - Protection Level: IP45 - Operating temperature: -20°C to +50°C - Throttle range: 1100-1940 μs - Motor dimensions: Φ87 × 34.7 mm - Propeller dimensions: 30 x 9.8 inches The package contains: 1x Hobbywing propulsion system CM-H8M-8108-85KV-D30-CW.
