    Pilotix R3000 5.8GHz 3.0W VTX

    Pilotix R3000 5.8GHz 3.0W VTX

    Brand: Pilotix

    €96,80
    €96,80 €96,80
    -0% View Product

    sku: 4136

    Out of stock
    We need to check the product availability with our supplier. Please contact us for details.
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

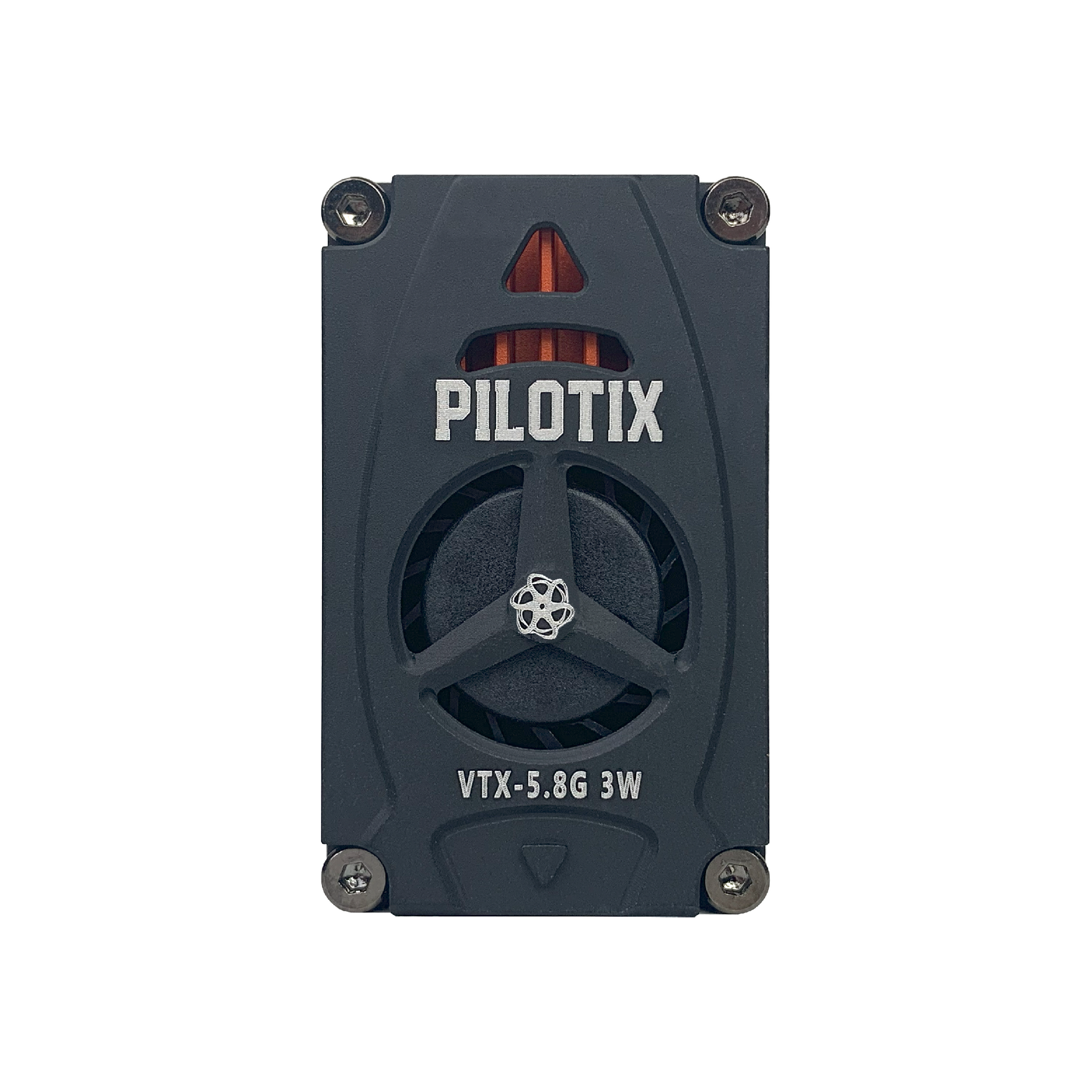

    The Pilotix R3000 5.8GHz 3.0W VTX is a high-power FPV video transmitter designed for professional drone pilots and long-range flights. It features adjustable power up to 3W, efficient aluminum heatsink with fan cooling, and 48 channels across six frequency bands for reliable video performance in demanding environments. Its compact design and dual mounting holes make it easy to integrate into most FPV drones.

    Key Features

    • Output Power: 25mW / 1.6W / 2.0W / 2.5W / MAX 3W
    • Channels: 48CH (A, B, E, F, R, L)
    • Input Voltage: 6-28V DC

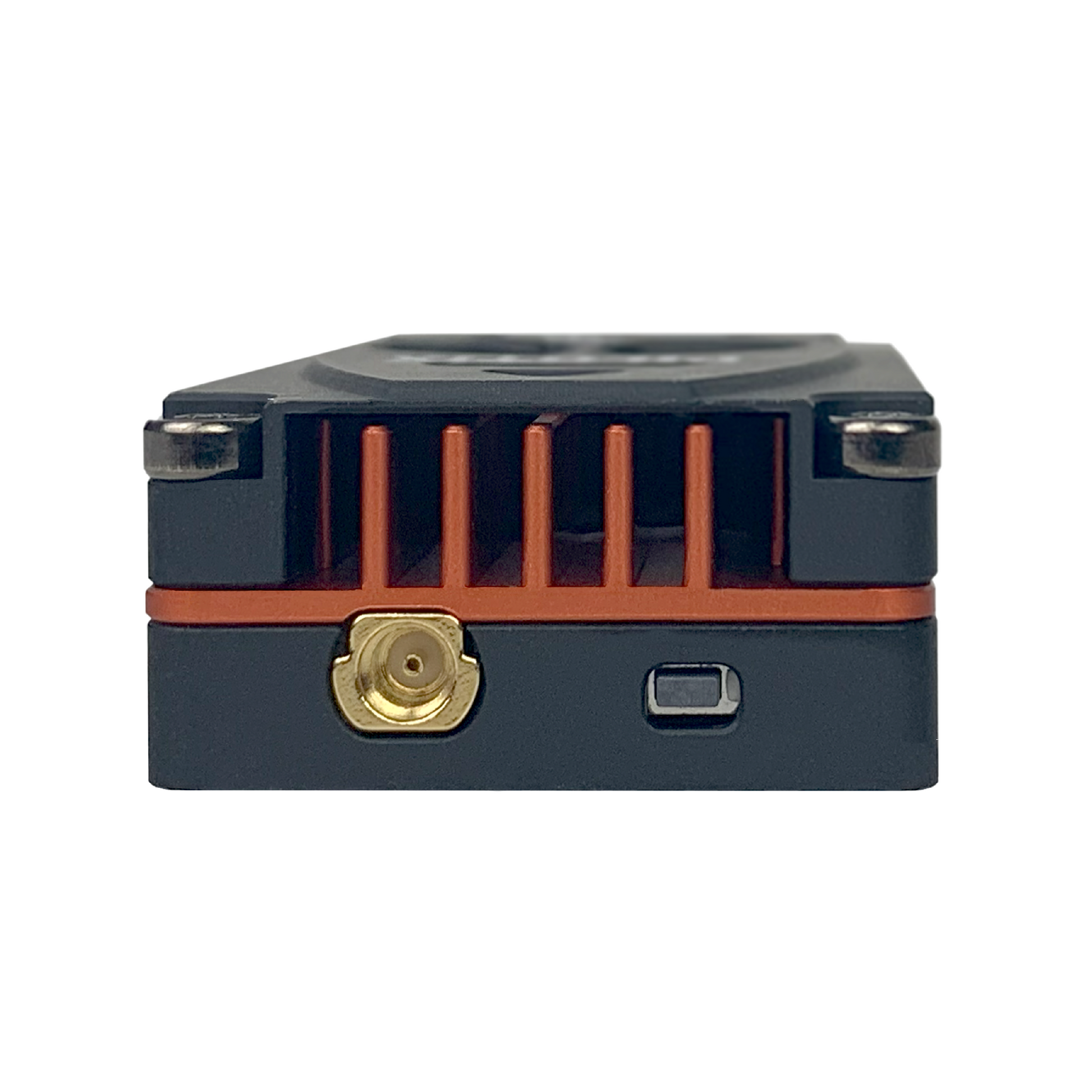

    • Antenna Connector: MMCX
    • Mounting Holes: 20×20 mm
    • Cooling: Aluminum heatsink with built-in fan
    • Dimensions: 40.8 × 24.8 × 13.3 mm
    • Weight: 17.8 g

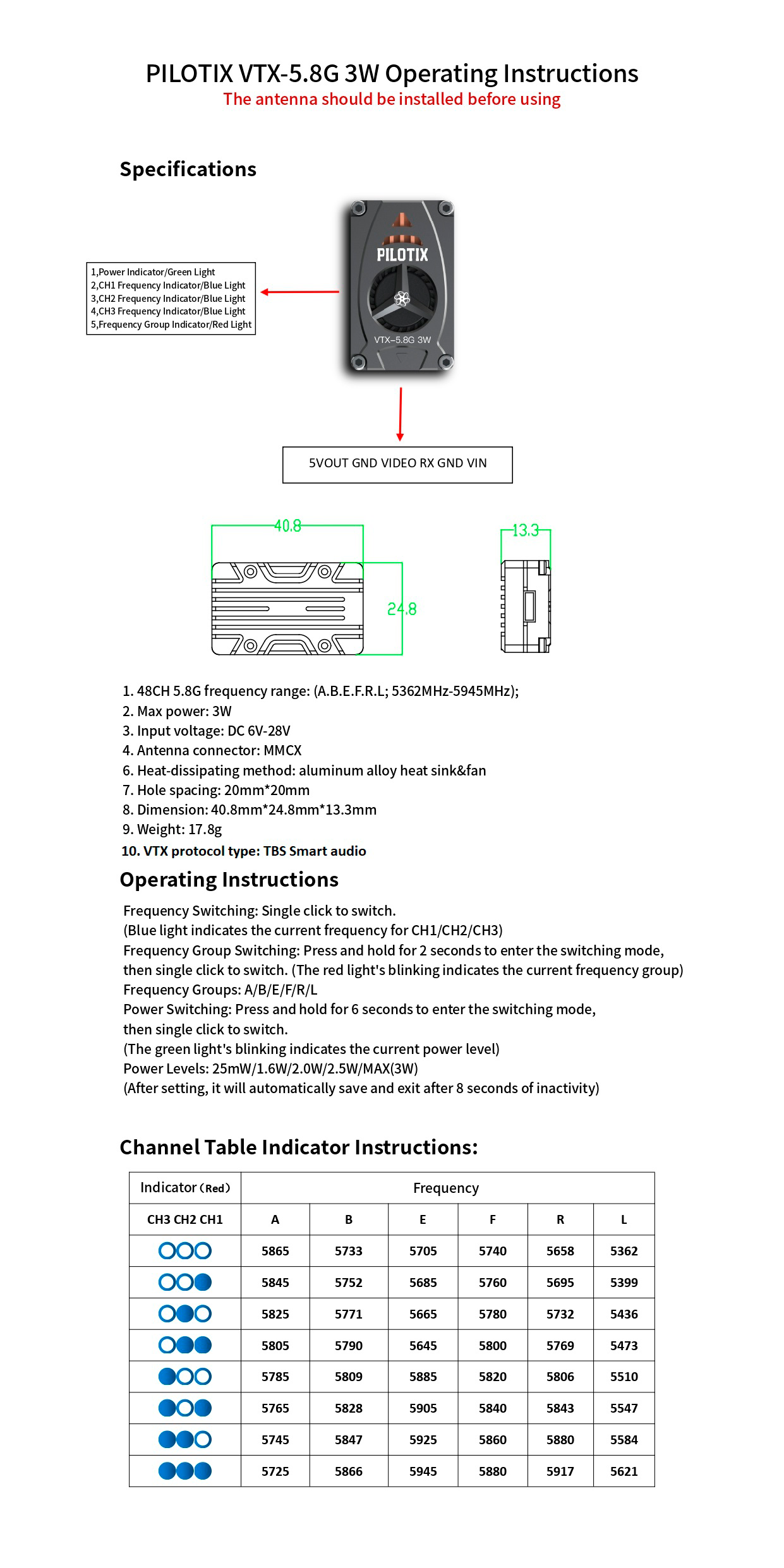

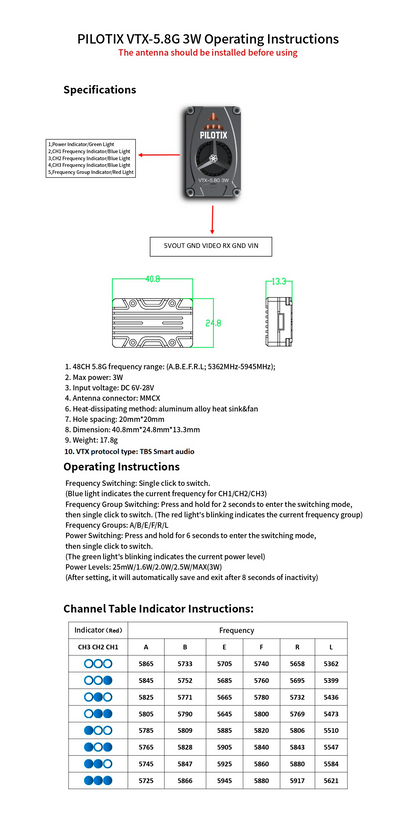

    Operation Instructions

    • Frequency Switching: Click once to switch channels; blue LED indicates CH1/2/3.
    • Frequency Group Switching: Press & hold 2 seconds, then click to switch; red LED indicates the group.
    • Power Level Switching: Press & hold 6 seconds, then click to switch; green LED indicates the power.
    • Auto-Save: Settings automatically save after 8 seconds of inactivity.

    Package Includes

    • 1 × Pilotix R3000 5.8GHz 3.0W VTX
