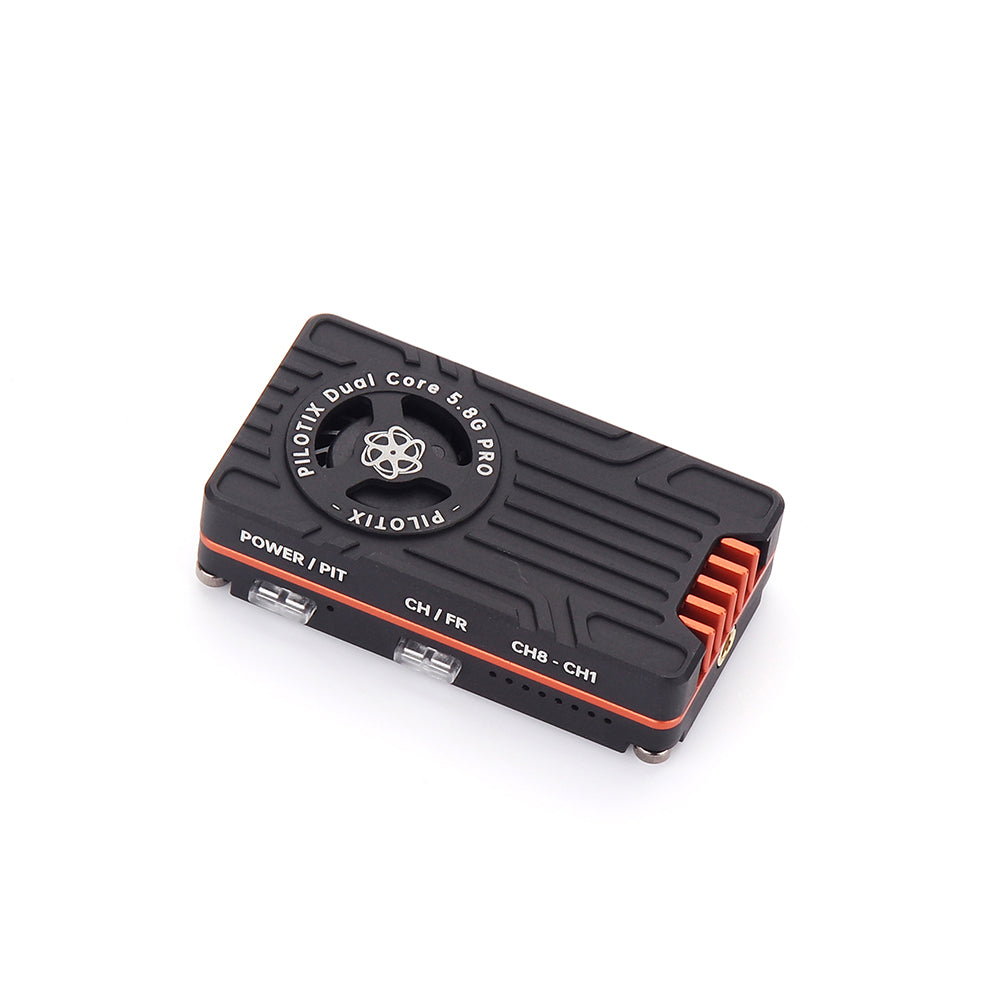

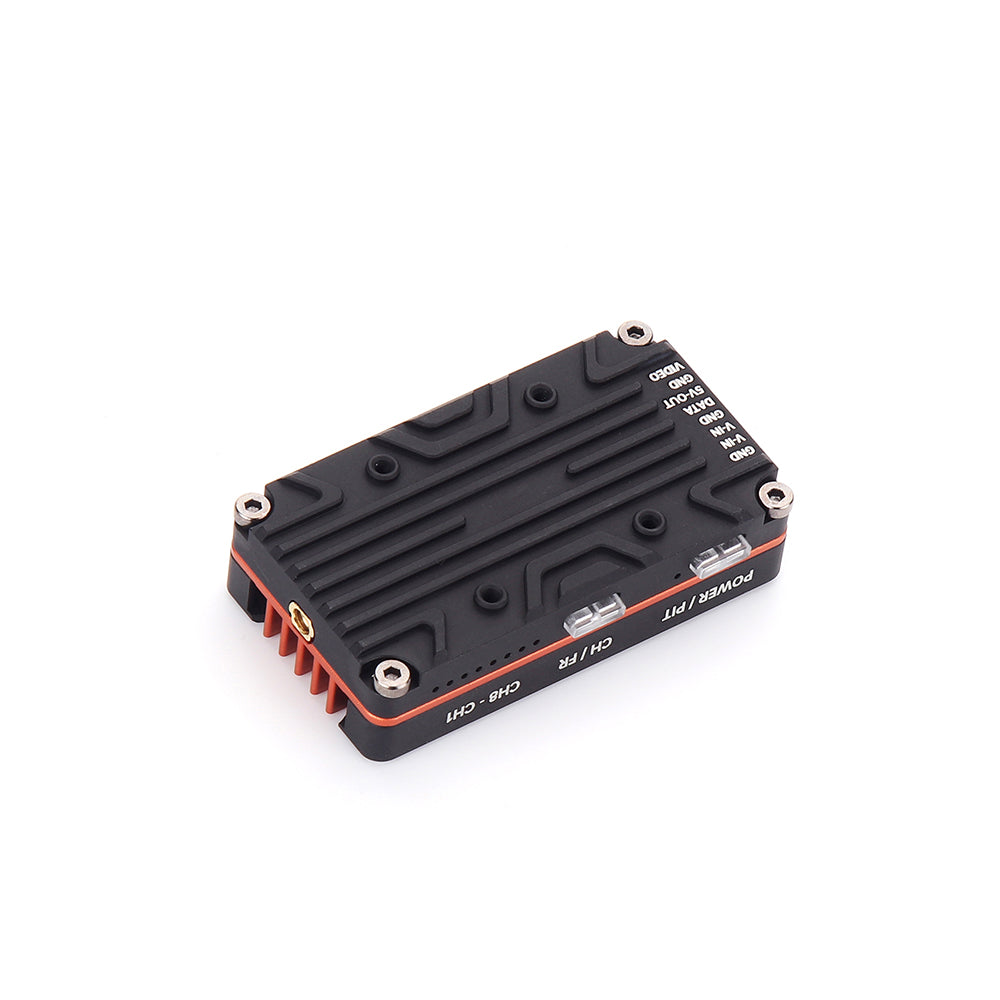

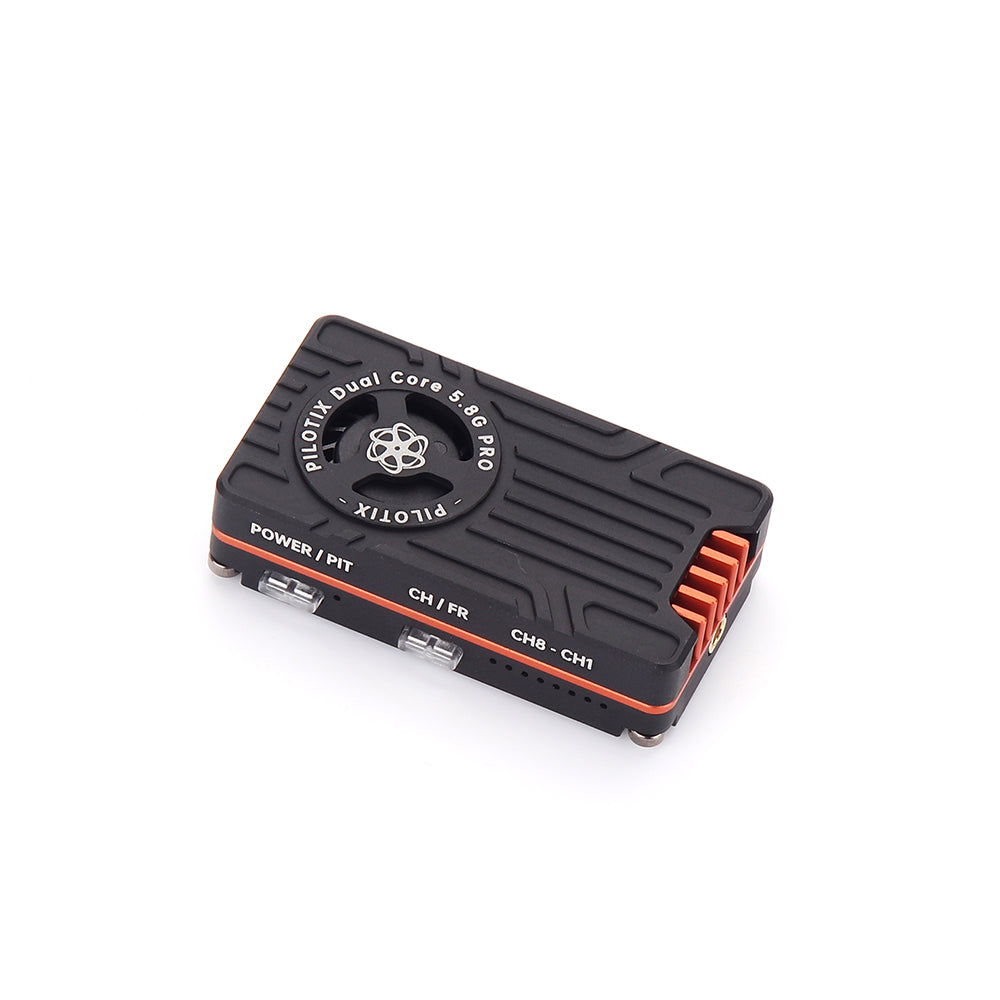

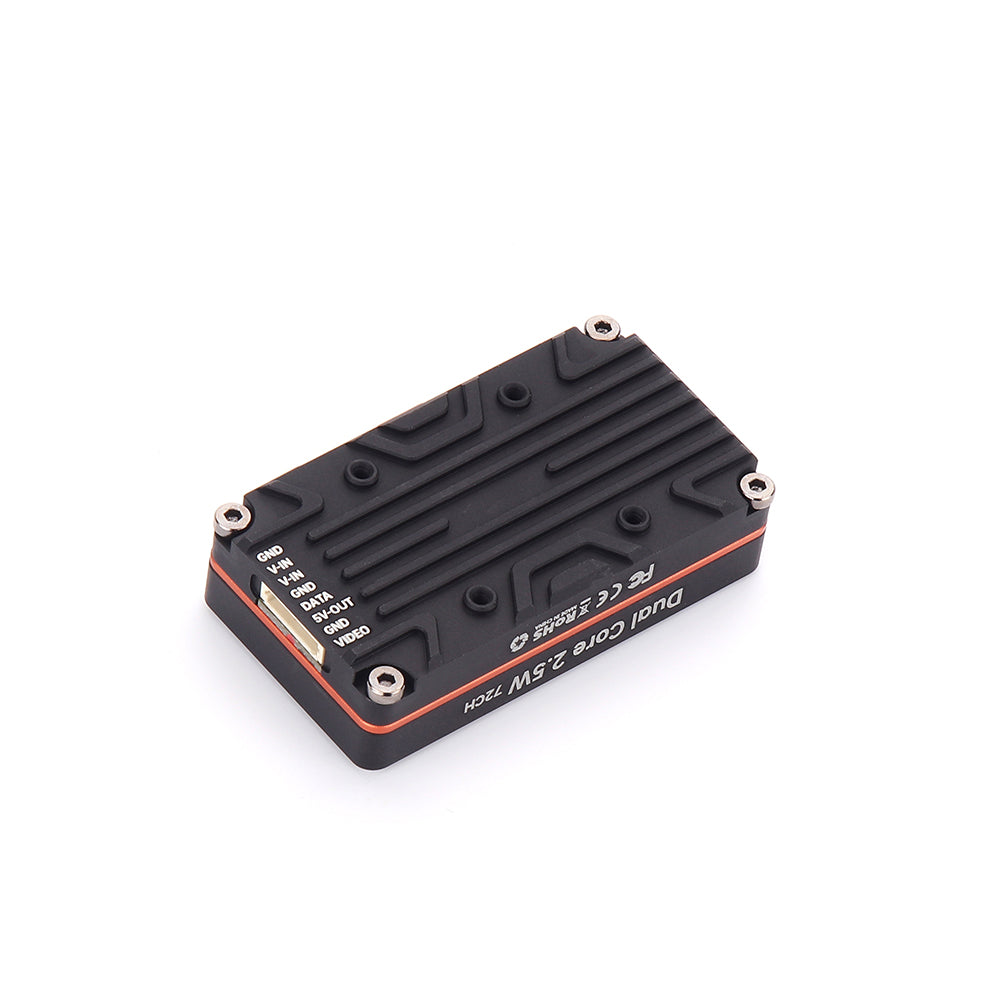

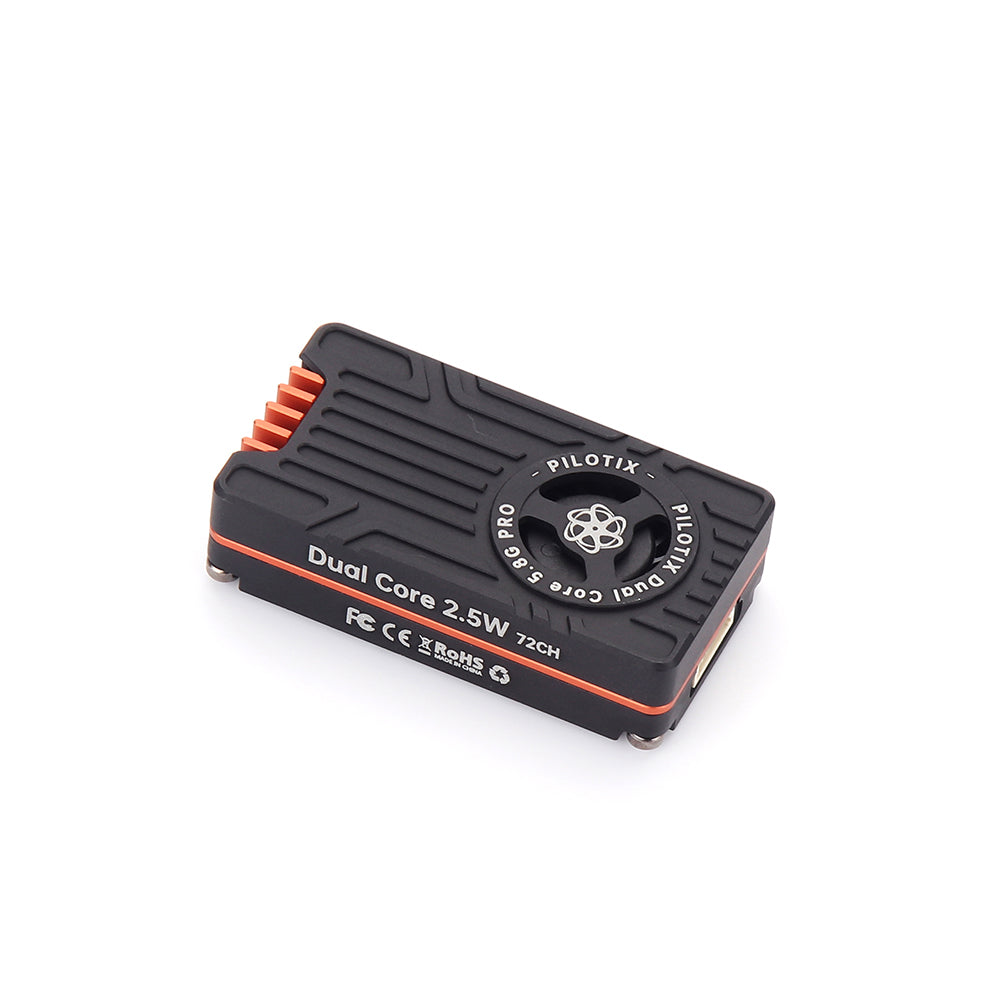

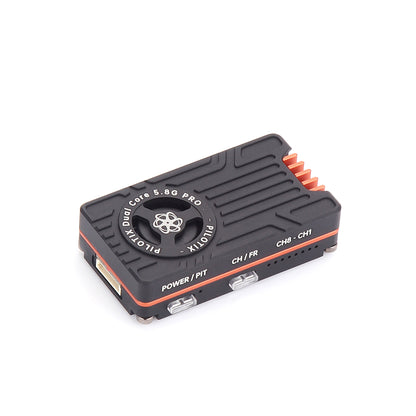

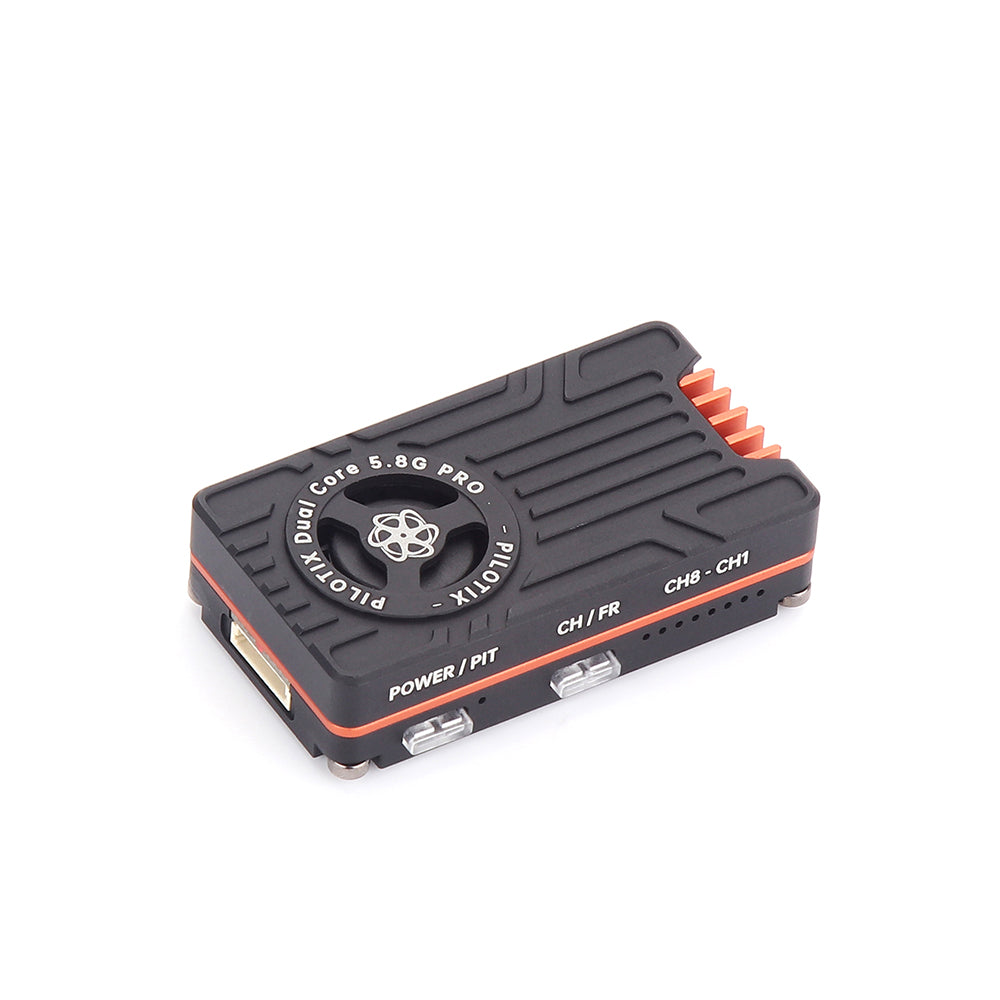

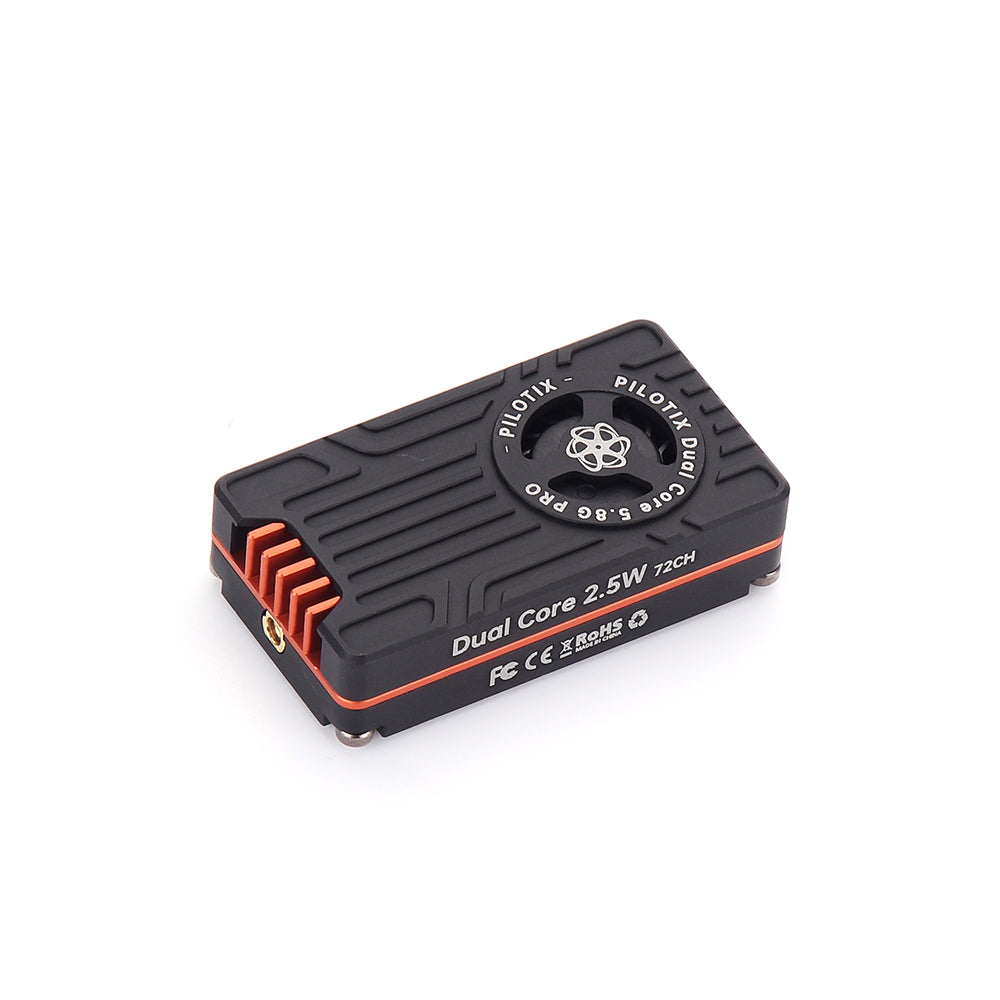

    Pilotix R2500 V1.0 5.8G 2.5W VTX

    Pilotix R2500 V1.0 5.8G 2.5W VTX

    Brand: Pilotix

    €77,44
    €77,44 €77,44
    -0% View Product

    sku: 4344

    Out of stock
    We need to check the product availability with our supplier. Please contact us for details.
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

    The Pilotix R2500 V1.0 5.8G 2.5W VTX is a high-performance FPV video transmitter designed for long-range and high-interference drone flights. With 2.5W output power across 72 selectable channels (A-B-E-F-R-L-O-U-H-X), it ensures stable, strong video transmission for professional FPV pilots. Its compact, lightweight design and MMCX antenna interface make installation easy on a wide variety of drones.

    Equipped with PIT mode, adjustable power levels, and the IRC protocol, the R2500 allows OSD-based VTX control for seamless integration with Betaflight and other compatible flight controllers.

    Key Features

    • Output Power: PIT / 25 mW / 1000 mW / 2000 mW / 2500 mW
    • Input Voltage: DC 7-36V
    • Channels: 72CH (A-B-E-F-R-L-O-U-H-X)
    • Operating Temperature: -10°C to 60°C
    • Antenna Connector: MMCX
    • Video Input: CVBS 0.8-1.2Vp-p, NTSC/PAL
    • RF Impedance: 50Ω
    • Size: 53 × 29.4 × 14.4 mm
    • Mounting: 20 × 20 mm / M2
    • Weight: 30 g

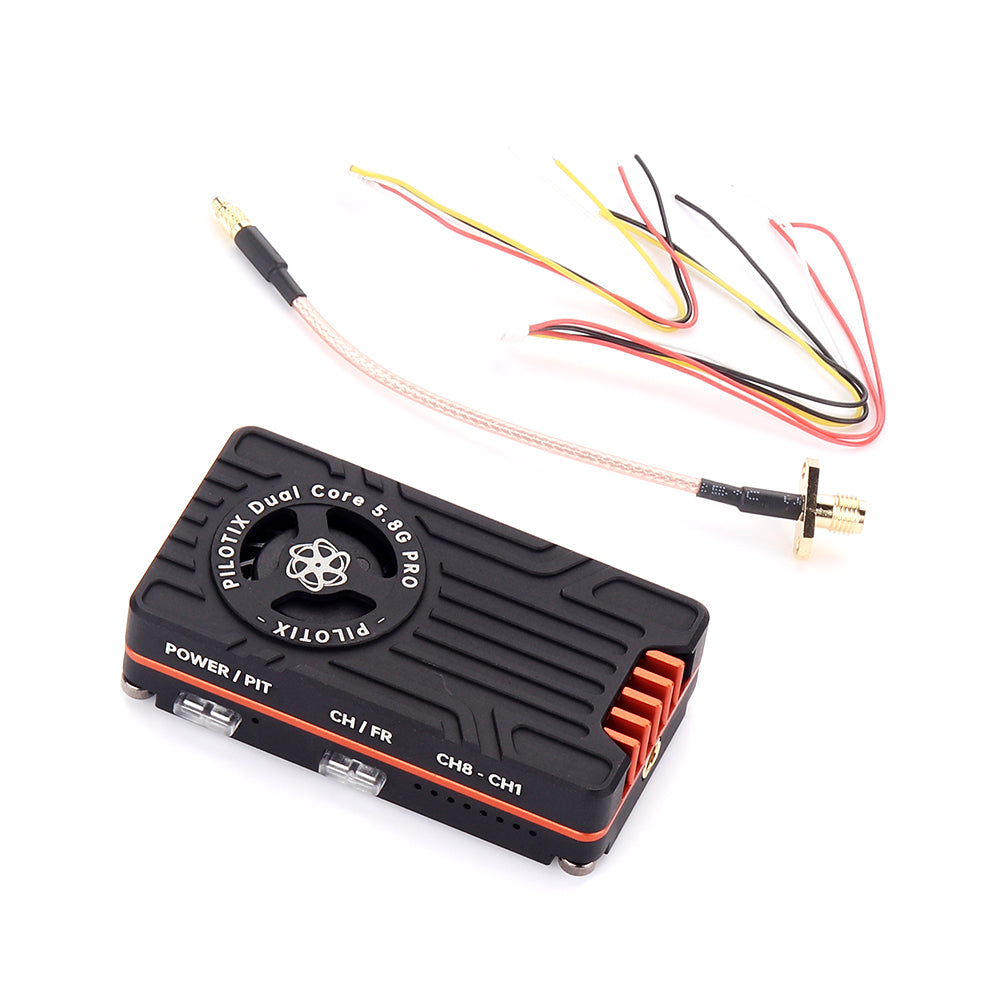

    Package Includes

    • 1 × Pilotix R2500 V1.0 5.8G 2.5W VTX
