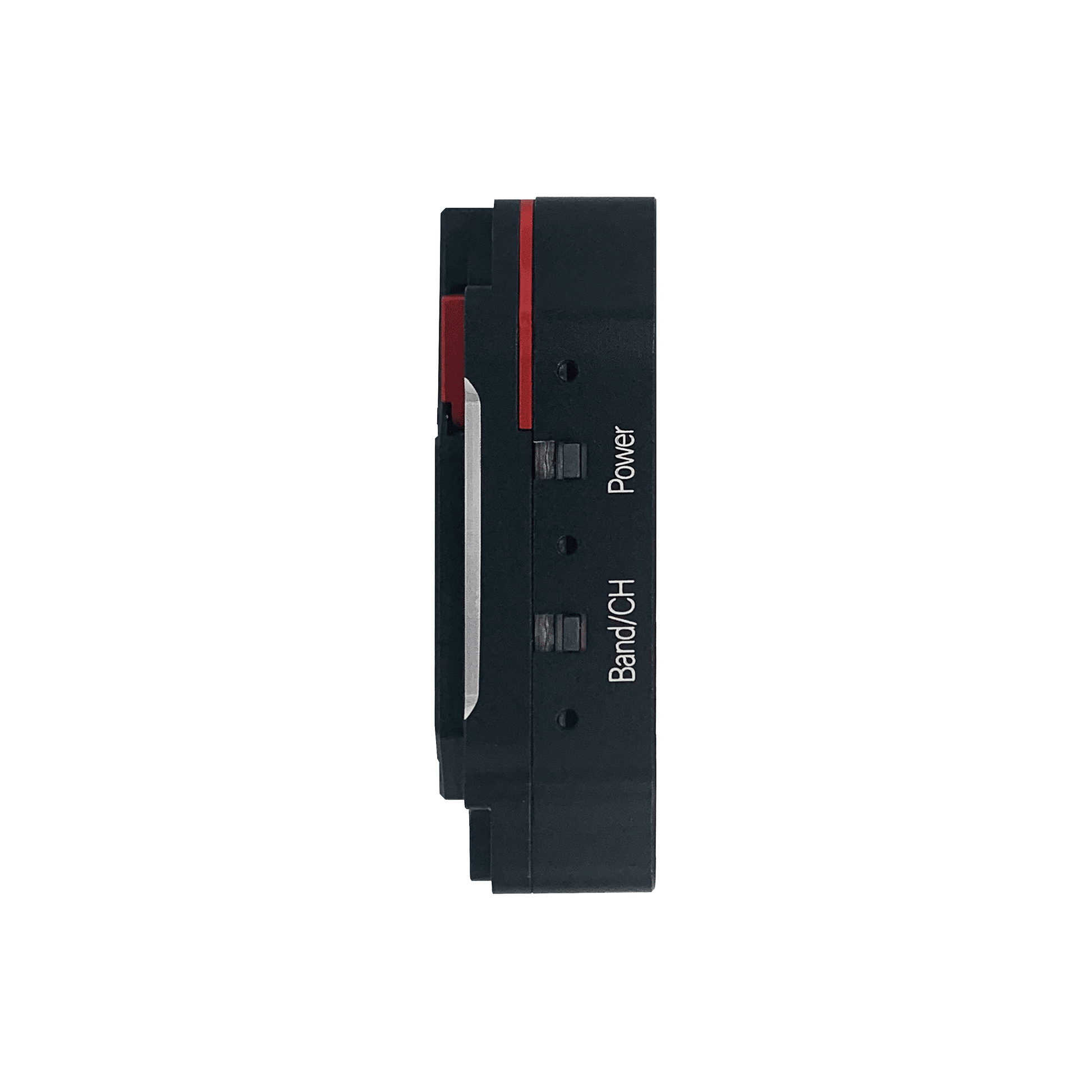

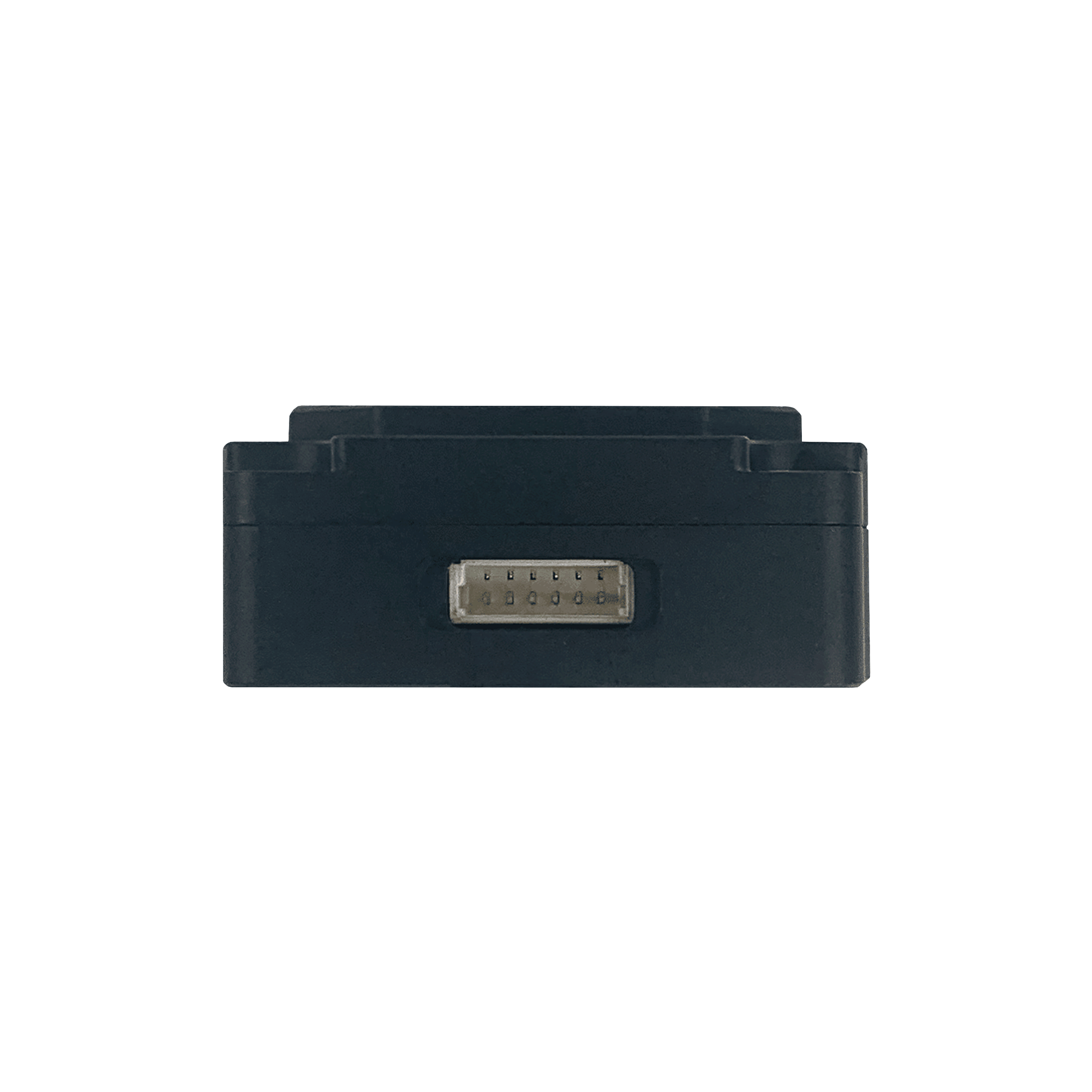

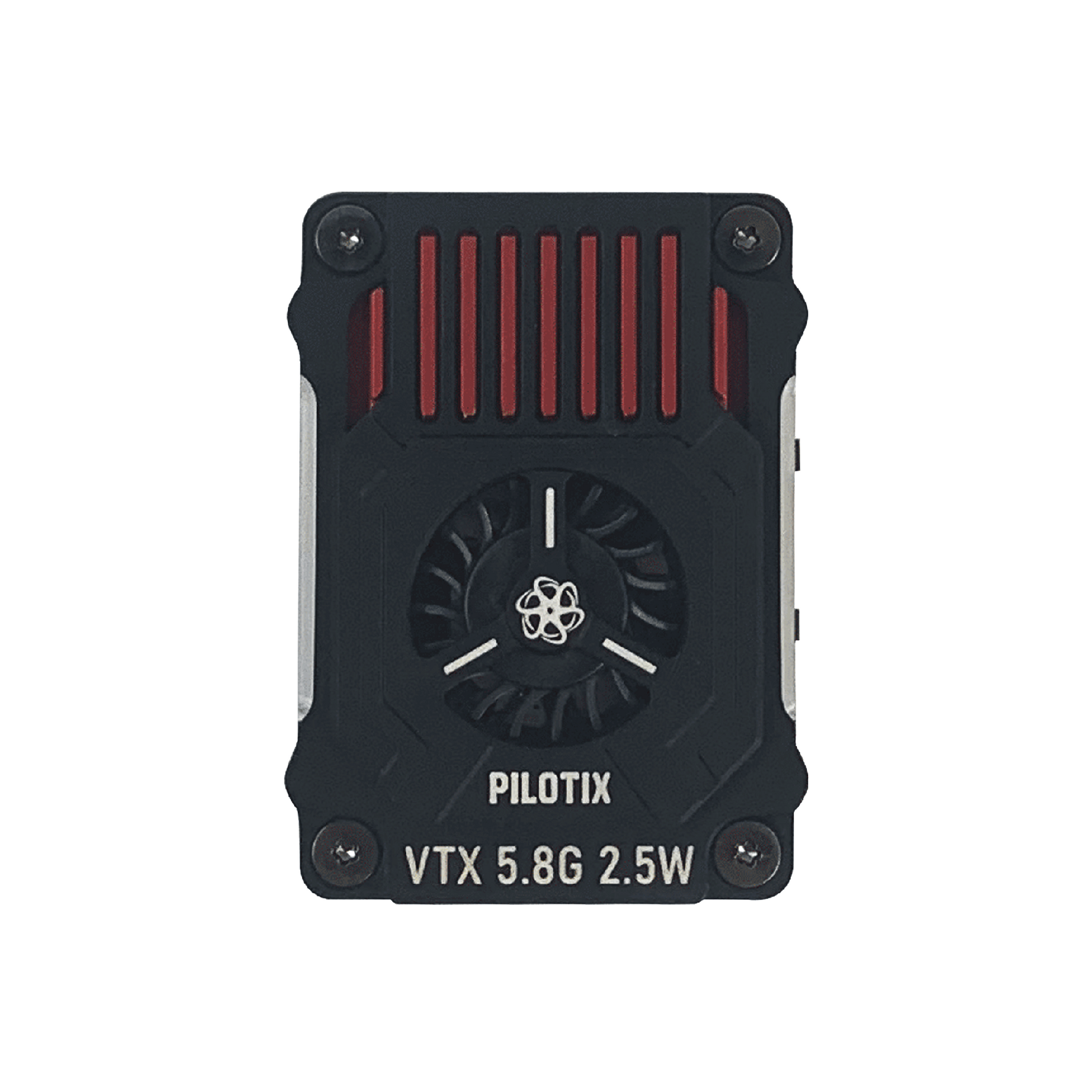

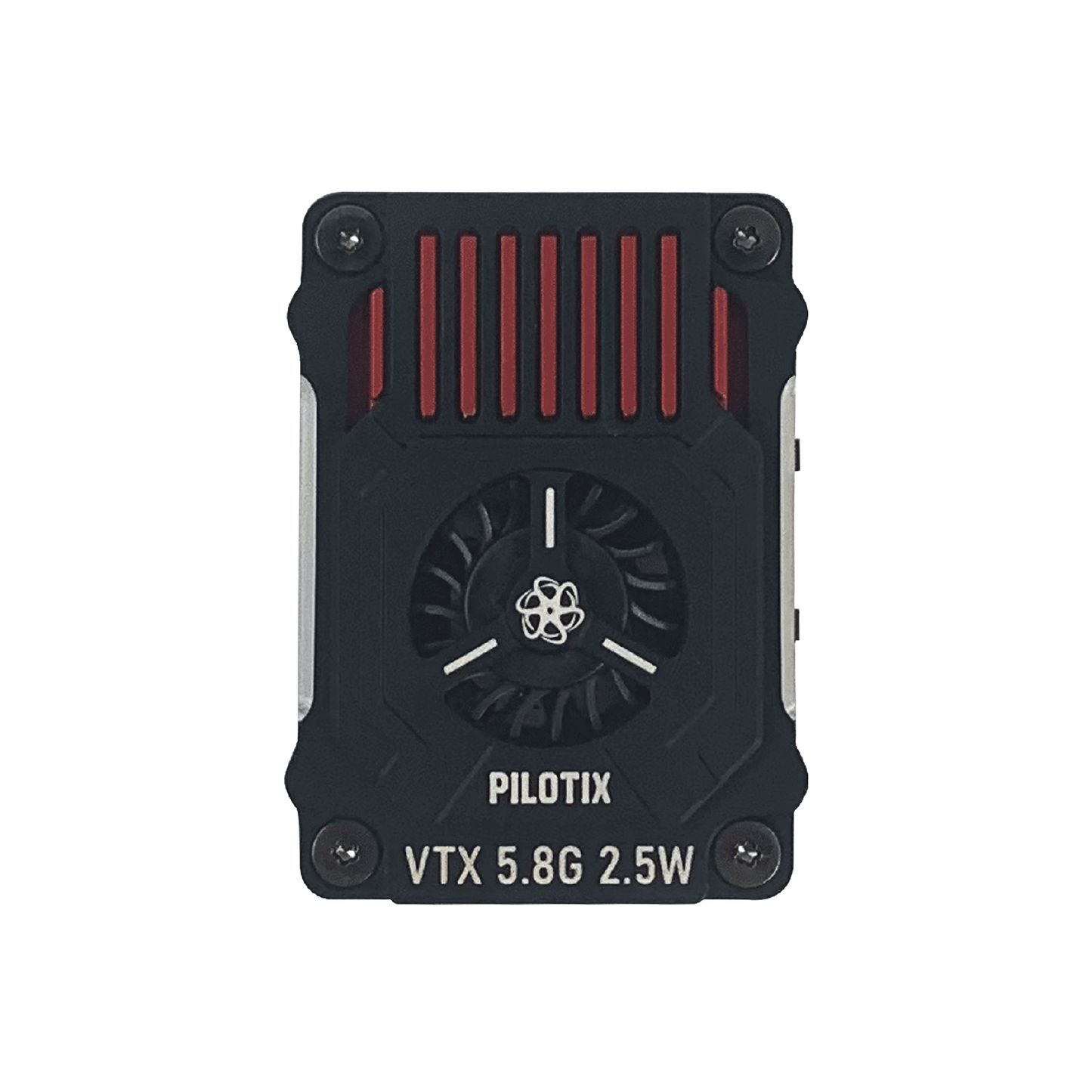

    Pilotix R2500 5.8GHz 2.5W VTX

    Pilotix R2500 5.8GHz 2.5W VTX

    Brand: Pilotix

    €77,44
    €77,44 €77,44
    -0% View Product

    sku: 4138

    Limited Available
    We have the goods available. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

    The Pilotix R2500 5.8GHz 2.5W VTX is a high-performance FPV video transmitter for racing and long-range drones. With adjustable output up to 2.5W, built-in microphone, and support for IRC Tramp protocol, it ensures clear and stable video transmission. Its compact design and 25.5×25.5mm mounting make it easy to integrate into a variety of FPV setups.

    Key Features

    • Output Power: PIT / 25mW / 400mW / 800mW / 1600mW / 2500mW
    • Channels: 48CH
    • Input Voltage: DC 7-36V (2-8S LiPo)

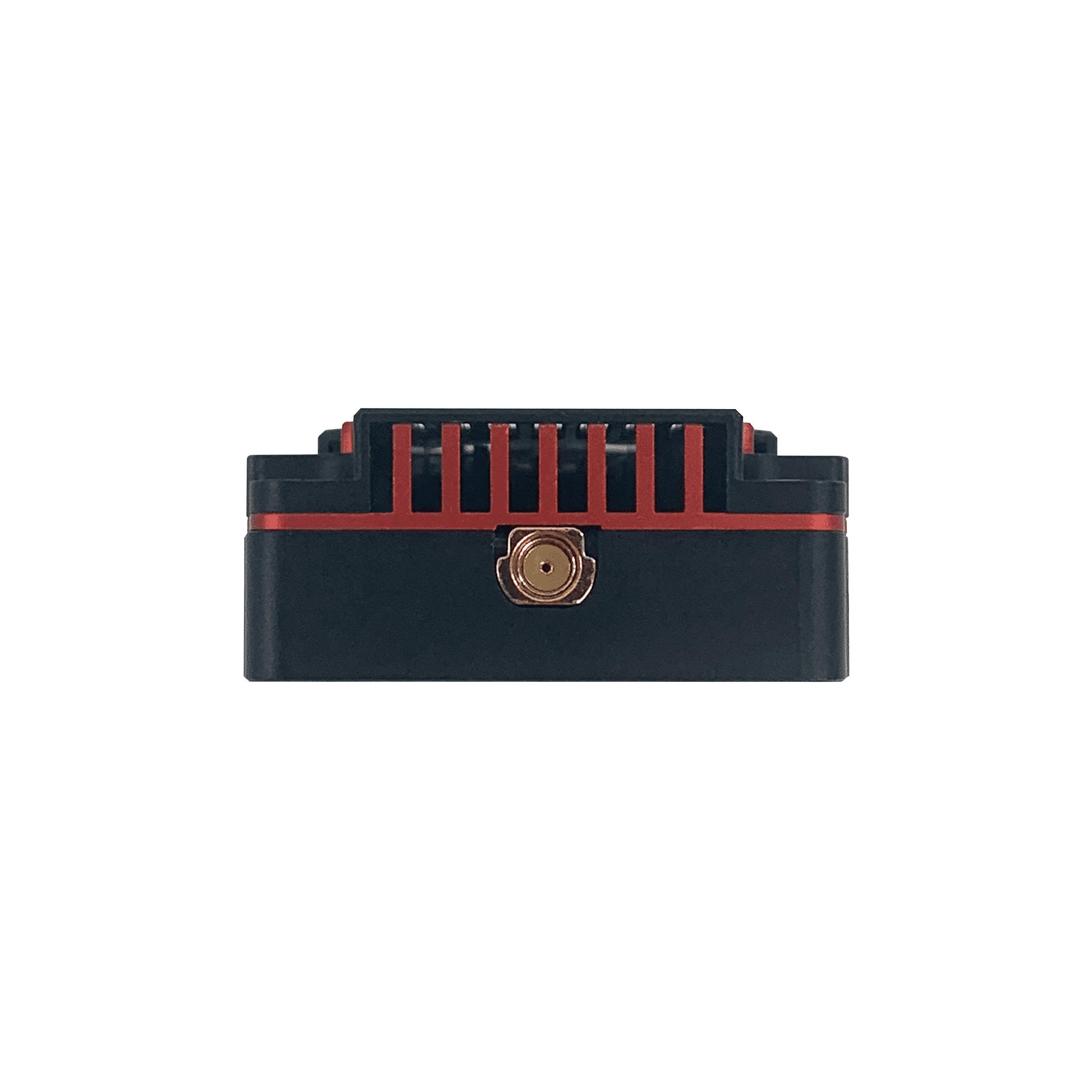

    • Connector: MMCX
    • Video Format: NTSC / PAL
    • Protocol: IRC Tramp
    • Mounting Holes: 25.5×25.5 mm @ M2
    • Built-in Microphone: Yes
    • Dimensions: 39.2 × 29 × 12 mm
    • Weight: 16.5 g

    Operation Tips

    • Use PIT mode for low-power startup in multi-pilot events.
    • Adjustable power levels allow for optimized video transmission depending on range and interference conditions.
    • IRC Tramp protocol enables configuration via Betaflight OSD.

    Package Includes

    • 1 × Pilotix R2500 5.8GHz 2.5W VTX
