Pilotix R1600 5.8GHz 1.6W VTX
Pilotix R1600 5.8GHz 1.6W VTX
Brand: Pilotix
Regular price
€50,82
Regular price
€50,82
Sale price
€50,82
Unit price
per
sku: SKU:4302
In stock (360) We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
- Description
The Pilotix R1600 5.8GHz 1.6W VTX is a high-performance analog video transmitter designed for FPV drones. With a maximum output of 1.6W, it delivers stable and reliable video transmission while maintaining a compact and lightweight design, making it suitable for both beginner and professional pilots. Its versatile mounting options ensure easy integration into a variety of drone frames.
Key Features
- Output Power: 25 / 400 / 800 / 1000 / 1600 mW
- Channels: 40CH
- Frequency Band: 5645-5945 MHz
- Input Voltage: 7-27V DC (2-6S battery)
- Output Voltage: 9V @ 780mA
- Antenna Connector: MMCX
- Mounting Holes: 30.5×30.5 mm & 20×20 mm
- Control Protocol: IRC Tramp for OSD control

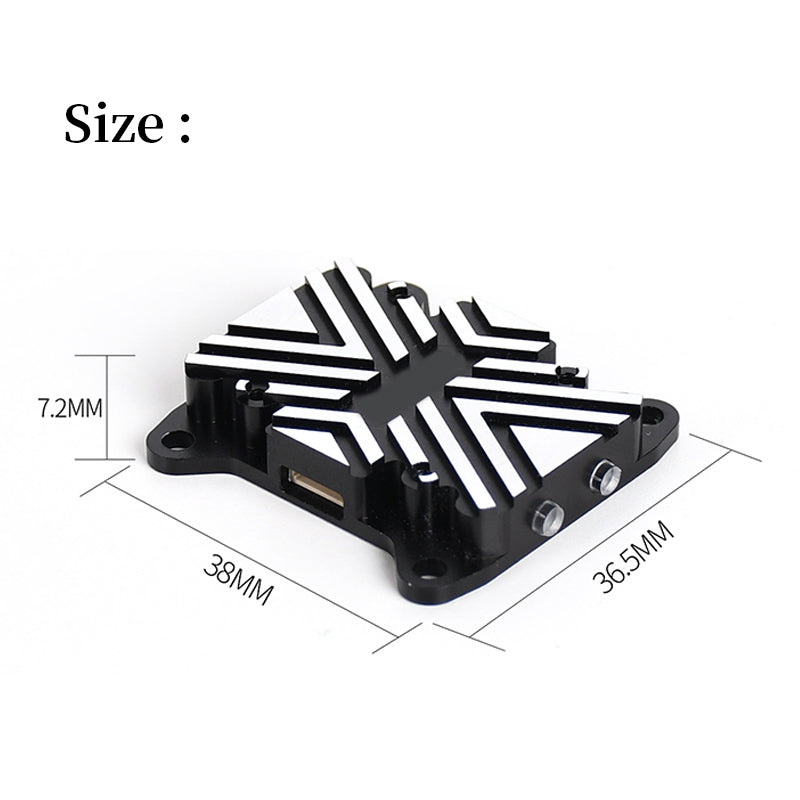

- Dimensions: 38 × 36.5 × 7.2 mm
- Weight: 14.5 g
Package Includes
- 1 × Pilotix R1600 5.8GHz 1.6W VTX

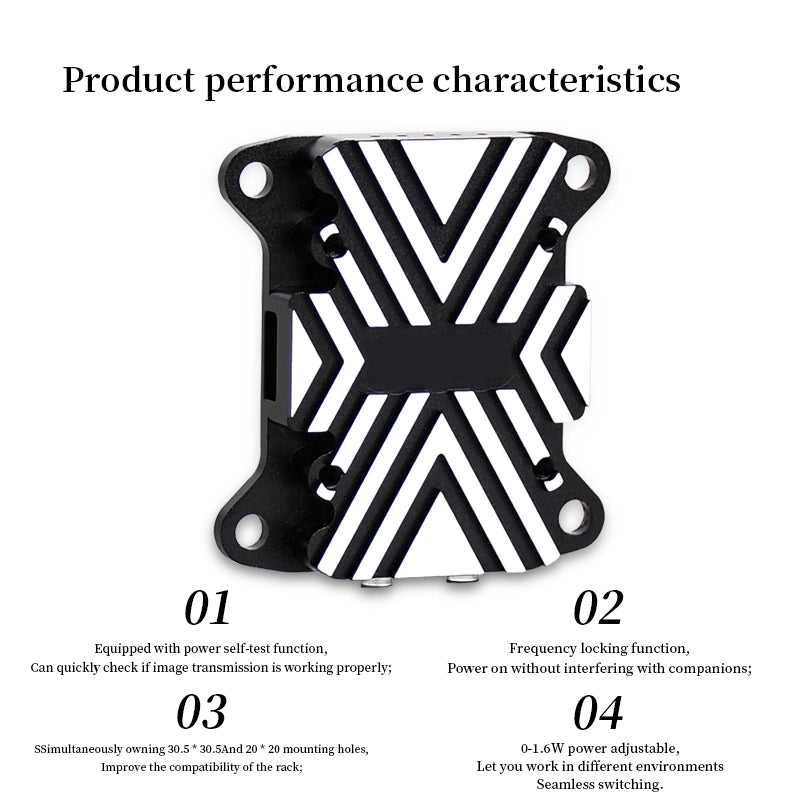

Notes
- Power self-test ensures correct video output before flight.
- Frequency lock feature prevents interference on power-up.
- Adjustable power levels allow smooth switching depending on flight environment.
- Compatible with Betaflight OSD for remote VTX control.
