    The Pilotix F405 V4 55A stack is a high-performance FPV flight control system developed by a European engineering-focused brand. Designed for freestyle, cinematic, and long-range FPV drones, it delivers precise flight control, stable power distribution, and broad receiver compatibility.

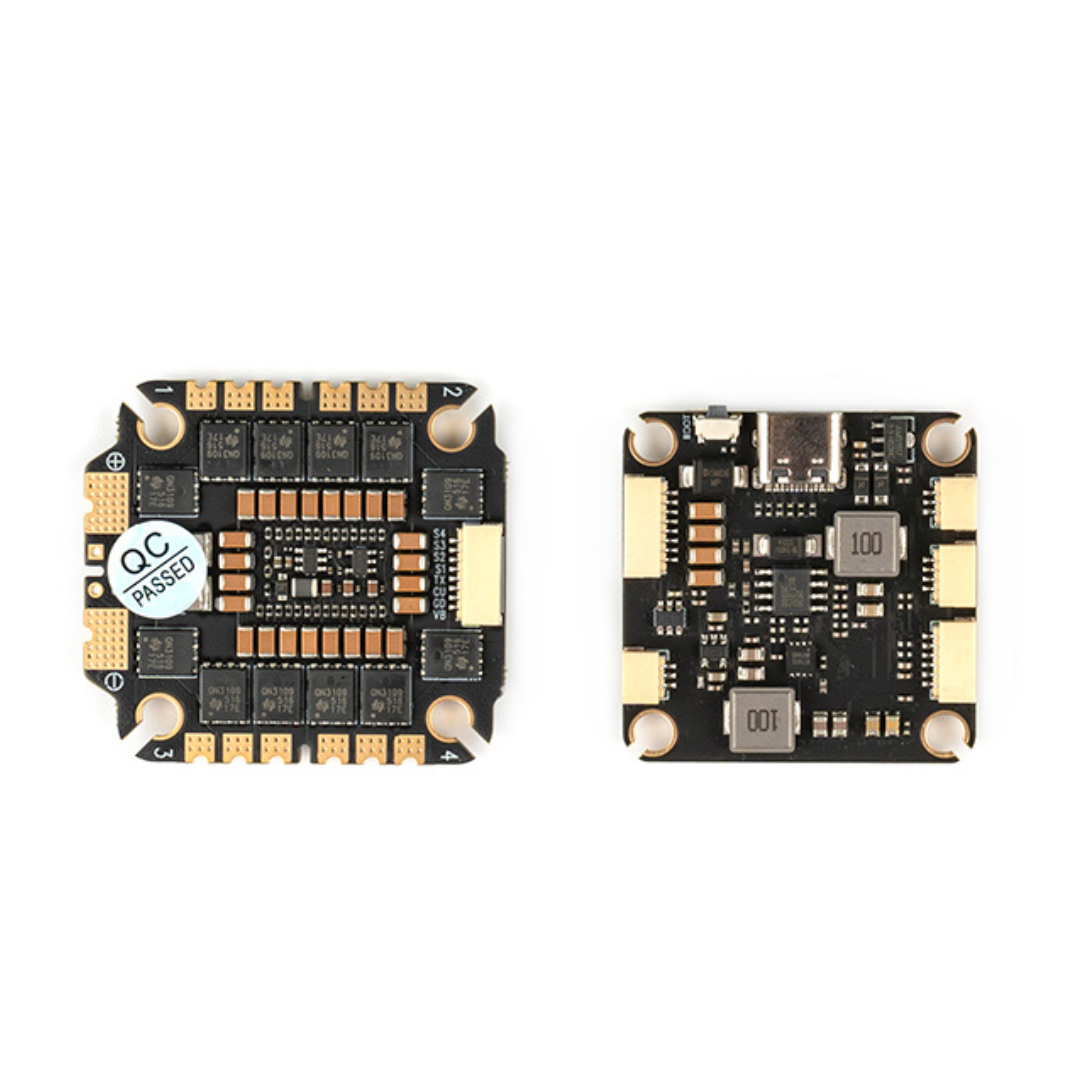

    At its core, the stack combines a responsive STM32F405 flight controller with the ICM42688 gyro for accurate flight response and smooth handling. Paired with a robust 55A AM32 4-in-1 ESC, it ensures reliable power delivery across demanding 3–8S setups while maintaining a compact 30.5×30.5mm footprint.

    This stack is built for pilots who want clean signal processing, strong current handling, and dependable performance in all FPV environments.

    Key Features:

    • High-performance STM32F405 flight controller
    • ICM42688 gyro for precise and stable flight response
    • 55A AM32 4-in-1 ESC for reliable power delivery
    • Supports 3–8S LiPo input
    • Broad receiver compatibility (ELRS, CRSF, SBUS, FrSky, FlySky, DSMX, TBS Crossfire)
    • Compact 30.5×30.5mm mounting pattern
    • Integrated OSD, LED, buzzer, and telemetry support
    • Designed for freestyle, cinematic, and long-range FPV builds

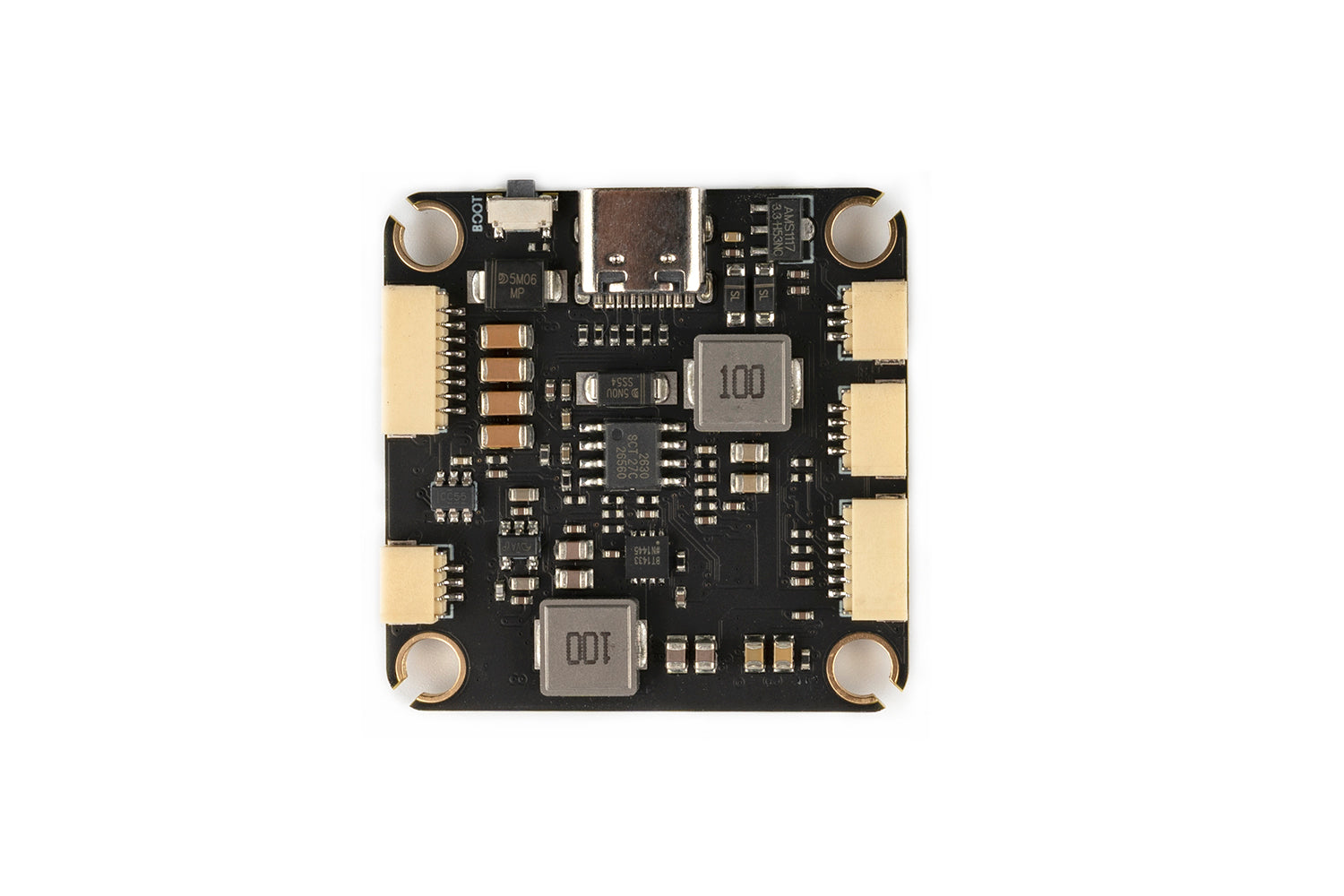

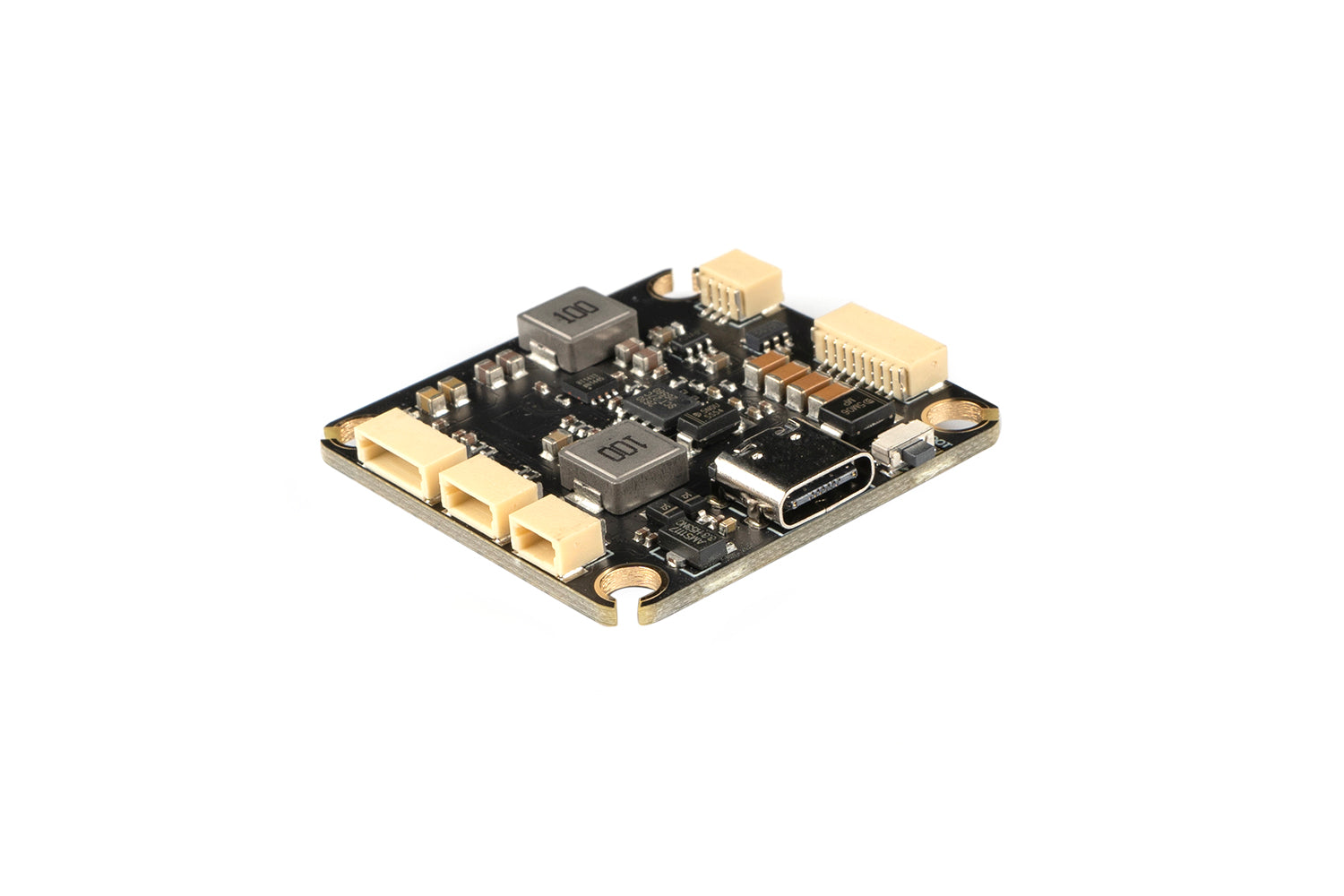

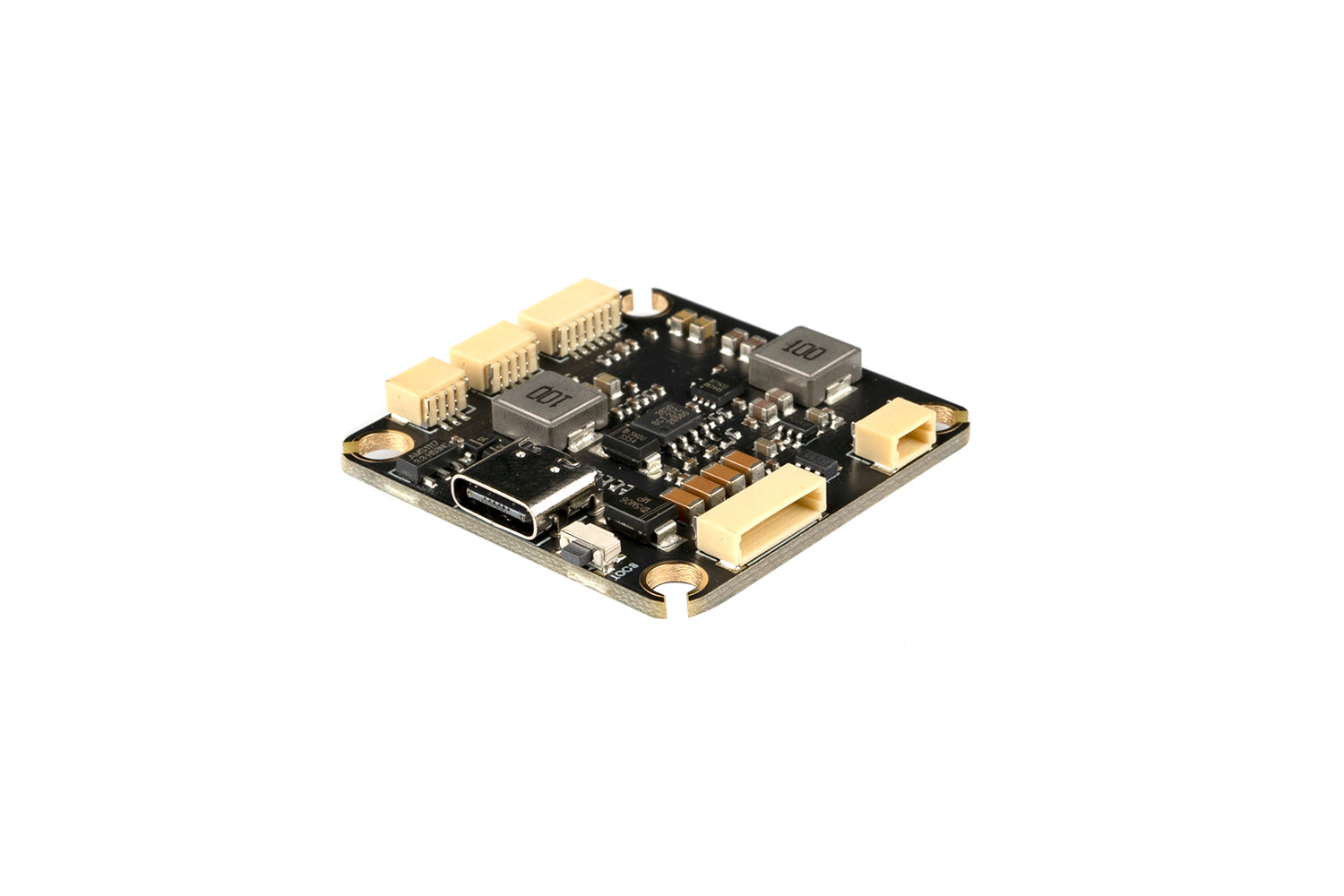

    Flight Controller Specifications:

    • MCU: STM32F405RGT6
    • Gyro: ICM42688
    • Barometer: SPL06-001
    • Blackbox: 16MB
    • Motor Outputs: 8
    • UARTs: 5
    • Input Voltage: 3–8S
    • BEC Output: 5V / 2.5A, 9V / 2.5A
    • Firmware: PILOT / PilotixF405 (STM32F405)
    • Mounting: 30.5 × 30.5 mm
    • Weight: 9.4 g

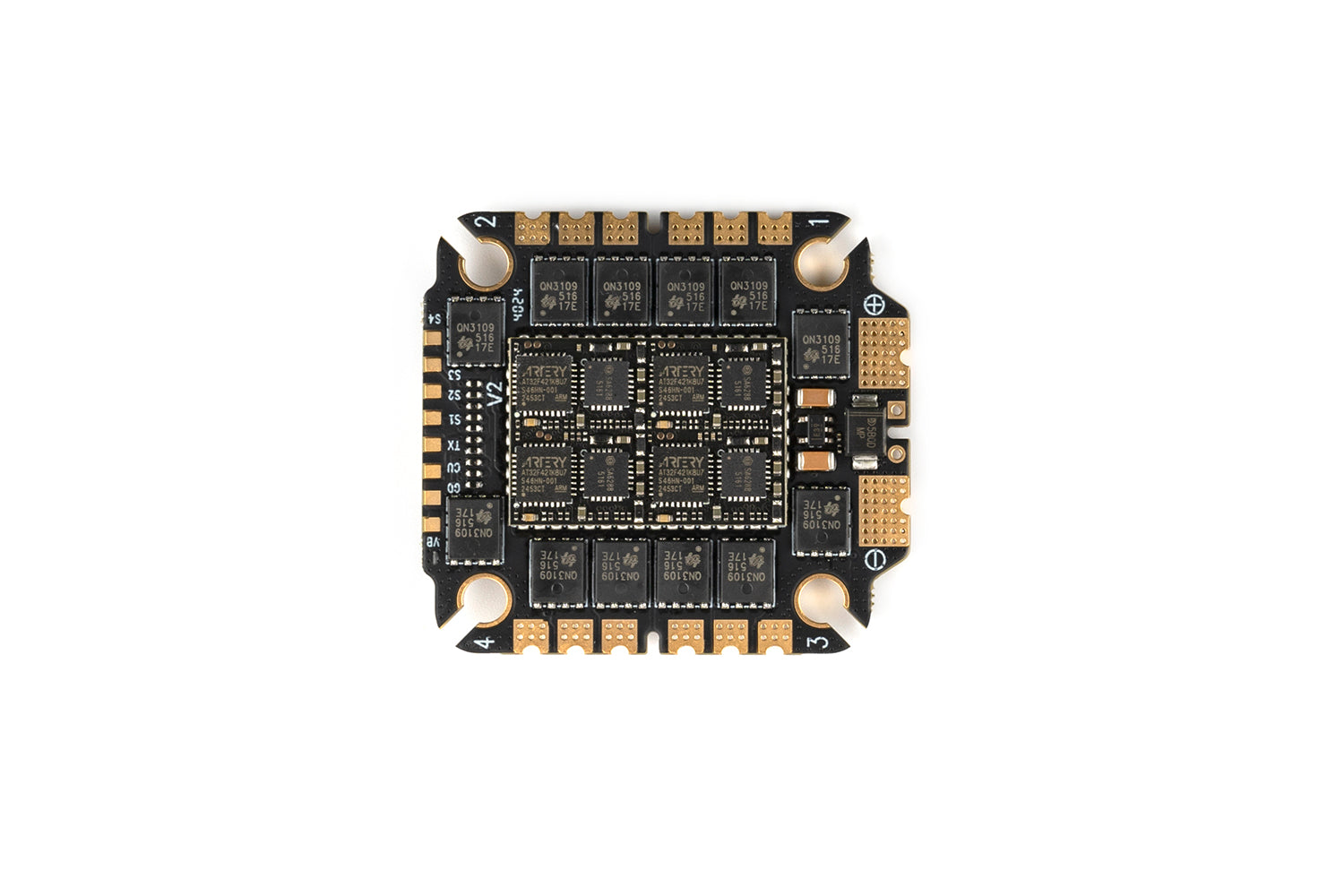

    ESC Specifications:

    • Model: AM32 55A 4-in-1 ESC
    • Continuous Current: 55A
    • Burst Current: 60A
    • Input Signal: DShot150/300/600, MultiShot, OneShot
    • Telemetry: Supported
    • BEC: None
    • Input Voltage: 3–8S LiPo
    • Firmware: AM32_K_A_F421_2.16
    • Operating Temperature: 20°C to +55°C
    • Storage Temperature: 20°C to +70°C
    • Mounting: 30.5 × 30.5 mm
    • Weight: 15.8 g
    • Dimensions: 44.5 × 40.5 mm

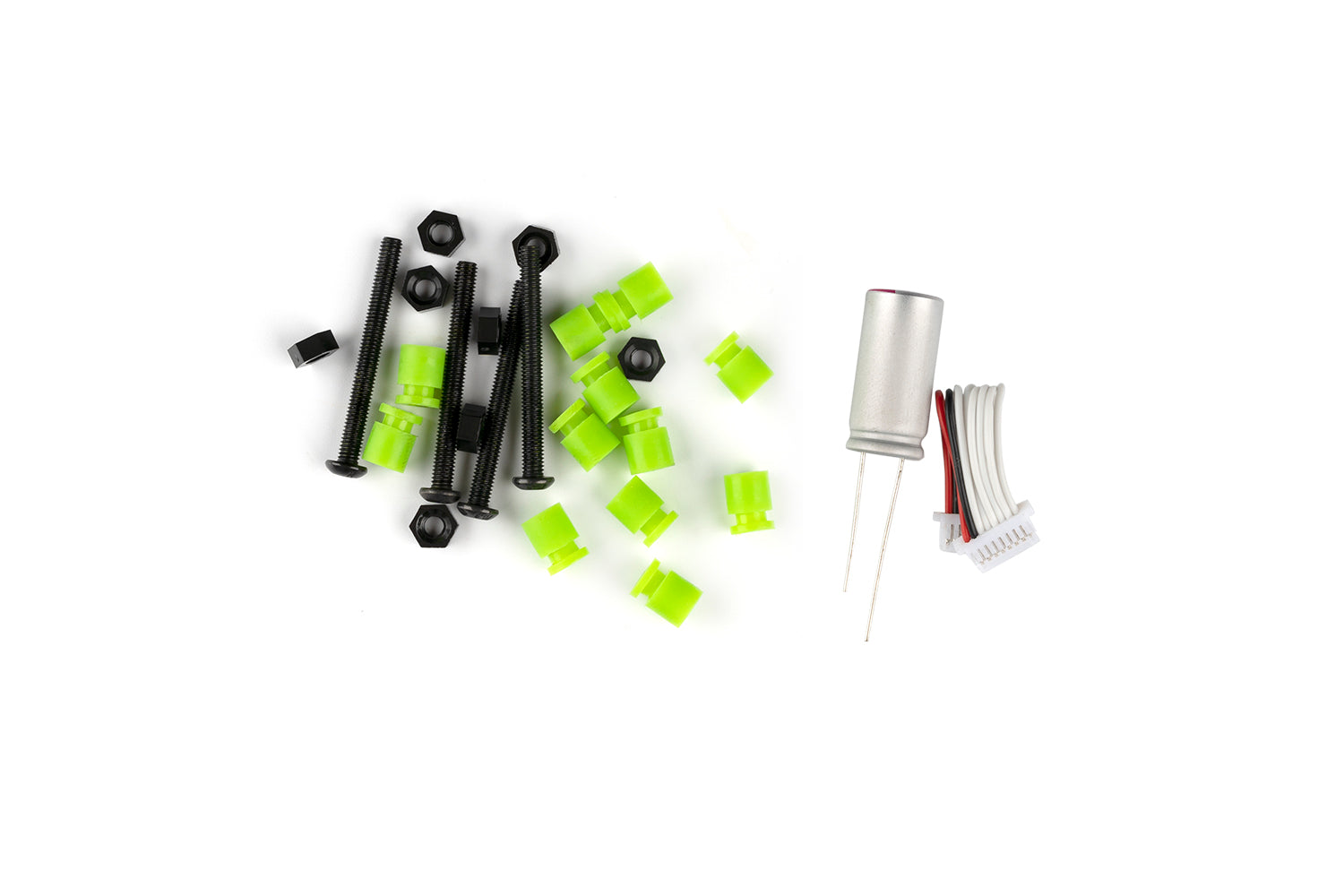

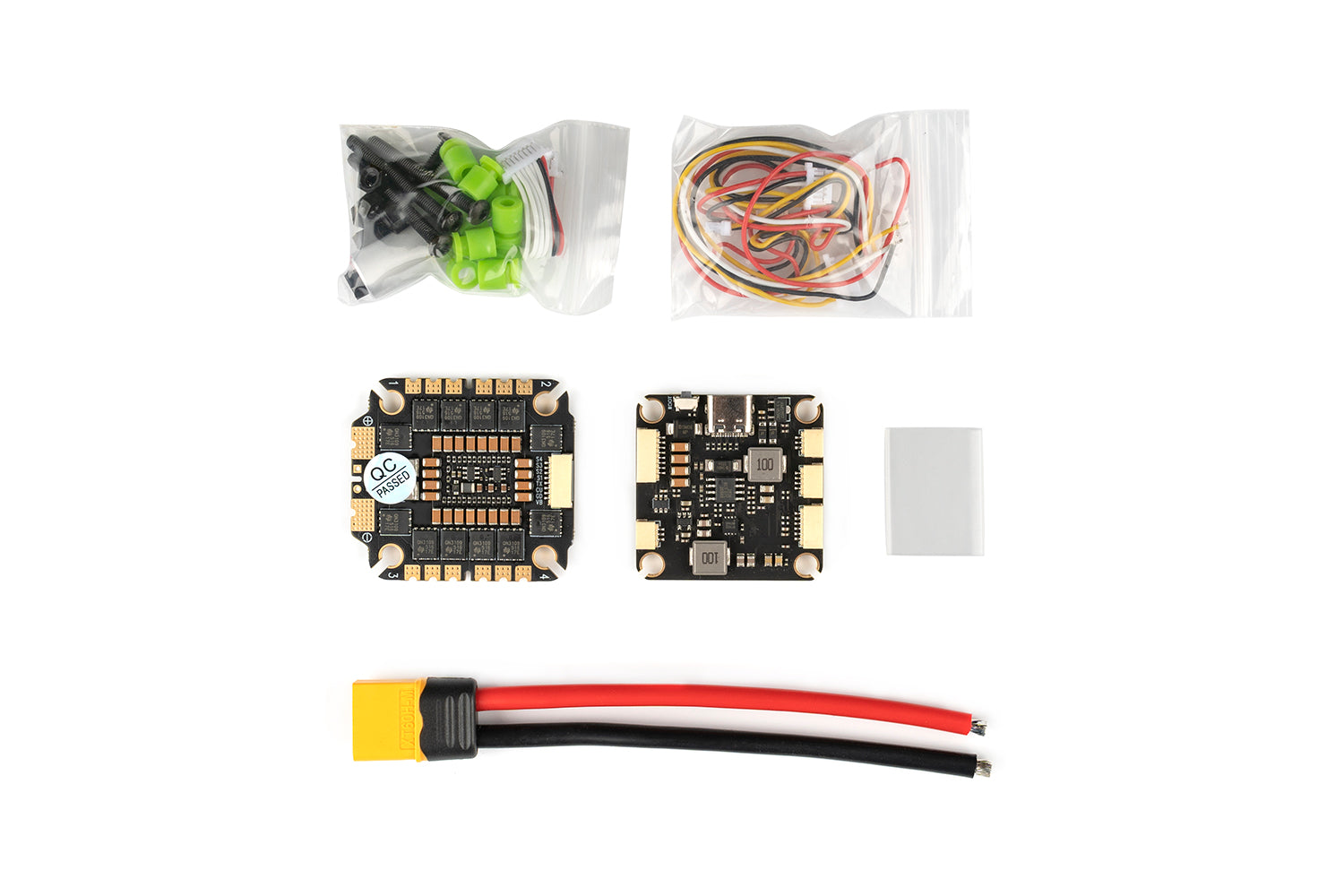

    Included:

    • 1x Pilotix F405 V4 Flight Controller + 55A AM32 ESC Stack
