Partizan Triple Feed Patch Array 5.8GHz 15dBi Directional FPV Antenna - SMA
Partizan Triple Feed Patch Array 5.8GHz 15dBi Directional FPV Antenna - SMA
Brand: Partizan
sku: SKU:3950
Out of stockCouldn't load pickup availability
- Description
The Partizan Triple Feed Patch Array 5.8GHz antenna is a high-performance directional FPV antenna designed for long-range video transmission and stable signal reception. Featuring an advanced triple-feed patch array design, this antenna provides improved signal efficiency, higher gain, and better reception compared to standard patch antennas.
With a high gain of 15 dBi and a focused 30° beamwidth, the antenna concentrates signal strength in a specific direction, making it ideal for long-distance FPV flying, ground stations, and video receivers. The wide 5.1-6 GHz bandwidth ensures compatibility with the entire 5.8 GHz FPV band, providing stable performance across all common channels.

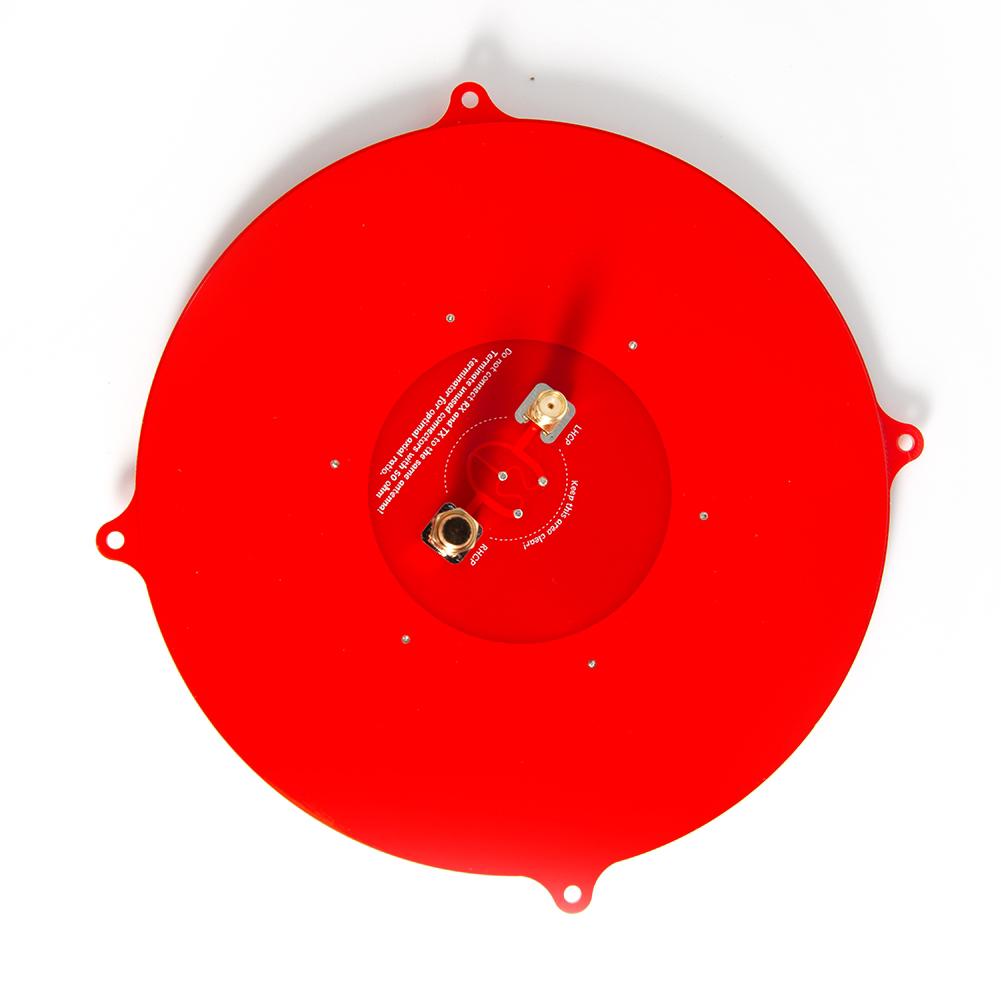

The antenna uses an SMA female connector for easy integration with FPV receivers, goggles, and ground station setups. Its compact 150 × 150 mm design delivers strong performance while remaining lightweight and easy to mount.
Key Features:

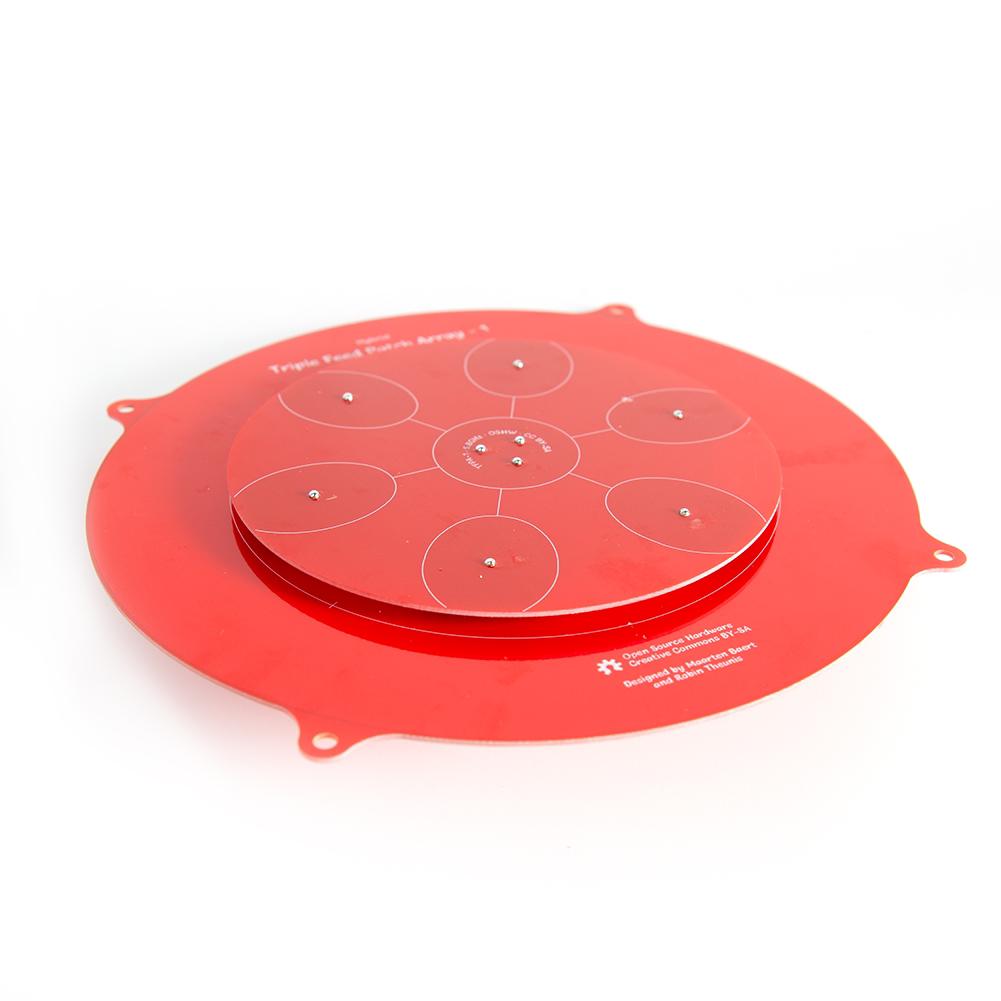

- Triple-feed patch array design for improved signal reception and transmission.
- High gain (15 dBi) for extended FPV range and stronger signals.
- Directional antenna with 30° beamwidth for focused signal coverage.
- Wide frequency bandwidth: 5.1-6 GHz covering the full FPV band.
- Low VSWR (<1.22) for efficient signal transmission.
- SMA female connector for easy compatibility with FPV equipment.
- Ideal for long-range FPV, ground stations, and video receivers.
Specifications:
- Center Frequency: 5.8 GHz
- Frequency Range: 5.1 - 6 GHz
- Gain: 15 dBi

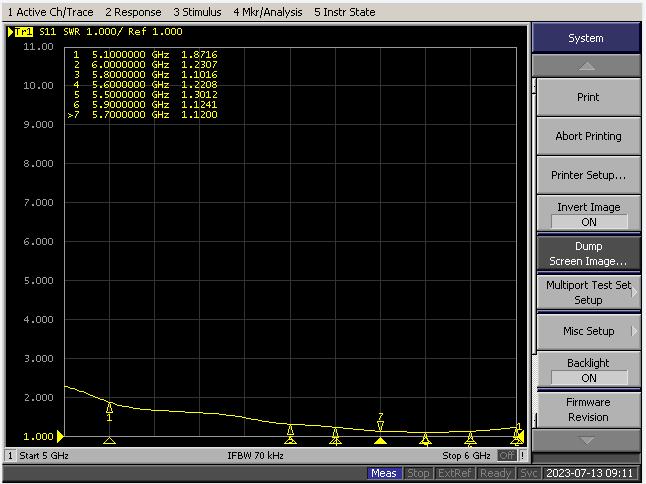

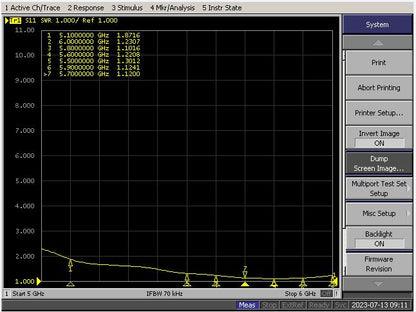

- VSWR: S11 < 1.22 (center frequency)
- Axial Ratio: 1.05

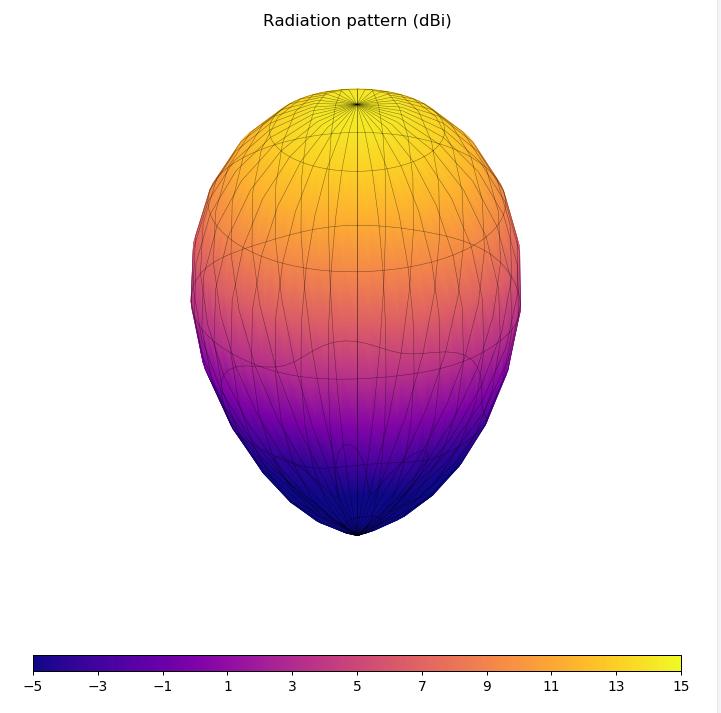

- Beamwidth: 30° (horizontal & vertical)
- Radiation Efficiency: 75%
- Connector: SMA Female
- Dimensions: 150 × 150 × 5 mm

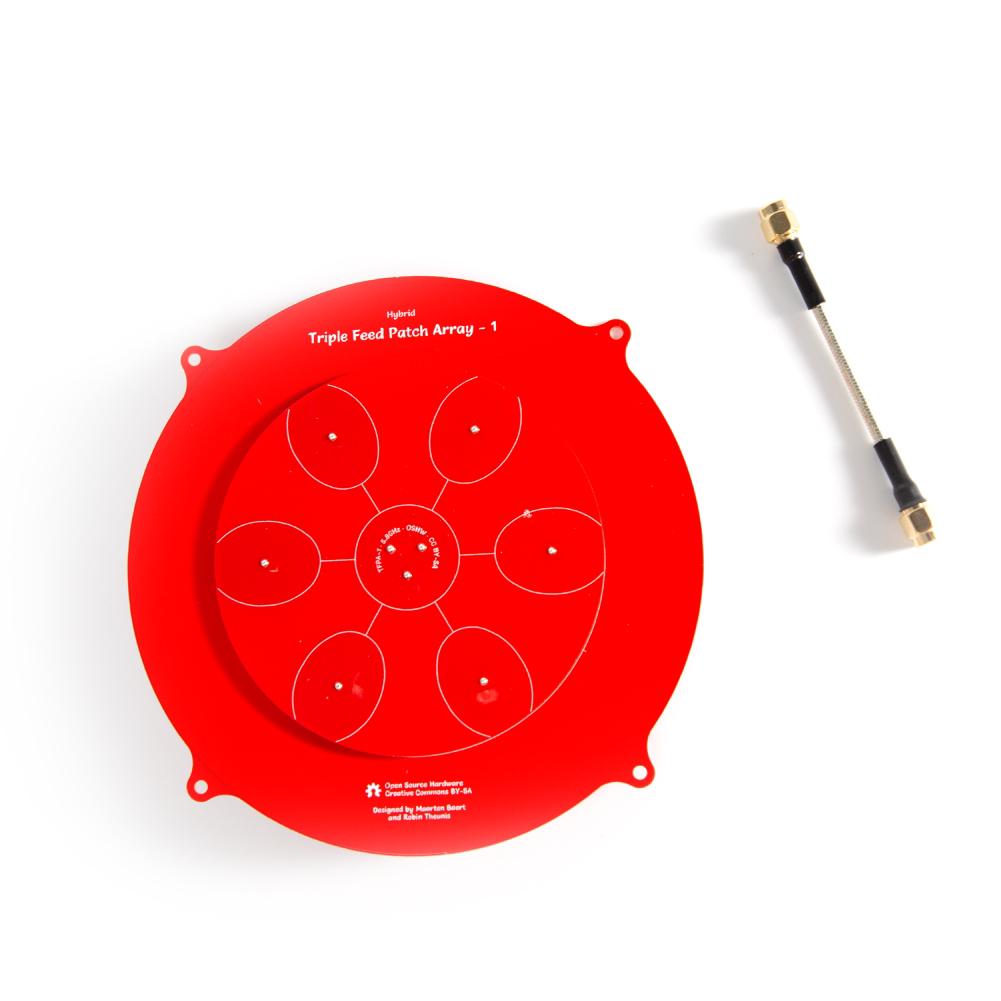

Package Includes:
- 1 × Triple Feed Patch Array 5.8G Antenna

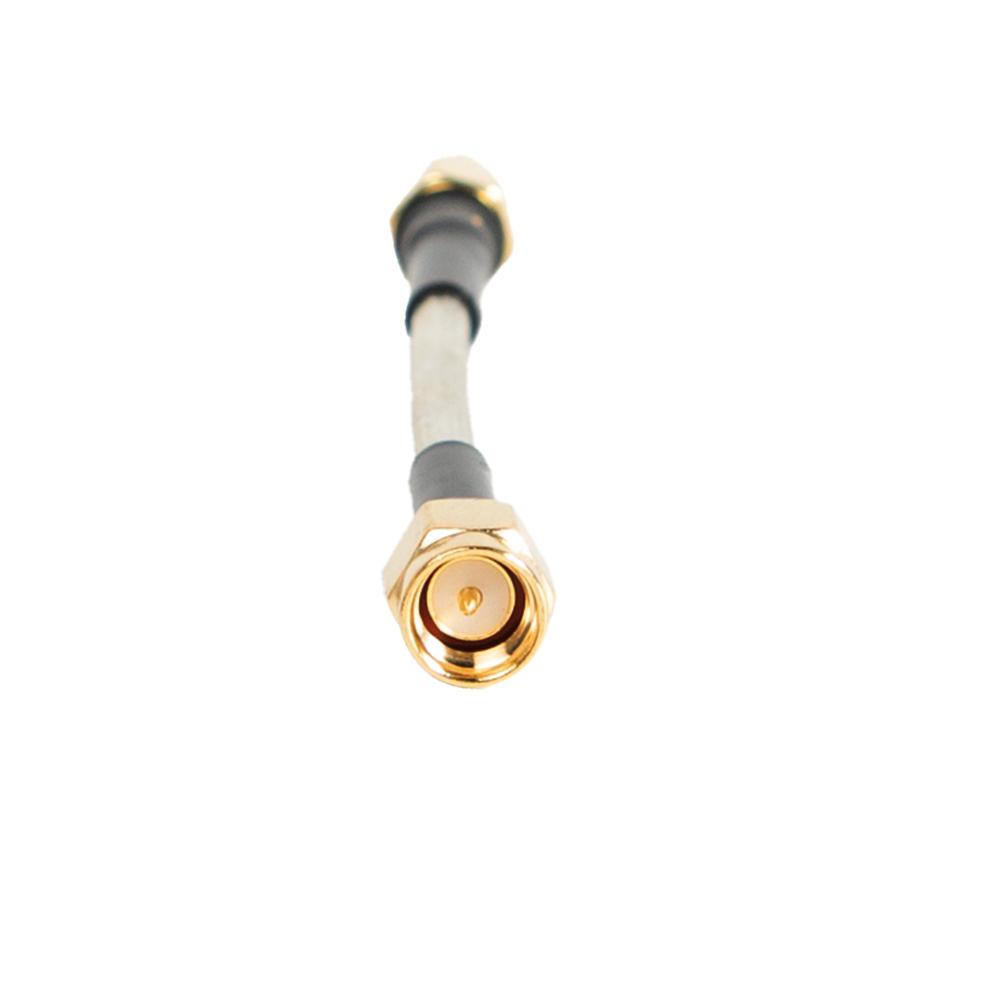

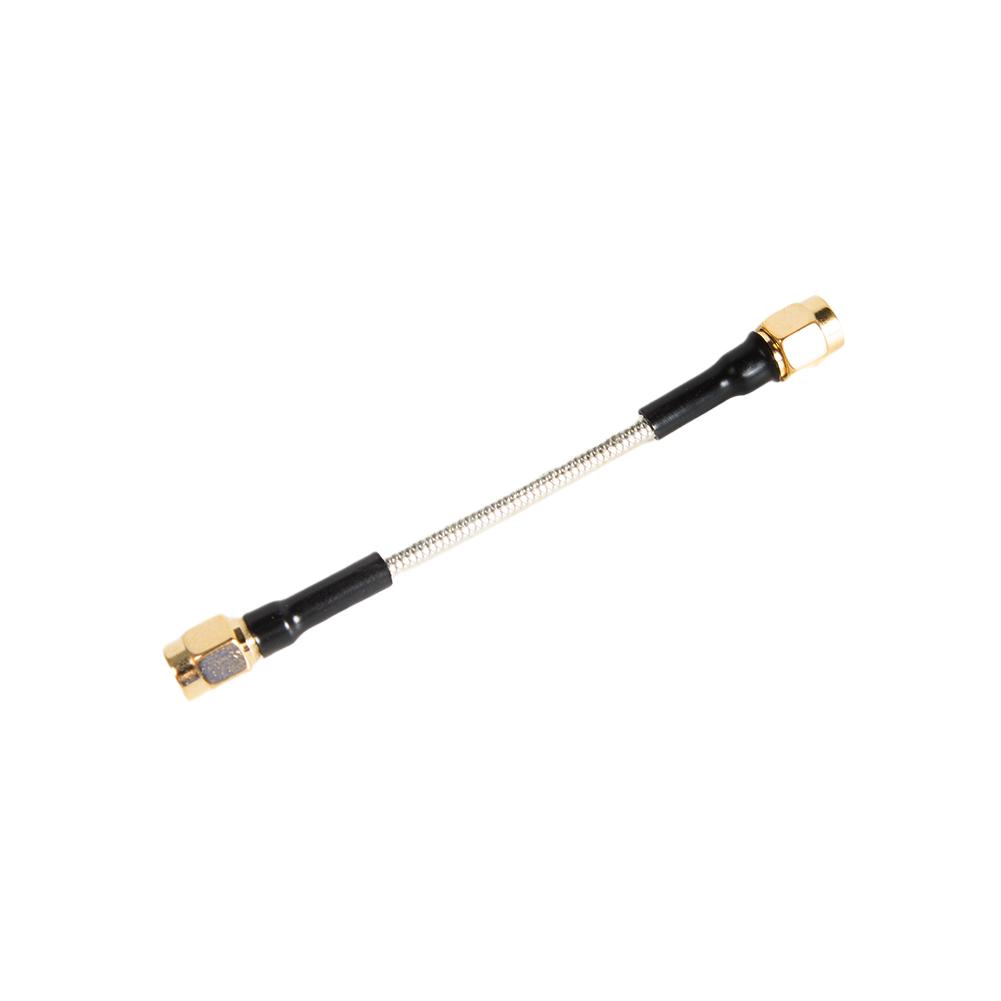

- 1 × Connection Cable
