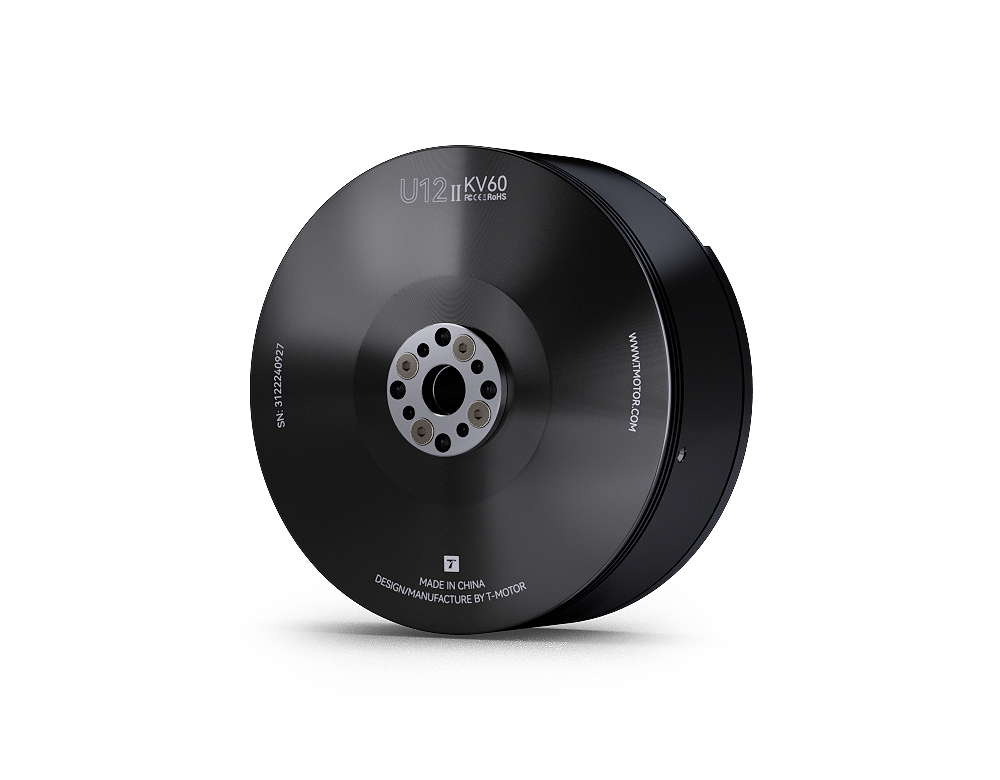

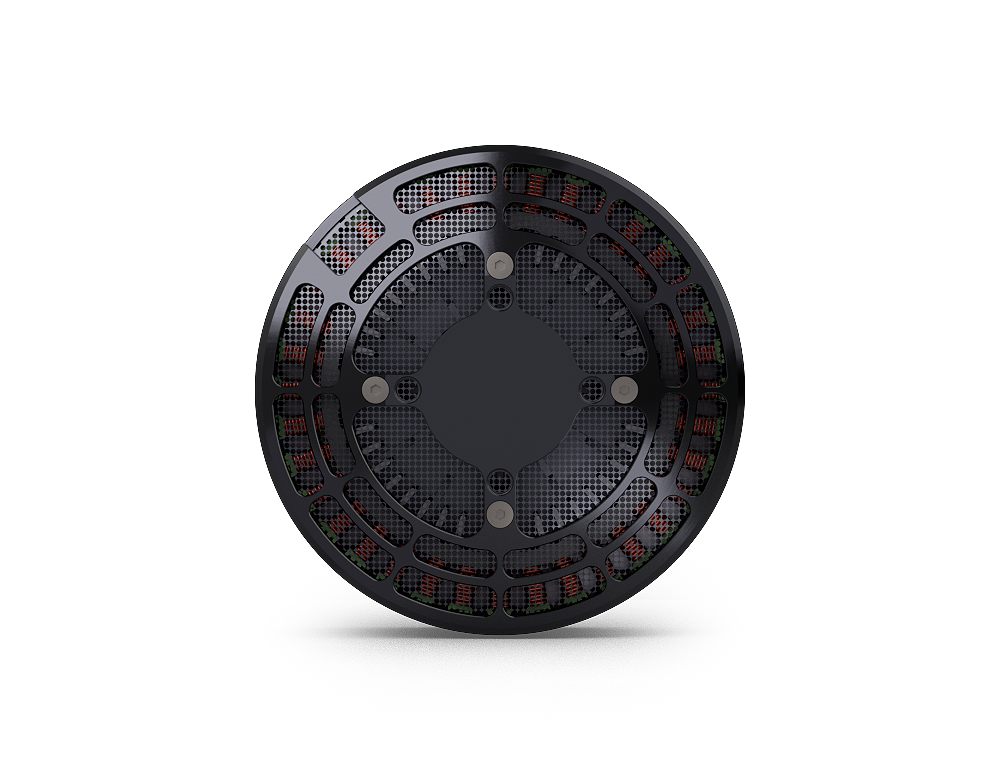

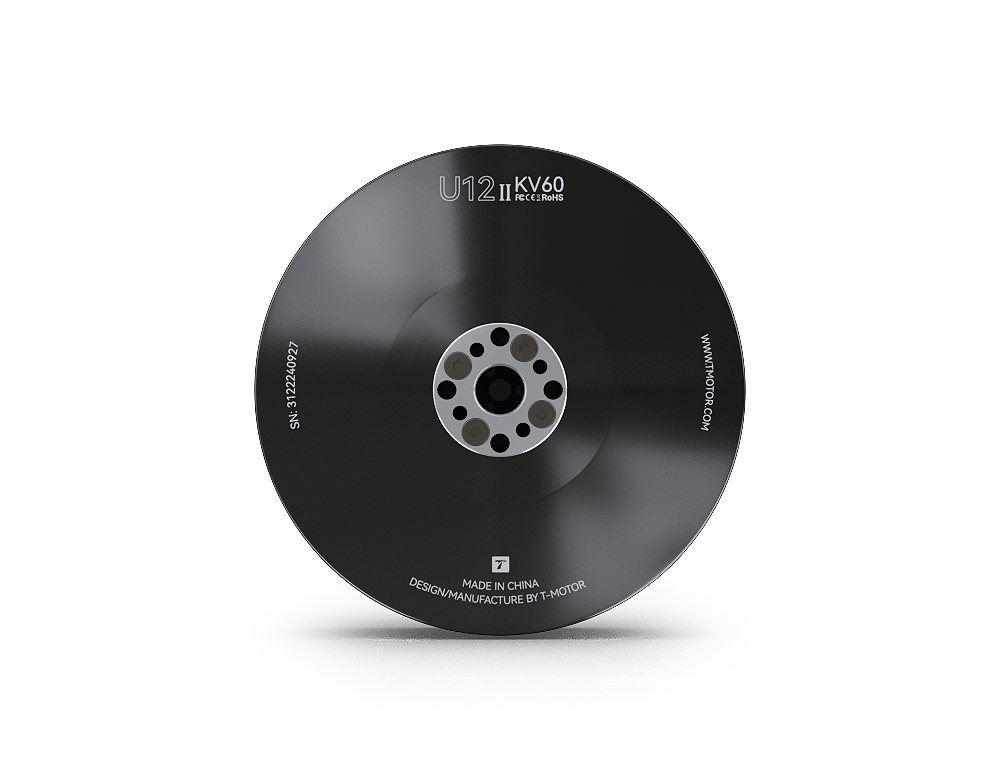

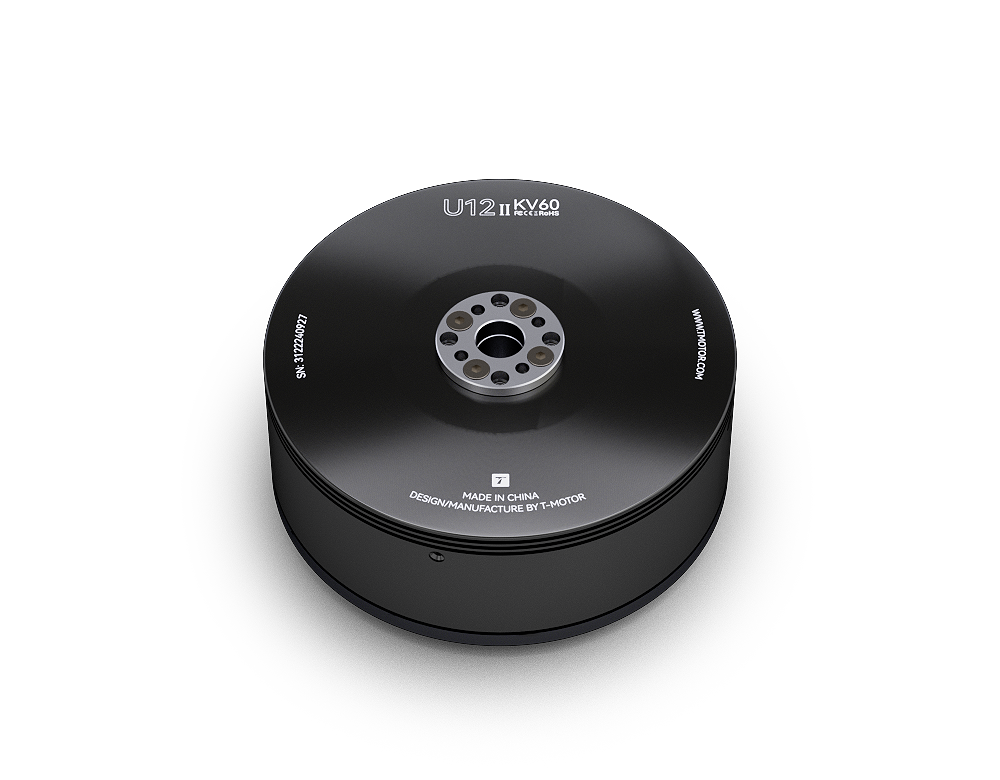

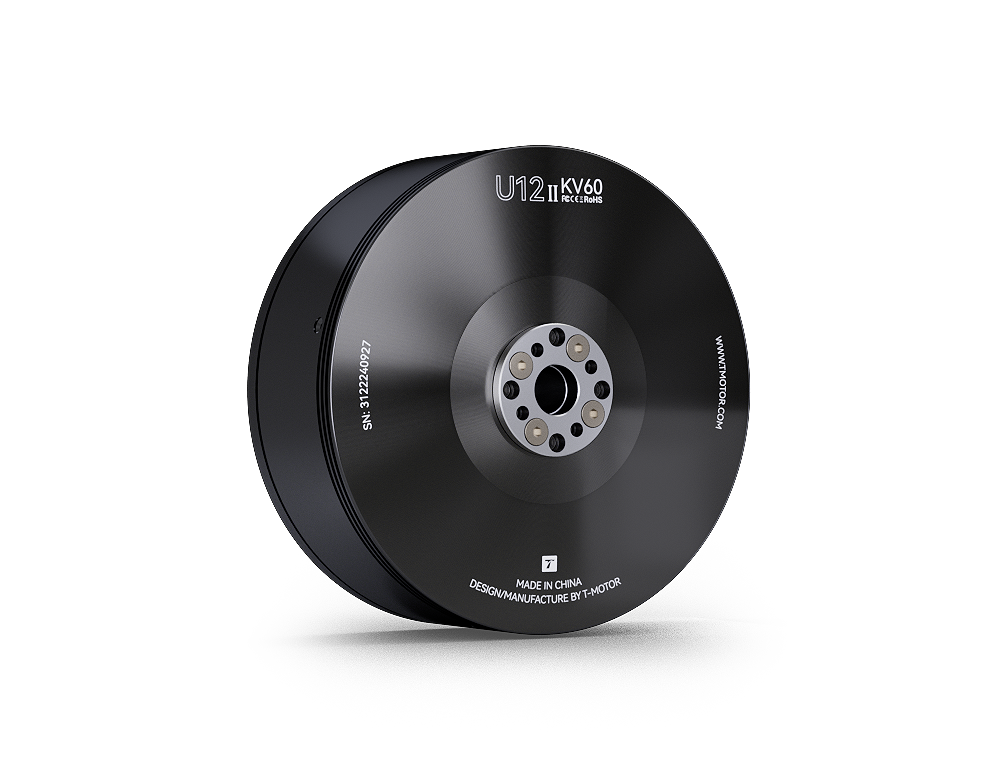

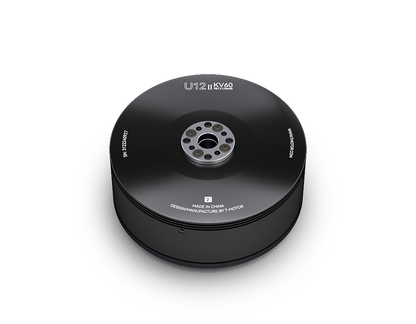

    Engine T-Engine U12II KV60

The T-MOTOR U12II KV60 is a high-performance AC motor designed for heavy multi-rotor drones. It provides a maximum pull of 20 kg, making it suitable for applications requiring significant load capacity. The motor has a new iron core design that increases its efficiency and durability. It works effectively in high temperature environments and includes a dust protection network to ensure reliable performance in a variety of conditions. With an estimated mean time between failures (MTBF) of approximately 1,000 hours, the U12II KV60 engine is designed for long life and industrial applications.

This engine is ideal for applications such as surveillance, security and reconnaissance where high payload and reliability are essential.

Specifications:

Item Tested: KV60
Weight (incl. cable): 803g

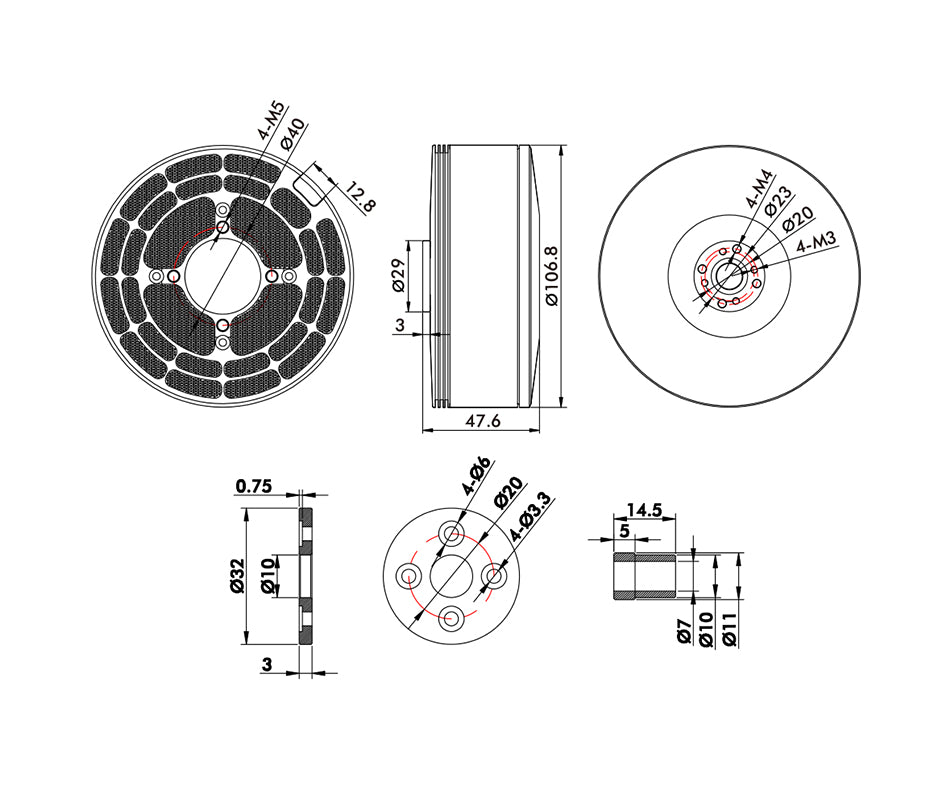

Motor dimensions: Φ106.8*47.6mm
Internal resistance: 75 mΩ
Power cable: Enameled wire 90 mm
Configuration: 36N42P
Shaft diameter: 15 mm
Rated voltage (Lipo): 22-25S
No load current (10V): 1.7A
Peak current (180s): 41A
Max. Power (180s): 4000W

The package contains:
1x motor T-Motor U12II KV60
1x hardware pack
