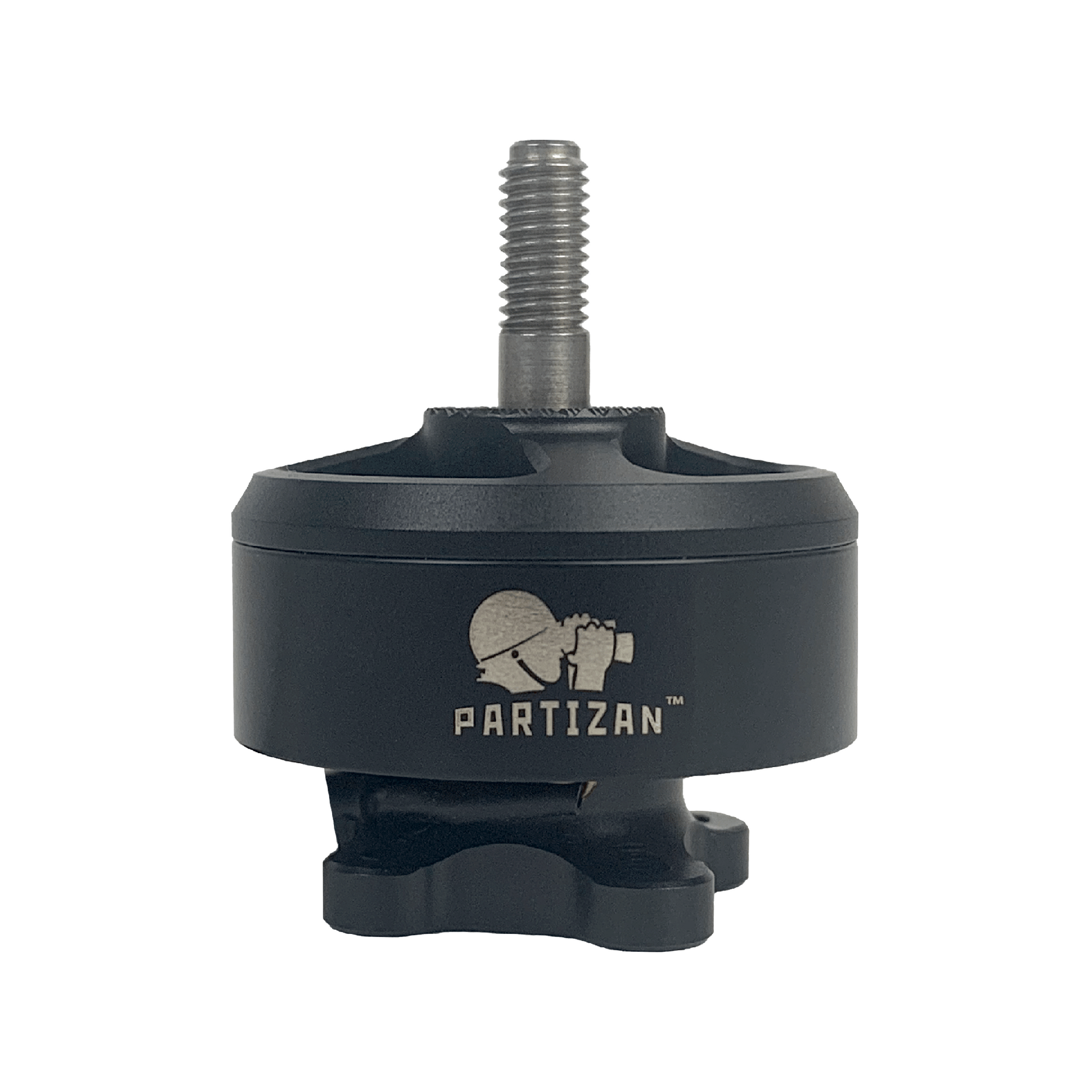

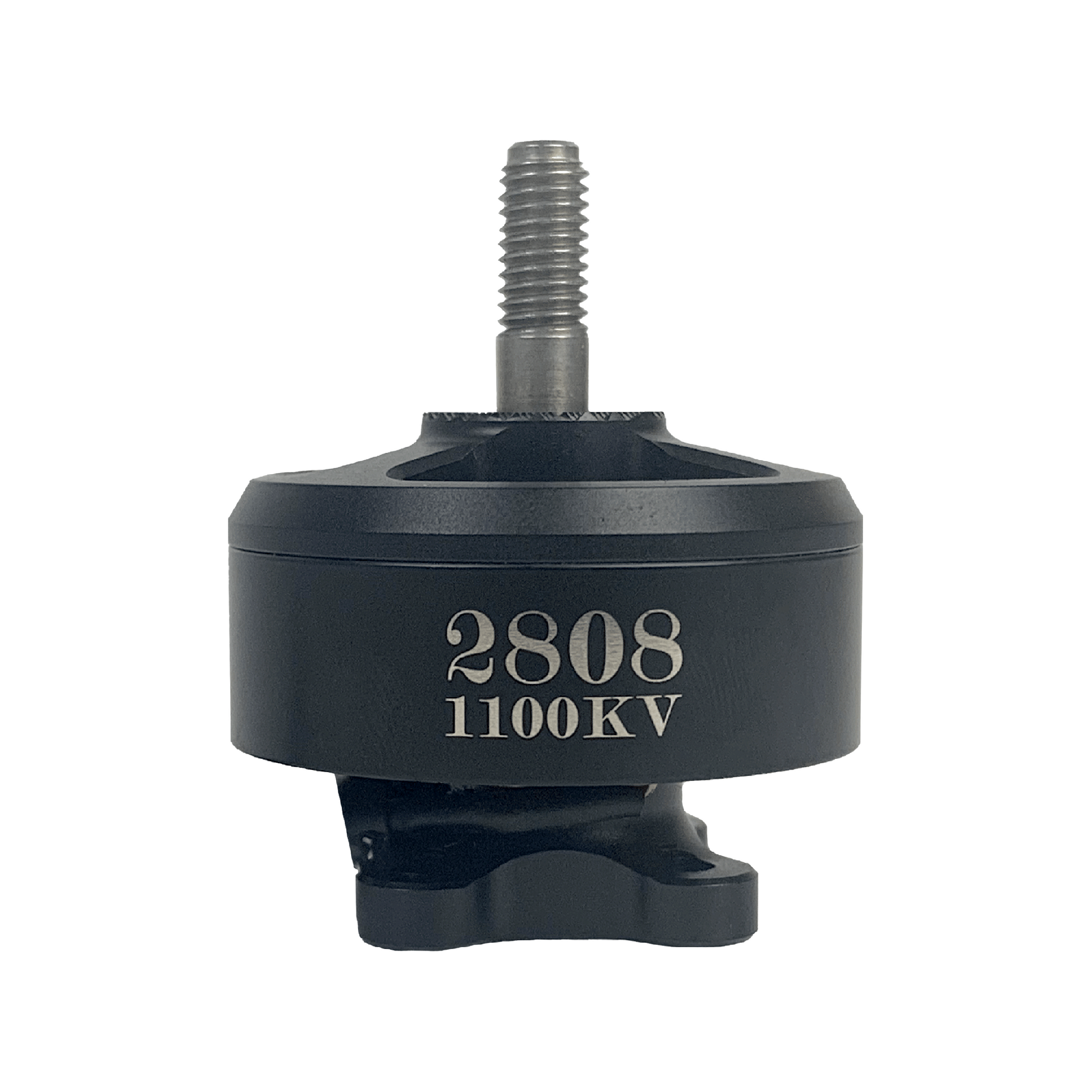

    Motor Partizan 2808, 1100kv

    Motor Partizan 2808, 1100kv

    Brand: Partizan

    €27,83
    €27,83 €27,83
    -0% View Product
    Out of stock
    We need to check the product availability with our supplier. Please contact us for details.

    sku: 3784
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    AC motor 2808, 1100kv

The 2808 1100 kv brushless motor is compact and powerful. Its high torque and efficiency ensure stable performance, making it reliable for various RC models.

Specifications:
KV: 1100KV
Magnets: N52SH arc
Configuration: 12S14P

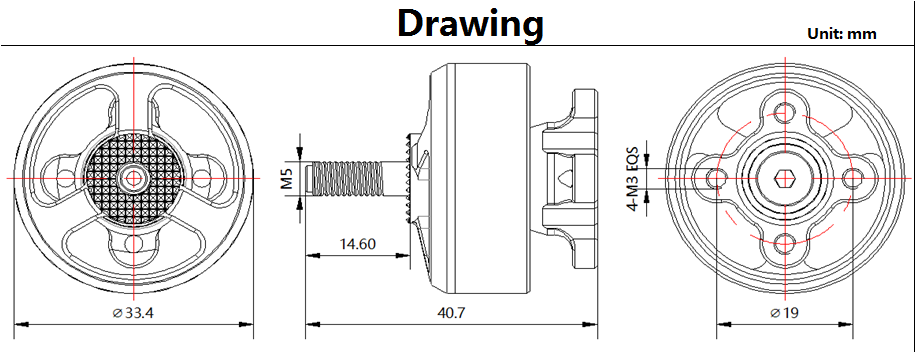

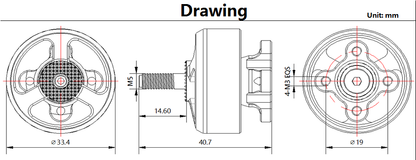

Stator size: Ø28*L8mm
Internal resistance: 66mΩ
Dimensions: Ø33.4*L40.7
Shaft length: 14.6 mm
Shaft diameter: M5
Rated voltage: 6S (24V)
Silicone wire: 18AWG 300mm

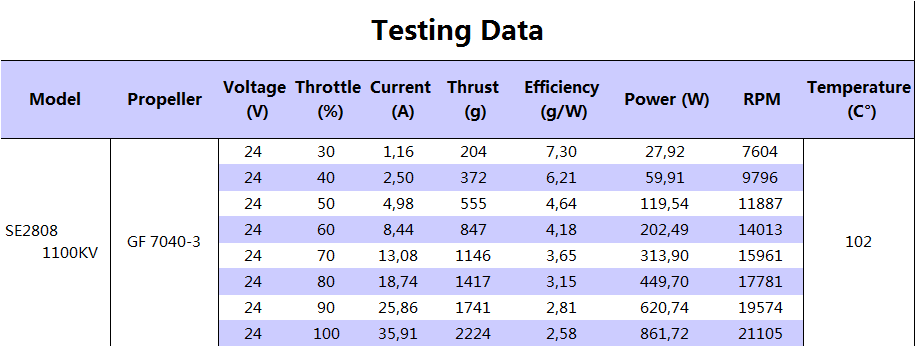

Peak current: 35.91A
Maximum instantaneous power: 861.72W
No load current (10V): 1.1A
Weight (including cable): 61g
