    Motor iFlight XING2 3106 Unibell 1200KV

    Motor iFlight XING2 3106 Unibell 1200KV

    Brand: iFlight

    €46,46
    €46,46 €46,46
    -0% View Product
    Out of stock
    We need to check the product availability with our supplier. Please contact us for details.

    sku: X009399
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    XING2 3106 FPV Motor Unibell 1200KV

Function:

- 5mm titanium alloy shaft, our strongest propeller shaft ever!
- Impact resistant 7075 aluminum bell
- NSK 11x5x5 smooth bearings with long service life
- N52H Curved Arc Magnets with Center Groove
- Bearing gap protection with XING O-ring
- Motor wire protector
- Dynamically balanced

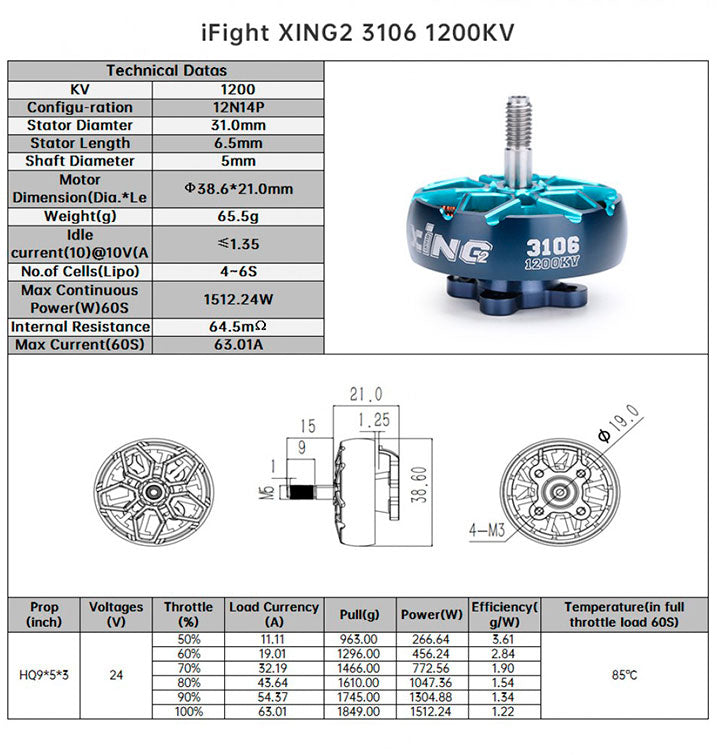

Specifications:

Model: XING2 3106 Engine
KV: 1200 KV
Weight (including wire): 58 g
Size: φ38.6*21mm
Interphase resistance: 64.5 mΩ
Input voltage: 24V
Peak current: 63.01A
Maximum power: 1512W
Mounting holes: 19*19 φ3mm
Rotor specifications: Unibell
Shaft diameter: 5 mm
Length of protruding shaft: 15 mm
Lead: 260mm/18AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing type: NSK
Bearing specifications: φ11*φ5*5
Winding: Single-core copper winding

The package includes:
1x XING2 3106 brushless motor
4x M3x8 screws
1x M5 flange nut
