    Motor iFlight XING2 2506 Unibell 1500KV

    Motor iFlight XING2 2506 Unibell 1500KV

    Brand: iFlight

    €28,68
    €28,68 €28,68
    -0% View Product
    In stock
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.

    sku: X012836
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    XING2 2506 FPV Motor Unibell 1500KV

Function:

- 5mm titanium alloy shaft, our strongest propeller shaft ever!
- NSK 10x4x4 smooth bearings with long service life
- N52H Curved Arc Magnets with Center Groove
- Bearing gap protection with XING O-ring
- Impact resistant 7075 aluminum bell
- Motor wire protector
- Dynamically balanced

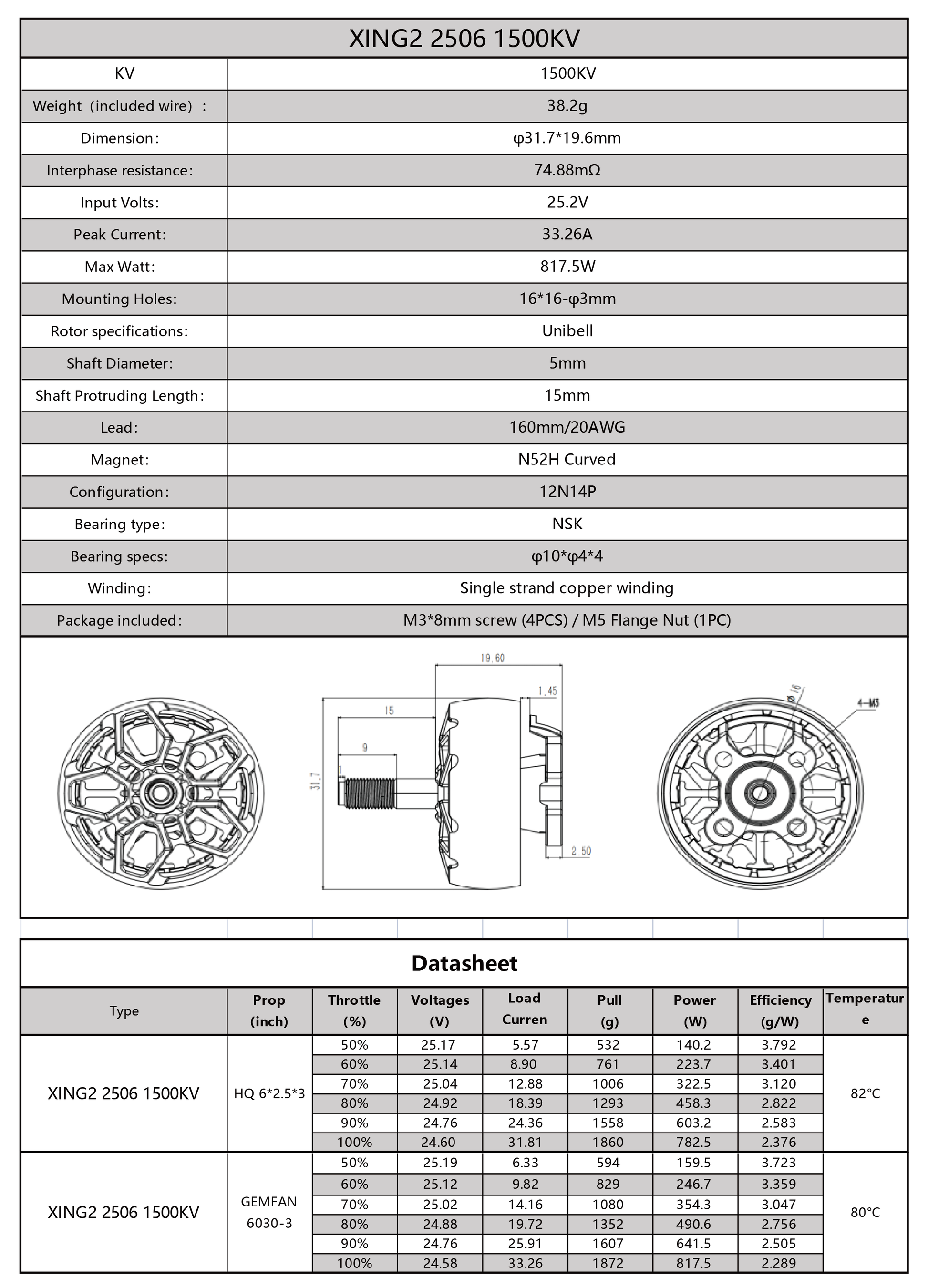

Specifications:

Model: XING2 2506 Black Motor
KV: 1500 KV
Weight (including wire): 38.2g
Size: φ31.7*19.6mm
Interphase resistance: 74.88 mΩ
Input voltage: 25.2V
Peak current: 33.26A
Maximum wattage: 817.5W
Mounting holes: 16*16 φ3mm
Rotor specifications: Unibell
Shaft diameter: 5 mm
Length of protruding shaft: 15 mm
Lead: 160mm-20AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing type: NSK
Bearing specifications: φ10*φ4*4
Winding: Single-core copper winding

The package includes:
1 x M5 flanged nylon lock nut
1 x XING2 2506 motor black
4x M3*8mm screws
