    Motor iFlight XING2 1806 Unibell 2500KV

    Motor iFlight XING2 1806 Unibell 2500KV

    Brand: iFlight

    €20,75
    €20,69 €20,75
    -0% View Product

    sku: X009354

    Out of stock
    We need to check the product availability with our supplier. Please contact us for details.
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

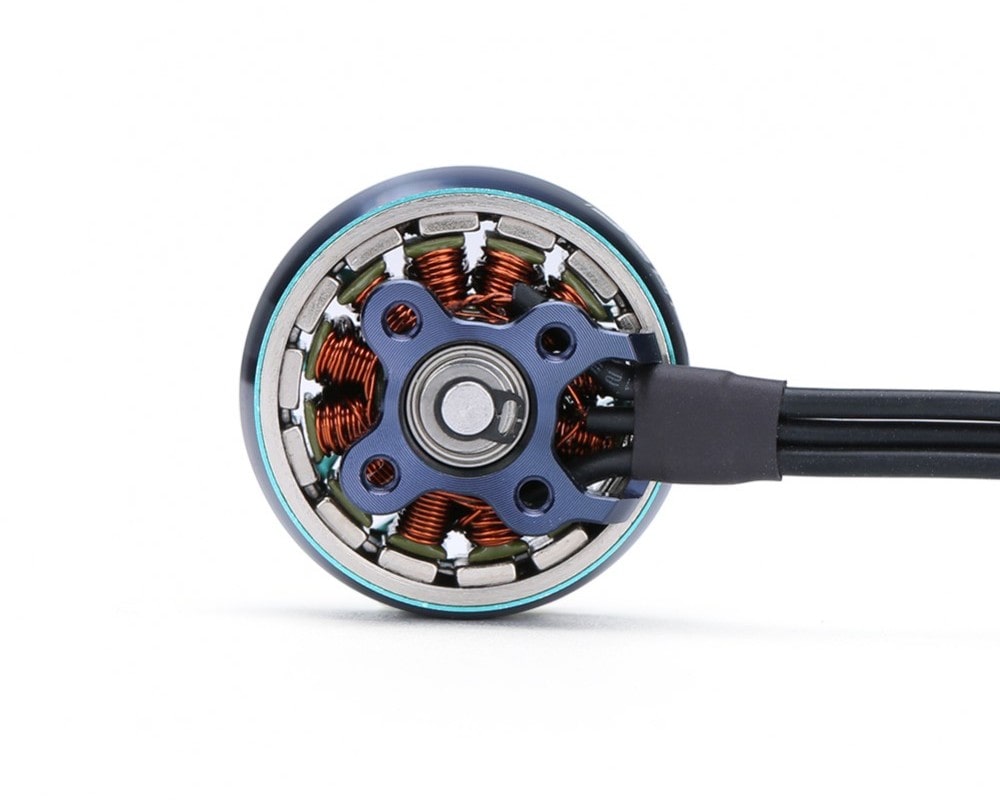

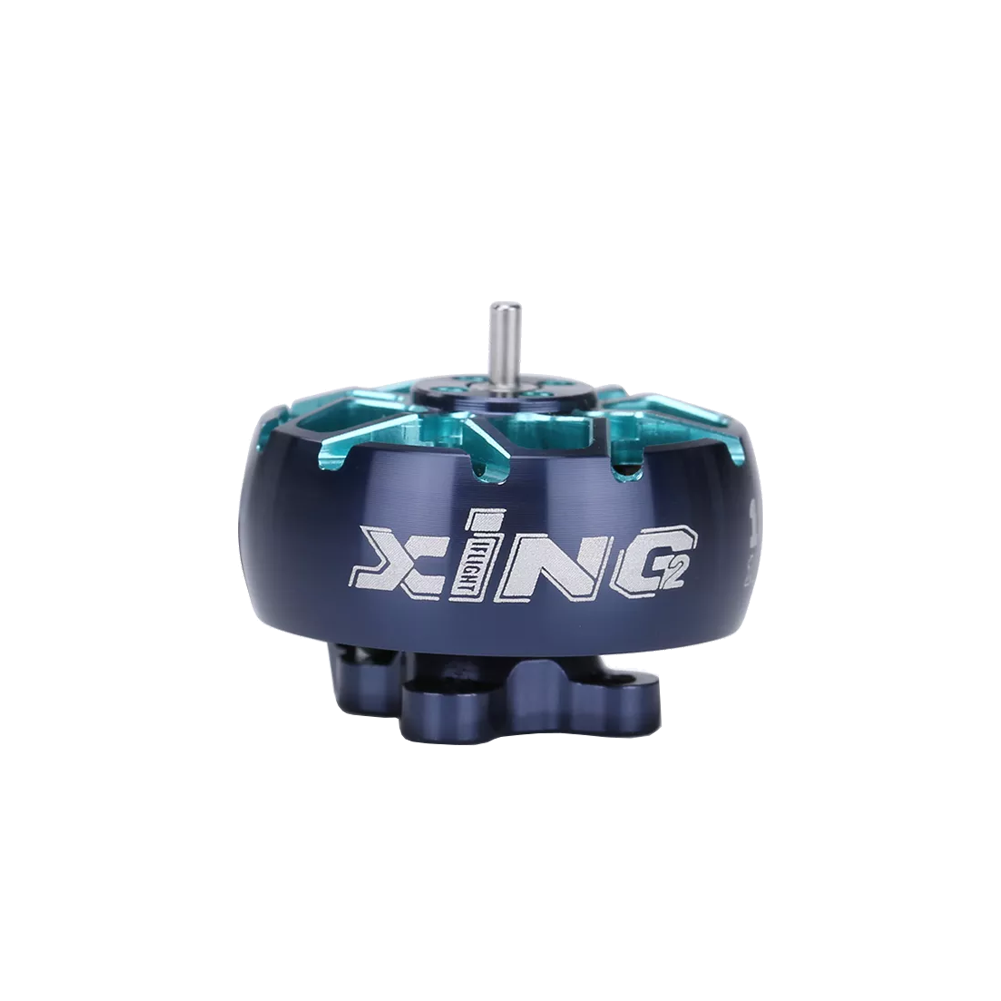

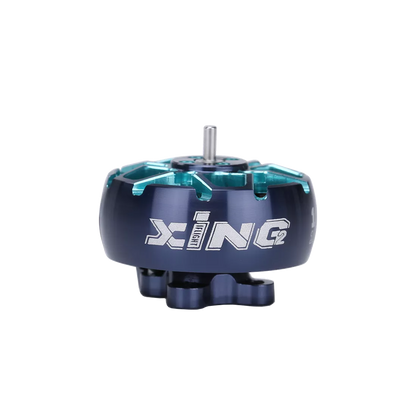

    XING2 1806 FPV Motor Unibell 2500KV

    Function:

    - 1.5mm titanium alloy outer shaft - Japanese NSK bearings ?9*?4*4mm - N52H curved magnets - Protected motor leads - Dynamically balanced

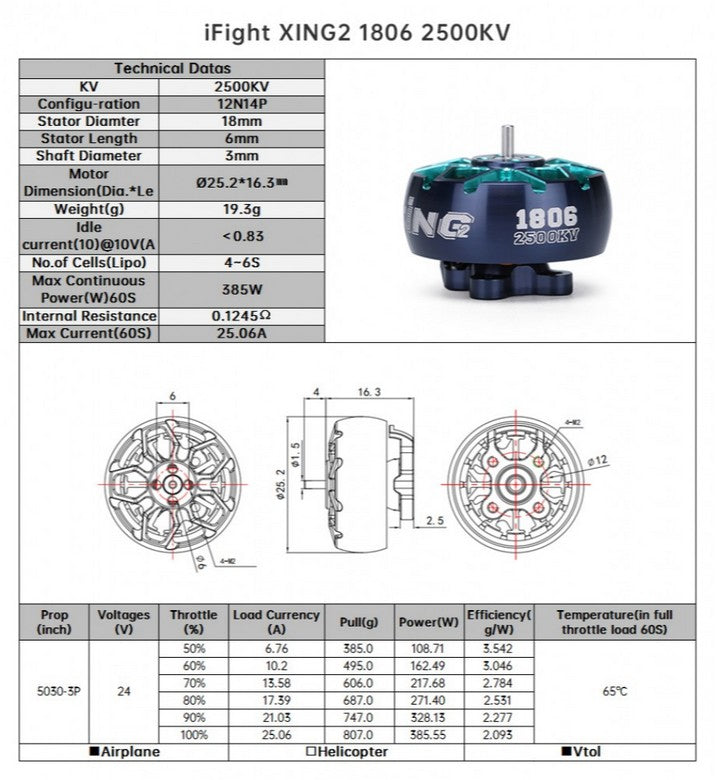

    Specifications:

    Model: XING2 1806 Engine KV: 2500 KV Weight (including wire): 20.2g Size: ?25.2*16.3mm Phase-to-phase resistance: 0.1245? Input voltage: 24V Peak current: 25.06A Maximum wattage: 601W Mounting holes: 12*12 ?2mm Rotor specifications: Unibell Shaft diameter: 1.5 mm Length of protruding shaft: 4 mm Lead: 160mm/22AWG Magnet: N52H Curved Configuration: 12N14P Bearing type: NSK Bearing specifications: ?8*?3*4 Winding: Single-core copper winding

    The package includes: 1 x brushless motor XING2 1806 1.5 mm shaft 6x M2*8mm screws
