    Motor iFlight XING2 1806 Unibell 1600KV

    Motor iFlight XING2 1806 Unibell 1600KV

    Brand: iFlight

    €20,75
    €20,69 €20,75
    -0% View Product

    sku: X009353

    Out of stock
    We need to check the product availability with our supplier. Please contact us for details.
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

    XING2 1806 FPV Motor Unibell 1600KV

    Function:

    - 1.5mm titanium alloy outer shaft - Japanese NSK bearings ?9*?4*4mm - N52H curved magnets - Protected motor leads - Dynamically balanced

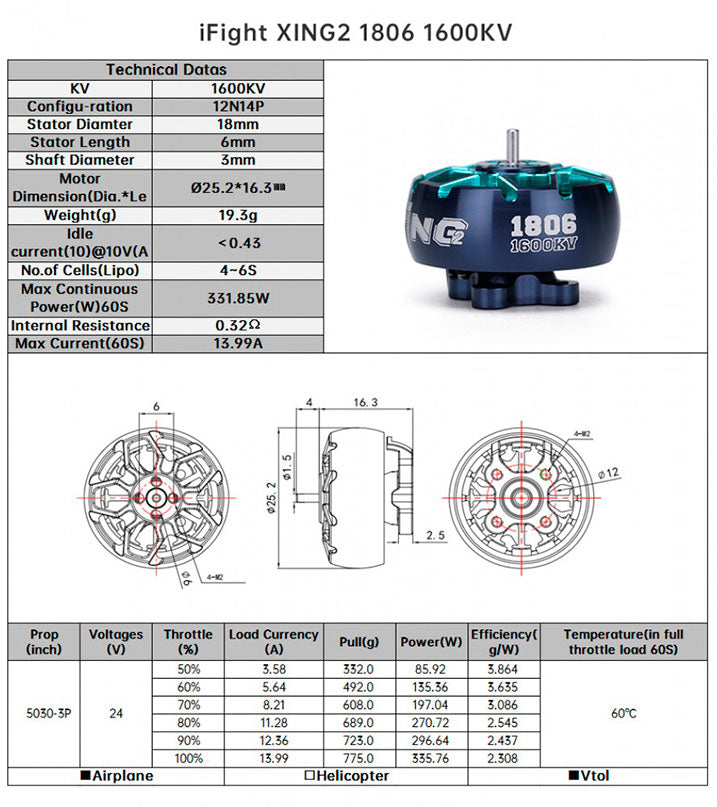

    Specifications:

    Model: XING2 1806 Engine KV: 1600 KV Weight (including wire): 20.2g Size: ?25.2*16.3mm Interphase resistance: 0.32? Input voltage: 24V Peak current: 13.99A Maximum wattage: 336W Mounting holes: 12*12 ?2mm Rotor specifications: Unibell Shaft diameter: 1.5 mm Length of protruding shaft: 4 mm Lead: 160mm/22AWG Magnet: N52H Curved Configuration: 12N14P Bearing type: NSK Bearing specifications: ?8*?3*4 Winding: Single-core copper winding

    The package includes: 1 x brushless motor XING2 1806 1.5 mm shaft 6x M2*8mm screws
