    Motor iFlight XING 2205 (Φ12/M2) 2300KV

    Motor iFlight XING 2205 (Φ12/M2) 2300KV

    Brand: iFlight

    €20,81
    €20,69 €20,81
    --1% View Product
    In stock
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.

    sku: X009576
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

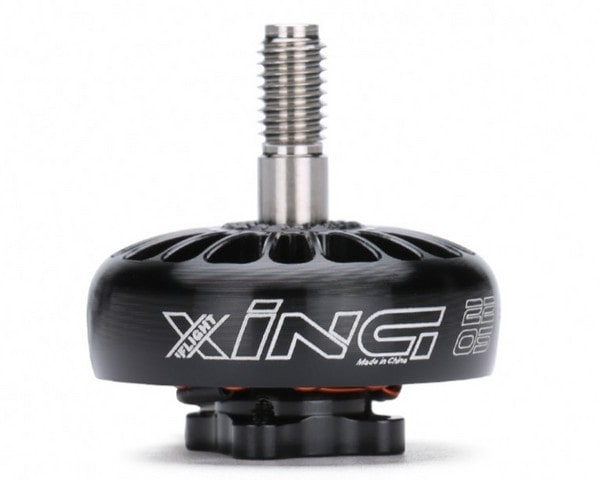

    XING 2205 FPV motor (Φ12/M2) 2300KV

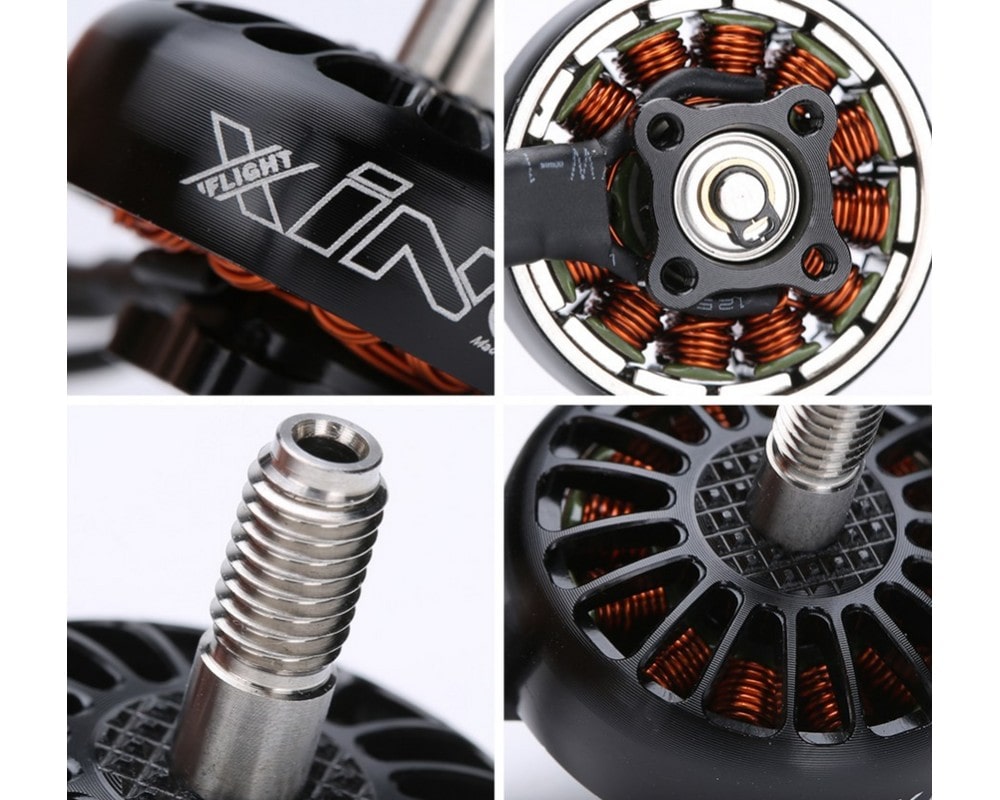

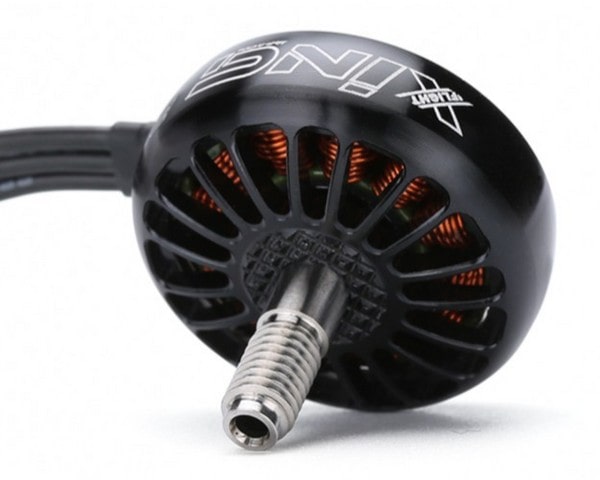

iFlight XING 2205 is a black brushless motor designed for FPV drones.

Function:

- High strength 5mm steel shaft
- Japanese NSK bearings φ8*φ3*4
- N52H curved magnets
- Motor leads are protected
- Dynamically balanced

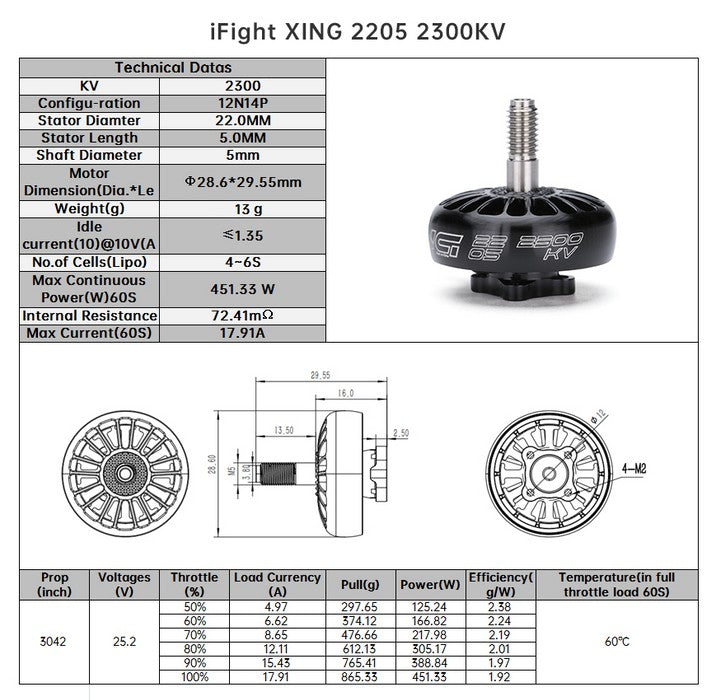

Specifications:

KV: 2300 KV
Input voltage: 4-6S LiPo
Configuration: 12N14P
Stator diameter: 22mm
Stator length: 5 mm
Shaft diameter: 5mm
Weight: 13 g (with short wires)
Mounting pattern: 12*12mm/M2

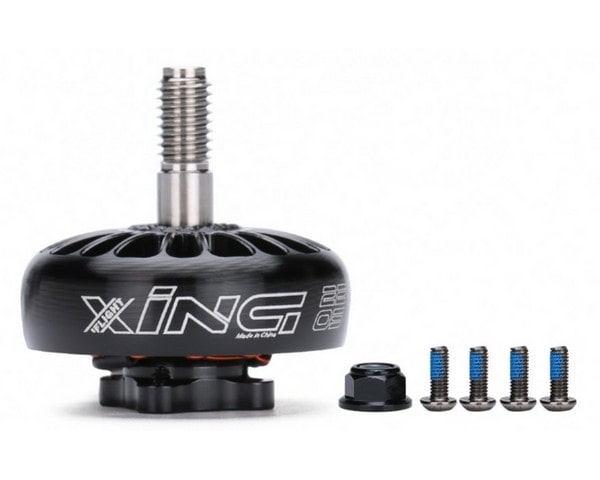

The package includes:
1x XING 2205 2300KV motor
4x M2*6mm screws

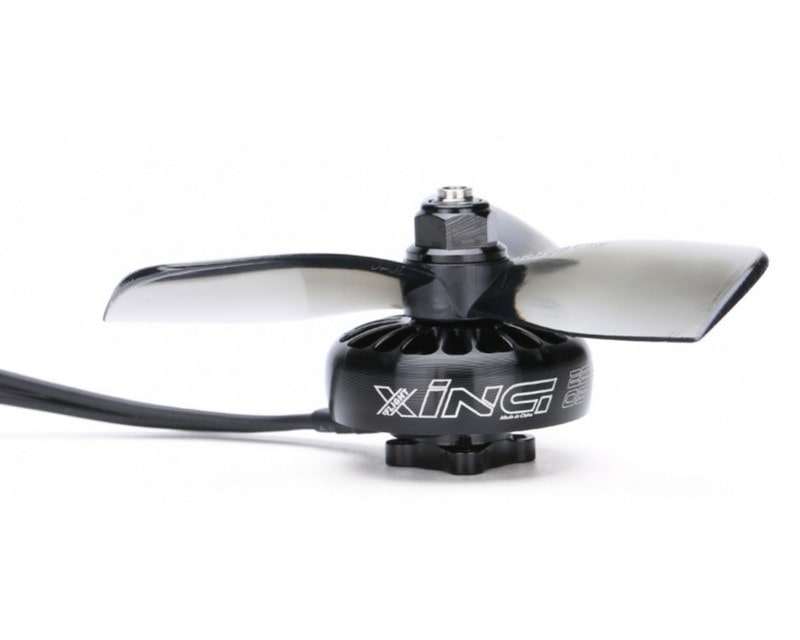

Note: The propeller is not included.
