Motor GEPRC GEP-GR1106 (6000KV)
Motor GEPRC GEP-GR1106 (6000KV)
Brand: GEPRC
sku: SKU:GP101097
Out of stockCouldn't load pickup availability
- Description

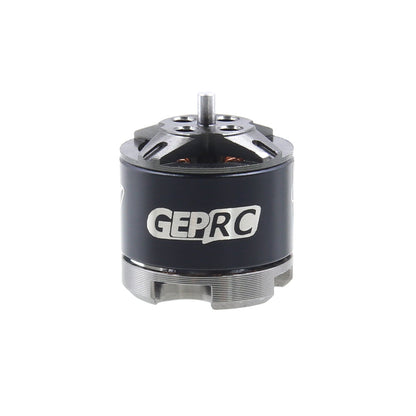

GEP-GR1106 (6000 KV)

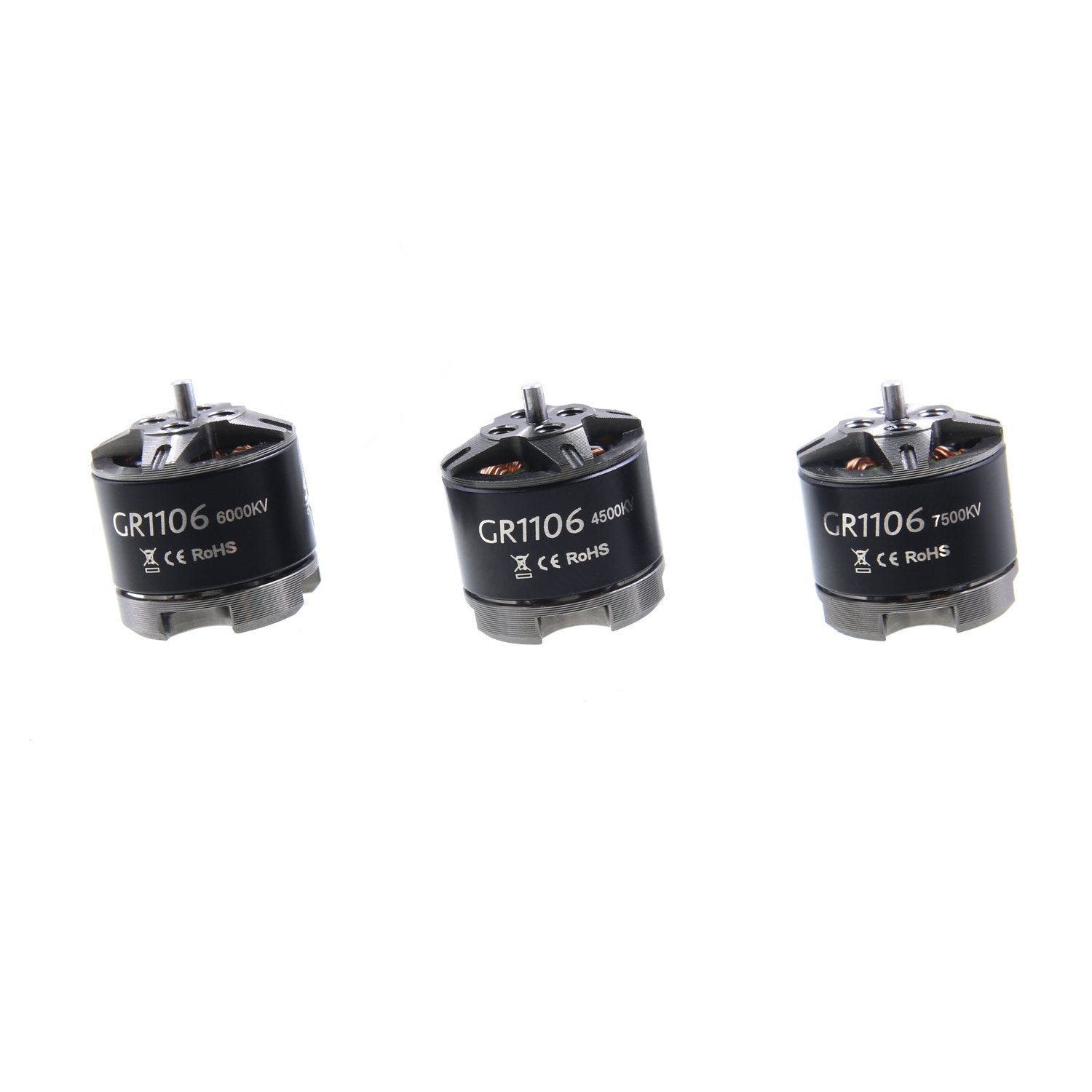

The GEP-GR1106 motor is a compact and versatile variant with different KV ratings, making it suitable for a range of applications, including indoor use: 4500KV, 6000KV and 7500KV, each tailored for specific purposes: - 4500KV is recommended for 2-3 inch propellers and 3-4S batteries. - 6000KV is suitable for 2-2.5 inch propellers and 2-3S batteries. - 7500KV is for 1.9-2.5 inch propellers and 2S batteries.
High-precision CNC machining ensures the accuracy and strength of the motor. The use of N50SH magnetic material ensures torque and resistance to high temperatures. The motor can develop a maximum pulling force of over 340g+. Japanese NSK bearings guarantee smooth engine operation.
Specifications:
KV options: 6000KV Configuration: 9N12P Stator diameter: 11mm Stator length: 6 mm Shaft diameter: 1.5 mm Motor dimensions (diameter x length): 14.2 mm x 14 mm No load current (A): ?1.4A@6.4V Number of cells (LiPo): 2-3S Maximum continuous power: 183W Internal resistance: 170m? Maximum current (180S): 15.27A Maximum effective current: 3.57 Rotor: Arc magnets N50SH Bearings: NSK Base case: Al6061 Wire AWG: 28AWG Weight: 7.1g
