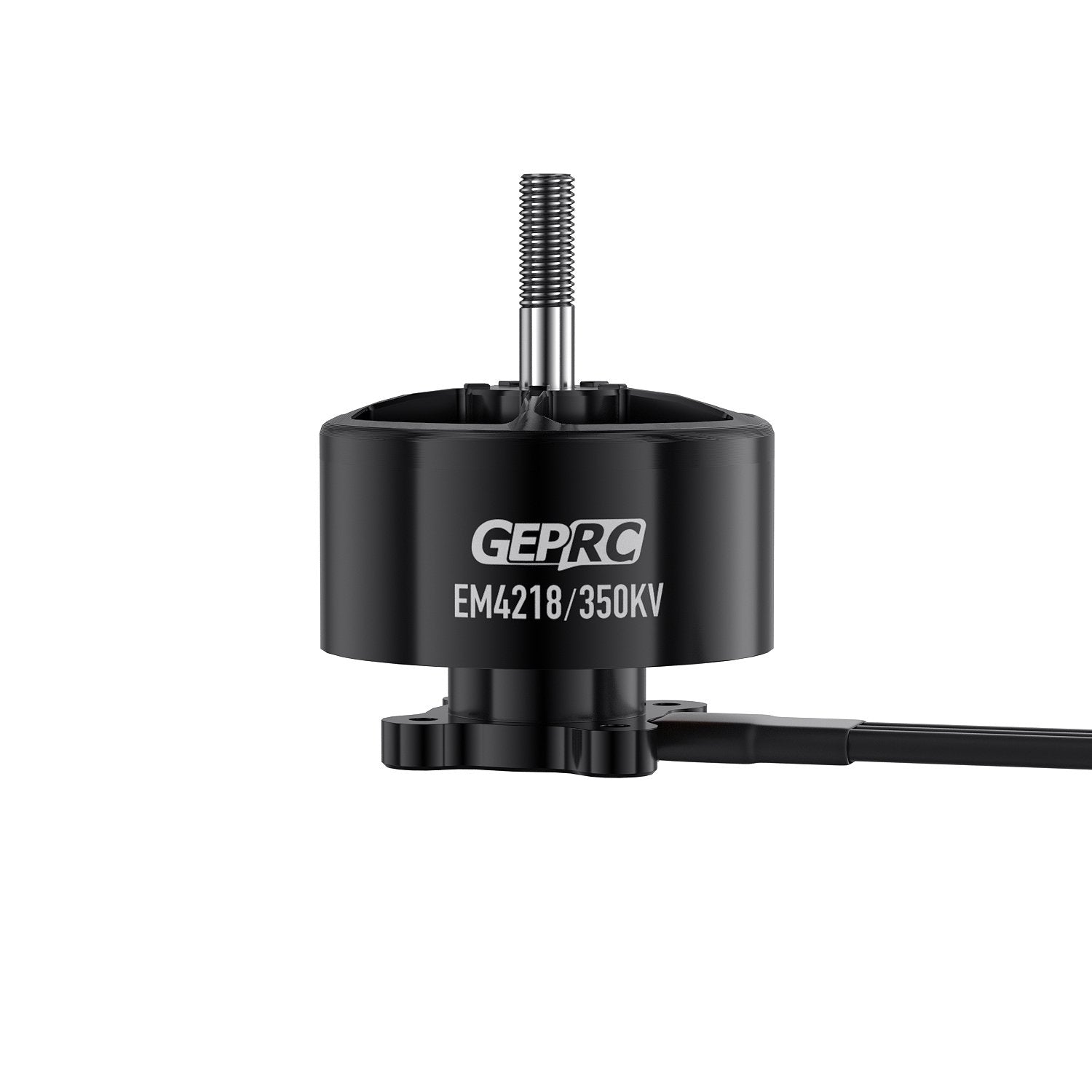

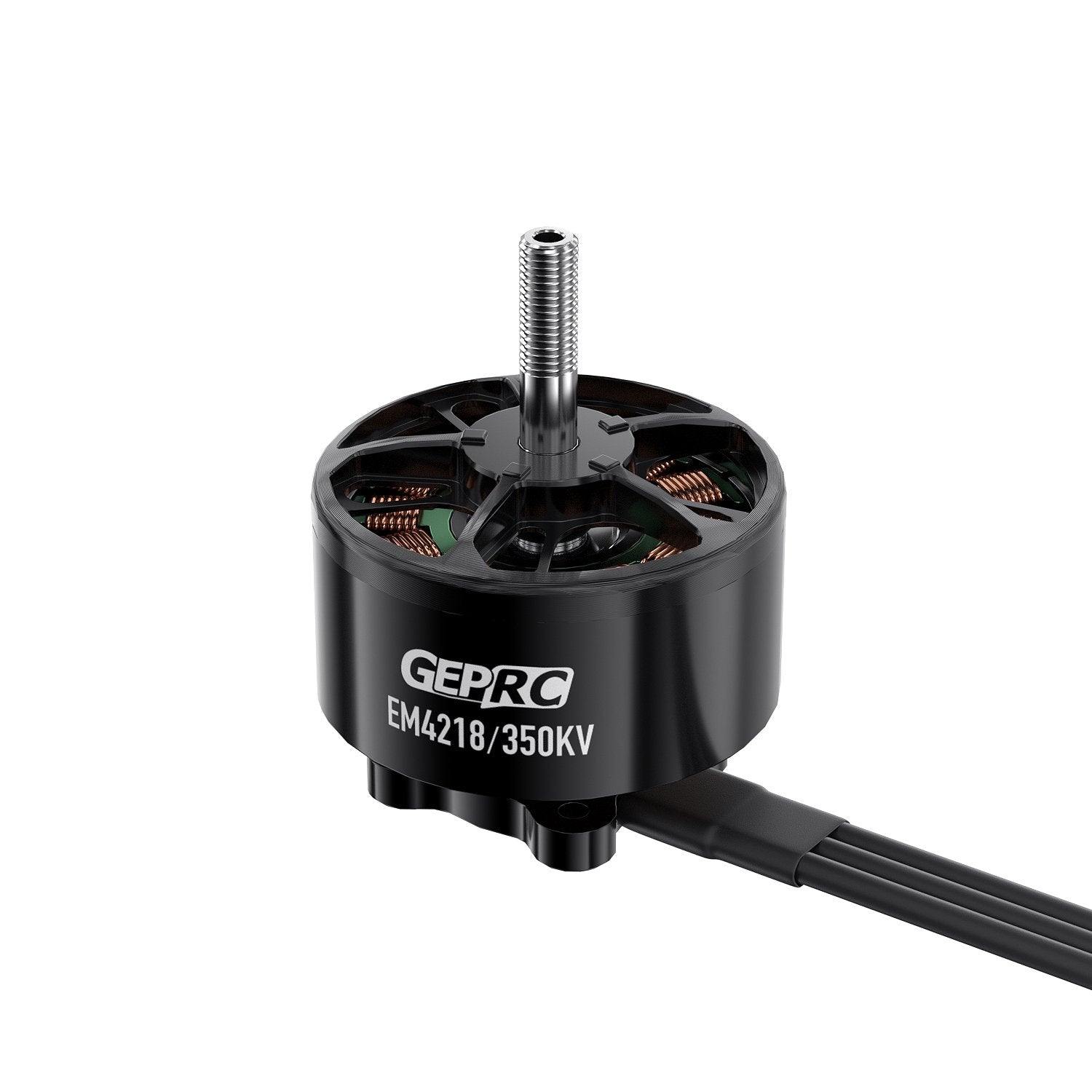

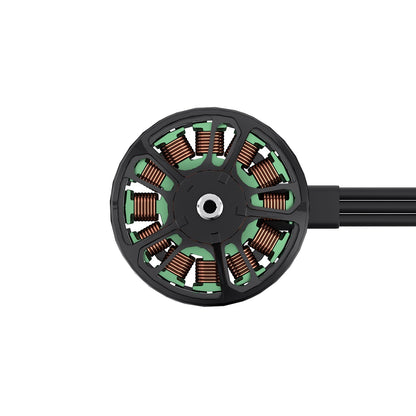

Motor GEPRC EM4218 350KV
Motor GEPRC EM4218 350KV
Brand: GEPRC
Regular price
€56,74
Regular price
€56,74
Sale price
€56,74
Unit price
/
per
In stock (18)
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
sku: SKU:GP107274
Couldn't load pickup availability
Payment methods
- Description
The EM4218 350KV motor is designed for long range FPV applications, providing high torque and efficiency for larger drones using 13-15 inch diameter propellers. It features a robust M6 steel shaft and a strong magnetic circuit, making it suitable for demanding conditions and long-distance flights.
Key features:
- Designed for long range FPV: Ideal for drones with large propellers (13-15 inches), perfect for long flights.
- M6 high strength steel shaft: Durable construction for reliability in demanding conditions.
- High torque magnetic circuit: Ensures efficient and stable performance.
Specifications:
- Model: EM4218 350KV Motor
- KV: 350KV
- Maximum power: 1800W
- Maximum current: 60A
- Limited resistance between phases: 50mΩ
- Propeller: 13-15 inches
- Magnets: N52H
- Bearing type: NMB
- Configuration: 12N14P
- Dimensions: φ49mm x 40.1mm
- Shaft diameter: φ6mm
- Length of protruding shaft: 22.9mm
- Mounting holes: 30mm x 30mm
- Wires: 800mm/14AWG
- Compatible ESC: 60A-80A
- Supply voltage: 33.6V (8S LiPo)
- Winding: Multifilament copper winding
- Including screws: M4*10 (4 pcs), M6 flange nut (1 pc)
- Weight: 289g (including cables)
- Compatible models: Drones with 13-15 inch propellers
Package contents:
1 x EM4218 Motor
4 x M4*10 Round Head Screws
1 x M6 Anti-slip Nut
