    Motor Emax ECO II 2306 1700KV

    Motor Emax ECO II 2306 1700KV

    Brand: Emax

    €15,72
    €19,35 €15,72
    -19% View Product

    sku: 0101096018

    Out of stock
    We need to check the product availability with our supplier. Please contact us for details.
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

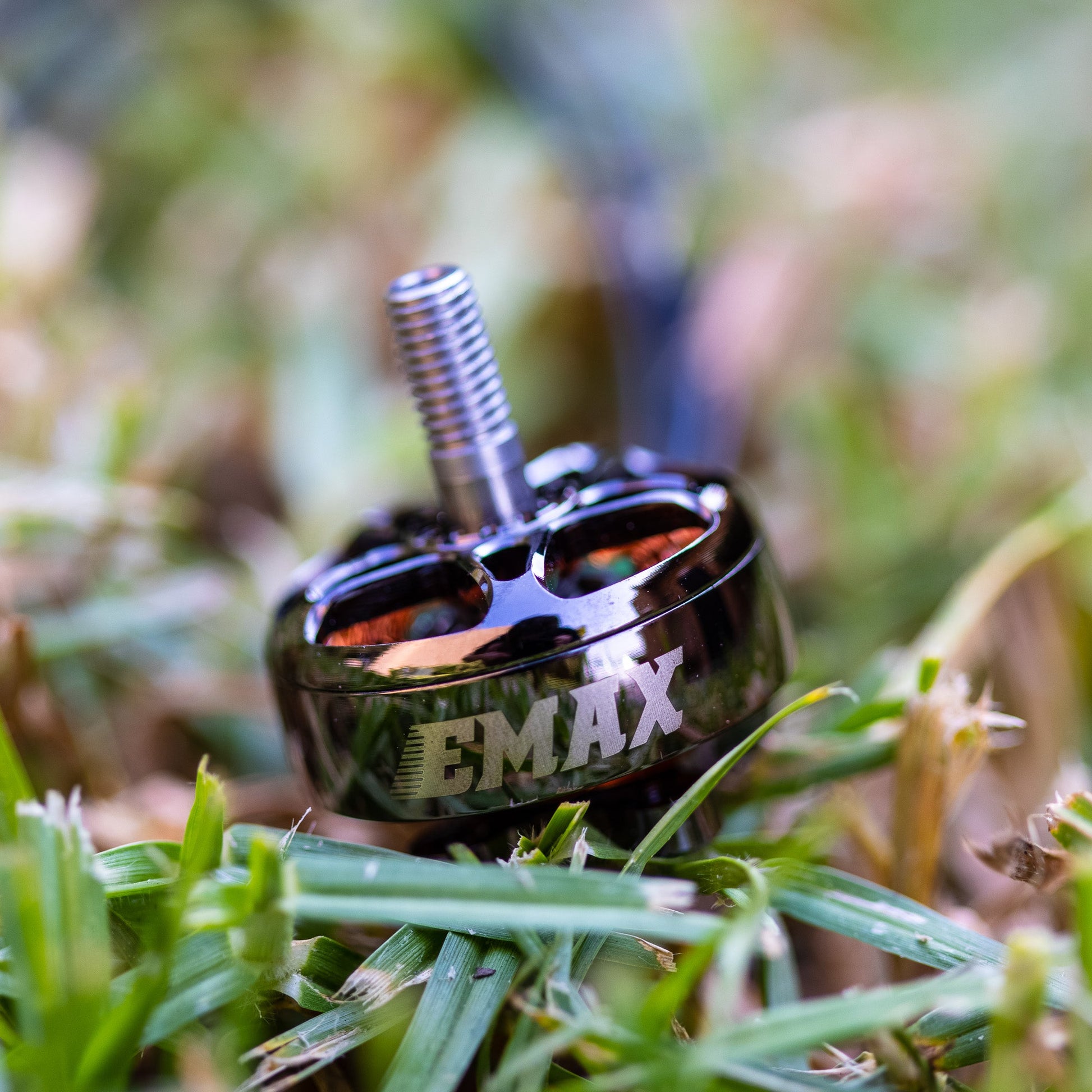

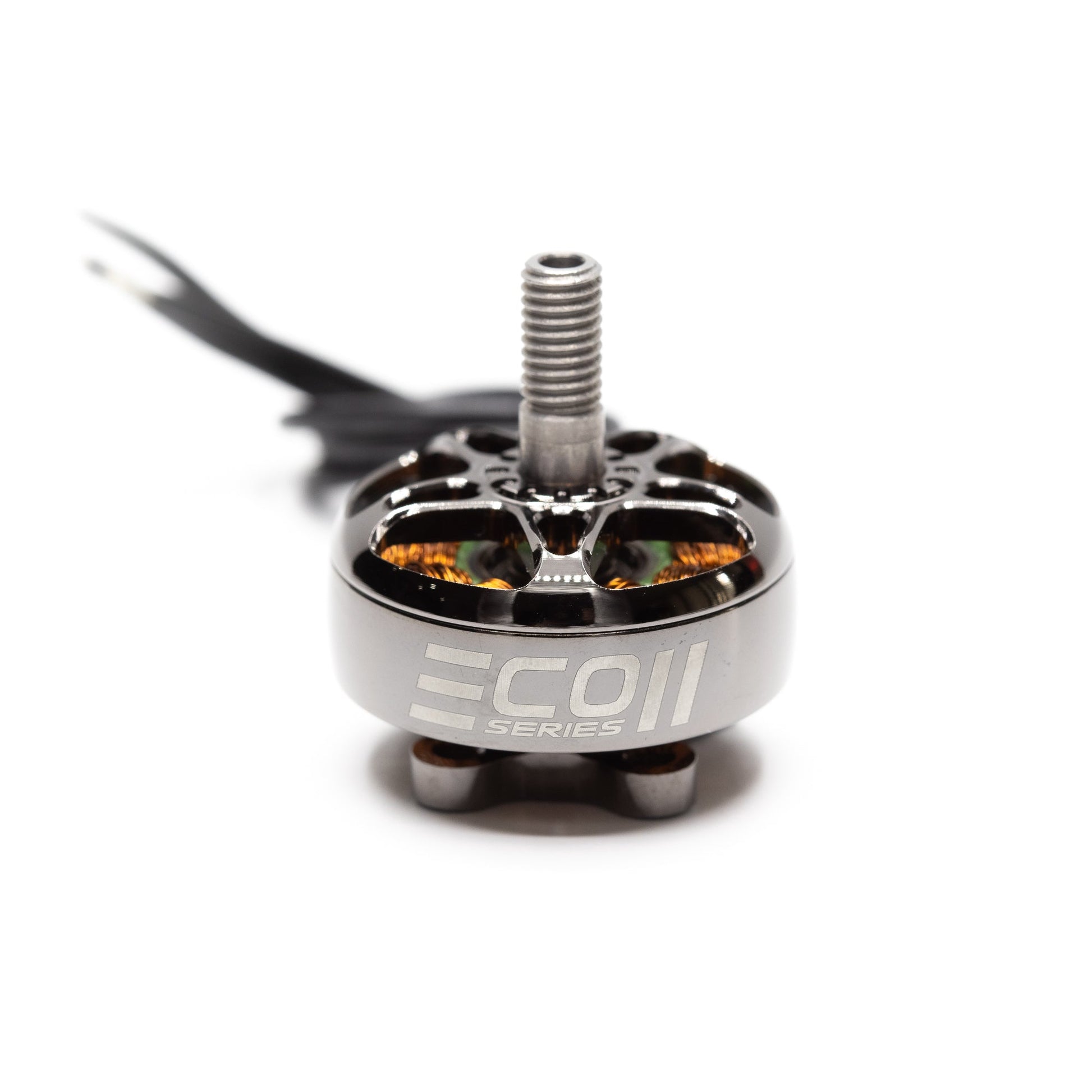

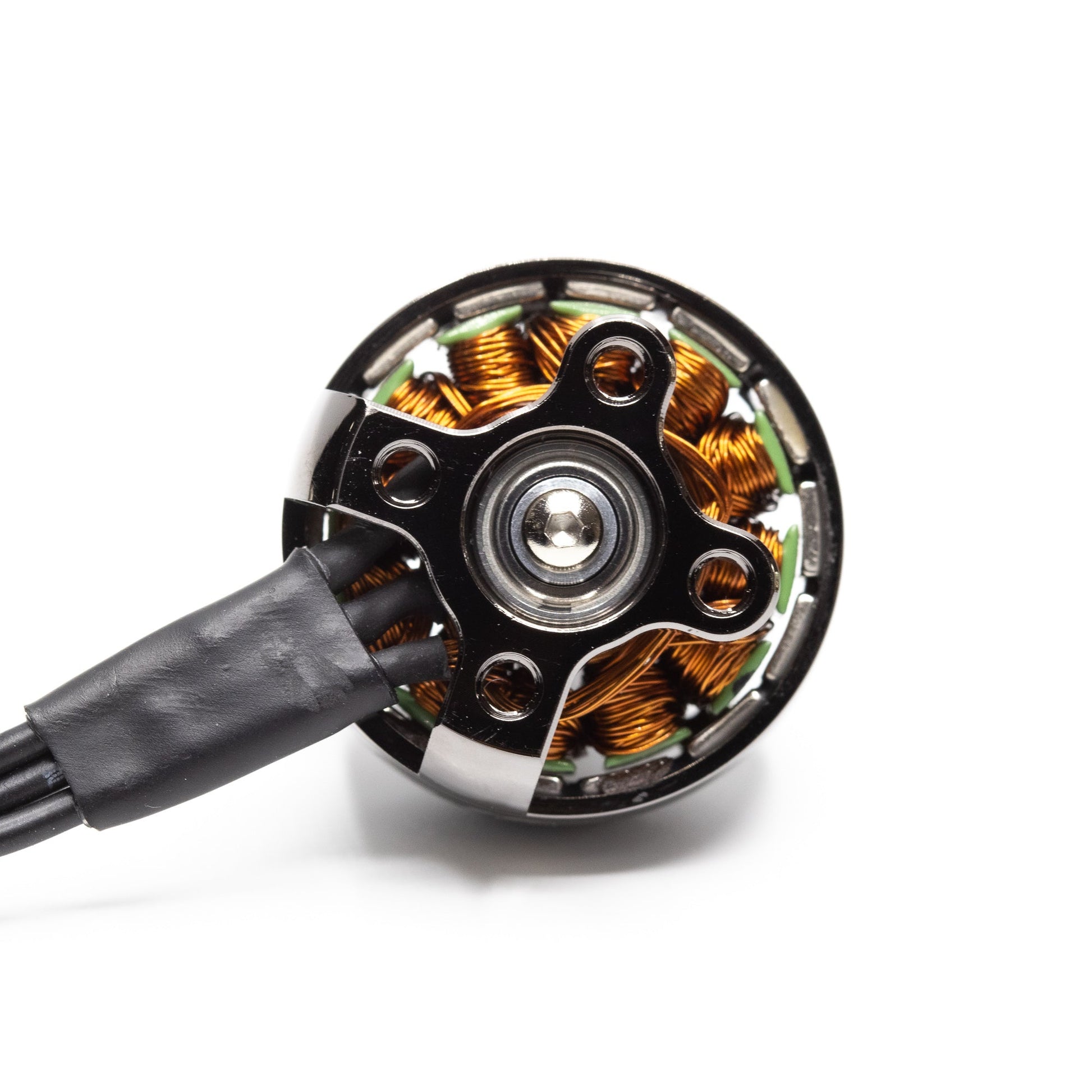

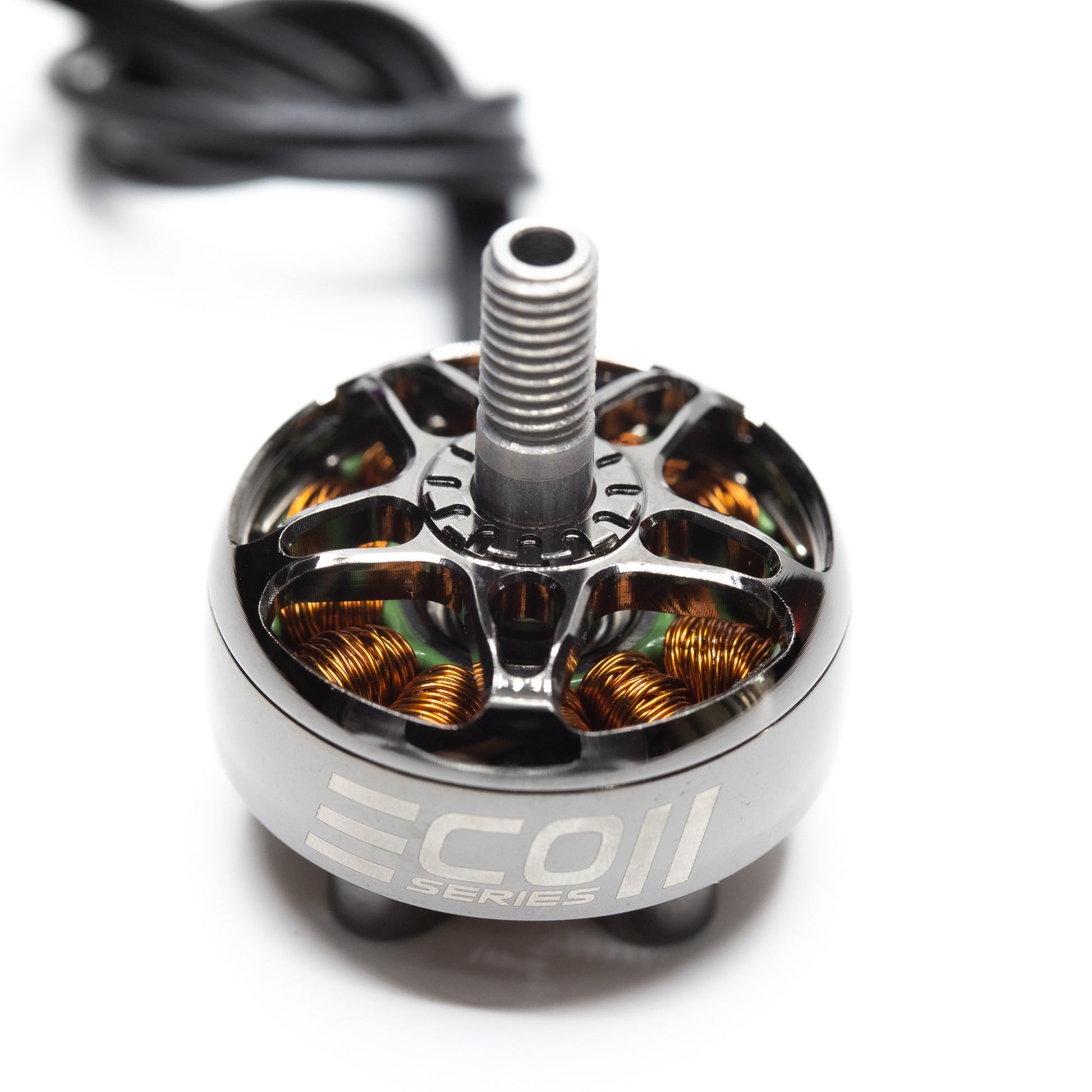

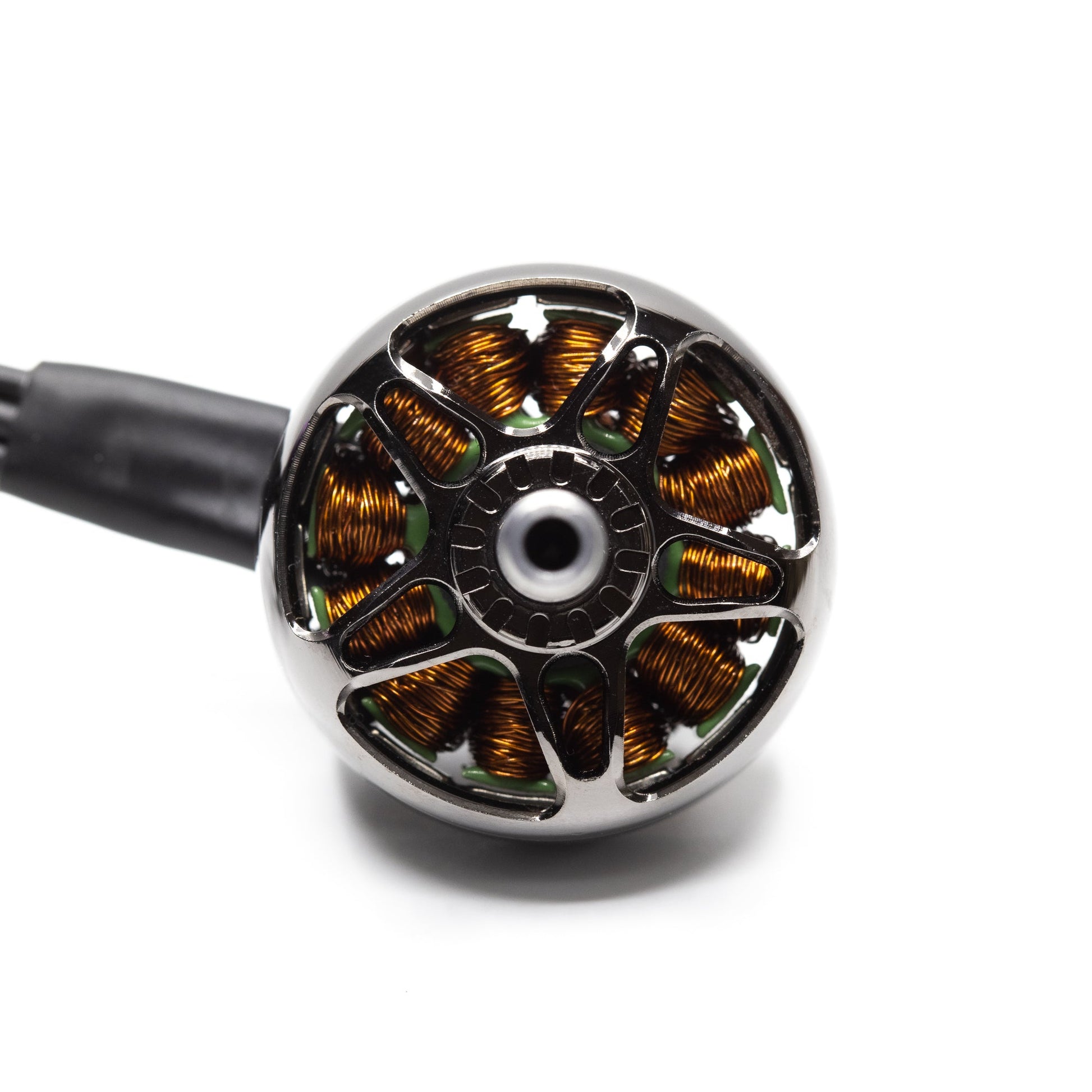

    ECO II 2306 1700KV

    Emax ECO II Series 2306 brushless motors with improved performance and durability are compatible with 5-6 inch propellers. They are perfect for freestyle racing and film drones with HD cameras. Emax ECO II offers three variants: 1700KV, 1900KV, 2400KV.

    Function: - All new design with rounded bell and stronger attachment points for increased durability. - Improved N52SH curved arc magnets for tighter air gap and better performance. - EZO 9mm bearing for smooth operation. - Motor mounting 16x16mm

    Specifications: Motor KV: 1700KV Length: 31.6 mm Diameter: 28mm Frame: 12N14P Propeller Adapter Shaft Diameter: M5 Terminal: 20#AWG 120mm Weight: 30.4g No load current (10V): 1.1A Internal resistance: 74m? Number of articles: 3-6S Propeller: 5-5.5 inches Peak current (6S): 36A Maximum power (6S): 910W Mounting holes: 16x16mm

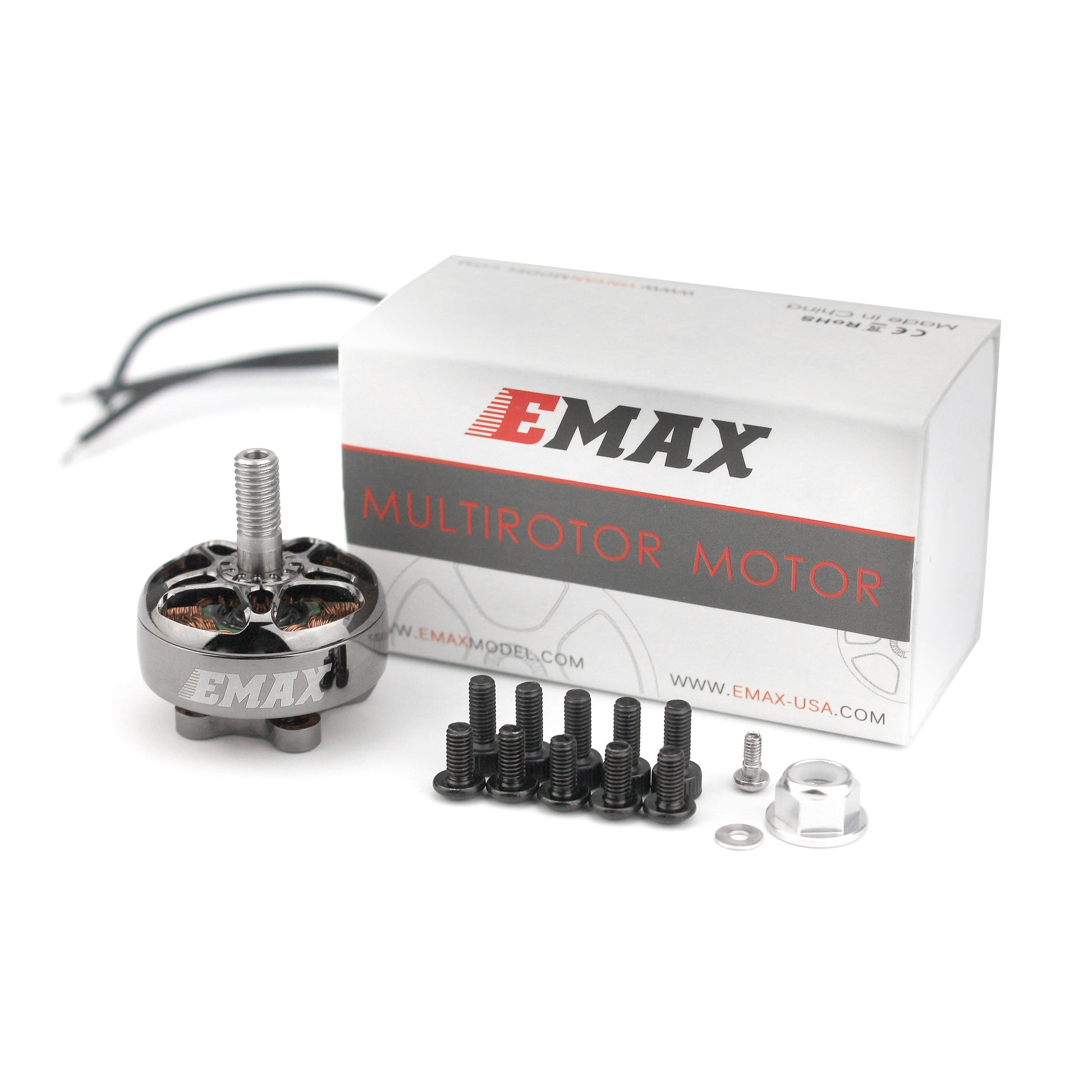

    The package includes: 1x 2306 motor 1700KV 5x ??*8 ??r?w 5x M3*7 screw 5x ??*6 ??r?w 1x M5 aluminum nut 1x washer and screw for the shaft
