    ECO II 2207 1700KV

Emax ECO II 2207 is compatible with 5" propellers for racing and freestyle drones and offers three variants: 1700KV, 1900KV, 2400KV.

Function:
- All new design with rounded bell and stronger attachment points for increased durability.
- Improved N52SH curved arc magnets for tighter air gap and better performance.
- EZO 9mm bearing for smooth operation.
- Motor mounting 16x16mm

Specifications:
Motor KV: 1700KV
Length: 33.2 mm
Diameter: 27.5mm
Frame: 12N14P
Propeller Adapter Shaft Diameter: M5
Terminal: 20#AWG 120mm
Weight: 33.4g (W/O silicone wire
No load current (10V): 1.2A
Internal resistance: 72mΩ
Number of articles: 3-6S
Propeller: 5-5.5 inches
Peak current (6S): 38A
Maximum power (6S): 960W
Mounting holes: 16x16mm

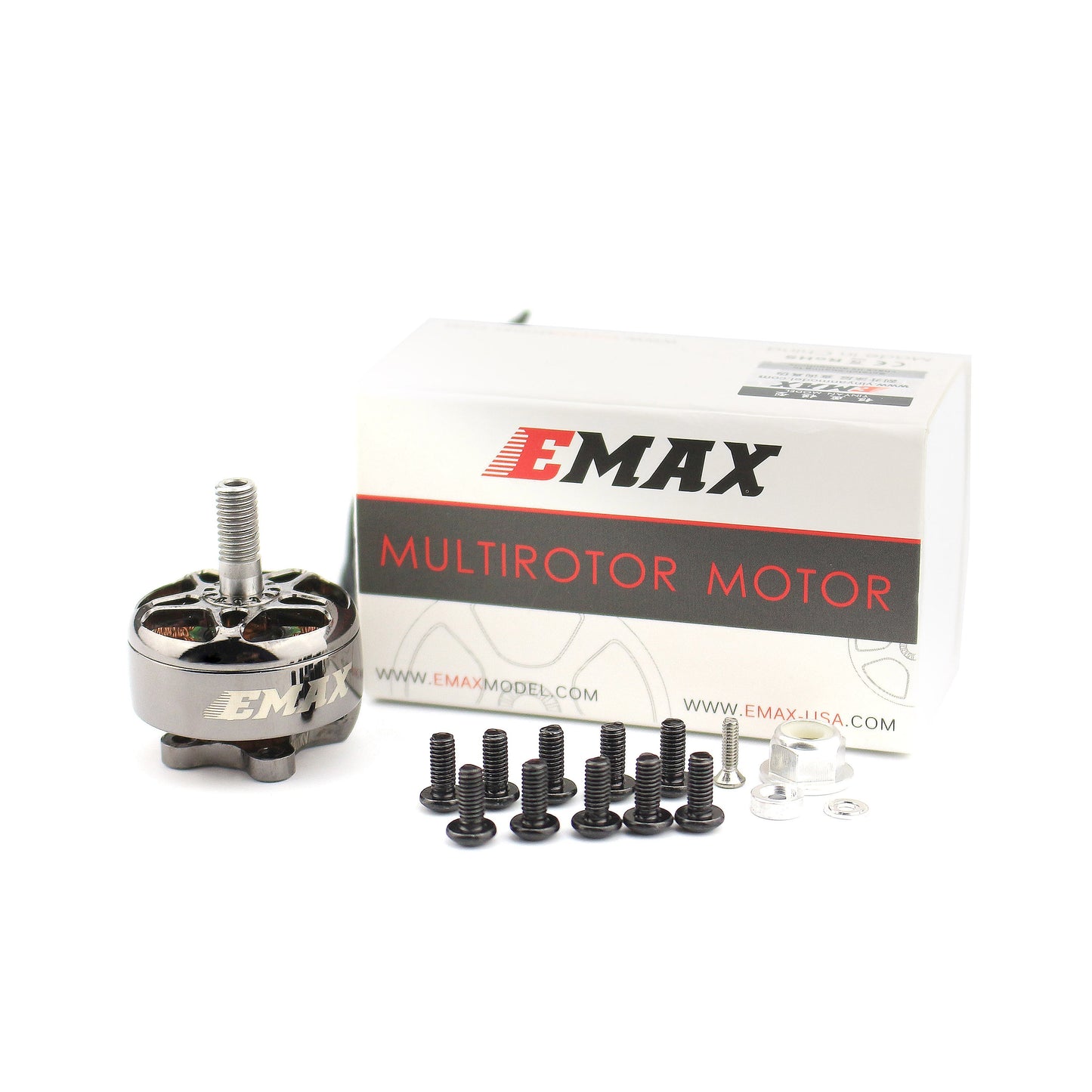

The package includes:
1x 2207 1700KV motor
5x МЗ*8 Ѕсrеw
5x M3*7 screw
5x МЗ*6 Ѕсrеw
1x M5 aluminum nut
1x washer and screw for the shaft
