iFlight Pigeon 5.8GHz Directional Antenna RHCP – 9dBi Gain
iFlight Pigeon 5.8GHz Directional Antenna RHCP – 9dBi Gain
Brand: iFlight
Regular price
€25,65
Regular price
€25,65
Sale price
€25,65
Unit price
per
sku: SKU:V011600
In stock (7) We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
- Description

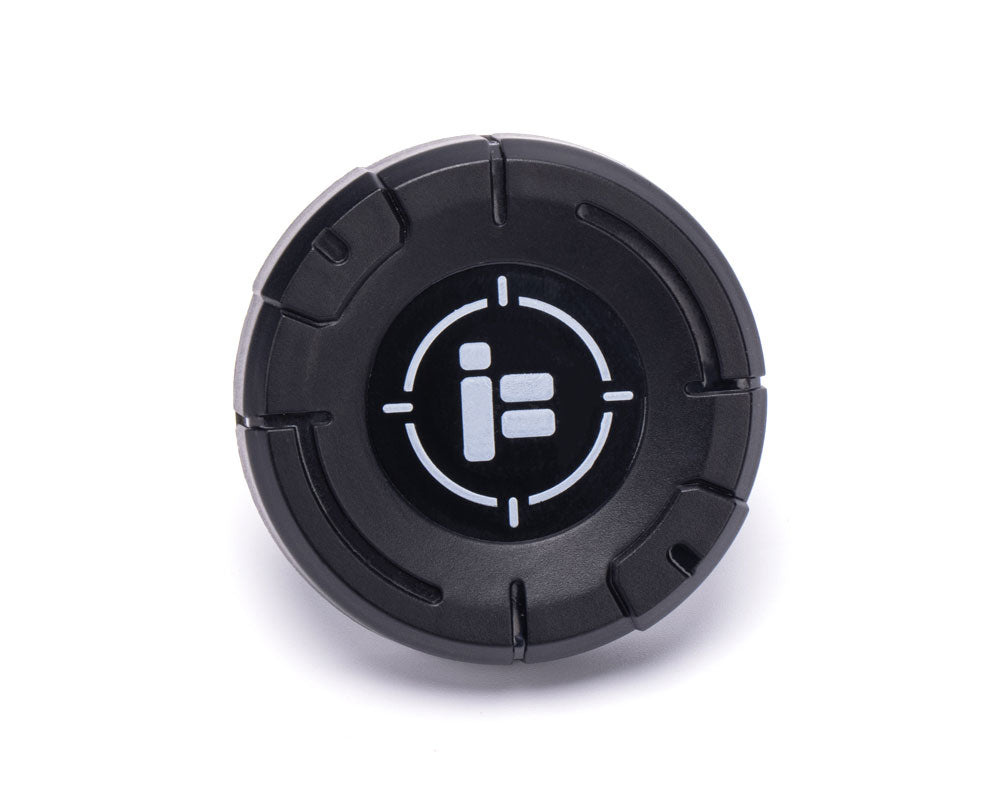

Upgrade your FPV setup with the iFlight Pigeon Directional Antenna RHCP, engineered for high-performance, long-range flights. This circularly polarized antenna delivers precise directional coverage, stable signal reception, and reduced interference for an immersive FPV experience.
Key Features:
- High Gain: 9dBi gain for strong signal penetration and extended flight range.
- Directional Coverage: Vertical and horizontal radiation angles of 75° provide targeted, reliable signal control.
- Circular RHCP Polarization: Minimizes multipath interference for superior video quality.
- Optimal Frequency Range: Designed for 5.4-5.9 GHz, ideal for FPV drone applications.
- Compact & Lightweight: 49 x 13 mm and 25.1 g, easy to mount without affecting drone balance.

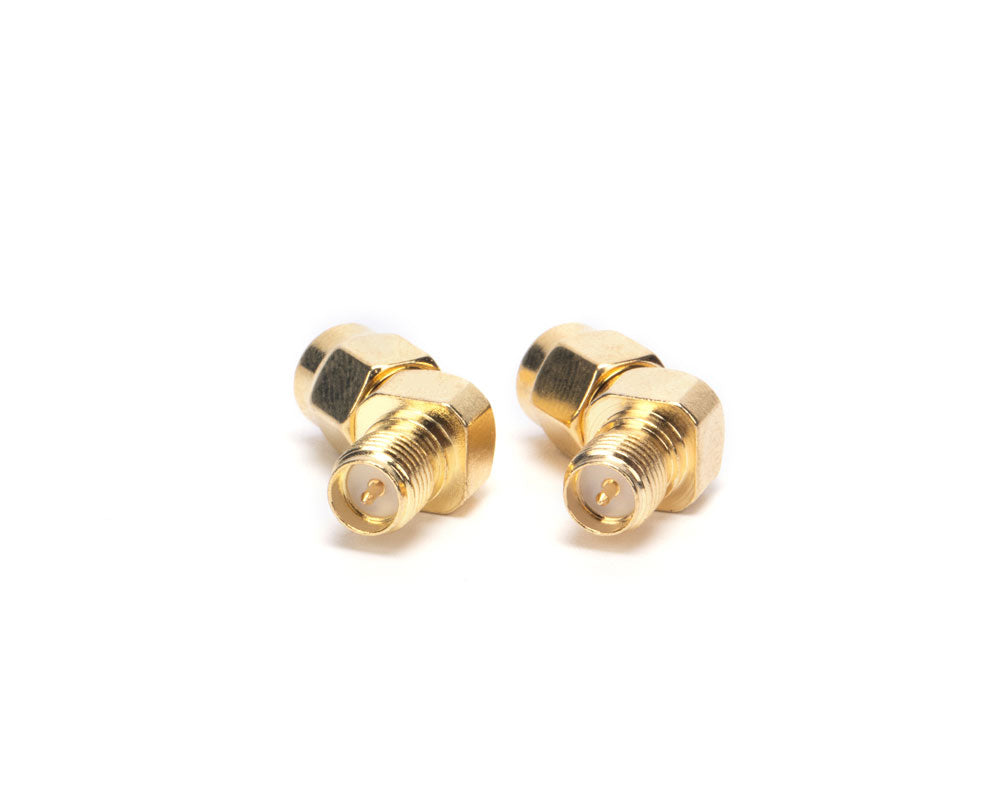

- SMA Connector: Secure, universal SMA connection for easy installation.
Technical Specifications:
- Center Frequency: 5.65 GHz
- Bandwidth: 5.4-5.9 GHz
- Gain: 9 dB
- Axial Ratio: <1.5
- Impedance: 50 Ω
- Horizontal Radiation Angle: 75°
- Vertical Radiation Angle: 75°
- Polarization: RHCP
- Dimensions: 49 x 13 mm

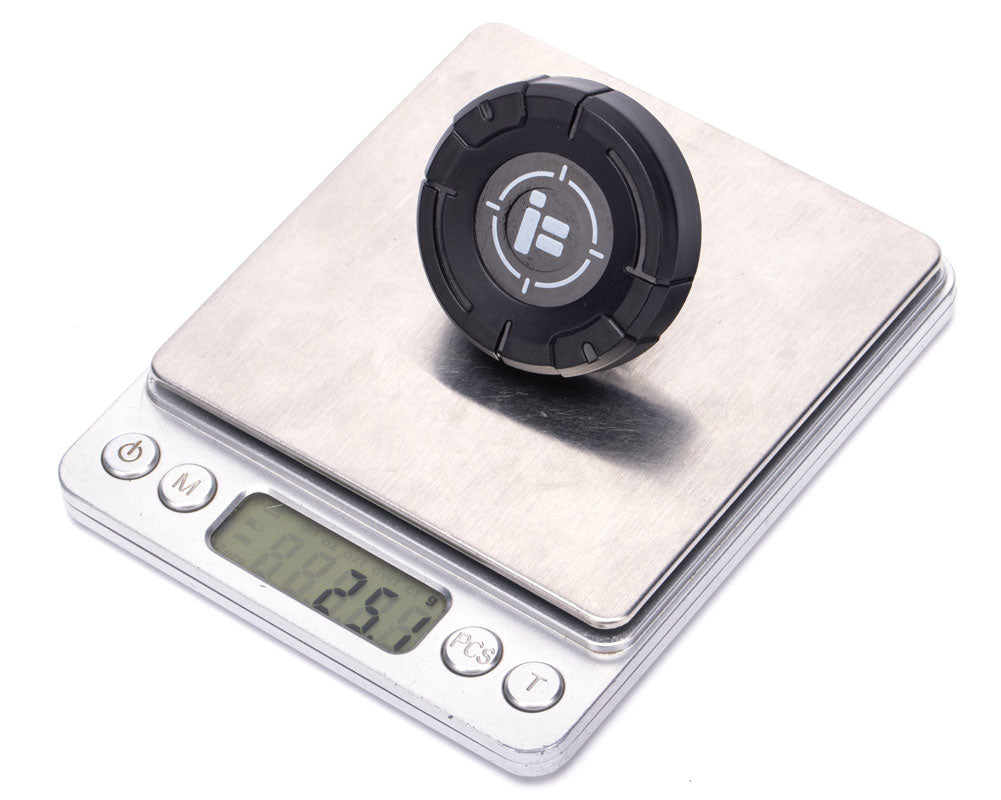

- Weight: 25.1 g
Package Includes:

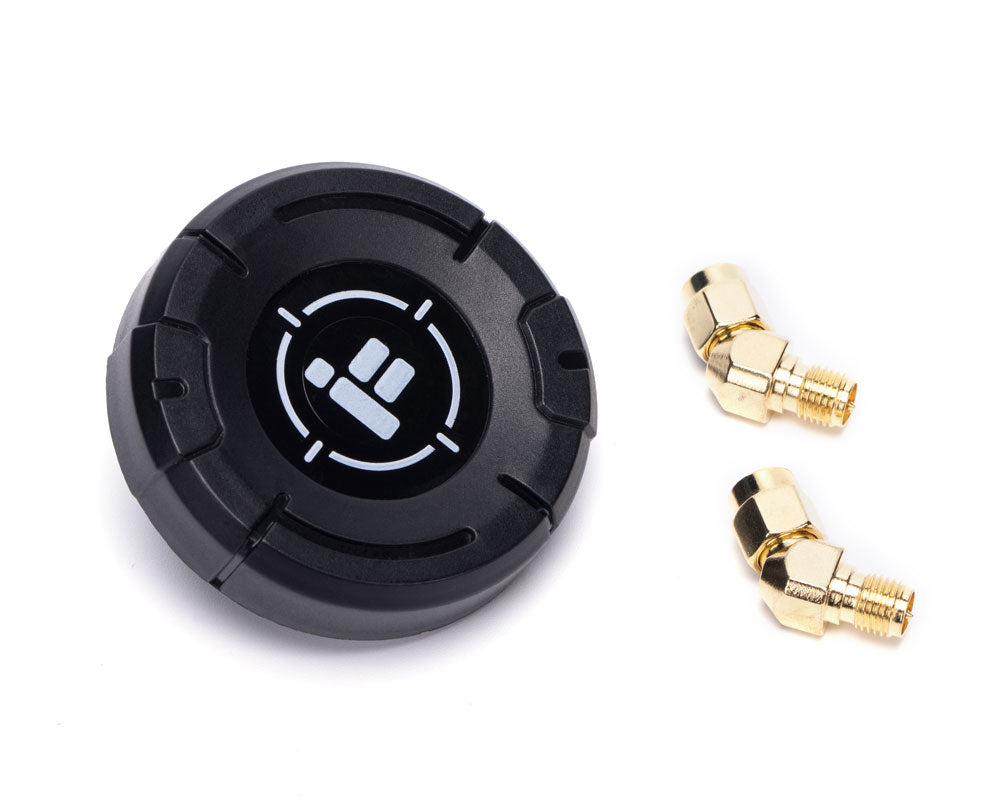

- 1 × iFlight Pigeon Directional Antenna RHCP
