iFlight Pigeon 5.8GHz Directional Antenna LHCP – 9dBi Gain
iFlight Pigeon 5.8GHz Directional Antenna LHCP – 9dBi Gain
Brand: iFlight
Regular price
€25,65
Regular price
€25,65
Sale price
€25,65
Unit price
per
sku: SKU:V011598
Available We have the goods available. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
- Description

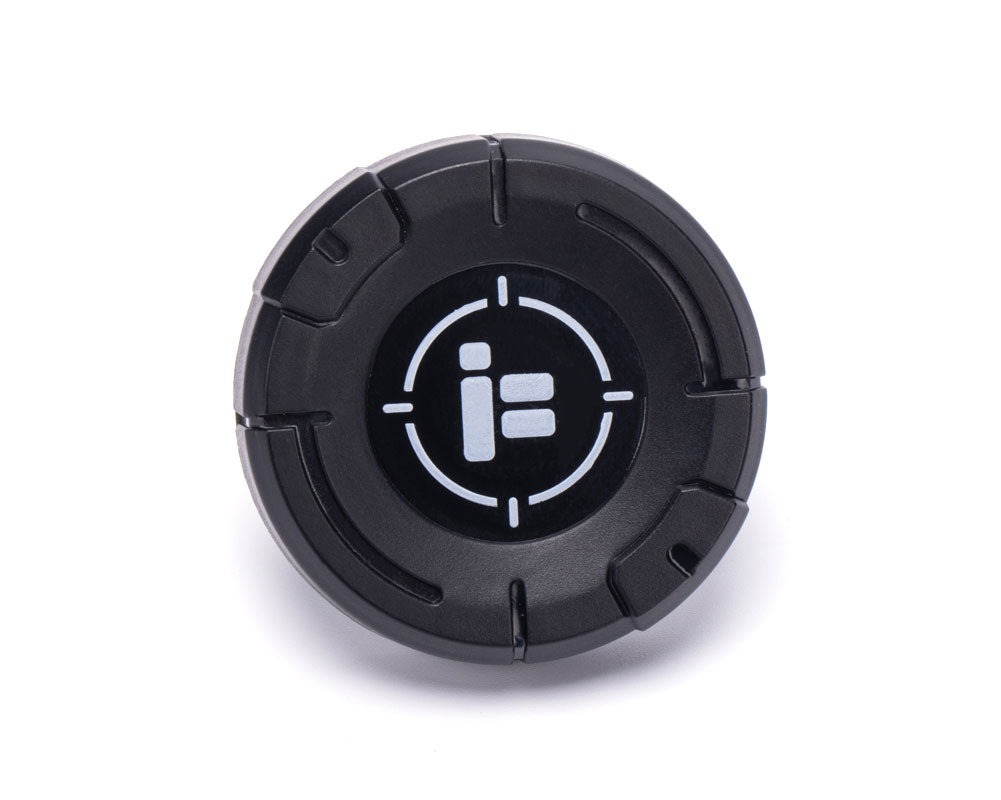

Enhance your FPV setup with the iFlight Pigeon Directional Antenna LHCP, designed for long-range, high-performance flying. This circularly polarized antenna delivers stable signal reception, minimized interference, and precise directional coverage for immersive FPV experiences.
Key Features:
- High Gain: 9dBi gain ensures strong signal penetration and extended range.
- Directional Coverage: Vertical and horizontal radiation angles of 75° provide targeted signal control.
- Circular LHCP Polarization: Reduces multipath interference and improves overall video quality.
- Optimal Frequency Range: Designed for 5.4-5.9 GHz, ideal for FPV drone applications.
- Compact & Lightweight: 49 x 13 mm size and 25.1 g weight make it easy to mount without affecting drone balance.

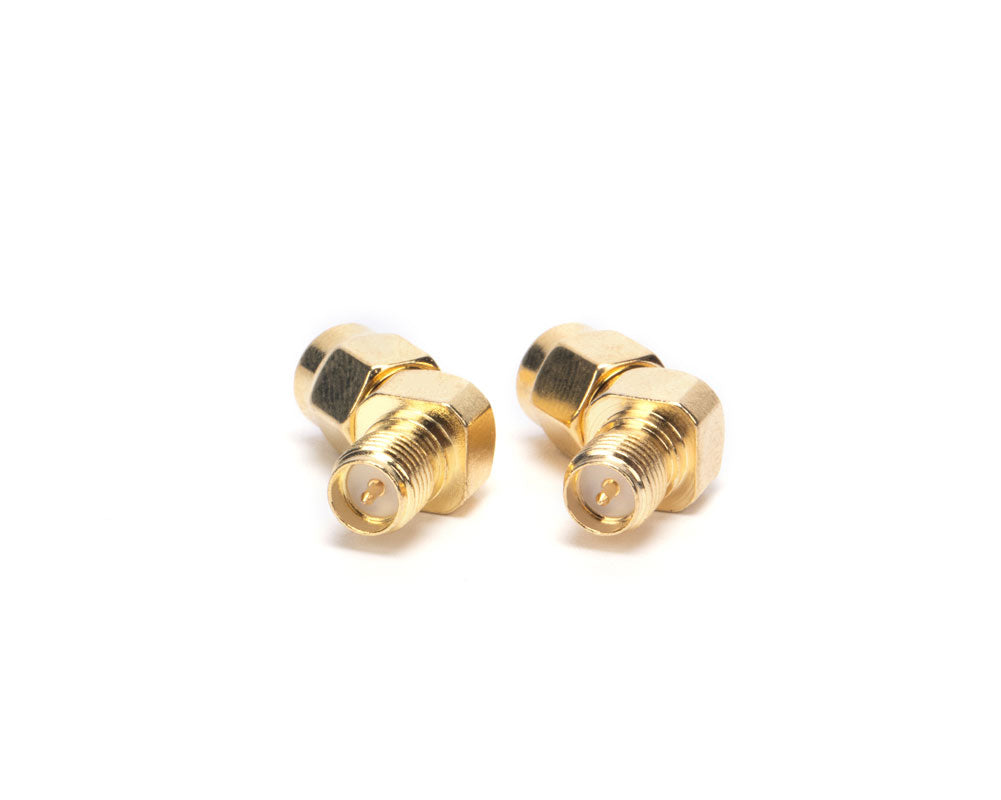

- SMA Connector: Universal SMA connector allows simple and secure installation on compatible FPV gear.
Technical Specifications:
- Center Frequency: 5.65 GHz
- Bandwidth: 5.4-5.9 GHz
- Gain: 9 dB
- Axial Ratio: <1.5
- Impedance: 50 ?
- Horizontal Radiation Angle: 75°
- Vertical Radiation Angle: 75°
- Polarization: LHCP
- Dimensions: 49 x 13 mm

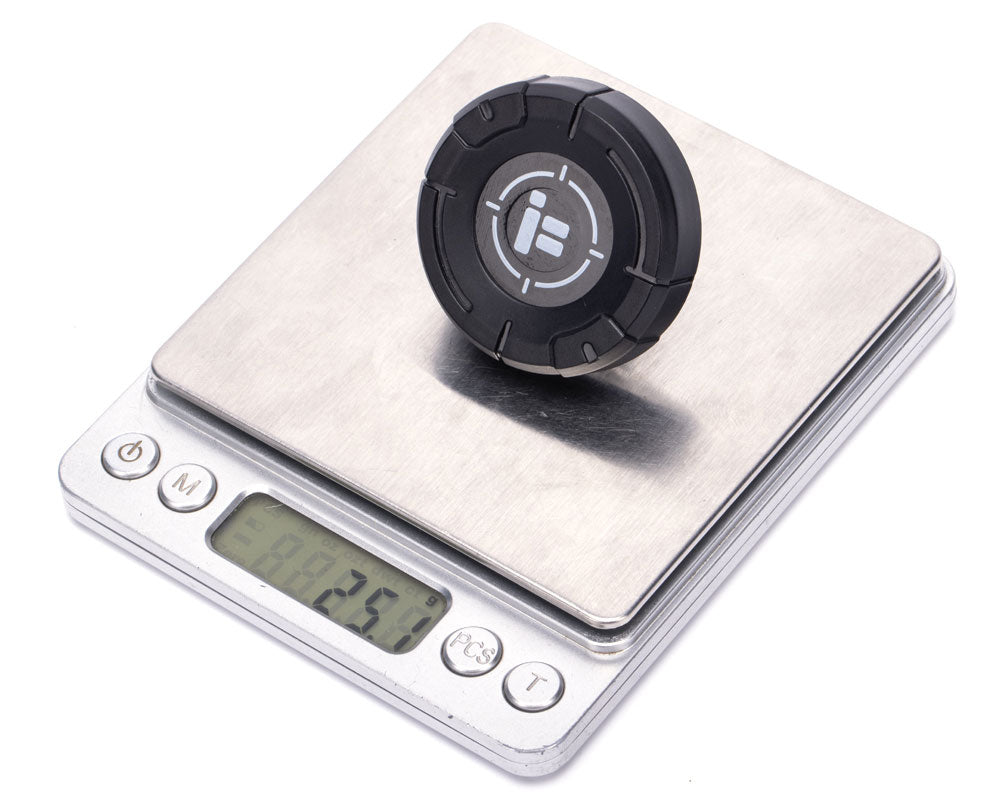

- Weight: 25.1 g
Package Includes:

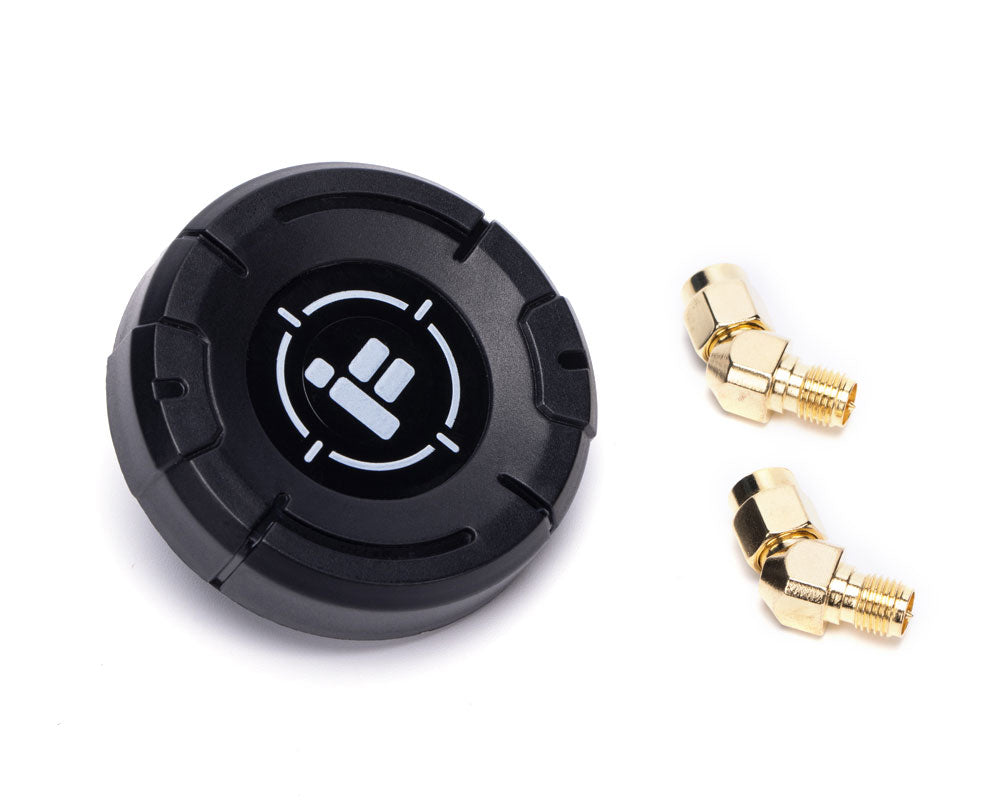

- 1 × iFlight Pigeon Directional Antenna LHCP
