    iFlight BLITZ Whoop 5.8G 2.5W VTX

    iFlight BLITZ Whoop 5.8G 2.5W VTX

    Brand: iFlight

    €72,59
    €72,59 €72,59
    -0% View Product

    sku: B015843

    In stock (612)
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description

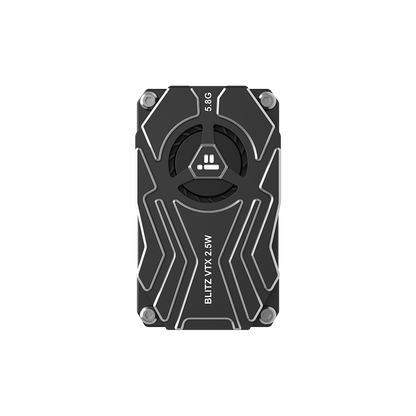

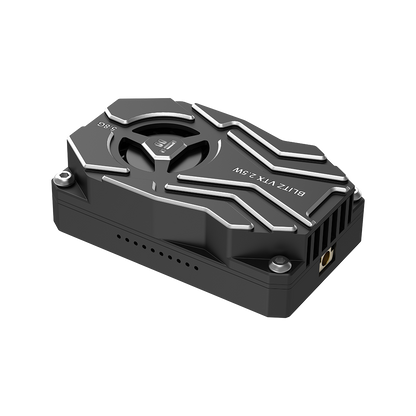

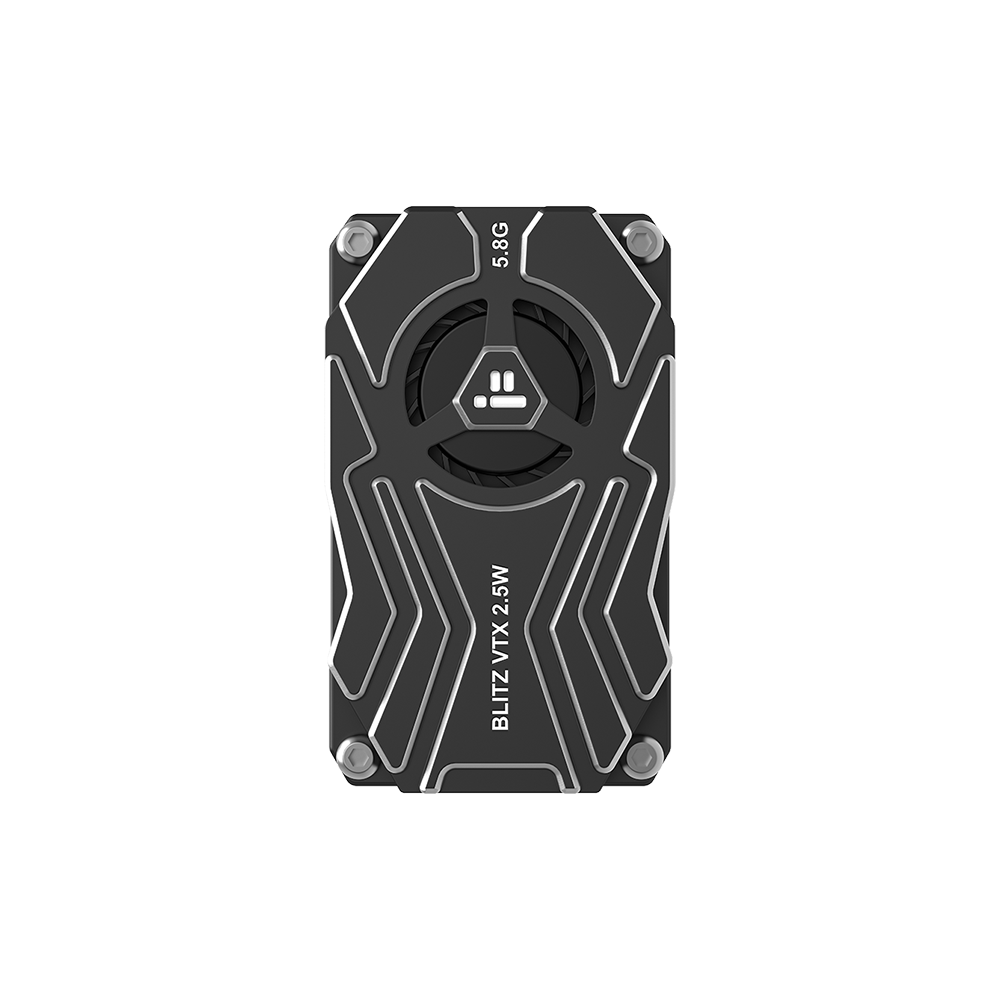

    The iFlight BLITZ Whoop 5.8G 2.5W VTX is a high-performance FPV video transmitter designed for micro and Whoop-style drones. It provides a strong, stable signal with adjustable power levels up to 2500 mW, supports 40 channels (including Raceband), and features active cooling with a CNC jacket and integrated fan for optimal heat dissipation. Built-in microphone and IRC Tramp telemetry allow for audio transmission and easy OSD configuration.

    Key Features

    • Output Power: PIT / 25mW / 400mW / 1000mW / 2500mW
    • Frequency Channels: 40CH (including Raceband)
    • Input Voltage: 7-34V DC (2-8S LiPo compatible)
    • Interface: MMCX

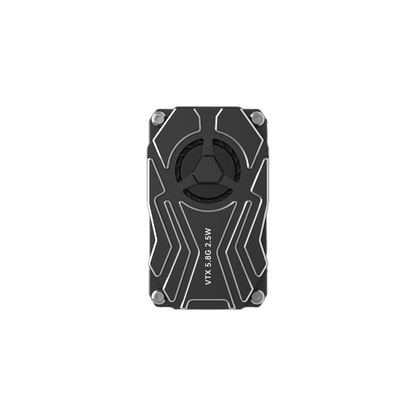

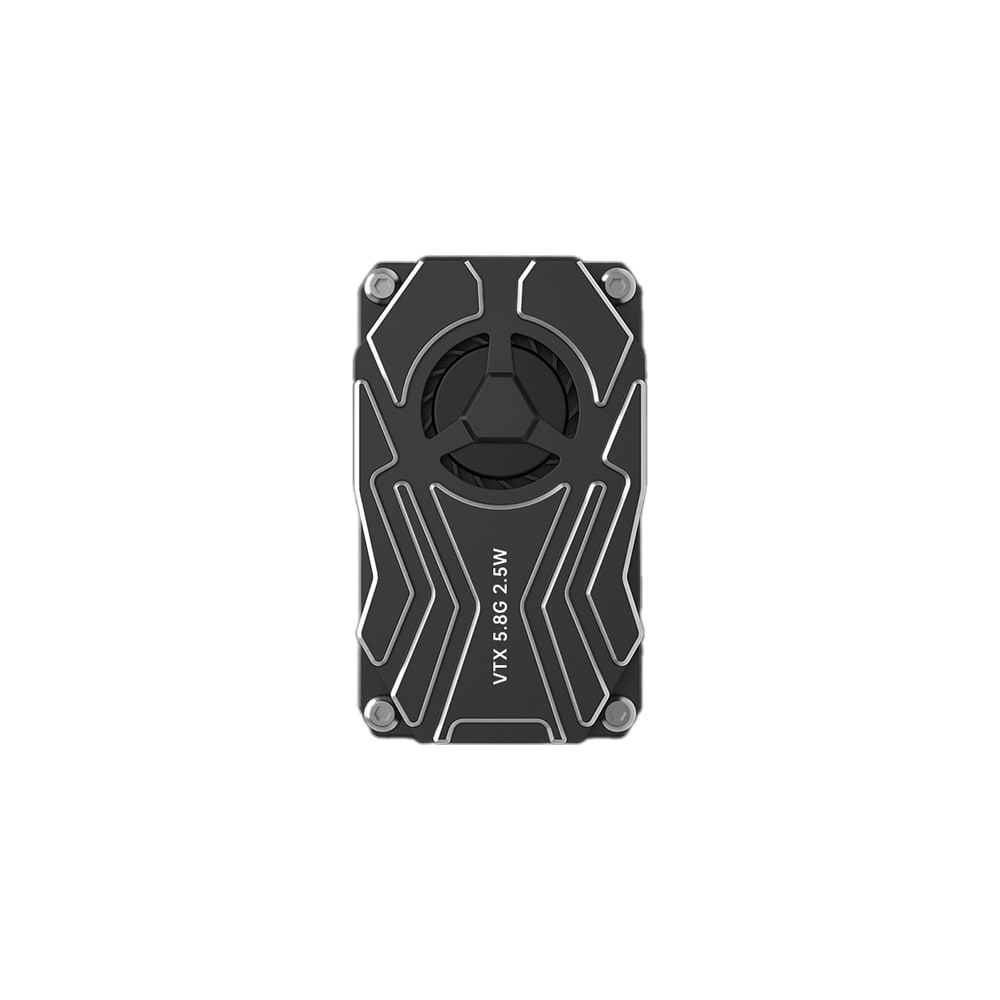

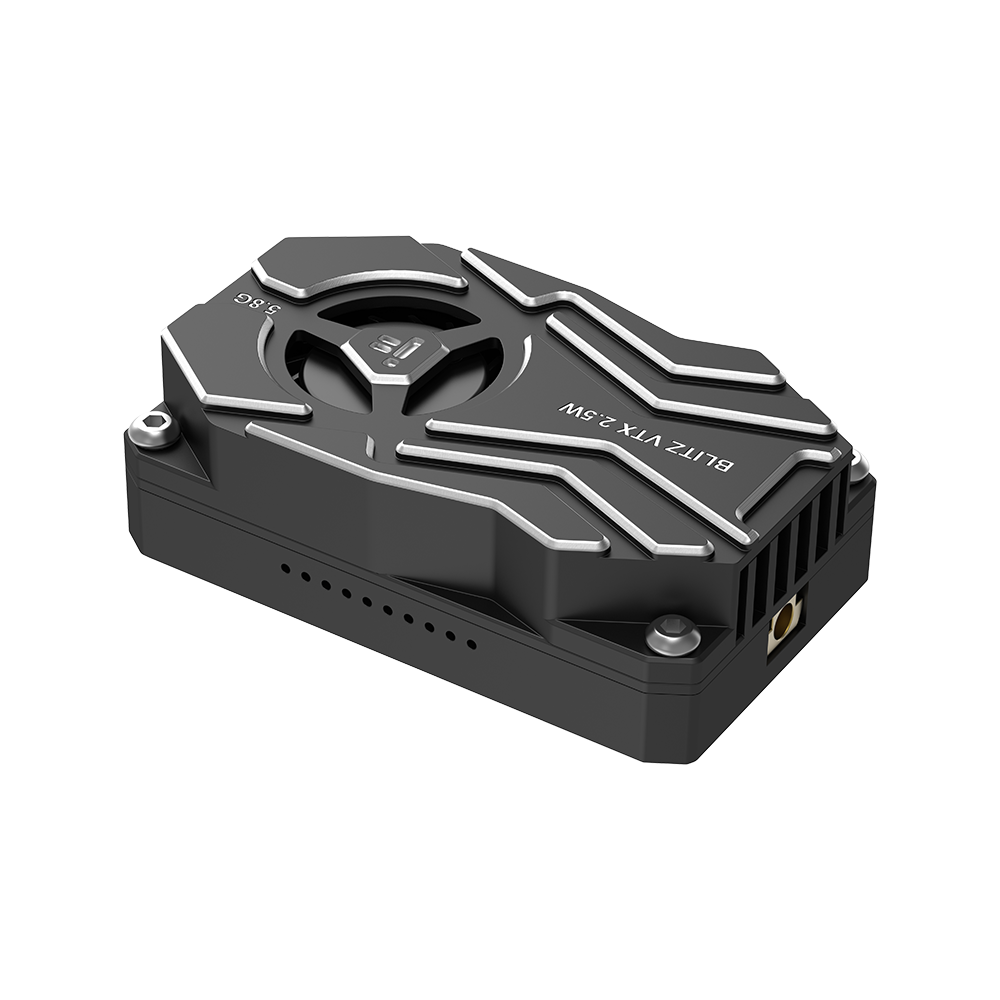

    • Cooling: CNC aluminum jacket with integrated fan
    • Telemetry: IRC Tramp supported for Betaflight OSD

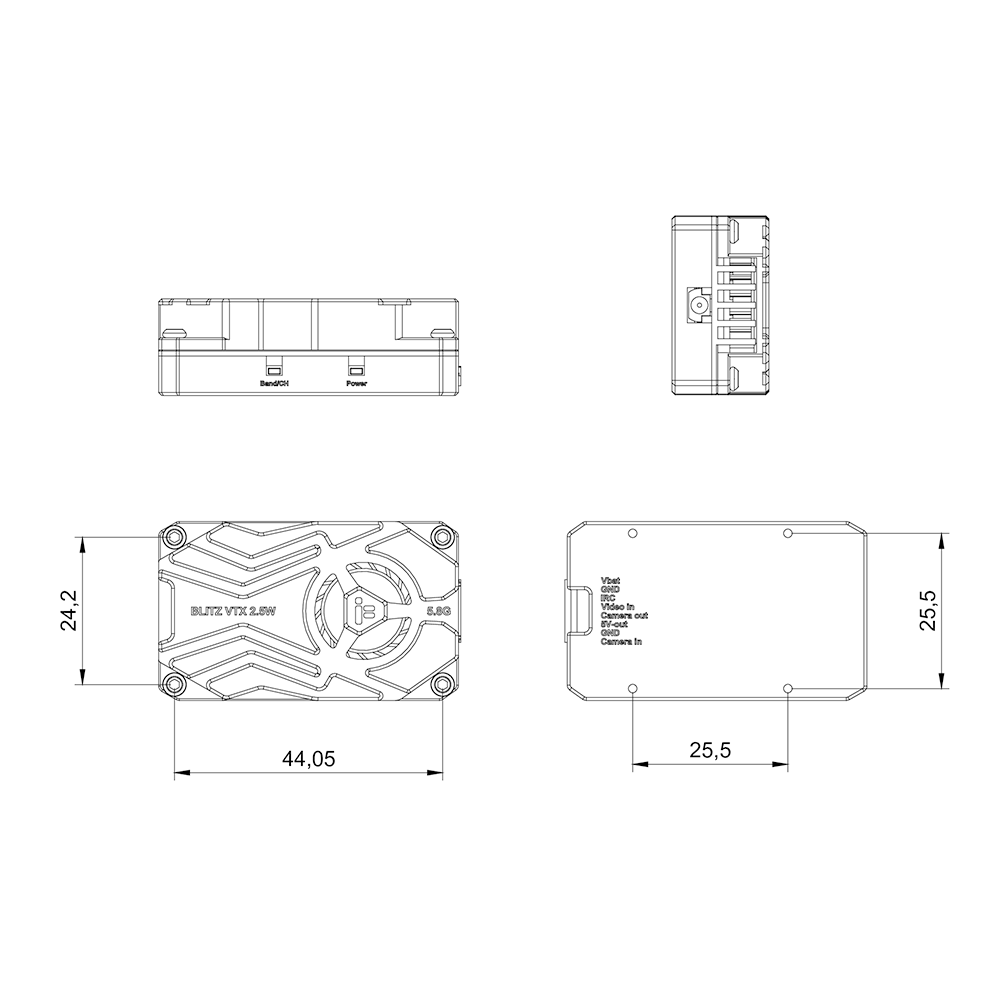

    • Mounting Pattern: 25.5 × 25.5mm / Φ1.6
    • Weight: 32 g (without antenna)
    • Built-in Microphone: Yes

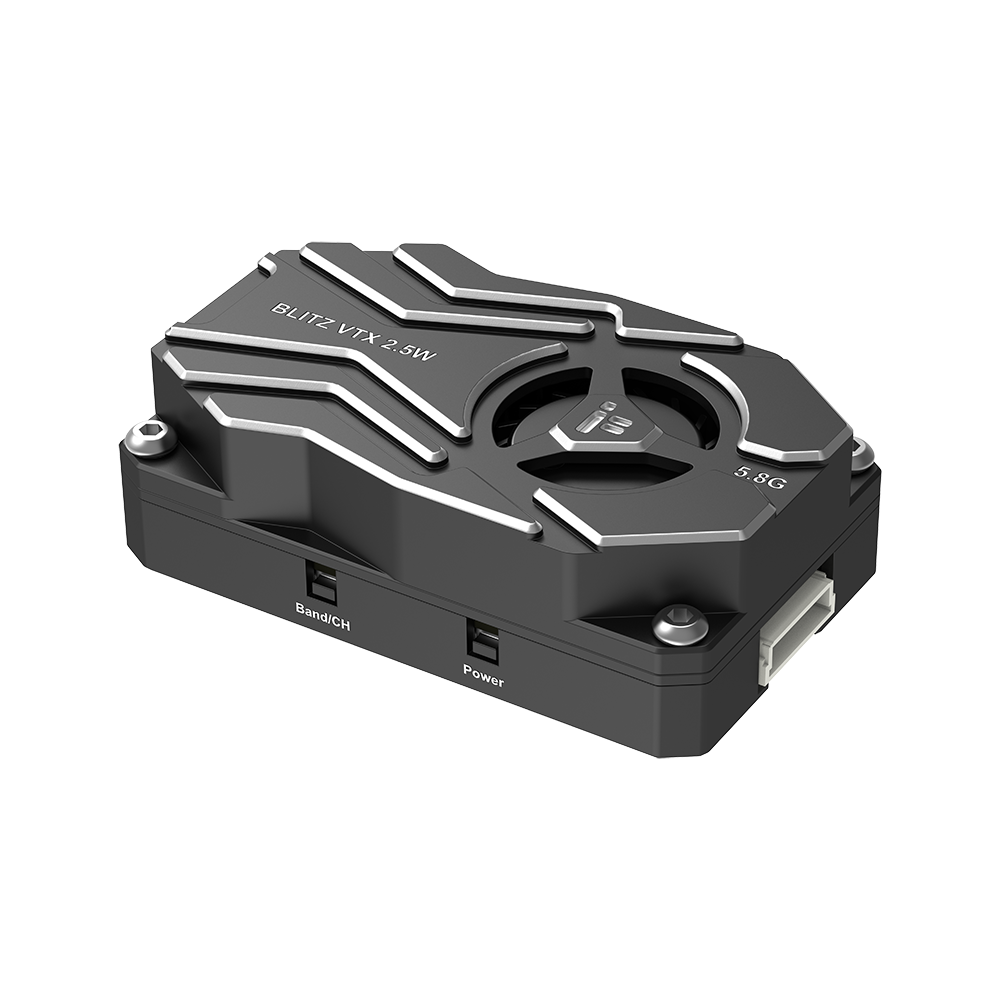

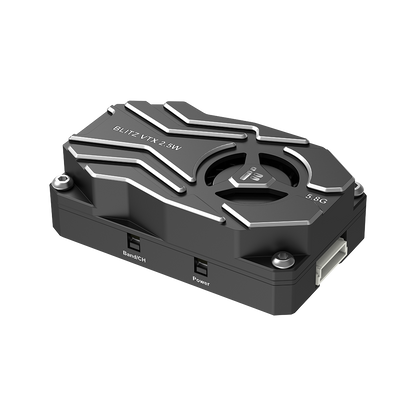

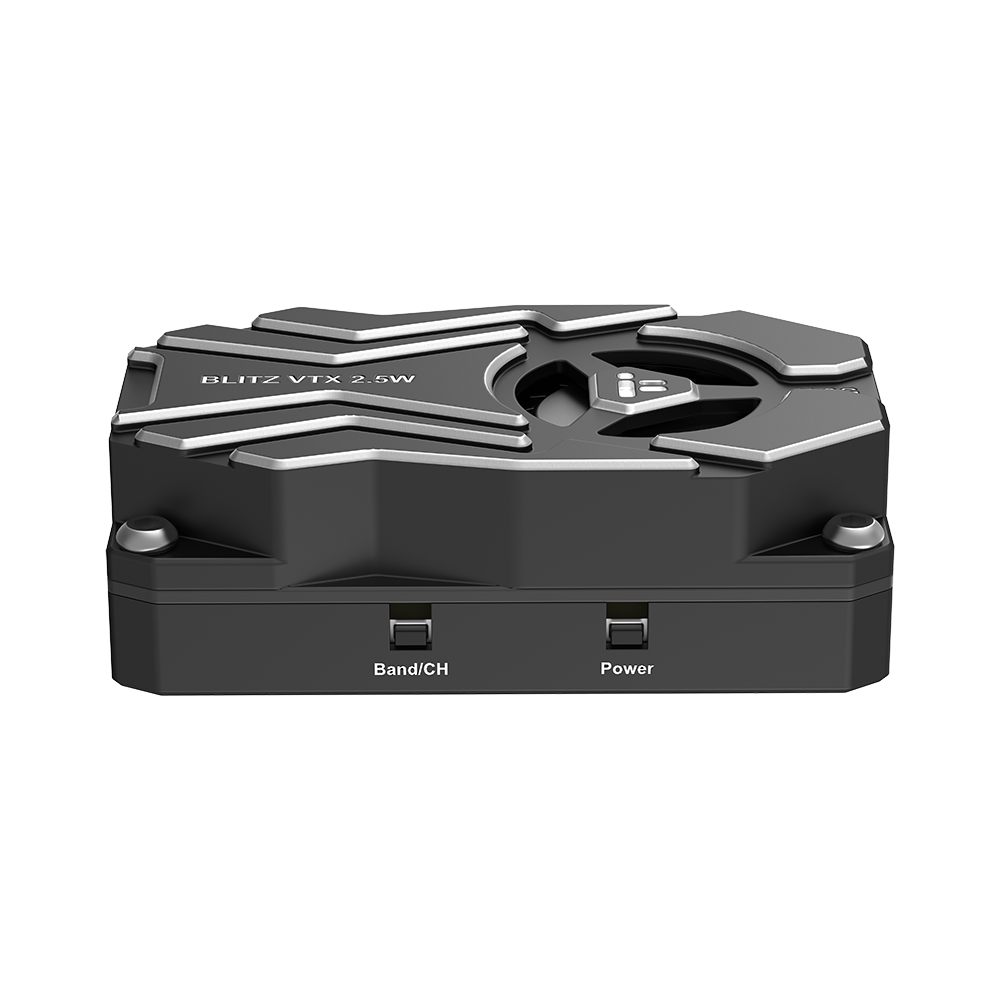

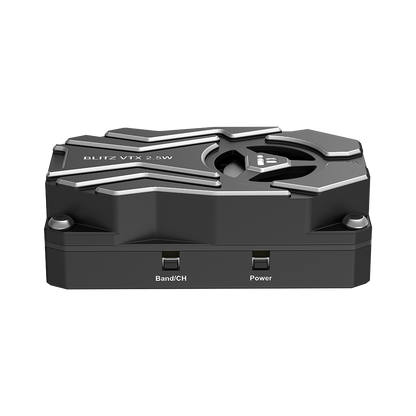

    LED Indicator & Control Buttons

    • Power Button:
      • Press 2s: Enter/exit PIT mode (solid green LED)
      • Short press: Cycle through output power levels; LED flashes indicate power:
        • 1 flash = 25 mW
        • 2 flashes = 400 mW
        • 3 flashes = 1000 mW
        • 4 flashes = 2500 mW
    • Band & Channel Button:
      • Press 2s: Switch frequency band (A-R), red LED flashes
      • Short press: Change channel within selected band, blue LED flashes

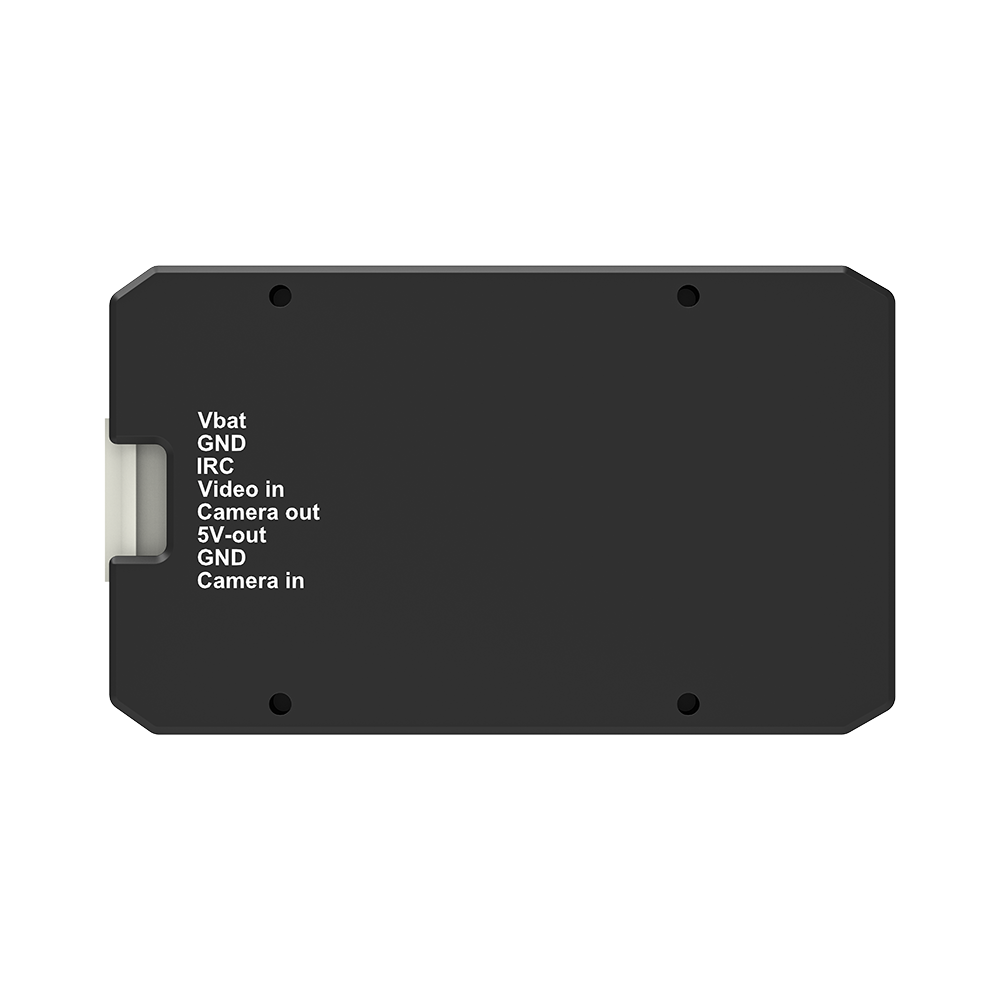

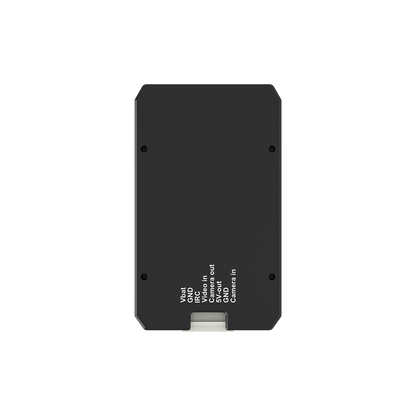

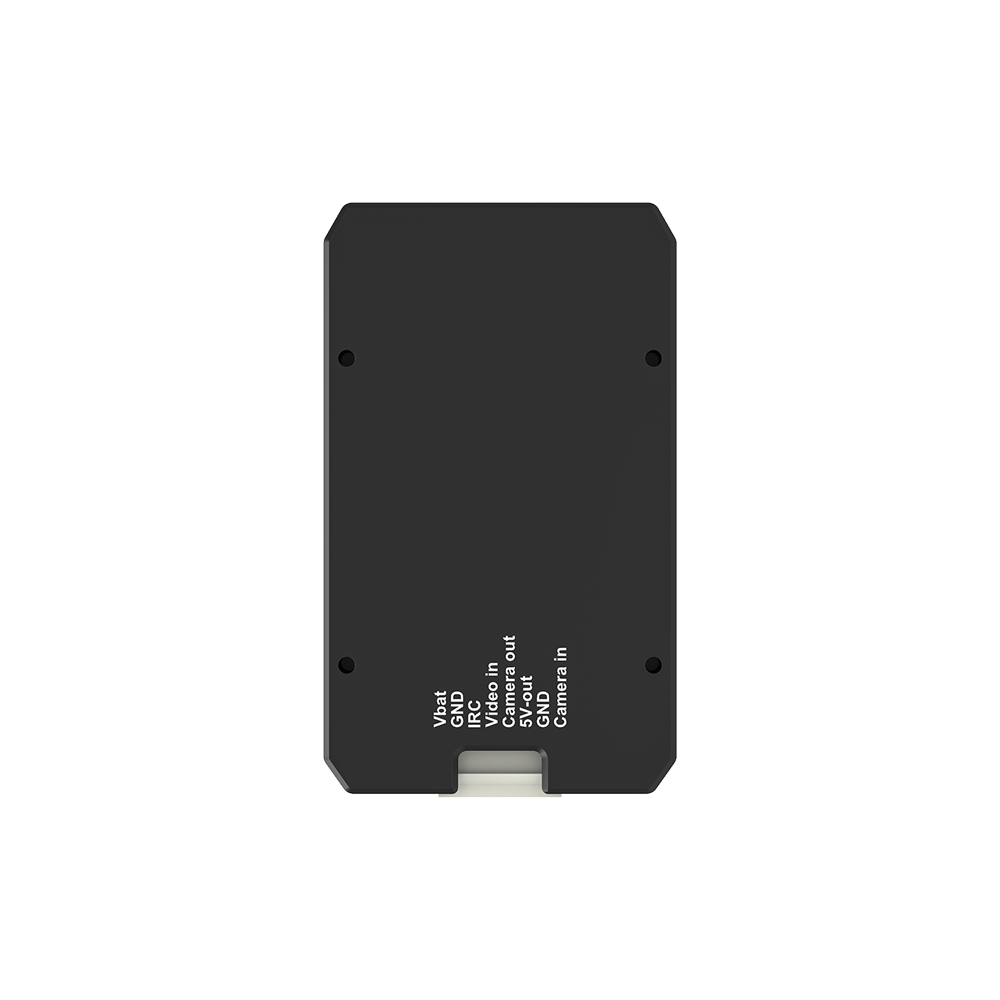

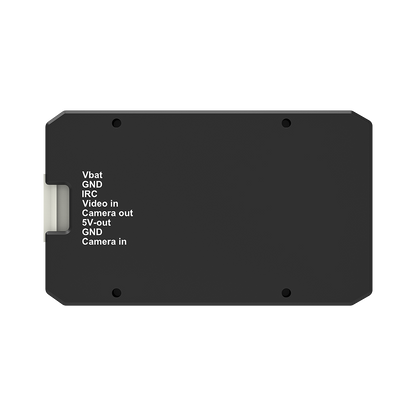

    Ports & Wiring

    • VBAT: 7-34V DC positive input (2-8S LiPo)
    • GND: Ground
    • 5V Output: 5V for camera or accessories
    • IRC: IRC Tramp signal input
    • Video In/Camera In: Video input from camera
    • Camera Out: Video output to VTX

    Tips for Safe Use:

    • Install antenna before powering on.
    • Verify correct voltage and polarity before operation.
    • Ensure proper airflow around the heatsink to avoid overheating protection.

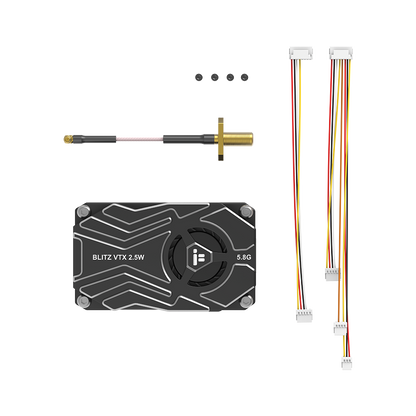

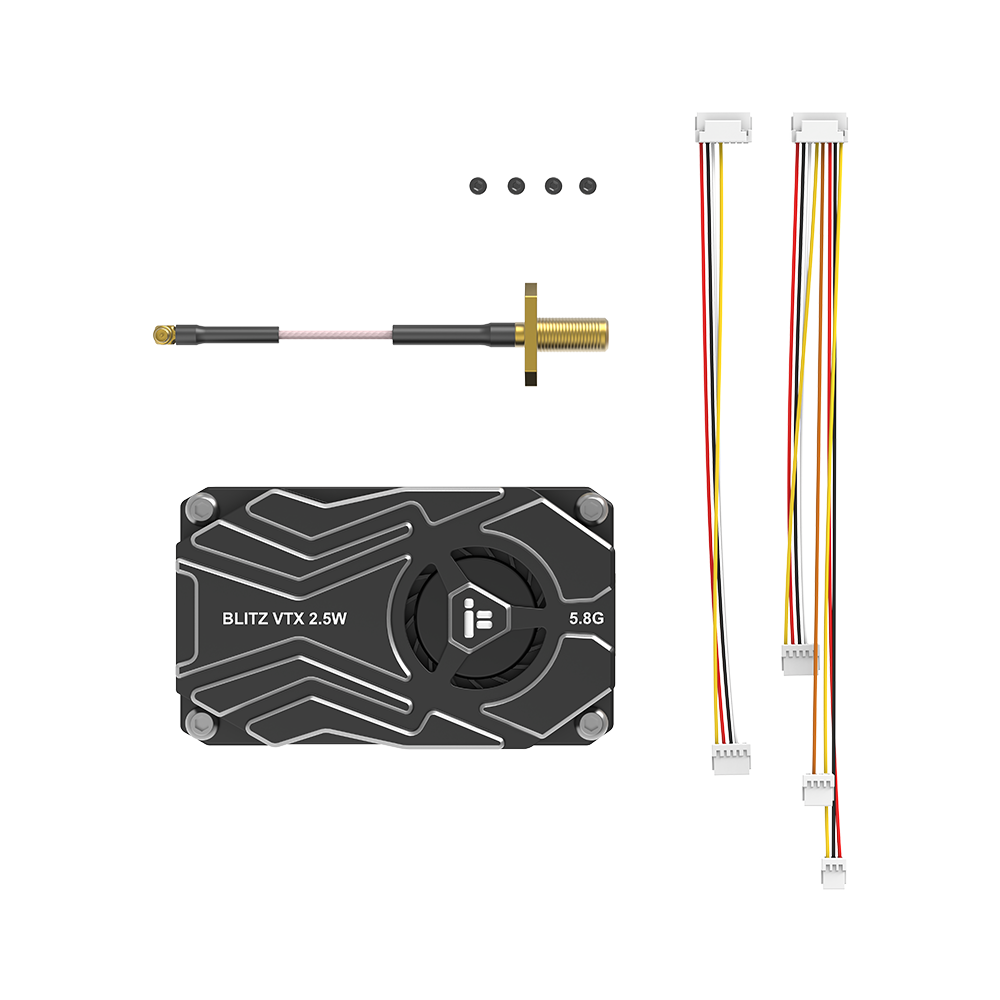

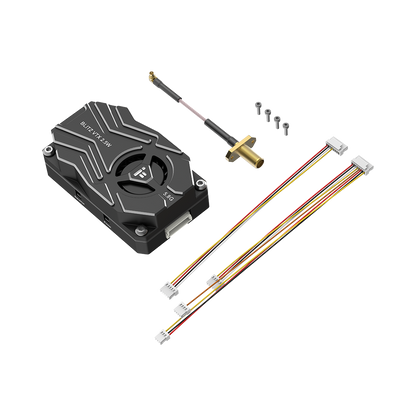

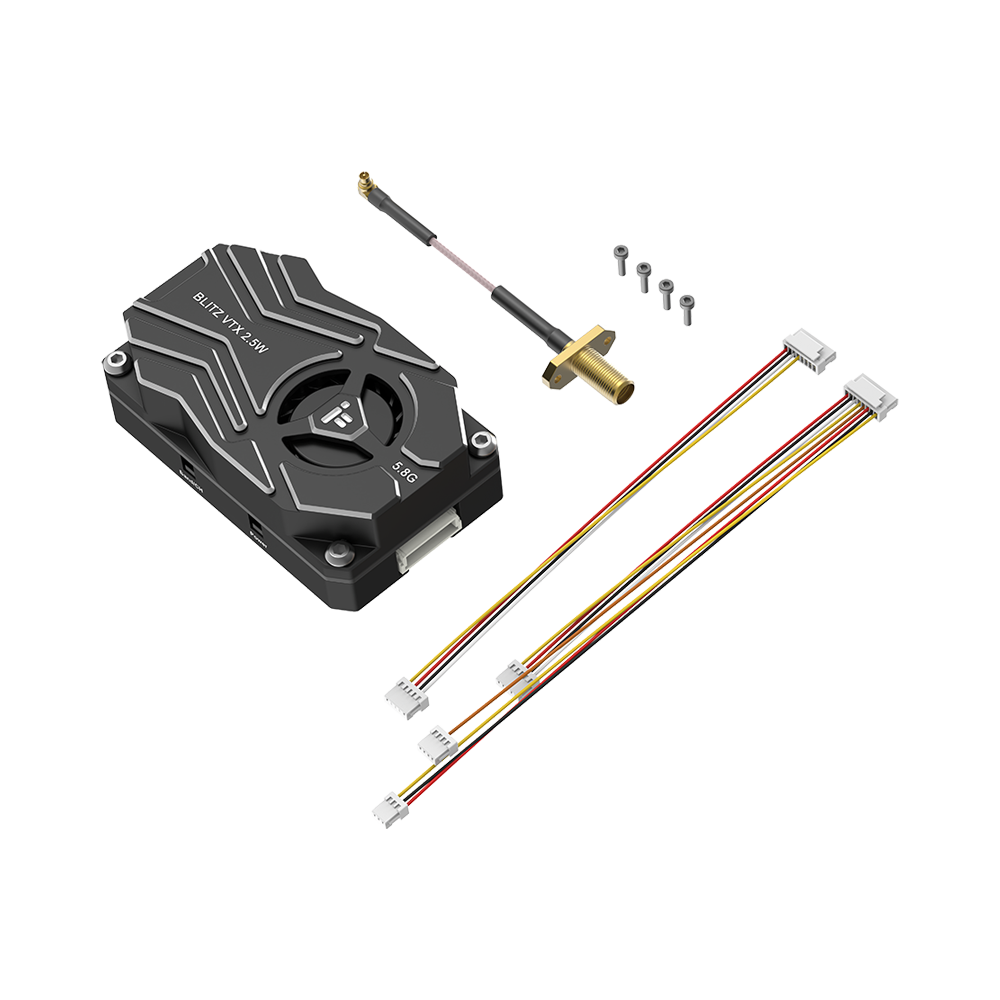

    Package Includes

    • 1 × iFlight BLITZ Whoop 5.8G 2.5W VTX
