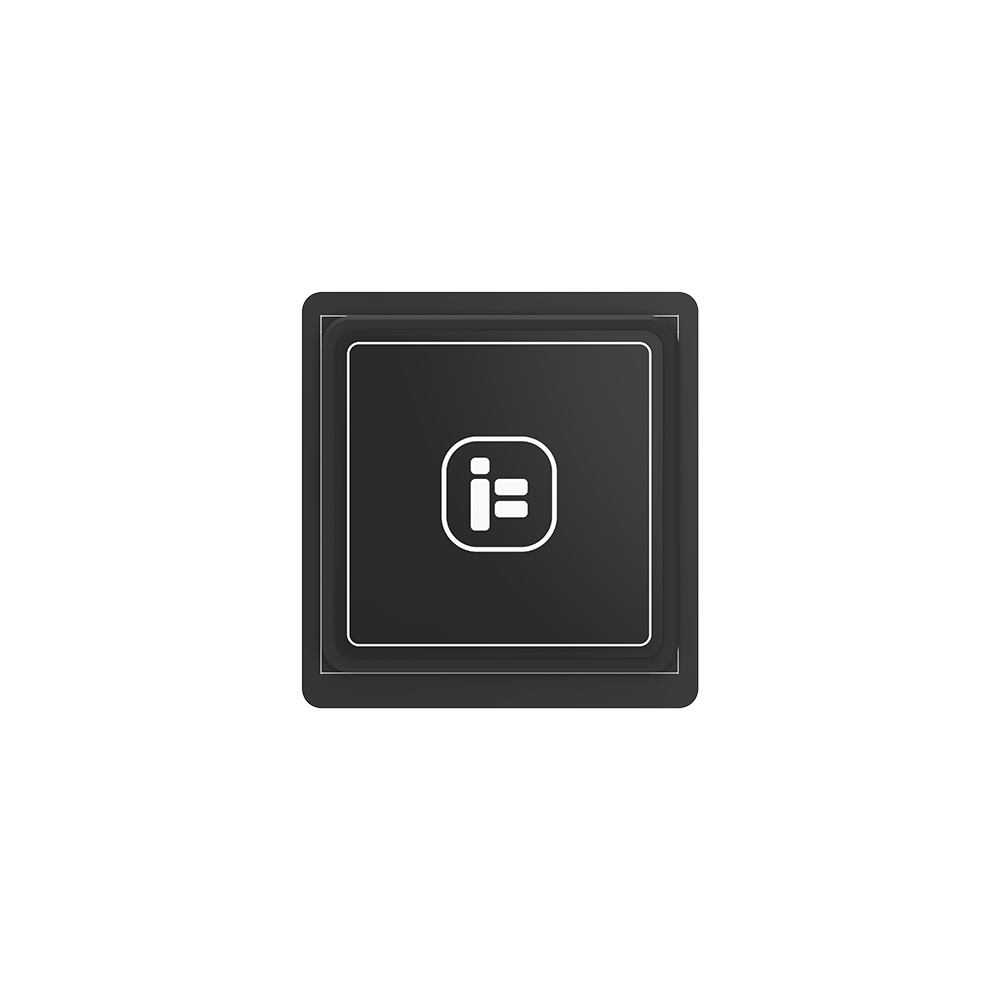

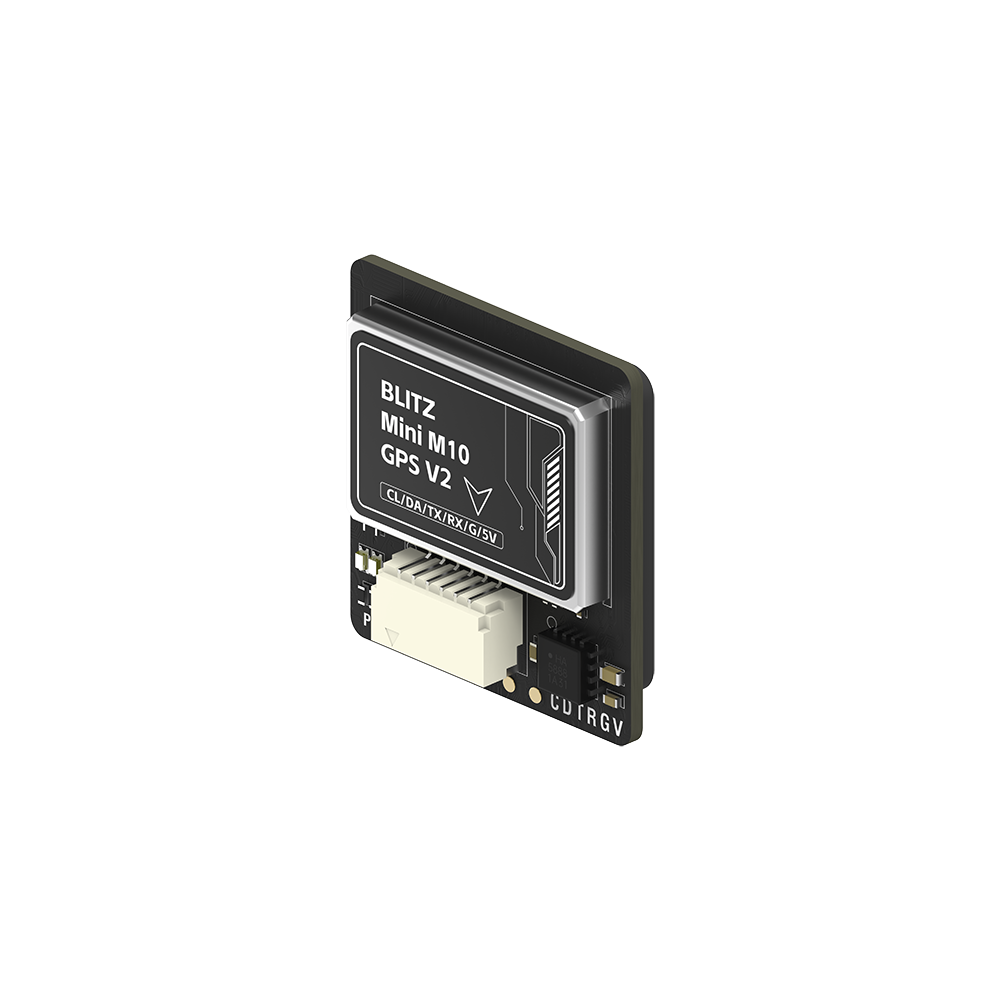

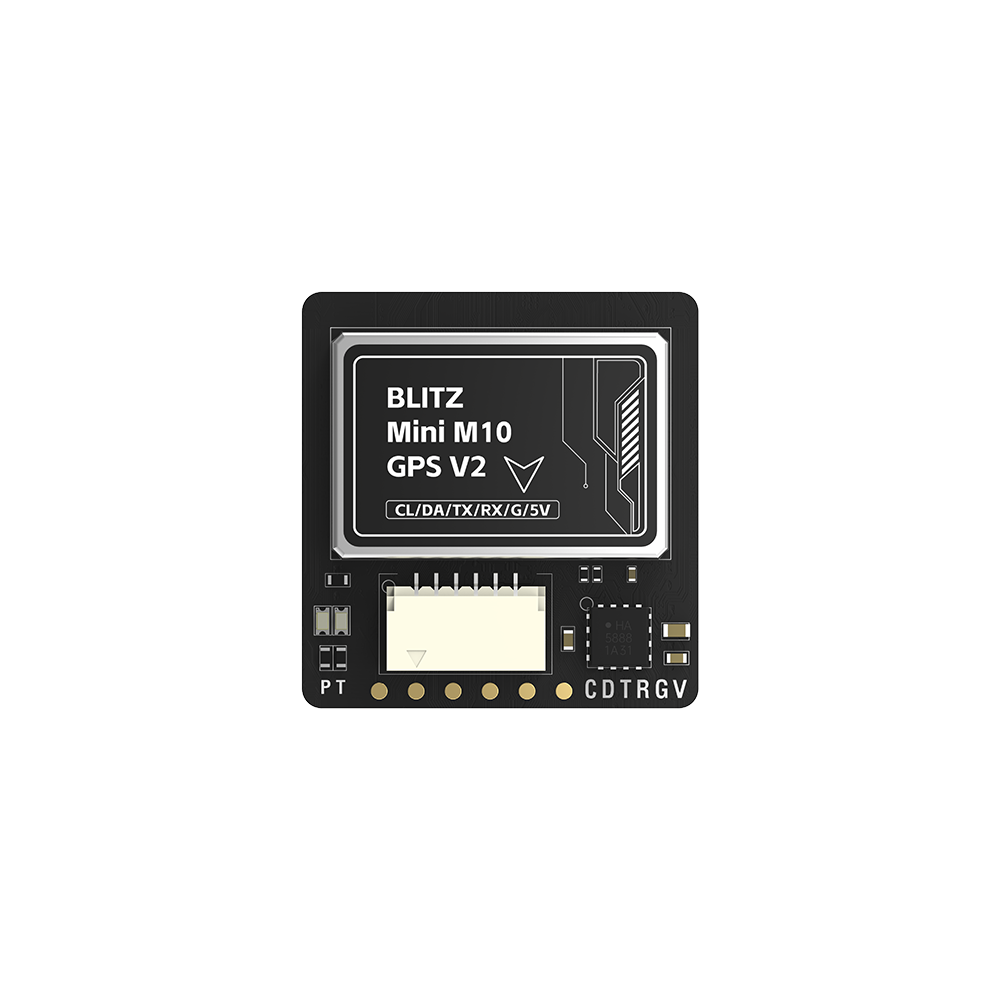

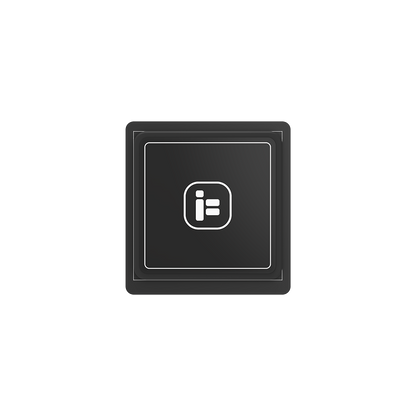

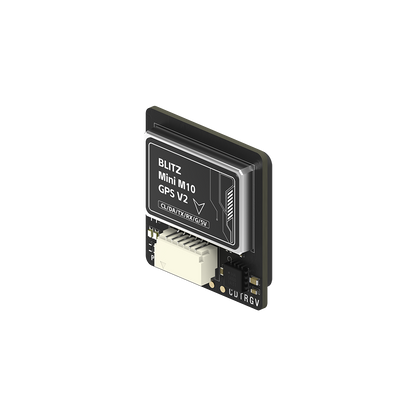

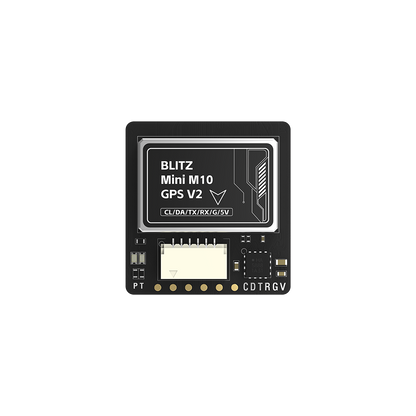

iFlight BLITZ Mini M10 GPS V2 with QMC5883 Compass
iFlight BLITZ Mini M10 GPS V2 with QMC5883 Compass
Brand: iFlight
sku: SKU:B015344
Out of stockCouldn't load pickup availability
- Description
The iFlight BLITZ Mini M10 GPS V2 is a compact, high-performance GPS module designed for FPV drones and UAVs that require precision, lightweight, and reliability. Powered by the UBLOX M10 chipset, it offers fast satellite acquisition, low power consumption, and multi-constellation GNSS support (GPS, GLONASS, Galileo, QZSS, SBAS).
This Mini version features an integrated QMC5883L compass and a built-in Farad capacitor, enabling faster hot starts and improved signal stability. Advanced components such as LNA (Low Noise Amplifier), RF filter, and TCXO ensure accurate positioning even in high-interference environments. With a 10 Hz refresh rate and ultra-compact design, this GPS module is ideal for micro drones and lightweight racing drones.
The BLITZ Mini M10 GPS V2 is compatible with multiple drone frames using single or dual TPU holders, making installation flexible and straightforward.
Key Features
- GNSS Support: GPS + SBAS + Galileo + QZSS + GLONASS
- Compass: Integrated QMC5883L
- High Precision: Positioning accuracy with speed 0.05 m/s
- Advanced Design: Farad capacitor, LNA, RF filter, TCXO
- Refresh Rate: 10 Hz
- Miniature Size: 20×21×8 mm, GPS antenna 18.2×18.2×4 mm
- Lightweight: Only 8 g
- Operating Specs: Max height 80,000 m, max speed 500 m/s, max acceleration ≤4G
- Input Voltage: 3.3-5.5 V
- GPS Pins: RX/TX UART
- Compass Pins: SDA/SCL
Mini Version Compatibility
- Single hole TPU holder: Chimera7 Pro v2, iH3 O3, Nazgul Evoque F4/F5/F6, XL10 v6, BOB57 HD
- Dual hole TPU holder: Nazgul5 V3, Taurus X8 Pro/V3, ProTek60 Pro
- No GPS TPU holder required: Helion 10
Package Includes
- 1 × BLITZ Mini M10 GPS V2
- 1 × Set of connection cables
